Светодиодные COB, двигатели, модули, полосы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет | CCT (K) | Длина волны | Конфигурация | Световой поток при токе/температуре | Ток - Тест | Температура - Тест | Напряжение - прямое (Vf) (тип.) | Люмен/Ватт при токе - Тест | Ток - макс. | CRI (индекс цветопередачи) | Угол обзора | Особенности | Размер/измерение | Высота | Светоизлучающая поверхность (LES) | Тип линзы |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT-54-G-L31-MPKLED MOD PT-54 GREEN RECT |
0 |
|
Технический лист |
PT-54 | Tray | Not For New Designs | LED Module | Green | - | 525nm | Rectangle | 2575lm (2150lm ~ 3000lm) | 13.5A | 40°C | 5.2V | 37 lm/W | - | - | - | With Connector | 26.50mm L x 16.00mm W | 6.40mm | 2.00mm L x 2.70mm W | Flat |
|
CXB3590-0000-000R0UBD27HLED COB XLAMP WARM WHT SQU 2700K |
0 |
|
Технический лист |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 10500lm (10000lm ~ 11000lm) | 1.2A | 85°C | 72V | 122 lm/W | 1.8A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXB3590-0000-000R0UCB35HLED COB XLAMP WARM WHT SQU 3500K |
0 |
|
Технический лист |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 11500lm (11000lm ~ 12000lm) | 1.2A | 85°C | 72V | 133 lm/W | 1.8A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXB3590-0000-000R0UCB40HLED COB XLAMP NEUT WHT SQU 4000K |
0 |
|
Технический лист |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 11500lm (11000lm ~ 12000lm) | 1.2A | 85°C | 72V | 133 lm/W | 1.8A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
CBT-90-WDLS-C11-NA150LED MOD CBT-90 CL WH RECT 6500K |
0 |
|
Технический лист |
CBT-90 | Tray | Active | LED Module | White, Cool | 6500K | - | Rectangle | - | 9A | - | 3.6V | - | 18A | - | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|
|
CXA3590-0000-000N0UAD57FLED COB XLAMP COOL WHT SQU 5700K |
0 |
|
Технический лист |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 2.4A | 85°C | 36V | 107 lm/W | 3.6A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000R0UAD57FLED COB XLAMP COOL WHT SQU 5700K |
0 |
|
Технический лист |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 1.2A | 85°C | 77V | 100 lm/W | 1.8A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|

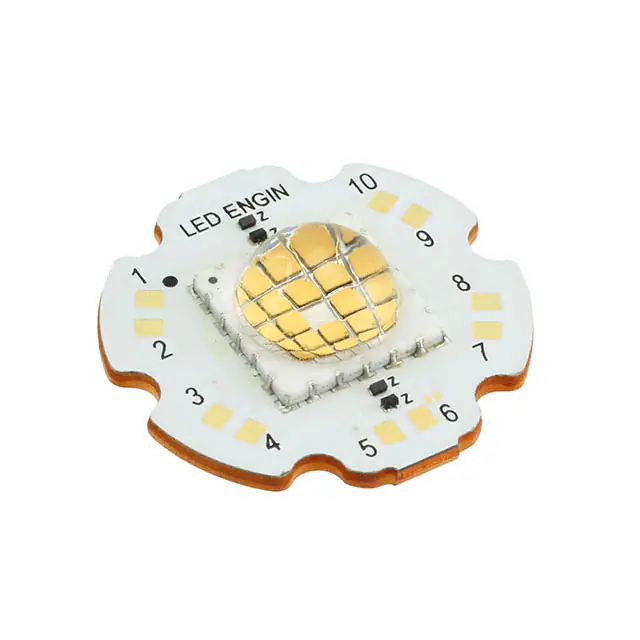

LZP-D0GW00-0230LED MOD LZP WM WH STARBRD 3000K |
0 |
|
Технический лист |
LZP | Tray | Obsolete | LED Module | White, Warm | 3000K | - | Starboard | 2650lm (2120lm ~ 2900lm) | 4 x 700mA | 25°C | 19.4V | 49 lm/W | 1A | 95 | 110° | - | 28.00mm Dia | 8.10mm | 10.50mm Dia | Domed |
|
|
12V-NB-RGB-5M12V, NORMAL BRIGHT, RGB - 5M REE |
0 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SBR-70-G-R75-JK201LED MOD SBR-70 GREEN STARBOARD |
0 |
|
Технический лист |
SBR-70 | Tray | Active | LED Module | Green | - | 530nm | Starboard | 2100lm (Typ) | 10.5A | 25°C | 4.5V | 44 lm/W | 14.0A | - | - | - | 19.90mm Dia | 3.44mm | 3.00mm Dia | Flat |
|
|
SBR-70-G-R75-JK202LED MOD SBR-70 GREEN STARBOARD |
0 |
|
Технический лист |
SBR-70 | Tray | Active | LED Module | Green | - | 530nm | Starboard | 2100lm (Typ) | 10.5A | 25°C | 4.5V | 44 lm/W | 14.0A | - | - | - | 19.90mm Dia | 3.44mm | 3.00mm Dia | Flat |
|
|
LZC-70UB00-00U4LED MOD LZC VIOLET STARBOARD |
0 |
|
Технический лист |
LZC | Tape & Reel (TR) | Active | LED Module | Violet | - | 388nm (385nm ~ 390nm) | Starboard | - | 700mA | 25°C | 44V | - | 1A | - | 115° | - | 28.28mm Dia | 7.10mm | 8.20mm Dia | Domed |
|
|
LZC-70UB00-00U5LED MOD LZC VIOLET STARBOARD |
0 |
|
Технический лист |
LZC | Tape & Reel (TR) | Active | LED Module | Violet | - | 393nm (390nm ~ 395nm) | Starboard | - | 700mA | 25°C | 44V | - | 1A | - | 115° | - | 28.28mm Dia | 7.10mm | 8.20mm Dia | Domed |
|
|
LZC-70UB00-00U6LED MOD LZC VIOLET STARBOARD |
0 |
|
Технический лист |
LZC | Tape & Reel (TR) | Active | LED Module | Violet | - | 398nm (395nm ~ 400nm) | Starboard | - | 700mA | 25°C | 44V | - | 1A | - | 115° | - | 28.28mm Dia | 7.10mm | 8.20mm Dia | Domed |
|
|
LZC-70UB00-00U7LED MOD LZC VIOLET STARBOARD |
0 |
|
Технический лист |
LZC | Tape & Reel (TR) | Active | LED Module | Violet | - | 403nm (400nm ~ 405nm) | Starboard | - | 700mA | 25°C | 44V | - | 1A | - | 115° | - | 28.28mm Dia | 7.10mm | 8.20mm Dia | Domed |
|
|
LZC-70UB00-00U8LED MOD LZC VIOLET STARBOARD |
0 |
|
Технический лист |
LZC | Tape & Reel (TR) | Active | LED Module | Violet | - | 408nm (405nm ~ 410nm) | Starboard | - | 700mA | 25°C | 44V | - | 1A | - | 115° | - | 28.28mm Dia | 7.10mm | 8.20mm Dia | Domed |
|
COM-12024LED RGB STRIP - SEALED (5M) |
0 |
|
Технический лист |
- | - | Obsolete | - | Red, Green, Blue (RGB) | - | 640nm Red, 525nm Green, 470nm Blue | - | - | 20mA Red, 20mA Green, 20mA Blue | 25°C | 12V | - | - | - | 120° | - | - | - | - | Flat |
|
|
0K017-N33428042NICHIA 334B 70MW, 350MA, 1UP ON |
0 |
|
- |
LUXdrive™ | Bag | Active | LED Engine | UltraViolet | - | 280nm | Starboard | 70mW | 350mA | 25°C | 5.5V | - | 1.05A | - | 120° | - | 19.81mm Dia | 2.79mm | 3.56mm Dia | Flat |
|
CXB3590-0000-000N0UCB50GLED COB XLAMP COOL WHT SQU 5000K |
0 |
|
Технический лист |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 11500lm (11000lm ~ 12000lm) | 2.4A | 85°C | 36V | 133 lm/W | 3.6A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXB3590-0000-000N0UCB57GLED COB XLAMP COOL WHT SQU 5700K |
0 |
|
Технический лист |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 11500lm (11000lm ~ 12000lm) | 2.4A | 85°C | 36V | 133 lm/W | 3.6A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
