Светодиодные COB, двигатели, модули, полосы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет | CCT (K) | Длина волны | Конфигурация | Световой поток при токе/температуре | Ток - Тест | Температура - Тест | Напряжение - прямое (Vf) (тип.) | Люмен/Ватт при токе - Тест | Ток - макс. | CRI (индекс цветопередачи) | Угол обзора | Особенности | Размер/измерение | Высота | Светоизлучающая поверхность (LES) | Тип линзы |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA2590-0000-000R0YY227HLED COB XLAMP WARM WHT SQU 2700K |
0 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 6670lm (6430lm ~ 6910lm) | 1.2A | 85°C | 69V | 81 lm/W | 1.8A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R0YY230HLED COB XLAMP WARM WHT SQU 3000K |
0 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 6670lm (6430lm ~ 6910lm) | 1.2A | 85°C | 69V | 81 lm/W | 1.8A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
SBR-70-G-R75-JM200LED MOD SBR-70 GREEN STARBOARD |
0 |
|
Технический лист |
SBR-70 | Tray | Active | LED Module | Green | - | 530nm | Starboard | 2100lm (Typ) | 10.5A | 25°C | 4.5V | 44 lm/W | 14.0A | - | - | - | 19.90mm Dia | 3.44mm | 3.00mm Dia | Flat |
|
LSR4-12C48-2790-00L2 BOARD, XHP35.2, RECTANGULAR, |
0 |
|
Технический лист |
XHP35.2 | Tray | Active | LED Module | White, Warm | 2700K | - | Rectangle | 4920lm (Typ) | 1.05A | 85°C | 44.8V | 105 lm/W | 3.15A | 90 | - | IP67 | 146.60mm L x 45.00mm W | - | - | Flat |
|

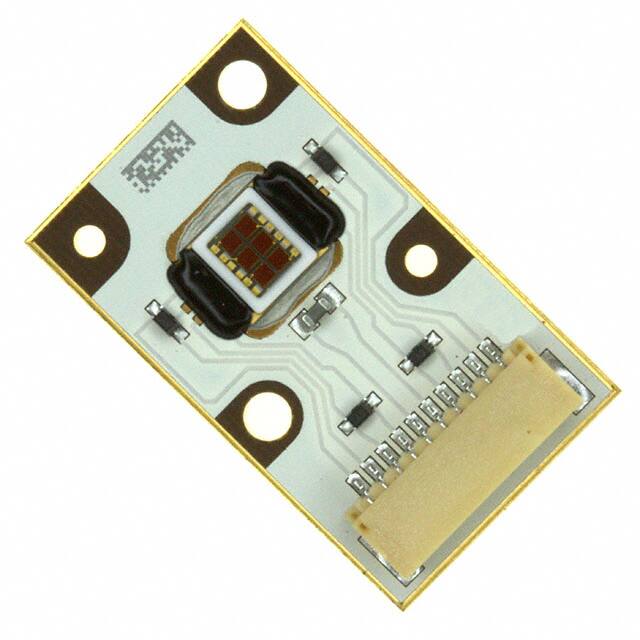

LE A H3A-KBMA-34LED OSTAR PROJ 6CHIP AMBER SMD |
0 |
|
- |
- | Tray | Obsolete | LED Module | - | - | - | - | - | - | - | - | - | - | - | - | - | 25.50mm L x 15.00mm W | 4.80mm | - | - |
|
LE AB H3AB-JBLA-1+EWFW-23LED OSTAR PROJ 6CHIP AMB/BLU SMD |
0 |
|
Технический лист |
Ostar | Tray | Obsolete | LED Module | Amber, Blue | - | 617nm Amber, 464nm Blue | Rectangle | 285lm (Typ) Amber, 35lm (Typ) Blue | 1A Amber, 1A Blue | 25°C | 2.8V Amber, 4V Blue | 102 lm/W Amber, 9 lm/W Blue | 1A Amber, 1A Blue | - | 120° | With Connector | 25.50mm L x 15.00mm W | 4.56mm | 3.13mm L x 2.03mm W | Flat |
|

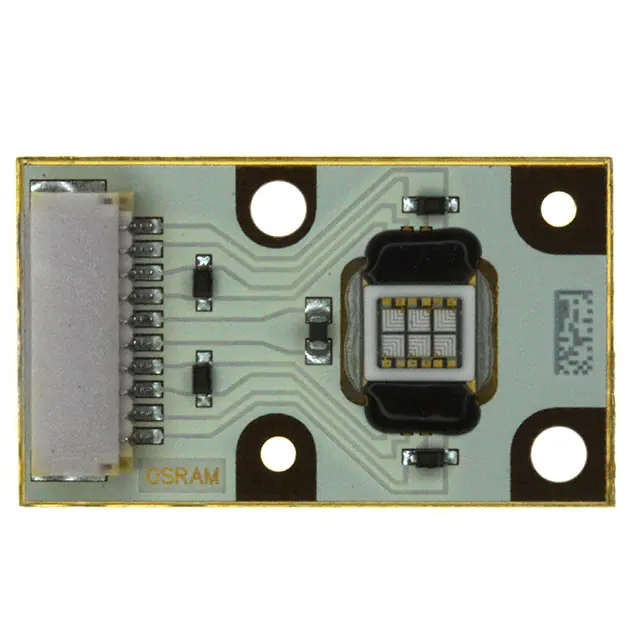

LE B H3A-GWJW-23LED MOD OSTAR BLUE RECT |
0 |
|
Технический лист |
Ostar | Tray | Obsolete | LED Module | Blue | - | 464nm | Rectangle | 123lm (70lm ~ 175lm) | 1A | 25°C | 4V | 31 lm/W | 1A | - | 120° | With Connector | 25.50mm L x 15.00mm W | 4.56mm | 3.13mm L x 2.03mm W | Flat |
|
|
LE T H3A-KBMA-24LED MOD OSTAR GREEN RECT |
0 |
|
Технический лист |
Ostar | Tray | Obsolete | LED Module | Green | - | 520nm | Rectangle | 450lm (300lm ~ 600lm) | 1A | 25°C | 4V | 113 lm/W | 1A | - | 120° | With Connector | 25.50mm L x 15.00mm W | 4.56mm | 3.13mm L x 2.03mm W | Flat |
|
CXB3590-0000-000R0UCB50GLED COB XLAMP COOL WHT SQU 5000K |
0 |
|
Технический лист |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 11500lm (11000lm ~ 12000lm) | 1.2A | 85°C | 72V | 133 lm/W | 1.8A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXB3590-0000-000R0UCB57GLED COB XLAMP COOL WHT SQU 5700K |
0 |
|
Технический лист |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 11500lm (11000lm ~ 12000lm) | 1.2A | 85°C | 72V | 133 lm/W | 1.8A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
SI-B8UD91280WWLinear IC's |
0 |
|
- |
- | Bulk | Last Time Buy | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SBR-90-R-F75-HM101LED MOD SBR-90 RED STARBOARD |
0 |
|
Технический лист |
SBR-90 | Tray | Active | LED Module | Red | - | 621nm (619nm ~ 623nm) | Starboard | 860lm (Typ) | 13.5A | 25°C | 2.7V | 24 lm/W | 13.5A | - | - | - | 19.90mm Dia | 3.50mm | 3.00mm L x 3.00mm W | Flat |
|
|
SBR-70-B-R75-KF301LED MOD SBR-70 BLUE STARBOARD |
0 |
|
Технический лист |
SBR-70 | Tray | Active | LED Module | Blue | - | 445nm | Starboard | 200lm (Typ) | 10.5A | 25°C | 3.8V | 5 lm/W | 10.5A | - | - | - | 19.90mm Dia | 3.44mm | 3.00mm Dia | Flat |
|
|
CXB3590-0000-000N0HCD30HLED COB XLAMP WARM WHT SQU 3000K |
0 |
|
Технический лист |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 12500lm (12000lm ~ 13000lm) | 2.4A | 85°C | 36V | 145 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXB3590-0000-000N0HDB40HLED COB XLAMP NEUT WHT SQU 4000K |
0 |
|
Технический лист |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 13500lm (13000lm ~ 14000lm) | 2.4A | 85°C | 36V | 156 lm/W | 3.6A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA2590-0000-000R0HAD40FLED COB XLAMP NEUT WHT SQU 4000K |
0 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 1.2A | 85°C | 69V | 112 lm/W | 1.8A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
CBT-90-B-L11-H101LED MOD CBT-90 BLUE RECT |
0 |
|
Технический лист |
CBT-90 | Tray | Active | LED Module | Blue | - | 455nm (450nm ~ 460nm) | Rectangle | - | 13.5A | 40°C | 3.5V | - | 27A | - | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|

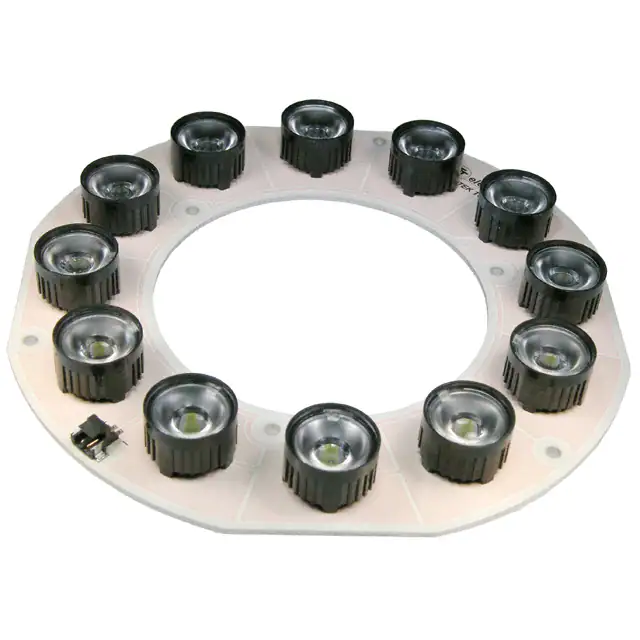

OPA741W23LED MOD OPA740 CL WH RING 6500K |
0 |
|
Технический лист |
OPA740 | - | Obsolete | LED Module | White, Cool | 6500K | - | Ring (Disc) | 490lm (Typ) | 700mA | 25°C | 21.6V | 32 lm/W | 700mA | - | 23° | With Connector | 168.60mm Dia | 1.68mm | - | Flat |
|
NTB-D149R-PLED ENG RED LINEAR STRIP |
1 |
|
- |
- | Case | Active | LED Engine | Red | - | - | Linear Light Strip, Plug and Play | - | 270mA | - | - | - | - | - | - | - | 155.00mm L x 25.00mm W | 31.50mm | - | Flat |
|
|
NTB-D149B-PLED ENG BLUE LINEAR STRIP |
1 |
|
- |
- | Case | Active | LED Engine | Blue | - | - | Linear Light Strip, Plug and Play | - | 430mA | - | - | - | - | - | - | - | 155.00mm L x 25.00mm W | 31.50mm | - | Flat |
