Светодиодные COB, двигатели, модули, полосы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет | CCT (K) | Длина волны | Конфигурация | Световой поток при токе/температуре | Ток - Тест | Температура - Тест | Напряжение - прямое (Vf) (тип.) | Люмен/Ватт при токе - Тест | Ток - макс. | CRI (индекс цветопередачи) | Угол обзора | Особенности | Размер/измерение | Высота | Светоизлучающая поверхность (LES) | Тип линзы |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBR-90-R-R75-HK101LED MOD SBR-90 RED STARBOARD |
0 |
|
Технический лист |
SBR-90 | Tray | Active | LED Module | Red | - | 621nm (619nm ~ 623nm) | Starboard | 860lm (Typ) | 13.5A | 25°C | 2.7V | 24 lm/W | 13.5A | - | - | - | 19.90mm Dia | 3.50mm | 3.00mm L x 3.00mm W | Flat |
|
CVM-32-31-95-54-AC00-F2-2LED COB CVM STUDIO WHT SQ 3150K |
0 |
|
Технический лист |
CVM Studio | Tray | Active | Chip On Board (COB) | White, Warm | 3150K 2-Step MacAdam Ellipse | - | Square | 22800lm (Typ) | 5.5A | 100°C | 54V | 77 lm/W | 5.5A | 95 | 120° | - | 38.00mm L x 38.00mm W | - | 32.80mm Dia | Flat |
|
|
CVM-32-56-95-54-AC00-F2-2LED COB CVM STUDIO WHT SQ 5600K |
0 |
|
Технический лист |
CVM Studio | Tray | Active | Chip On Board (COB) | White, Cool | 5600K 2-Step MacAdam Ellipse | - | Square | 31850lm (Typ) | 5.5A | 100°C | 54V | 107 lm/W | 5.5A | 95 | 120° | - | 38.00mm L x 38.00mm W | - | 32.80mm Dia | Flat |
|
|
CXA3590-0000-000NTUAD65FLED COB XLAMP COOL WHT SQU 6500K |
0 |
|
Технический лист |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 2.4A | 85°C | 36V | 107 lm/W | 3.6A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000RTUAD65FLED COB XLAMP COOL WHT SQU 6500K |
0 |
|
Технический лист |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 1.2A | 85°C | 72V | 107 lm/W | 1.8A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
LZP-D0SW00-0000LED MOD LZP WHT STARBOARD 5300K |
0 |
|
Технический лист |
LZP | Tray | Obsolete | LED Module | White, Cool | 5300K | - | Starboard | 3600lm (3200lm ~ 3800lm) | 4 x 700mA | 25°C | 19.8V | 66 lm/W | 1A | 88 (Typ) | 110° | - | 28.00mm Dia | 8.10mm | 10.45mm Dia | Domed |
|
|
CXB3590-0000-000N0UBD27GLED COB XLAMP WARM WHT SQU 2700K |
0 |
|
Технический лист |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 10500lm (10000lm ~ 11000lm) | 2.4A | 85°C | 36V | 122 lm/W | 3.6A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXB3590-0000-000N0UCB35GLED COB XLAMP WARM WHT SQU 3500K |
0 |
|
Технический лист |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 11500lm (11000lm ~ 12000lm) | 2.4A | 85°C | 36V | 133 lm/W | 3.6A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXB3590-0000-000N0UCB40GLED COB XLAMP NEUT WHT SQU 4000K |
0 |
|
Технический лист |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 11500lm (11000lm ~ 12000lm) | 2.4A | 85°C | 36V | 133 lm/W | 3.6A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
LZP-D0WW0R-0427LED MOD LZP WM WH STARBRD 2700K |
0 |
|
Технический лист |
LZP | Tray | Obsolete | LED Module | White, Warm | 2700K | - | Starboard | 3600lm (2900lm ~ 3800lm) | 4 x 700mA | 25°C | 18.9V | 68 lm/W | 1A | 83 (Typ) | 110° | - | 28.00mm Dia | 8.10mm | 10.45mm Dia | Domed |
|
|
LZP-D0WW0R-0430LED MOD LZP WM WH STARBRD 3000K |
0 |
|
Технический лист |
LZP | Tray | Obsolete | LED Module | White, Warm | 3000K | - | Starboard | 3600lm (2900lm ~ 3800lm) | 4 x 700mA | 25°C | 18.9V | 68 lm/W | 1A | 83 (Typ) | 110° | - | 28.00mm Dia | 8.10mm | 10.45mm Dia | Domed |
|
|
LZP-D0WW0R-0435LED MOD LZP WM WH STARBRD 3500K |
0 |
|
Технический лист |
LZP | Tray | Obsolete | LED Module | White, Warm | 3500K | - | Starboard | 3600lm (2900lm ~ 3800lm) | 4 x 700mA | 25°C | 18.9V | 68 lm/W | 1A | 83 (Typ) | 110° | - | 28.00mm Dia | 8.10mm | 10.45mm Dia | Domed |
|
|
PT-54-B-L31-EPGLED MOD PT54 BLUE RECTANGLE |
0 |
|
Технический лист |
PT-54 | Tray | Obsolete | LED Module | Blue | - | 460nm | Rectangle | 471lm (402lm ~ 540lm) | 13.5A | 40°C | 3.7V | 9 lm/W | - | - | - | With Connector | 26.50mm L x 16.00mm W | 6.40mm | 2.00mm L x 2.70mm W | Flat |
|
CBT-90-RX-L15-BM100LED MOD CBT-90 RED RECT |
0 |
|
Технический лист |
CBT-90 | Tray | Active | LED Module | Red | - | 621nm (611nm ~ 631nm) | Rectangle | 870lm (770lm ~ 970lm) | 13.5A | 40°C | 2.8V | 23 lm/W | 27A | - | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|
OPA779D-1169LED ENG OPA WHT LNR STRP 6000K |
0 |
|
Технический лист |
OPA | - | Obsolete | LED Engine | White, Cool | 6000K | - | Linear Light Strip, Plug and Play | - | 175mA | - | - | - | 2A | - | - | - | 1155.70mm L x 13.70mm W | - | - | Tubular |
|
|
AB-FA02408-19700-8A1LED MOD RGBW LNR STRIP |
0 |
|
Технический лист |
- | Bulk | Active | LED Module | Red, Green, Blue, White (RGBW) | - | 625nm Red, 523nm Green, 468nm Blue | Linear Light Strip, Flexible | 81lm Red, 223lm Green, 50lm Blue, 334lm White | - | 25°C | 24V | - | 590mA | 80 | 120° | IP20 | - | - | - | Flat |
|

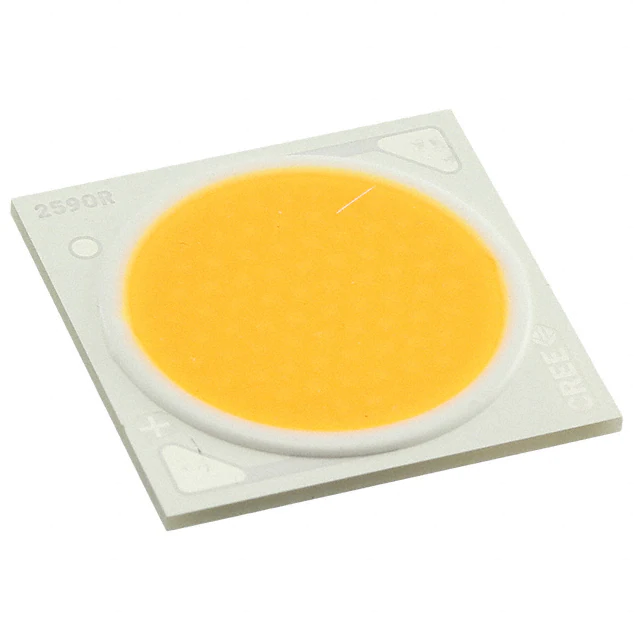

CXA2590-0000-000R00AB30HLED COB XLAMP WARM WHT SQU 3000K |
0 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 8750lm (8500lm ~ 9000lm) | 1.2A | 85°C | 69V | 106 lm/W | 1.8A | - | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R0HAD40HLED COB XLAMP NEUT WHT SQU 4000K |
0 |
|
- |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 9250lm (9000lm ~ 9500lm) | 1.2A | 85°C | 69V | 112 lm/W | 1.8A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R0UX440HLED COB XLAMP NEUT WHT SQU 4000K |
0 |
|
Технический лист |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 6220lm (6010lm ~ 6430lm) | 1.2A | 85°C | 69V | 75 lm/W | 1.8A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
|
|
CXA2590-0000-000R0UX450HLED COB XLAMP COOL WHT SQU 5000K |
0 |
|
Технический лист |
XLamp® CXA2590 | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 6220lm (6010lm ~ 6430lm) | 1.2A | 85°C | 69V | 75 lm/W | 1.8A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.55mm | 19.00mm Dia | Flat |
