Светодиодные COB, двигатели, модули, полосы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Цвет | CCT (K) | Длина волны | Конфигурация | Световой поток при токе/температуре | Ток - Тест | Температура - Тест | Напряжение - прямое (Vf) (тип.) | Люмен/Ватт при токе - Тест | Ток - макс. | CRI (индекс цветопередачи) | Угол обзора | Особенности | Размер/измерение | Высота | Светоизлучающая поверхность (LES) | Тип линзы |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLU058-3618C4-403M2K1LED COB CLU058 NEUT WHT SQ 4000K |
0 |
|
Технический лист |
CLU058 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 24703lm (Typ) | 1.62A | 85°C | 112.3V | 136 lm/W | 4.14A | 80 | - | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
CXB3590-0000-000N0YAD32QLED COB XLAMP WARM WHT SQ 3200K |
0 |
|
Технический лист |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Warm | 3200K | - | Square | 9250lm (9000lm ~ 9500lm) | 2.4A | 85°C | 36V | 107 lm/W | 3.6A | 93 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|

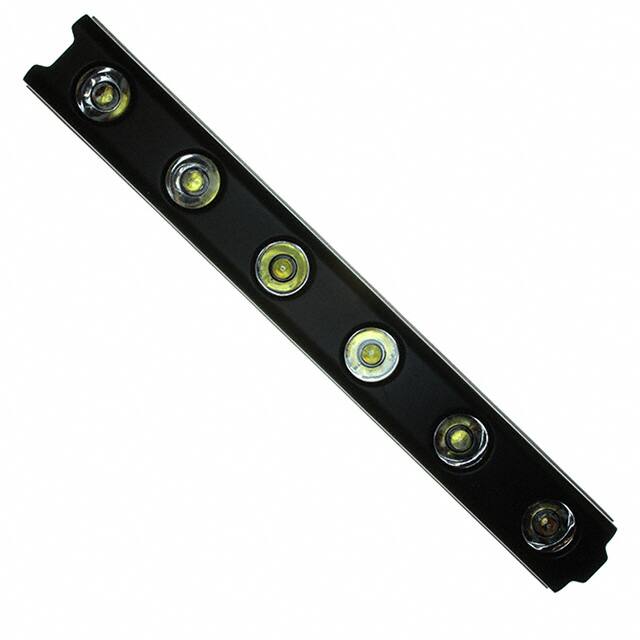

LML6LVCWSPLED ENG PWM WHT LNR STRP 5600K |
0 |
|
Технический лист |
PWM LV | Box | Active | LED Engine | White, Cool | 5600K | - | Linear Light Strip, Plug and Play | - | - | - | - | - | - | - | 5° | - | 297.18mm L x 38.05mm W | 16.50mm | - | Flat |
|
LML6LVCWMDLED ENG PWM WHT LNR STRP 5600K |
0 |
|
Технический лист |
PWM LV | Box | Active | LED Engine | White, Cool | 5600K | - | Linear Light Strip, Plug and Play | - | - | - | - | - | - | - | 8° | - | 297.18mm L x 38.05mm W | 16.50mm | - | Flat |
|
LML6LVCWOVLED ENG PWM WHT LNR STRP 5600K |
0 |
|
Технический лист |
PWM LV | Box | Active | LED Engine | White, Cool | 5600K | - | Linear Light Strip, Plug and Play | - | - | - | - | - | - | - | 25° | - | 297.18mm L x 38.05mm W | 16.50mm | - | Flat |
|
CBT-90-W57S-C11-NB200LED MOD CBT-90 CL WH RECT 5700K |
0 |
|
Технический лист |
CBT-90 | Tray | Active | LED Module | White, Cool | 5700K | - | Rectangle | 1770lm (1710lm ~ 1830lm) | 9A | - | 3.3V | - | 18A | 70 (Typ) | - | With Connector | 28.00mm L x 26.75mm W | 4.30mm | 3.00mm L x 3.00mm W | Flat |
|
CFT-90-WCS-X11-UA600LED MOD CFT90W CL WH RECT 6500K |
0 |
|
Технический лист |
CFT-90-W | Tray | Active | LED Module | White, Cool | 6500K | - | Rectangle | 3818lm (3680lm ~ 3955lm) | 22.5A | 90°C | 3.5V | 48 lm/W | 27A | 70 (Typ) | 120° | With Connector | 28.00mm L x 26.75mm W | 3.93mm | 3.00mm L x 3.00mm W | Flat |
|
|
CFT-90-WDS-X11-UA500LED MOD CFT90W CL WH RECT 5600K |
0 |
|
Технический лист |
CFT-90-W | Tray | Active | LED Module | White, Cool | 5600K | - | Rectangle | 3818lm (3680lm ~ 3955lm) | 22.5A | 90°C | 3.5V | 48 lm/W | 27A | 65 (Typ) | 120° | With Connector | 28.00mm L x 26.75mm W | 3.93mm | 3.00mm L x 3.00mm W | Flat |
|
|
CFT-90-WSS-X11-UA700LED MOD CFT90W CL WH RECT 7800K |
0 |
|
Технический лист |
CFT-90-W | Tray | Active | LED Module | White, Cool | 7800K | - | Rectangle | 3818lm (3680lm ~ 3955lm) | 22.5A | 90°C | 3.5V | 48 lm/W | 27A | 70 (Typ) | 120° | With Connector | 28.00mm L x 26.75mm W | 3.93mm | 3.00mm L x 3.00mm W | Flat |
|
|
CFT-90-WSS-X11-UA900LED MOD CFT90W CL WH RECT 7800K |
0 |
|
Технический лист |
CFT-90-W | Tray | Active | LED Module | White, Cool | 7800K | - | Rectangle | 3818lm (3680lm ~ 3955lm) | 22.5A | 90°C | 3.5V | 48 lm/W | 27A | 70 (Typ) | 120° | With Connector | 28.00mm L x 26.75mm W | 3.93mm | 3.00mm L x 3.00mm W | Flat |
|
PT-120-B-L11-EPELED MOD PT-120 BLUE RECT |
0 |
|
Технический лист |
PT-120 | Tray | Active | LED Module | Blue | - | 462nm | Rectangle | 980lm (815lm ~ 1145lm) | 18A | 40°C | 3.9V | 14 lm/W | 27A | - | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 2.60mm L x 4.60mm W | Flat |
|
|
PCW-CS5-40-W0808 PRINCETONPCW-CS5-40-W0808 PRINCETON |
0 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PT-54-G-L31-MPLLED MOD PT-54 GREEN RECT |
0 |
|
Технический лист |
PT-54 | Tray | Obsolete | LED Module | Green | - | 525nm | Rectangle | 2750lm (2300lm ~ 3200lm) | 13.5A | 40°C | 5.2V | 39 lm/W | - | - | - | With Connector | 26.50mm L x 16.00mm W | 6.40mm | 2.00mm L x 2.70mm W | Flat |
|
CBT-90-W65S-C11-NB101LED MOD CBT-90 CL WH RECT 6500K |
0 |
|
Технический лист |
CBT-90 | Tray | Active | LED Module | White, Cool | 6500K | - | Rectangle | 1770lm (1710lm ~ 1830lm) | 9A | 85°C | 3.3V | 60 lm/W | 18A | 70 | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|
|
CBT-90-W57S-C11-NB201LED MOD CBT-90 CL WH RECT 5700K |
0 |
|
Технический лист |
CBT-90 | Tray | Active | LED Module | White, Cool | 5700K | - | Rectangle | 1770lm (1710lm ~ 1830lm) | 9A | - | 3.3V | - | 18A | 70 (Typ) | - | With Connector | 28.00mm L x 26.75mm W | 4.30mm | 3.00mm L x 3.00mm W | Flat |
|
CBT-140-WCS-L16-TB121LED MOD CBT-140 WHT RECT 8500K |
0 |
|
Технический лист |
CBT-140 | Tray | Active | LED Module | White, Cool | 6020K ~ 8500K | - | Rectangle | 3560lm (3440lm ~ 3680lm) | 21A | 85°C | 3.6V | 47 lm/W | 28A | 75 (Typ) | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 4.25mm Dia | Flat |
|
|
CBT-90-WDLS-C11-NB150LED MOD CBT-90 WHITE RECT |
0 |
|
Технический лист |
CBT-90 | Tray | Active | LED Module | - | - | - | Rectangle | - | - | - | - | - | - | - | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|
|
CFT-90-WDS-X11-UB500LED MOD CFT90W WHITE RECT |
0 |
|
Технический лист |
CFT-90-W | Tray | Active | LED Module | White | - | - | Rectangle | 4800lm | 22.5A | 90°C | 3.5V | 61 lm/W | 27A | 65 | 120° | - | 42.00mm L x 28.00mm W | 5.70mm | 3.00mm L x 3.00mm W | Flat |
|
|
CFT-90-WCS-X11-UB600LED MOD CFT90W CL WH RECT 6500K |
0 |
|
Технический лист |
CFT-90-W | Tray | Active | LED Module | White, Cool | 6500K | - | Rectangle | 4093lm (3955lm ~ 4230lm) | 22.5A | 90°C | 3.5V | 52 lm/W | 27A | 70 (Typ) | 120° | With Connector | 28.00mm L x 26.75mm W | 3.93mm | 3.00mm L x 3.00mm W | Flat |
|
|
CFT-90-WSS-X11-UB700LED MOD CFT90W CL WH RECT 7800K |
0 |
|
Технический лист |
CFT-90-W | Tray | Active | LED Module | White, Cool | 7800K | - | Rectangle | 4093lm (3955lm ~ 4230lm) | 22.5A | 90°C | 3.5V | 52 lm/W | 27A | 70 (Typ) | 120° | With Connector | 28.00mm L x 26.75mm W | 3.93mm | 3.00mm L x 3.00mm W | Flat |
