Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

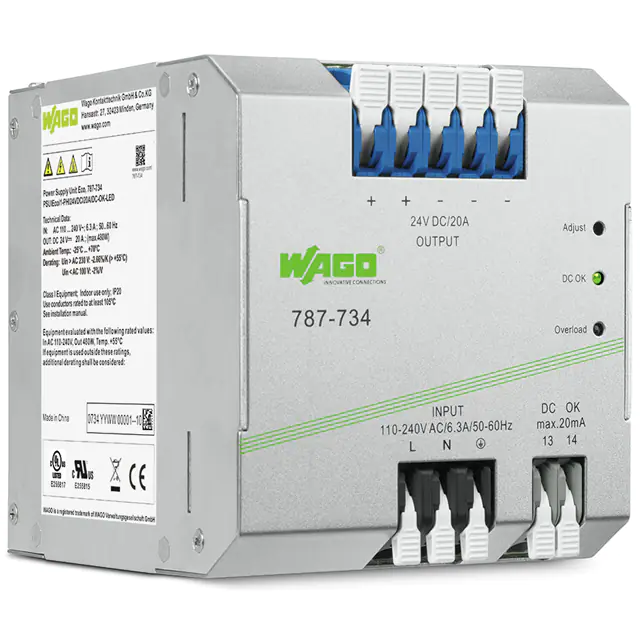

787-734AC/DC DIN RAIL SUPPLY 24V 480W |
7 |
|
Технический лист |
- | Box | Active | AC or DC | 1 | 110 ~ 240 VAC | 130V | 373V | 24V | - | - | - | - | - | 20A | 480W | 4.242 kV | ITE (Commercial) | 90% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | 5.67" L x 4.53" W x 5.35" H (144.0mm x 115.0mm x 136.0mm) | cURus | 60950-1 |
|

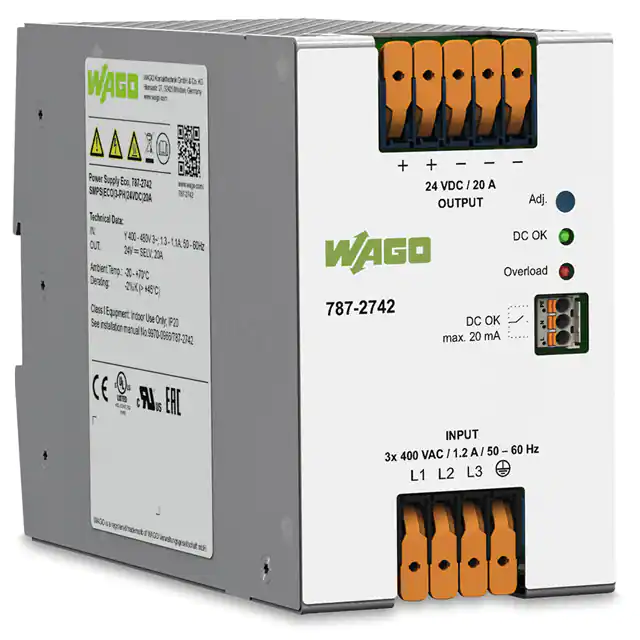

787-2742AC/DC CONVERTER 24V 480W |
2 |
|
Технический лист |
- | Box | Active | - | 1 | - | - | - | 24V | - | - | - | - | - | - | 480W | 4.242 kV | ITE (Commercial) | 92% | -20°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC | 6.69" L x 3.15" W x 5.12" H (170.0mm x 80.0mm x 130.0mm) | cURus, EAC, UL | 60335-1; 60950-1; 62368-1 |
|

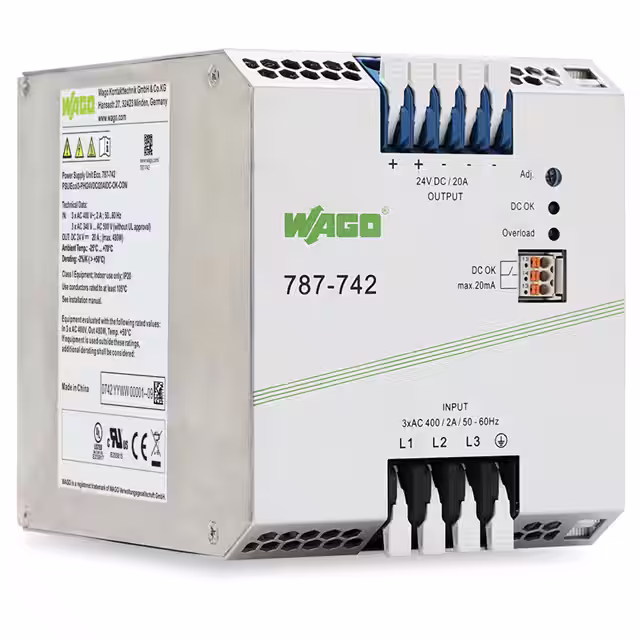

787-742AC/DC DIN RAIL SUPPLY 24V 480W |
6 |
|
Технический лист |
- | Box | Active | AC or DC | 1 | 360 ~ 575 VAC | 500V | 650V | 24V | - | - | - | - | - | 20A | 480W | 4.242 kV | ITE (Commercial) | 90% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | 5.94" L x 4.33" W x 5.12" H (151.0mm x 110.0mm x 130.0mm) | cURus, UL | 60950-1; UL 508 |
|
VHK200W-Q24-S12-DINDC/DC DIN RAIL SUPPLY 12V 200W |
21 |
|
Технический лист |
VHK200W-DIN (200W) | Box | Active | DC | 1 | - | 10V | 36V | 12V | - | - | - | - | - | 16.7A | 200W | - | - | 84% | -40°C ~ 85°C | - | 4.23" L x 4.01" W x 2.07" H (107.4mm x 101.9mm x 52.6mm) | CE | - |
|

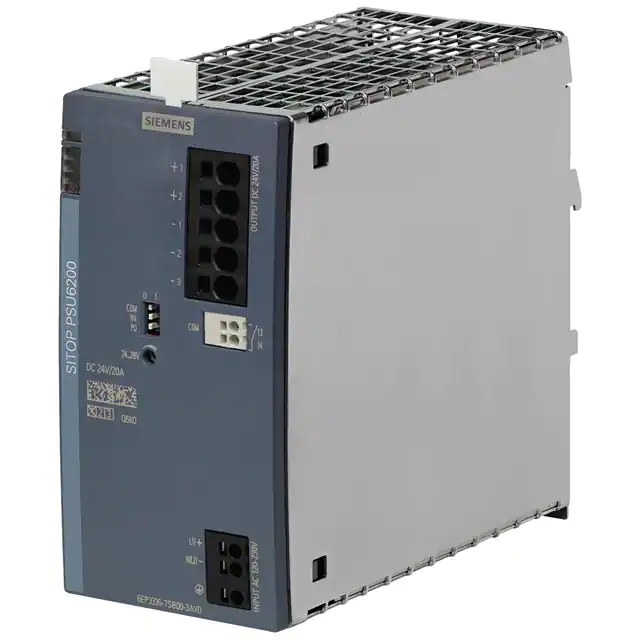

6EP33367SB003AX0AC/DC DIN RAIL SUPPLY 24V 480W |
2 |
|
Технический лист |
6EP3 | Bulk | Active | AC or DC | 1 | 120 ~ 230 VAC, 85 ~ 264 VAC | 85V | 275V | 24V | - | - | - | - | - | 20A | 480W | - | Hazardous Locations, Industrial, ITE (Commercial) | 95.5% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 6.10" L x 2.76" W x 5.31" H (155.0mm x 70.0mm x 135.0mm) | CB, cCSAus, CE, CSA, cUL, cULus, UL | 60950-1; UL 508 |
|
TSP 600-124 EXAC/DC DIN RAIL SUPPLY 24V 600W |
7 |
|
Технический лист |
TSP-EX (600W) | Box | Active | AC | 1 | 85 ~ 132 VAC, 187 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 25A | 600W | - | Hazardous Locations, Industrial, ITE (Commercial) | 87% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Remote On/Off, Universal Input | 6.50" L x 4.92" W x 4.92" H (165.1mm x 125.0mm x 125.0mm) | CB, CE, cURus, SIQ | - |
|
787-1642AC/DC DIN RAIL SUPPLY 24V 480W |
2 |
|
Технический лист |
- | Box | Active | AC or DC | 1 | 320 ~ 575 VAC | 450V | 800V | 24V | - | - | - | - | - | 20A | 480W | 4.242 kV | Industrial, ITE (Commercial), Laboratory | 92% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | 7.09" L x 3.19" W x 5.00" H (180.0mm x 81.0mm x 127.0mm) | cURus, EAC, UL | 60950-1; 61010-1; UL 508 |
|
6EP19312EC21DC/DC DIN RAIL SUPPLY 24V 360W |
9 |
|
Технический лист |
6EP1 | Bulk | Active | DC | 1 | - | 22V | 29V | 24V | - | - | - | - | - | 15A | 360W | - | Industrial | 96.2% | -25°C ~ 60°C | Adjustable Output, IP20 | 4.92" L x 1.97" W x 4.92" H (125.0mm x 50.0mm x 125.0mm) | CE, CSA, cULus, UL | 508 |
|
787-840AC/DC DIN RAIL SUPPLY 24V 240W |
4 |
|
Технический лист |
- | Box | Active | AC or DC | 1 | 340 ~ 550 VAC | 480V | 780V | 24V | - | - | - | - | - | 10A | 240W | 4.242 kV | Industrial, ITE (Commercial), Laboratory | 91.7% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | 7.05" L x 2.24" W x 6.42" H (179.0mm x 57.0mm x 163.0mm) | CE, cURus, EAC, UL | 60950-1; 61010-1; UL 508 |
|
6EP13343BA108AB0AC/DC DIN RAIL SUPPLY 24V 240W |
7 |
|
Технический лист |
6EP1 | Bulk | Active | AC | 1 | 85 ~ 264 VAC, 176 ~ 550 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | - | Hazardous Locations, Industrial, ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 4.76" L x 2.76" W x 4.92" H (121.0mm x 70.0mm x 125.0mm) | CB, cCSAus, CE, CSA, cUL, cULus, UL | 60950-1; UL 508 |
|

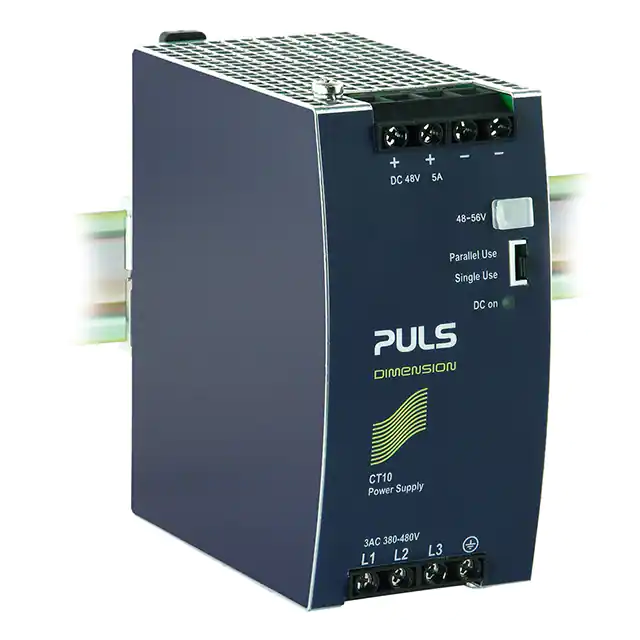

CT10.481AC/DC DIN RAIL SUPPLY 48V 240W |
2 |
|
Технический лист |
DIMENSION C (240W) | Box | Active | AC | 1 | 380 ~ 480 VAC (3 Phase) | - | - | 48V | - | - | - | - | - | 5A | 240W | 500 V | ITE (Commercial) | 92.9% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | 4.61" L x 2.44" W x 4.88" H (117.0mm x 62.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|

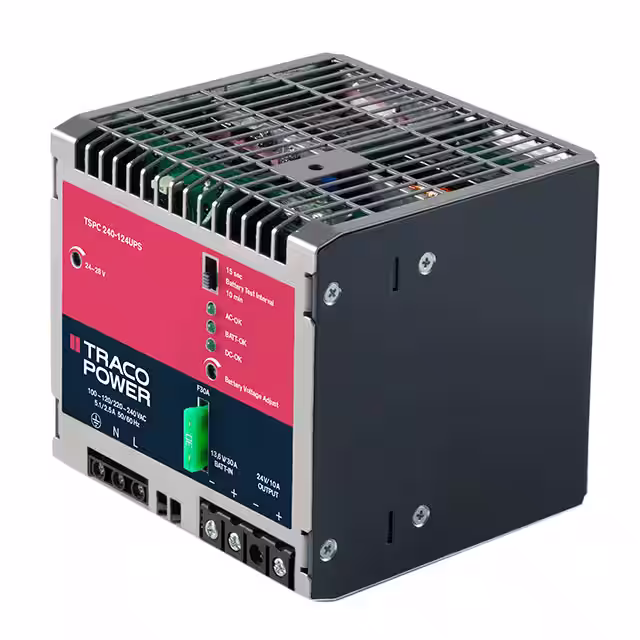

TSPC 240-124UPSAC/DC DIN RAIL SUPPLY 24V 288W |
11 |
|
Технический лист |
TSPC-UPS (240W) | Box | Active | AC | 1 | 85 ~ 132 VAC, 187 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 12A | 288W | - | Hazardous Locations, Industrial, ITE (Commercial) | 92% | -25°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off | 4.72" L x 4.49" W x 3.94" H (120.0mm x 114.0mm x 100.0mm) | CB, CE | - |
|

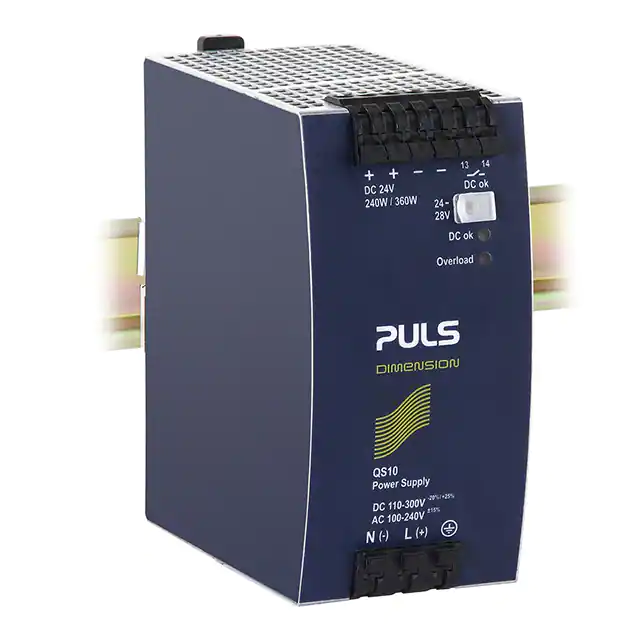

QS10.241-D1AC/DC DIN RAIL SUPPLY 24V 240W |
3 |
|
Технический лист |
DIMENSION Q (240W) | Box | Active | AC | 1 | 85 ~ 276 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 500 V | ITE (Commercial) | 93.5% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm) | EAC, IEC, UL | 508; 60950-1; 61010-2-201 |
|
2787-2157PSU, PRO 2 1-PH |
2 |
|
Технический лист |
- | Bulk | Active | AC or DC | 1 | 90 ~ 264 VAC | 130V | 240V | 48V | - | - | - | - | - | 10A | 480W | 3.15 kV | Laboratory | 95.3% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | 5.12" L x 2.76" W x 5.12" H (130.0mm x 70.0mm x 130.0mm) | UL | 61010-1 |
|

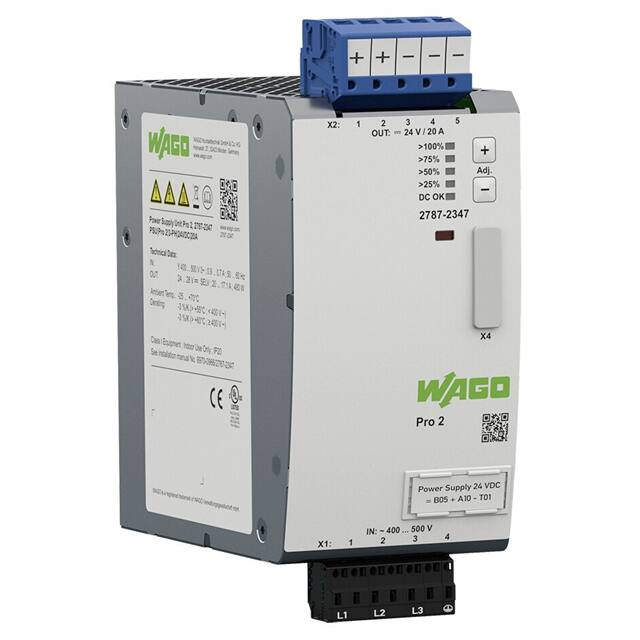

2787-2347AC/DC DIN RAIL SUPPLY 24V 480W |
2 |
|
Технический лист |
- | Box | Active | AC | 1 | 340 ~ 550 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 20A | 480W | 3.51 kV | Laboratory | 95.9% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | 5.12" L x 2.76" W x 5.12" H (130.0mm x 70.0mm x 130.0mm) | CE, UL | 61010-1 |
|
85692EMPARRO POWER SUPPLY 3-PHASE, IN |
18 |
|
Технический лист |
- | Box | Active | AC or DC | 1 | 324 ~ 572 VAC (3 Phase) | 450V | 745V | 24V | - | - | - | - | - | 24A | 576W | - | ITE (Commercial) | 94.8% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 6.57" L x 2.56" W x 4.84" H (167.0mm x 65.0mm x 123.0mm) | CE, cULus, cURus, EAC, UKCA | - |
|
CP20.242AC/DC DIN RAIL SUPPLY 24V 480W |
5 |
|
Технический лист |
DIMENSION CP (480W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 150V | 24V | - | - | - | - | - | 20A | 480W | 500 V | Industrial, ITE (Commercial) | 94.2% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 5.00" L x 1.89" W x 4.88" H (127.0mm x 48.0mm x 124.0mm) | EAC, IEC, UL | 61010-2-201 |
|
2866501AC/DC DIN RAIL SUPPLY 48V 480W |
15 |
|
Технический лист |
TRIO | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 48V | - | - | - | - | - | 10A | 480W | 4 kV | ITE (Commercial) | 91% | -25°C ~ 70°C | IP20, Universal Input | 6.00" L x 4.53" W x 5.12" H (152.5mm x 115.0mm x 130.0mm) | cULus, cURus, UL | - |
|
|
SDN5-48-100PAC/DC DIN RAIL SUPPLY 48V 240W |
7 |
|
Технический лист |
SDN-P | Bulk | Active | AC or DC | 1 | 85 ~ 132 VAC, 176 ~ 264 VAC | 210V | 375V | 48V | - | - | - | - | - | 5A | 240W | - | Hazardous Locations, Industrial, ITE (Commercial) | 88% | -10°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 4.55" L x 3.23" W x 4.88" H (115.6mm x 82.0mm x 124.0mm) | CE, cULus, cURus | - |
|
|
2905011DC/DC DIN RAIL SUPPLY 24V |
5 |
|
Технический лист |
Quint | Bulk | Active | DC | 1 | - | 42V | 96V | 24V | - | - | - | - | - | 10A | - | 1.5 kV | Hazardous Locations, Industrial, ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | - | 4.92" L x 1.89" W x 5.12" H (125.0mm x 48.0mm x 130.0mm) | cUL, cULus, EAC, UL | - |
