Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSC-U12012AC/DC DIN RAIL SUPPLY 12V 120W |
12 |
|
Технический лист |
PSC-U120 (120W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 12V | - | - | - | - | - | 10A | 120W | 3 kV | Industrial, ITE (Commercial) | 85% | -20°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Universal Input | 4.85" L x 1.77" W x 4.88" H (123.2mm x 45.0mm x 124.0mm) | CB, CE, cULus, cURus, UKCA | 60950-1; 62368-1; UL 508 |
|
|
PSC-U12024AC/DC DIN RAIL SUPPLY 24V 120W |
11 |
|
Технический лист |
PSC-U120 (120W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 24V | - | - | - | - | - | 5A | 120W | 3 kV | Industrial, ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Universal Input | 4.85" L x 1.77" W x 4.88" H (123.2mm x 45.0mm x 124.0mm) | CB, CE, cULus, cURus, UKCA | 60950-1; 62368-1; UL 508 |
|
KHNA30F-12AC/DC DIN RAIL SUPPLY 12V 30W |
5 |
|
Технический лист |
KHNA (30W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 2.3A | 30W | 3 kV | ITE (Commercial) | 88.5% | -20°C ~ 70°C | Adjustable Output, PFC, Remote On/Off, Universal Input | 4.77" L x 1.97" W x 4.88" H (121.2mm x 50.0mm x 124.0mm) | CE, cULus, cURus, TUV | 60950-1 |
|
SVL124100AC/DC DIN RAIL SUPPLY 24V 30W |
5 |
|
Технический лист |
SVL | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 375V | 24V | - | - | - | - | - | 1.25A | 30W | 3 kV | Industrial, ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Universal Input | 3.52" L x 0.82" W x 2.95" H (89.4mm x 20.8mm x 74.9mm) | CE, cULus, cURus | - |
|
SVL35100AC/DC DIN RAIL SUPPLY 5V 15W |
2 |
|
Технический лист |
SVL | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 375V | 5V | - | - | - | - | - | 3A | 15W | 3 kV | Industrial, ITE (Commercial) | 79% | -20°C ~ 70°C (With Derating) | Universal Input | 3.52" L x 0.82" W x 2.95" H (89.4mm x 20.8mm x 74.9mm) | CE, cULus, cURus | - |
|

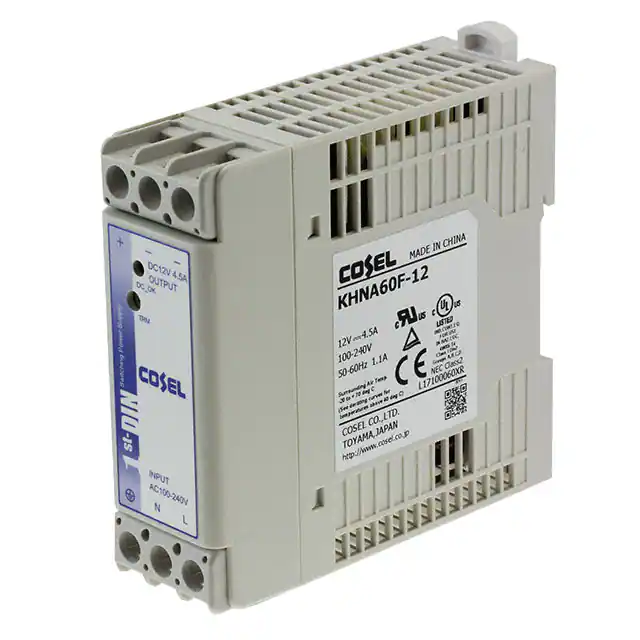

KHNA60F-12AC/DC DIN RAIL SUPPLY 12V 60W |
10 |
|
Технический лист |
KHNA (60W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 4.5A | 60W | 3 kV | ITE (Commercial) | 88% | -20°C ~ 70°C | Adjustable Output, PFC, Remote On/Off, Universal Input | 4.77" L x 1.97" W x 4.88" H (121.2mm x 50.0mm x 124.0mm) | CE, cULus, cURus, TUV | 60950-1 |
|

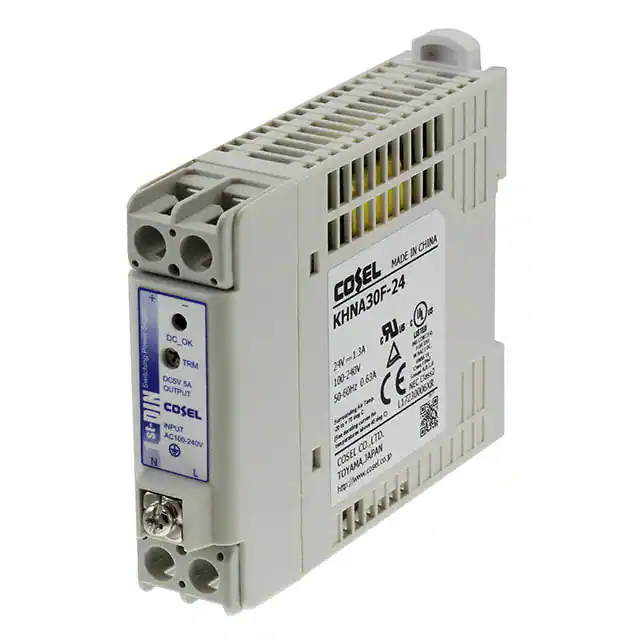

KHNA30F-24AC/DC DIN RAIL SUPPLY 24V 30W |
5 |
|
Технический лист |
KHNA (30W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 1.3A | 30W | 3 kV | ITE (Commercial) | 89.5% | -20°C ~ 70°C | Adjustable Output, PFC, Remote On/Off, Universal Input | 4.77" L x 1.97" W x 4.88" H (121.2mm x 50.0mm x 124.0mm) | CE, cULus, cURus, TUV | 60950-1 |
|

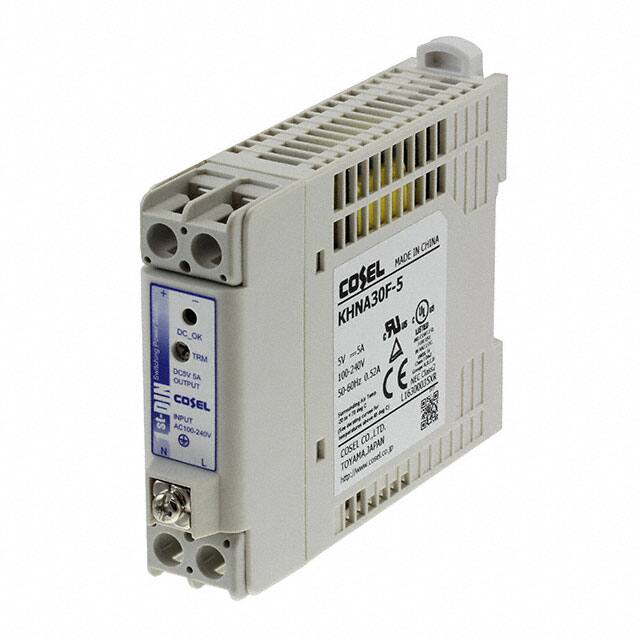

KHNA30F-5AC/DC DIN RAIL SUPPLY 5V 30W |
2 |
|
Технический лист |
KHNA (30W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 5V | - | - | - | - | - | 5A | 30W | 3 kV | ITE (Commercial) | 85% | -20°C ~ 70°C | Adjustable Output, PFC, Universal Input | 4.77" L x 1.97" W x 4.88" H (121.2mm x 50.0mm x 124.0mm) | CE, cULus, cURus, TUV | 60950-1 |
|
|
PSD-10012AC/DC DIN RAIL SUPPLY 12V 85W |
7 |
|
Технический лист |
PSD-100 (86W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 7.1A | 85W | 3 kV | Industrial, ITE (Commercial) | 85% | -20°C ~ 50°C | Adjustable Output, Universal Input | 2.32" L x 2.76" W x 3.66" H (59.0mm x 70.0mm x 93.0mm) | CB, CE, cURus | 60950-1; 62368-1; UL 508 |
|
|
PSD-10048AC/DC DIN RAIL SUPPLY 48V 101W |
6 |
|
Технический лист |
PSD-100 (100W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 2.1A | 101W | 3 kV | Industrial, ITE (Commercial) | 87% | -20°C ~ 50°C | Adjustable Output, Universal Input | 2.32" L x 2.76" W x 3.66" H (59.0mm x 70.0mm x 93.0mm) | CB, CE, cURus | 60950-1; 62368-1; UL 508 |
|
PS5R-VA05AC/DC DIN RAIL SUPPLY 5V 7.5W |
2 |
|
Технический лист |
PS5R-V (7.5W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 100V | 370V | 5V | - | - | - | - | - | 1.5A | 7.5W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 74% | -25°C ~ 75°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.76" L x 1.77" W x 2.95" H (70.0mm x 45.0mm x 75.0mm) | CE, cULus, TUV | 62368-1 |
|
AD1072-24FAC/DC DIN RAIL SUPPLY 24V 72W |
7 |
|
Технический лист |
- | Box | Active | AC or DC | 1 | 100 ~ 240 VAC | 120V | 370V | 24V | - | - | - | - | - | 3A | 72W | - | ITE (Commercial) | 81% | -20°C ~ 50°C | Adjustable Output | 4.76" L x 2.20" W x 4.33" H (121.0mm x 56.0mm x 110.0mm) | CB, CE, cULus | - |
|

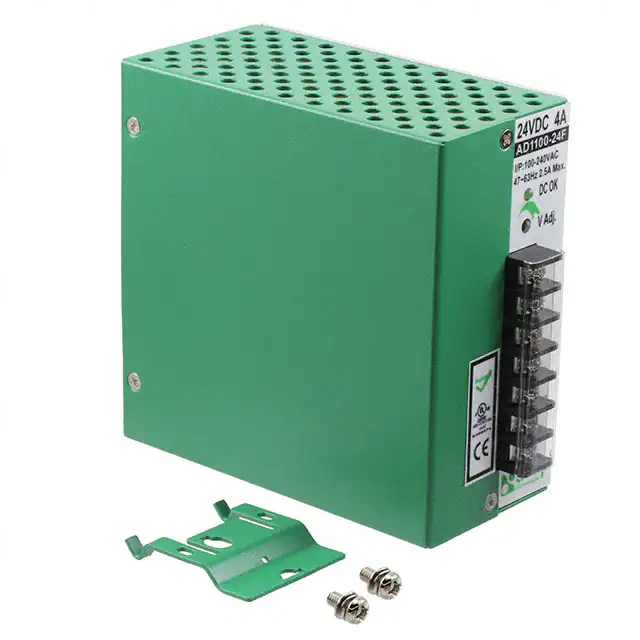

AD1100-24FAC/DC DIN RAIL SUPPLY 24V 100W |
4 |
|
Технический лист |
- | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 4A | 100W | - | ITE (Commercial) | 81% | -20°C ~ 50°C | Adjustable Output | 4.76" L x 2.20" W x 4.33" H (121.0mm x 56.0mm x 110.0mm) | CB, CE, cULus | - |
|
|
2838510000AC/DC DIN RAIL SUPPLY 12V 31W |
2 |
|
Технический лист |
PRO BAS (30W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 370V | 12V | - | - | - | - | - | 2.6A | 31W | 3.5 kV | Laboratory | 89.5% | -25°C ~ 70°C | PFC, Universal Input | 3.35" L x 3.35" W x 3.54" H (85.0mm x 85.0mm x 90.0mm) | - | 61010-1 |
|
TBLC 15-124AC/DC DIN RAIL SUPPLY 24V 15W |
16 |
|
Технический лист |
TBLC (15W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 630mA | 15W | 3 kV | Household Appliances, Industrial, ITE (Commercial) | 85% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.15" L x 1.06" W x 3.52" H (54.6mm x 26.9mm x 89.4mm) | CB, CE, cULus, cURus, SIQ | - |
|
|
PSC-U12048AC/DC DIN RAIL SUPPLY 48V 120W |
5 |
|
Технический лист |
PSC-U120 (120W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 48V | - | - | - | - | - | 2.5A | 120W | 3 kV | Industrial, ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Universal Input | 4.85" L x 1.77" W x 4.88" H (123.2mm x 45.0mm x 124.0mm) | CB, CE, cULus, cURus, UKCA | 60950-1; 62368-1; UL 508 |
|
|
PSD-10024AC/DC DIN RAIL SUPPLY 24V 91W |
9 |
|
Технический лист |
PSD-100 (91W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.8A | 91W | 3 kV | Industrial, ITE (Commercial) | 86% | -20°C ~ 50°C | Adjustable Output, Universal Input | 2.32" L x 2.76" W x 3.66" H (59.0mm x 70.0mm x 93.0mm) | CB, CE, cURus | 60950-1; 62368-1; UL 508 |
|
KHEA90F-12AC/DC DIN RAIL SUPPLY 12V 90W |
4 |
|
Технический лист |
KHEA (90W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 6.8A | 90W | 3 kV | ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.72" L x 1.97" W x 3.54" H (94.5mm x 50.0mm x 90.0mm) | CE, cURus, TUV | - |
|
787-1200AC/DC DIN RAIL SUPPLY 24V 12W |
5 |
|
Технический лист |
- | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 500mA | 12W | 4.242 kV | Household Appliances, Industrial, ITE (Commercial) | 83% | -25°C ~ 70°C | IP20, Universal Input | 2.07" L x 0.71" W x 3.54" H (52.5mm x 18.0mm x 90.0mm) | CE, cURus, EAC, UL | 60335-1; 62368-1; UL 508 |
|
TBL 015-124AC/DC DIN RAIL SUPPLY 24V 15W |
8 |
|
Технический лист |
TBL (15W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 630mA | 15W | - | Industrial, ITE (Commercial) | 81% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.15" L x 1.04" W x 3.52" H (54.5mm x 26.4mm x 89.4mm) | CB, CE, CSAus, cULus, cURus, SIQ | - |
