Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2866640AC/DC DIN RAIL SUPPLY 24V 48W |
10 |
|
Технический лист |
MINI | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2A | 48W | 4 kV | ITE (Commercial) | 82% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Universal Input | 4.21" L x 2.66" W x 3.90" H (107.0mm x 67.5mm x 99.0mm) | cULus, cURus | - |
|
QS20.244AC/DC DIN RAIL SUPPLY 24V 480W |
3 |
|
Технический лист |
DIMENSION Q (480W) | Box | Active | AC | 1 | 85 ~ 276 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 500 V | Hazardous Locations, ITE (Commercial) | 94.5% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | 5.00" L x 3.23" W x 4.88" H (127.0mm x 82.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
2866213DC/DC DIN RAIL SUPPLY 24V 480W |
5 |
|
Технический лист |
Quint | Bulk | Active | DC | 1 | - | 22.5V | 30V | 24V | - | - | - | - | - | 20A | 480W | - | ITE (Commercial) | 95% | -25°C ~ 70°C | - | 4.92" L x 2.52" W x 5.12" H (125.0mm x 64.0mm x 130.0mm) | cUL, EN, UL, VDE | - |
|
2001820000PRO DCDC 480W 24V 20A |
7 |
|
Технический лист |
- | Box | Active | DC | 1 | - | 14V | 32V | 22.5 ~ 29.5V | - | - | - | - | - | 20A | 590W | 1.5 kV | ITE (Commercial) | 93% | -25°C ~ 70°C | Adjustable Output, Remote On/Off | 4.72" L x 2.95" W x 5.12" H (120.0mm x 75.0mm x 130.0mm) | cULus, TUV | 60950-1 |
|

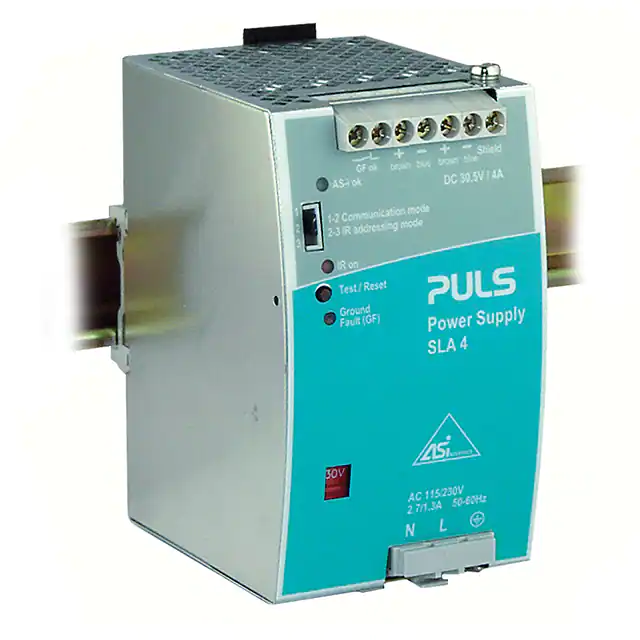

SLA4.100AC/DC DIN RAIL SUPPLY 30.6V 122W |
2 |
|
Технический лист |
SilverLine, AS-Interface® | Box | Active | AC | 1 | 85 ~ 132 VAC, 184 ~ 264 VAC | - | - | 30.6V | - | - | - | - | - | 4A | 122W | - | ITE (Commercial) | 88% | -25°C ~ 70°C (With Derating) | IP20 | 4.02" L x 2.56" W x 4.88" H (102.0mm x 65.0mm x 124.0mm) | EAC, UL | 508; 60950-1 |
|

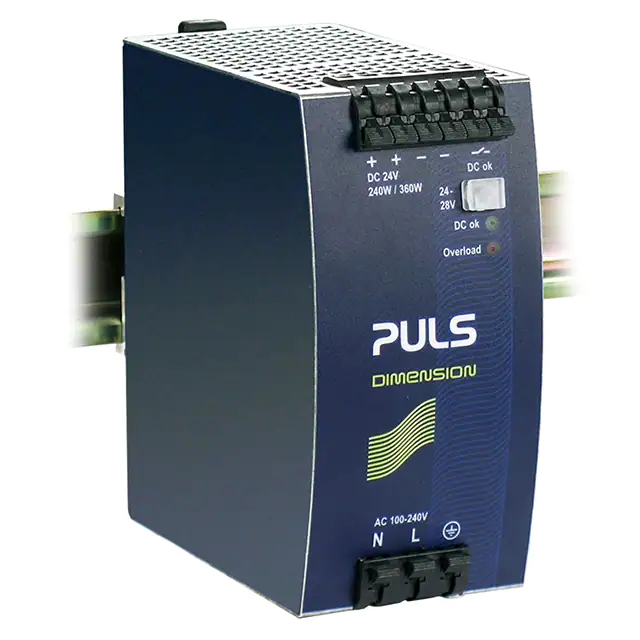

QS10.241-A1AC/DC DIN RAIL SUPPLY 24V 240W |
3 |
|
Технический лист |
DIMENSION Q (240W) | Box | Active | AC | 1 | 85 ~ 276 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 500 V | Hazardous Locations, ITE (Commercial) | 93.5% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm) | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, SEMI, UL | Class I Div 2; F47; 508; 60950-1; 61010-2-201 |
|

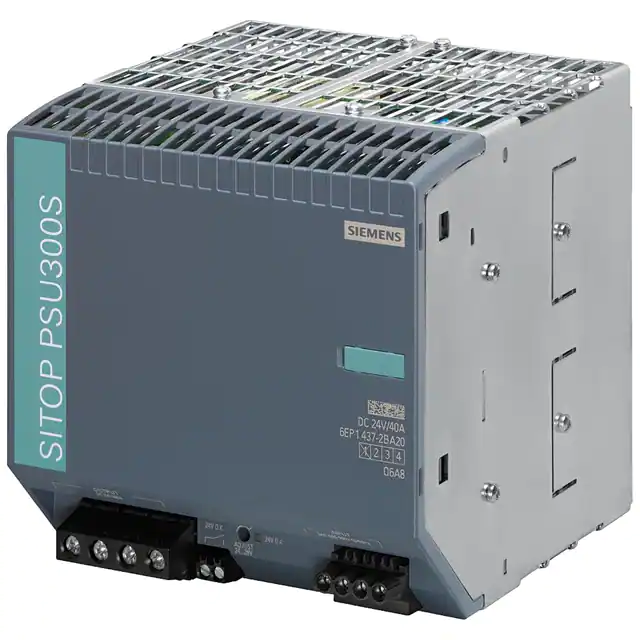

6EP14372BA20AC/DC DIN RAIL SUPPLY 24V 960W |
9 |
|
Технический лист |
6EP1 | Bulk | Active | AC | 1 | 400 ~ 500 VAC | - | - | 24V | - | - | - | - | - | 40A | 960W | - | Hazardous Locations, Industrial, ITE (Commercial) | 91.5% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 4.92" L x 3.54" W x 4.92" H (125.0mm x 90.0mm x 125.0mm) | CB, cCSAus, CE, CSA, cUL, cULus, UL | 60950-1; UL 508 |
|

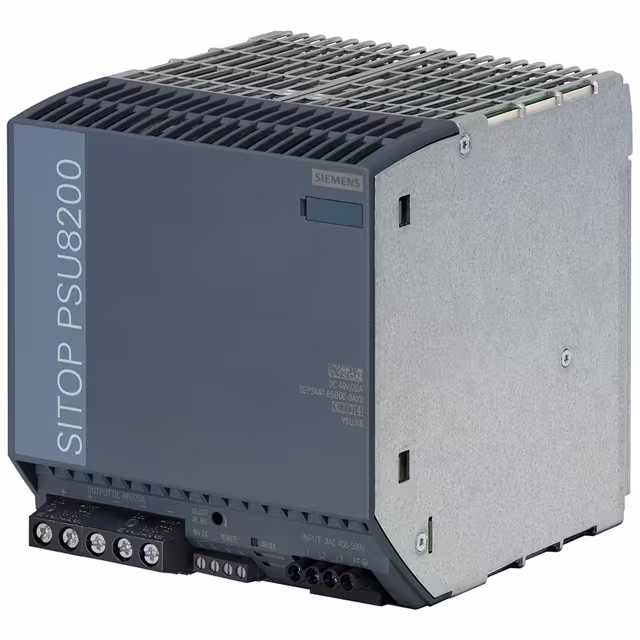

6EP34478SB000AY0AC/DC DIN RAIL SUPPLY 48V |
2 |
|
Технический лист |
6EP3 | Box | Active | AC | 1 | 320 ~ 575 VAC | - | - | 48V | - | - | - | - | - | 20A | - | - | Industrial, ITE (Commercial) | 94% | -25°C ~ 70°C | Adjustable Output, IP20 | 5.91" L x 5.31" W x 5.71" H (150.0mm x 135.0mm x 145.0mm) | cCSAus, CE, CSA, cULus, EAC, UL | 60950-1; UL 508 |
|

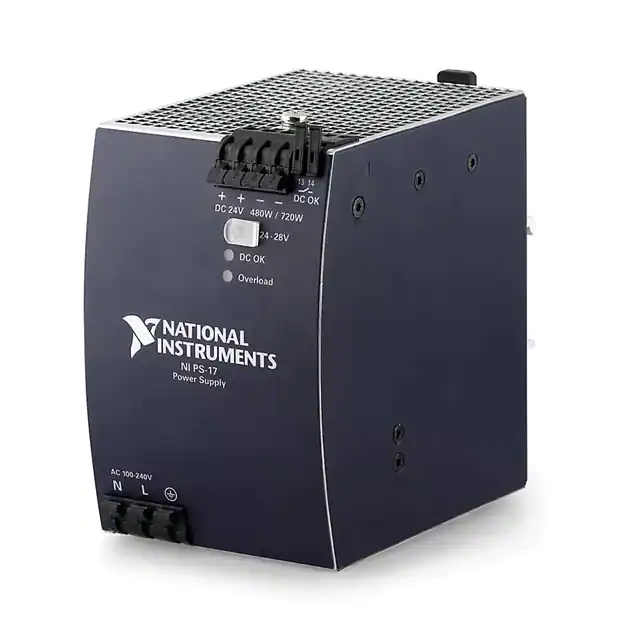

781095-01AC/DC DIN RAIL SUP 24-28V 480W |
5 |
|
Технический лист |
- | Box | Active | AC or DC | 1 | 85 ~ 276 VAC | 88V | 375V | 24 ~ 28V | - | - | - | - | - | 20A | 480W | - | ITE (Commercial) | 92.4% | -25°C ~ 70°C | Adjustable Output, PFC | 4.61" L x 3.23" W x 4.88" H (117.0mm x 82.0mm x 124.0mm) | cURus, UL | 60950-1 |
|
56YSD60S-1204500AC/DC DIN RAIL SUPPLY 12V 54W |
67 |
|
Технический лист |
56YSD60S (60W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 4.5A | 54W | - | Industrial, ITE (Commercial) | 88% | -20°C ~ 50°C | Adjustable Output, IP20 | 3.54" L x 2.07" W x 2.28" H (90.0mm x 52.5mm x 58.0mm) | BSMI, CE, EAC, TUV, UL | 508; 60950-1 |
|

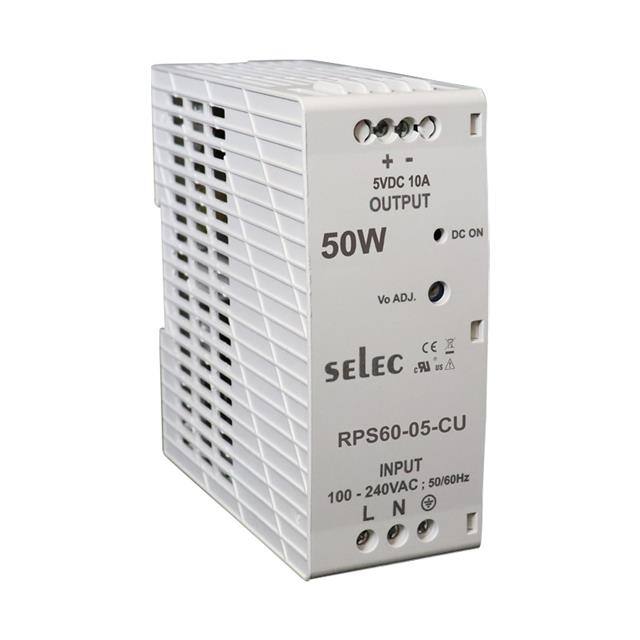

RPS60-05-CUAC/DC DIN RAIL SUPPLY 5V 50W |
94 |
|
Технический лист |
RPS60 (60W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 5V | - | - | - | - | - | 10A | 50W | 4 kV | Industrial, ITE (Commercial) | 78% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.85" L x 1.69" W x 4.32" H (97.8mm x 43.0mm x 109.8mm) | CE, cULus | 62368-1; UL 508 |
|
|
DRC-24V10W1HZAC/DC DIN RAIL SUPPLY 24V 10W |
63 |
|
Технический лист |
Chrome (10W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 125V | 375V | 24V | - | - | - | - | - | 420mA | 10W | 3 kV | Household Appliances, ITE (Commercial) | 80% | -25°C ~ 71°C (With Derating) | IP20, Universal Input | 2.19" L x 0.71" W x 3.58" H (55.6mm x 18.0mm x 90.9mm) | CB Scheme, CE, EAC, EN, NEC Class 2, SIQ, UL | 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-2; 61000-6-3; 61000-6-4; 61204-3; 62368-1 |
|
|
PSD-1505AC/DC DIN RAIL SUPPLY 5V 10W |
10 |
|
Технический лист |
PSD-15 (15W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 2A | 10W | 3 kV | Industrial, ITE (Commercial) | 79% | -20°C ~ 50°C | Adjustable Output, Universal Input | 2.32" L x 0.69" W x 3.66" H (59.0mm x 17.5mm x 93.0mm) | CB, CE, cURus | 60950-1; 62368-1; UL 508 |
|
|
PSD-1512AC/DC DIN RAIL SUPPLY 15V 19W |
8 |
|
Технический лист |
PSD-15 (15W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 15V | - | - | - | - | - | 1.25A | 19W | 3 kV | Industrial, ITE (Commercial) | 85% | -20°C ~ 50°C | Adjustable Output, Universal Input | 2.32" L x 0.69" W x 3.66" H (59.0mm x 17.5mm x 93.0mm) | CB, CE, cURus | 60950-1; 62368-1; UL 508 |
|
PSD-6048AC/DC DIN RAIL SUPPLY 48V 60W |
8 |
|
Технический лист |
PSD-60 (60W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 1.25A | 60W | 3 kV | Industrial, ITE (Commercial) | 91% | -20°C ~ 50°C | Adjustable Output, Universal Input | 2.28" L x 2.07" W x 3.54" H (58.0mm x 52.5mm x 90.0mm) | CB, CE, cURus | 60950-1; 62368-1; UL 508 |
|
DNR10US12AC/DC DIN RAIL SUPPLY 12V 10W |
70 |
|
Технический лист |
DNR (10W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 12V | - | - | - | - | - | 840mA | 10W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 72% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.53" L x 0.89" W x 3.48" H (115.0mm x 22.5mm x 88.5mm) | CE | 62368-1 |
|
RPS60-24-CUAC/DC DIN RAIL SUPPLY 24V 60W |
85 |
|
Технический лист |
RPS60 (60W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 24V | - | - | - | - | - | 2.5A | 60W | 4 kV | Industrial, ITE (Commercial) | 87% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.85" L x 1.69" W x 4.32" H (97.8mm x 43.0mm x 109.8mm) | CE, cULus | 62368-1; UL 508 |
|

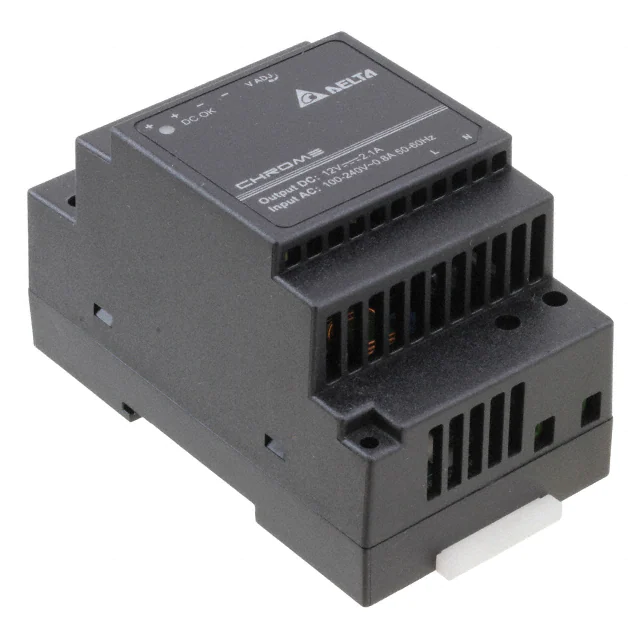

DRC-12V30W1AZAC/DC DIN RAIL SUPPLY 12V 30W |
16 |
|
Технический лист |
Chrome (30W) | Bulk | Active | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 2.1A | 30W | 3 kV | ITE (Commercial) | 87% | -25°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.58" L x 2.09" W x 2.19" H (91.0mm x 53.0mm x 55.6mm) | CB, CE, cULus, cURus, TUV | - |
|
LI100-20B12PR2AC/DC DIN RAIL SUPPLY 12V 90W |
8 |
|
Технический лист |
LI100-20BxxPR2 (100W) | Tray | Not For New Designs | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 7.5A | 90W | 4 kV | ITE (Commercial) | 88% | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | 2.28" L x 2.76" W x 3.65" H (58.0mm x 70.0mm x 92.7mm) | CB, CE, cURus | 62368-1 |
|
DRA-40-12AC/DC DIN RAIL SUPPLY 12V 40W |
19 |
|
Технический лист |
DRA-40 (40W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 12V | - | - | - | - | - | 3.34A | 40W | 3 kV | ITE (Commercial) | 85% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.94" L x 1.57" W x 3.54" H (100.0mm x 40.0mm x 90.0mm) | CB, CE, cURus, TUV | - |
