Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TSP 090-124 EXAC/DC DIN RAIL SUPPLY 24V 90W |
9 |
|
Технический лист |
TSP-EX (90-96W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.75A | 90W | - | Hazardous Locations, Industrial, ITE (Commercial) | 87% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Remote On/Off, Universal Input | 4.33" L x 1.38" W x 4.33" H (110.0mm x 35.1mm x 110.0mm) | CB, CE, cURus, SIQ | - |
|
DRF-48V480W1GBAAC/DC DIN RAIL 48V 480W COATED |
14 |
|
Технический лист |
DRF (480W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 10A | 480W | 4 kV | ITE (Commercial), Laboratory | 95% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.87" L x 2.20" W x 4.60" H (123.7mm x 55.9mm x 116.8mm) | CB, CE, cURus, EAC, KC, TUV, UKCA | 60950-1; 61010-1; 62368-1 |
|
TIB 120-112EXAC/DC DIN RAIL SUPPLY 12V 120W |
11 |
|
Технический лист |
TIB 120EX (120W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 10A | 120W | 4.25 kV | Hazardous Locations, Industrial, ITE (Commercial) | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.50" L x 1.42" W x 4.89" H (114.2mm x 36.0mm x 124.2mm) | CB, CE, cULus, cURus, SIQ | - |
|

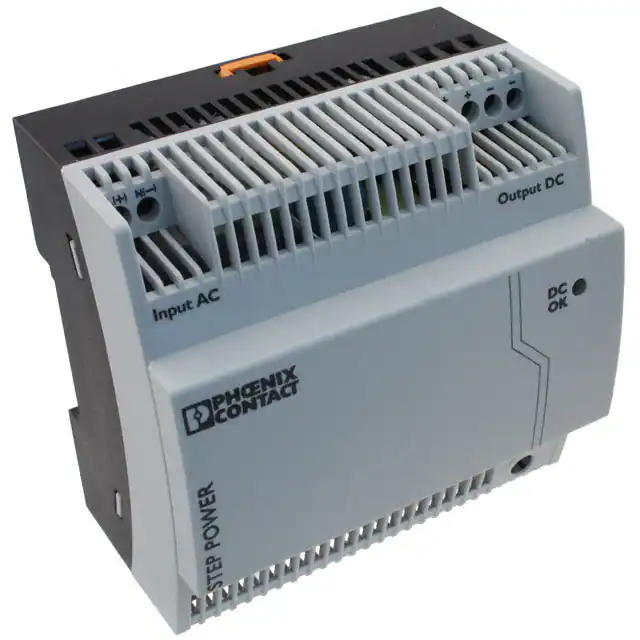

2868680AC/DC DIN RAIL SUPPLY 48V 96W |
12 |
|
Технический лист |
Step | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 95V | 250V | 48V | - | - | - | - | - | 2A | 96W | 4 kV | ITE (Commercial) | 90% | -25°C ~ 70°C (With Derating) | IP20, Load Sharing, Universal Input | 2.40" L x 3.54" W x 3.54" H (61.0mm x 90.0mm x 90.0mm) | - | - |
|
|
2903144TRIO-PS-2G/1AC/24DC/5/B+D |
3 |
|
Технический лист |
- | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 99V | 275V | 24V | - | - | - | - | - | 5A | 120W | 1.5 kV | Industrial, ITE (Commercial) | 89% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 4.53" L x 1.38" W x 5.12" H (115.0mm x 35.0mm x 130.0mm) | cULus, cURus, EAC | 60950-1; UL 508 |
|
787-1012AC/DC DIN RAIL SUPPLY 24V 60W |
7 |
|
Технический лист |
- | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 300V | 24V | - | - | - | - | - | 2.5A | 60W | 4.242 kV | Industrial, ITE (Commercial), Laboratory | 88% | -25°C ~ 60°C | Adjustable Output, IP20, PFC, Universal Input | 2.17" L x 2.83" W x 3.50" H (55.0mm x 72.0mm x 89.0mm) | cURus, EAC, UL | 60950-1; 61010-1; UL 508 |
|
|
DRF-24V480W1GBAAC/DC DIN RAIL 24V 480W COATED |
10 |
|
Технический лист |
DRF (480W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 4 kV | ITE (Commercial), Laboratory | 95% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.87" L x 2.20" W x 4.60" H (123.7mm x 55.9mm x 116.8mm) | CB, CE, cURus, EAC, KC, TUV, UKCA | 60950-1; 61010-1; 62368-1 |
|
|
ISEDR-240-24DIN RAIL POWER SUPPLY, AC-DC, 24 |
4 |
|
Технический лист |
- | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | - | - | - | -20°C ~ 70°C | - | - | CE | - |
|
S8VK-G12024-400AC/DC DIN RAIL SUPPLY 24V 120W |
4 |
|
Технический лист |
S8VK-G (120W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 3 kV | ITE (Commercial) | 89% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.81" L x 1.57" W x 4.92" H (122.2mm x 40.0mm x 125.0mm) | CE, cULus, cURus, TUV | - |
|

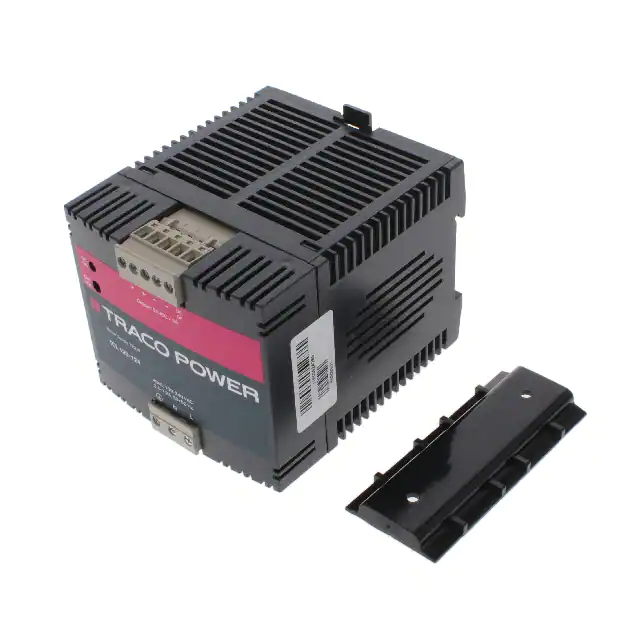

TCL 120-124AC/DC DIN RAIL SUPPLY 24V 120W |
7 |
|
Технический лист |
TCL (120W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 85V | 375V | 24V | - | - | - | - | - | 5A | 120W | 3 kV | Industrial, ITE (Commercial) | 88% | -10°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 3.94" L x 3.35" W x 2.95" H (100.1mm x 85.1mm x 74.9mm) | CB, CE, cCSAus, cULus, cURus | - |
|

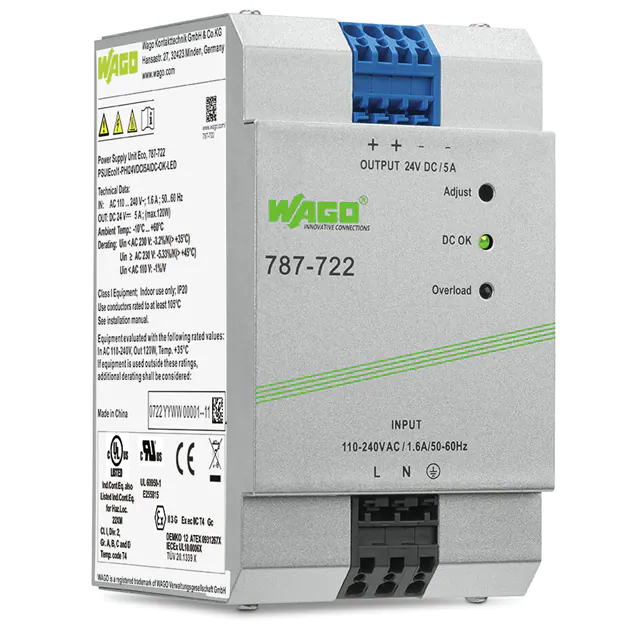

787-722AC/DC DIN RAIL SUPPLY 24V 120W |
10 |
|
Технический лист |
- | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 373V | 24V | - | - | - | - | - | 5A | 120W | - | ITE (Commercial) | 82% | -10°C ~ 60°C | IP20, Universal Input | 5.35" L x 2.95" W x 3.62" H (136.0mm x 75.0mm x 92.0mm) | CCC, CE, cURus, UL | 60950-1 |
|
S8FS-G15005CDAC/DC DIN RAIL SUPPLY 5V 105W |
4 |
|
Технический лист |
S8FS-G (150W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 21A | 105W | 3 kV | ITE (Commercial) | 81% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 6.26" L x 1.54" W x 3.82" H (159.0mm x 39.2mm x 97.0mm) | CE, cURus, TUV, UL | - |
|

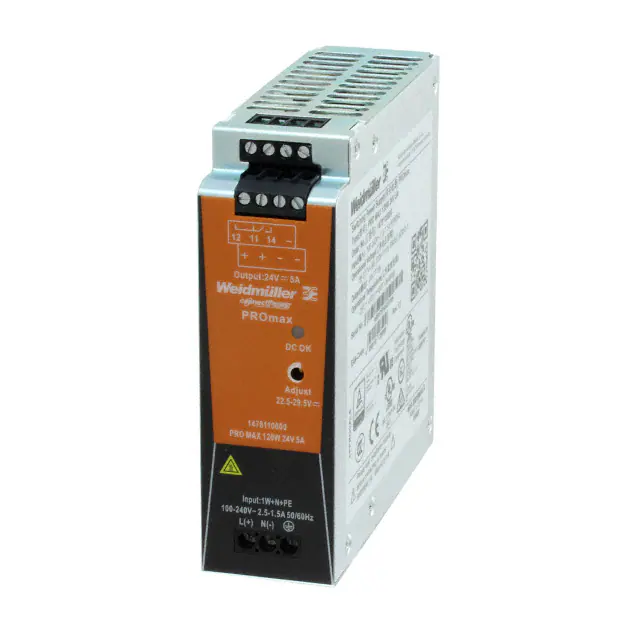

1478110000AC/DC DIN RAIL SUPPLY 24V 120W |
3 |
|
Технический лист |
PRO MAX (120W) | Bulk | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 370V | 24V | - | - | - | - | - | 5A | 120W | 4 kV | ITE (Commercial) | 89% | -25°C ~ 70°C | Adjustable Output, IP20 | 4.92" L x 1.57" W x 5.12" H (125.0mm x 40.0mm x 130.0mm) | CE, cULus, cuRus, EAC, TUV | - |
|
DRB120-12-3-A0AC/DC DIN RAIL SUPPLY 12V 120W |
8 |
|
Технический лист |
DRB (120-240W) | Box | Active | AC | 1 | 350 ~ 575 VAC (3 Phase) | - | - | 12V | - | - | - | - | - | 10A | 120W | 3.51 kV | ITE (Commercial), Laboratory | 89.4% | -25°C ~ 55°C | Adjustable Output, PFC, Remote On/Off, Remote Sense | 4.87" L x 2.17" W x 5.08" H (123.8mm x 55.2mm x 129.0mm) | CE | 61010-1;60950-1;62368-1 |
|
DPX40-24WS05DC/DC DIN RAIL SUPPLY 5V 40W |
5 |
|
Технический лист |
DPX (40W) | Bulk | Active | DC | 1 | - | 9.5V | 36V | 5V | - | - | - | - | - | 8A | 40W | - | ITE (Commercial) | 85% | -40°C ~ 85°C | - | 4.92" L x 0.96" W x 2.27" H (125.0mm x 24.5mm x 57.6mm) | CE | - |
|
WDR-480-48AC/DC DIN RAIL SUPPLY 48V 480W |
3 |
|
Технический лист |
WDR-480 (480W) | Box | Active | AC or DC | 1 | 180 ~ 550 VAC (2 Phase) | 254V | 780V | 48V | - | - | - | - | - | 10A | 480W | 3 kV | Industrial, ITE (Commercial) | 93% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC | 5.06" L x 3.37" W x 4.93" H (128.5mm x 85.5mm x 125.2mm) | CB, CE, UL | - |
|
|
1066714QUINT4-PS/12-24DC/24DC/2.5/PT |
11 |
|
Технический лист |
Quint | Bulk | Active | DC | 1 | - | 12V | 24V | 24V | - | - | - | - | - | 2.5A | 30W | 2.6 kV | Laboratory | 92.1% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 3.54" L x 1.26" W x 4.17" H (90.0mm x 32.0mm x 106.0mm) | CB, SIQ, UL | 61010-1 |
|
|
1066718QUINT4-PS/12-24DC/24DC/2.5/SC |
6 |
|
Технический лист |
Quint | Bulk | Active | DC | 1 | - | 12V | 24V | 24V | - | - | - | - | - | 2.5A | 60W | 2.6 kV | Laboratory | 92.1% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 3.54" L x 1.26" W x 3.90" H (90.0mm x 32.0mm x 99.0mm) | CB, SIQ, UL | 61010-1 |
|
|
1159042PRIMARY-SWITCHED POWER SUPPLY UN |
21 |
|
Технический лист |
- | Box | Active | AC | 1 | 320 ~ 550 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | Laboratory | 92.35% | -25°C ~ 70°C (With Derating) | PFC | 5.20" L x 1.57" W x 5.31" H (132.0mm x 40.0mm x 135.0mm) | cULus | 61010-1 |
|
ABLM1A24025AC/DC DIN RAIL SUPPLY 24V 60W |
6 |
|
Технический лист |
- | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 3 kV | ITE (Commercial), Laboratory | 90% | -25°C ~ 70°C (With Derating) | IP20, Universal Input | 2.19" L x 2.09" W x 3.58" H (55.6mm x 53.1mm x 90.9mm) | CB, CE, CSA, CuL, EAC, EN, IEC, KC, NEC Class 2, UL | 60950-1; 61010-1; 62368-1 |
