Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDR-20-15AC/DC DIN RAIL SUPPLY 15V 20W |
82 |
|
Технический лист |
MDR-20 (20W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 15V | - | - | - | - | - | 1.34A | 20W | 3 kV | Industrial, ITE (Commercial) | 81% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.94" L x 0.89" W x 3.54" H (100.0mm x 22.5mm x 90.0mm) | CB, CE, cULus, TUV | - |
|
HDR-30-5AC/DC DIN RAIL SUPPLY 5V 15W |
89 |
|
Технический лист |
HDR-30 (30W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 5V | - | - | - | - | - | 3A | 15W | 4 kV | Industrial, ITE (Commercial) | 82% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 2.15" L x 1.38" W x 3.54" H (54.5mm x 35.0mm x 90.0mm) | CB, CE, cULus, cURus, TUV | - |
|
DRC-12V10W1AZAC/DC DIN RAIL SUPPLY 12V 10W |
8 |
|
Технический лист |
Chrome (10W) | Bulk | Active | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 830mA | 10W | 3 kV | ITE (Commercial) | 82% | -25°C ~ 71°C (With Derating) | IP20, Universal Input | 2.19" L x 0.71" W x 3.58" H (55.6mm x 18.0mm x 91.0mm) | CB, CE, cULus, cURus, TUV | - |
|
DRL10-12-1AC/DC DIN RAIL SUPPLY 12V 10W |
86 |
|
Технический лист |
DRL (10-100W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 373V | 12V | - | - | - | - | - | 840mA | 10W | 3 kV | Hazardous Locations, ITE (Commercial) | 85% | -20°C ~ 71°C (With Derating) | Universal Input | 2.19" L x 0.71" W x 3.58" H (55.6mm x 18.0mm x 91.0mm) | CE | - |
|
|
DRL10-24-1AC/DC DIN RAIL SUPPLY 24V 10W |
9 |
|
Технический лист |
DRL (10-100W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 373V | 24V | - | - | - | - | - | 420mA | 10W | 3 kV | Hazardous Locations, ITE (Commercial) | 87% | -20°C ~ 71°C (With Derating) | Universal Input | 2.19" L x 0.71" W x 3.58" H (55.6mm x 18.0mm x 91.0mm) | CE | - |
|
PSD-1524AC/DC DIN RAIL SUPPLY 24V 15W |
8 |
|
Технический лист |
PSD-15 (15W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 630mA | 15W | 3 kV | Industrial, ITE (Commercial) | 86% | -20°C ~ 50°C | Adjustable Output, Universal Input | 2.32" L x 0.69" W x 3.66" H (59.0mm x 17.5mm x 93.0mm) | CB, CE, cURus | 60950-1; 62368-1; UL 508 |
|
MDR-40-48AC/DC DIN RAIL SUPPLY 48V 40W |
100 |
|
Технический лист |
MDR-40 (40W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 830mA | 40W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.94" L x 1.57" W x 3.54" H (100.0mm x 40.0mm x 90.0mm) | CB, CE, cULus, cURus, TUV | - |
|
HDR-60-48AC/DC DIN RAIL SUPPLY 48V 60W |
44 |
|
Технический лист |
HDR-60 (60W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 1.25A | 60W | 4 kV | Industrial, ITE (Commercial) | 91% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 2.15" L x 2.07" W x 3.54" H (54.5mm x 52.5mm x 90.0mm) | CB, CE, cULus, cURus, TUV | - |
|
DNR10US05AC/DC DIN RAIL SUPPLY 5V 10W |
16 |
|
Технический лист |
DNR (10W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 5V | - | - | - | - | - | 2A | 10W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 69% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.53" L x 0.89" W x 3.48" H (115.0mm x 22.5mm x 88.5mm) | CE | 62368-1 |
|
PSD-6024AC/DC DIN RAIL SUPPLY 24V 60W |
15 |
|
Технический лист |
PSD-60 (60W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 3 kV | Industrial, ITE (Commercial) | 90% | -20°C ~ 50°C | Adjustable Output, Universal Input | 2.28" L x 2.07" W x 3.54" H (58.0mm x 52.5mm x 90.0mm) | CB, CE, cURus | 60950-1; 62368-1; UL 508 |
|

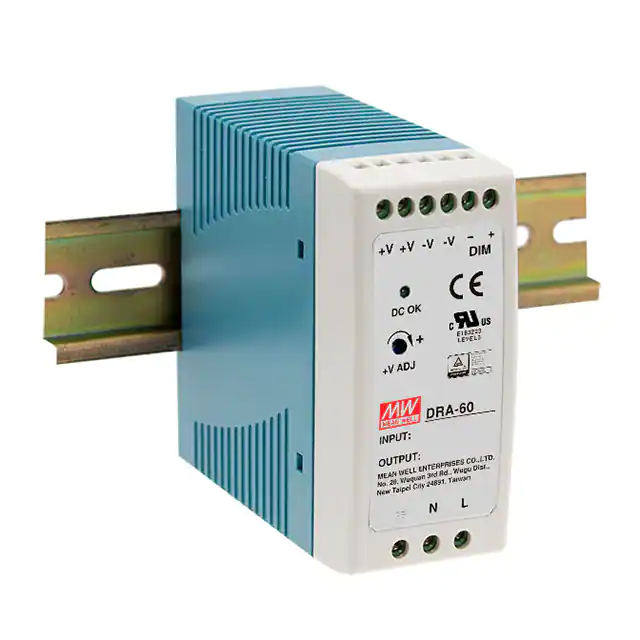

DRA-60-12AC/DC DIN RAIL SUPPLY 12V 60W |
42 |
|
Технический лист |
DRA-60 (60W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 12V | - | - | - | - | - | 5A | 60W | 3 kV | ITE (Commercial) | 85% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.94" L x 1.57" W x 3.54" H (100.0mm x 40.0mm x 90.0mm) | CB, CE, cURus, TUV | - |
|
|
DRL-24V75W1AZAC/DC DIN RAIL 24V 75W - LYTE |
49 |
|
Технический лист |
DRL (75W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 375V | 24V | - | - | - | - | - | 3.125A | 75W | 3 kV | ITE (Commercial), Laboratory | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.87" L x 1.06" W x 4.02" H (123.7mm x 26.9mm x 102.1mm) | CB, CCC, CE, cTUVus, TUV, UKCA | 60950-1; 61010-1; 62368-1 |
|
|
DRL-12V75W1AZAC/DC DIN RAIL 12V 75W - LYTE |
19 |
|
Технический лист |
DRL (75W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 375V | 12V | - | - | - | - | - | 6.25A | 75W | 3 kV | ITE (Commercial), Laboratory | 87.5% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.87" L x 1.06" W x 4.02" H (123.7mm x 26.9mm x 102.1mm) | CB, CCC, CE, cTUVus, TUV, UKCA | 60950-1; 61010-1; 62368-1 |
|
DRB15-24-1AC/DC DIN RAIL SUPPLY 24V 15W |
26 |
|
Технический лист |
DRB (15-100W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 373V | 24V | - | - | - | - | - | 630mA | 15W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.54" L x 0.71" W x 2.95" H (90.0mm x 18.0mm x 75.0mm) | CE, cULus, cURus | - |
|
|
13356981-PHASE, OUTPUT: 5 V DC / 3 A, U |
43 |
|
- |
- | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 88V | 275V | 5V | - | - | - | - | - | 3A | 15W | 4 kV | Laboratory | 82% | -10°C ~ 70°C (With Derating) | PFC, Universal Input | 2.40" L x 0.71" W x 3.54" H (61.0mm x 18.0mm x 90.0mm) | UL | 61010-1 |
|
1088495AC/DC DIN RAIL SUPPLY 24V 15W |
13 |
|
Технический лист |
Step | Box | Active | AC or DC | 1 | 100 ~ 240 VAC | 110V | 250V | 24V | - | - | - | - | - | 630mA | 15W | - | Household Appliances, Laboratory | 87% | -10°C ~ 70°C (With Derating) | IP20, Universal Input | 2.17" L x 0.71" W x 3.54" H (55.0mm x 18.0mm x 90.0mm) | cULus, UL | 60335-1; 61010-1 |
|

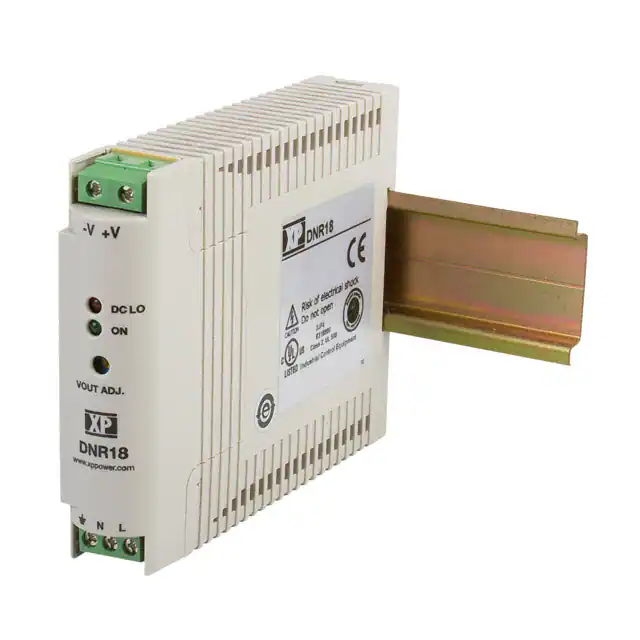

DNR18US24AC/DC DIN RAIL SUPPLY 24V 18W |
53 |
|
Технический лист |
DNR (18W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 24V | - | - | - | - | - | 750mA | 18W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 77% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.53" L x 0.89" W x 3.48" H (115.0mm x 22.5mm x 88.5mm) | CE | 62368-1 |
|
DDR-60L-5DC/DC DIN RAIL SUPPLY 5V 60W |
66 |
|
Технический лист |
DDR-60 (60W) | Box | Active | DC | 1 | - | 18V | 75V | 5V | - | - | - | - | - | 12A | 60W | 4 kV | ITE (Commercial) | 87.5% | -40°C ~ 85°C (With Derating) | Adjustable Output | 2.15" L x 2.07" W x 3.54" H (54.5mm x 52.5mm x 90.0mm) | CE, EAC | - |
|
|
DDR-60L-15DC/DC DIN RAIL SUPPLY 15V 60W |
56 |
|
Технический лист |
DDR-60 (60W) | Box | Active | DC | 1 | - | 18V | 75V | 15V | - | - | - | - | - | 4A | 60W | 4 kV | ITE (Commercial) | 92% | -40°C ~ 85°C (With Derating) | Adjustable Output | 2.15" L x 2.07" W x 3.54" H (54.5mm x 52.5mm x 90.0mm) | CE, EAC | - |
|

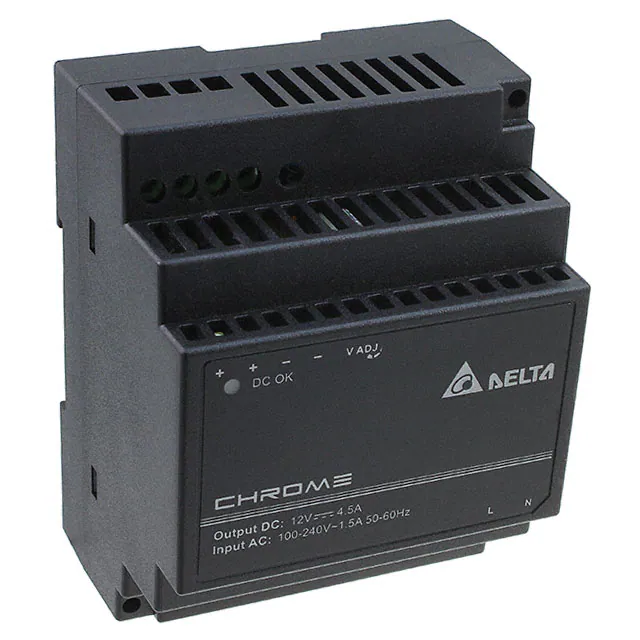

DRC-12V60W1AZAC/DC DIN RAIL SUPPLY 12V 54W |
49 |
|
Технический лист |
Chrome (60W) | Bulk | Active | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 4.5A | 54W | 3 kV | ITE (Commercial) | 86% | -25°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.58" L x 2.80" W x 2.19" H (91.0mm x 71.0mm x 55.6mm) | CB, CE, cULus, cURus, TUV | - |
