Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6EP34368SB000AY0AC/DC DIN RAIL SUPPLY 24V 480W |
22 |
|
Технический лист |
6EP3 | Bulk | Active | AC | 1 | 400 ~ 500 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | - | Hazardous Locations, Industrial, ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 4.92" L x 2.76" W x 4.92" H (125.0mm x 70.0mm x 125.0mm) | CB, cCSAus, CE, CSA, cUL, cULus, UL | 60950-1; UL 508 |
|

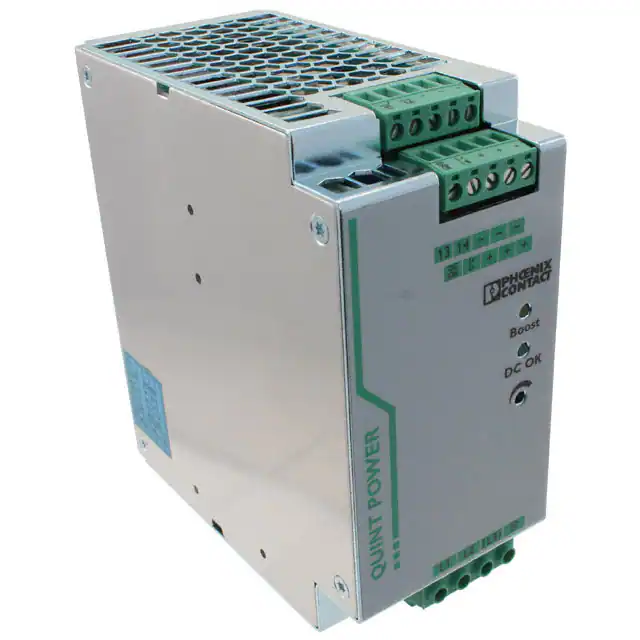

2866705AC/DC DIN RAIL SUPPLY 24V 240W |
19 |
|
Технический лист |
Quint | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (2 Phase) | 450V | 800V | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial) | 93% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.92" L x 2.36" W x 5.12" H (125.0mm x 60.0mm x 130.0mm) | CB, cULus, cURus | - |
|

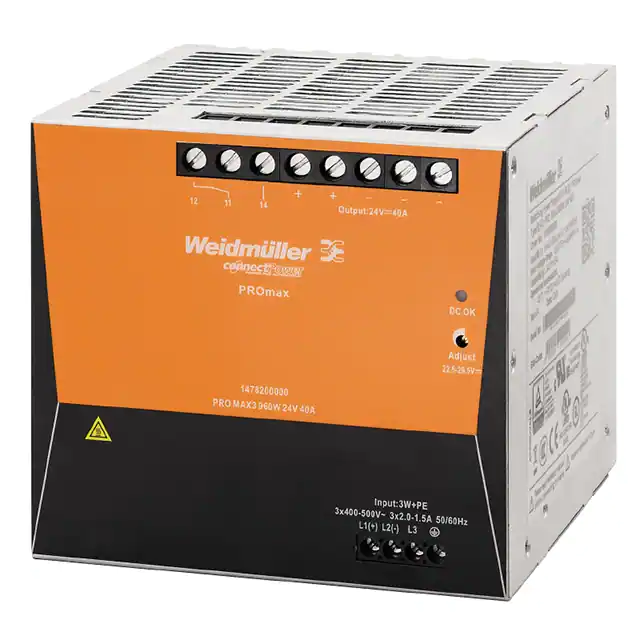

1478200000AC/DC DIN RAIL SUPPLY 24V 960W |
5 |
|
Технический лист |
PRO MAX3 (960W) | Bulk | Active | AC or DC | 1 | 320 ~ 575 VAC | 450V | 800V | 24V | - | - | - | - | - | 40A | 960W | 4 kV | Industrial, ITE (Commercial) | 93.5% | -25°C ~ 70°C | Adjustable Output, IP20 | 5.91" L x 5.51" W x 5.12" H (150.0mm x 140.0mm x 130.0mm) | CE, cULus, cuRus, EAC, TUV | - |
|

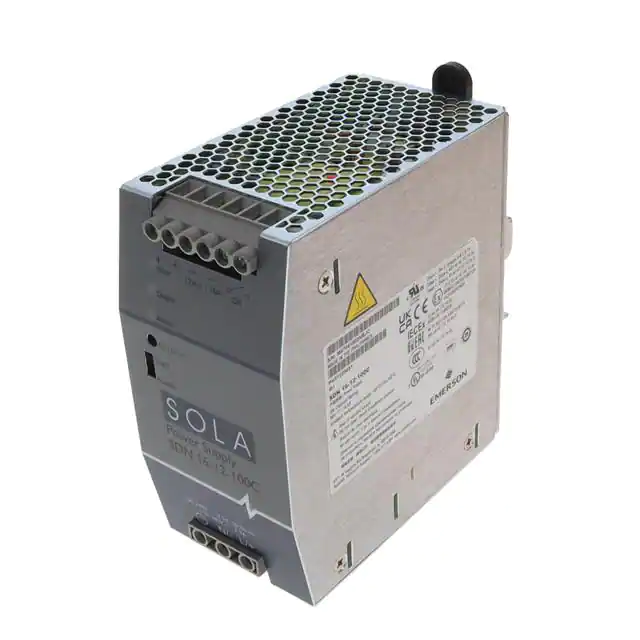

SDN 16-12-100CAC/DC DIN RAIL SUPPLY 12V 192W |
9 |
|
Технический лист |
SDN-C | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 12V | - | - | - | - | - | 16A | 192W | - | Hazardous Locations, Industrial, ITE (Commercial) | 86.5% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.36" L x 2.36" W x 4.85" H (110.7mm x 59.9mm x 123.2mm) | CE, cULus, cURus, EAC | - |
|

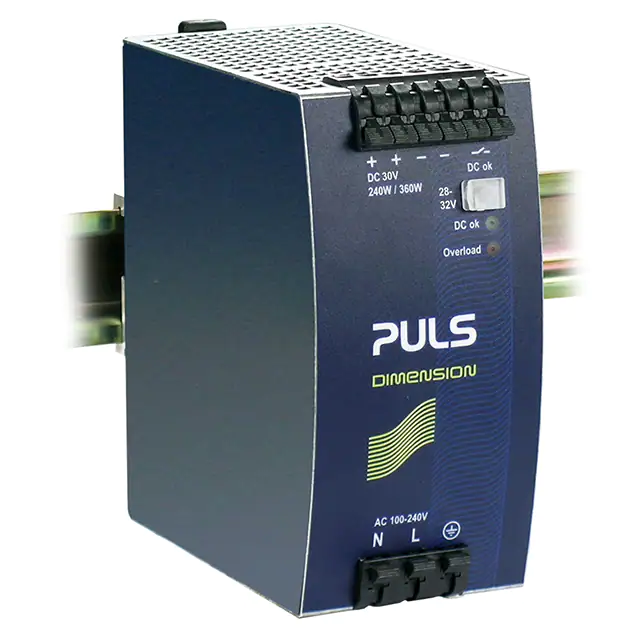

QS10.301AC/DC DIN RAIL SUPPLY 30V 240W |
11 |
|
Технический лист |
DIMENSION Q (240W) | Box | Active | AC | 1 | 85 ~ 276 VAC | - | - | 30V | - | - | - | - | - | 8A | 240W | 500 V | ITE (Commercial) | 93.5% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
LWN1601-6ERGAC/DC DIN RAIL SUPPLY 24.7V 250W |
10 |
|
Технический лист |
Melcher W (250W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24.7V | - | - | - | - | - | 10A | 250W | 2.8 kV | ITE (Commercial) | 88% | -40°C ~ 60°C | Adjustable Output, PFC, Universal Input | 4.47" L x 4.05" W x 5.43" H (113.6mm x 103.0mm x 138.0mm) | cCSAus, CE, cULus, NEMKO, TUV | - |
|
|
LWN2660-6EGAC/DC DIN RAIL SUP 2X24.7V 250W |
4 |
|
Технический лист |
Melcher W (250W) | Bulk | Active | AC | 2 | 85 ~ 264 VAC | - | - | 24.7V | 24.7V | - | - | - | - | 5A, 5A | 250W | 2.8 kV | ITE (Commercial) | 88% | -40°C ~ 60°C | Adjustable Output, PFC, Universal Input | 4.47" L x 4.05" W x 5.43" H (113.6mm x 103.0mm x 138.0mm) | cCSAus, CE, cULus, NEMKO, TUV | - |
|
CP20.241-C1AC/DC DIN RAIL SUPPLY 24V 480W |
4 |
|
Технический лист |
DIMENSION CP (480W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 88V | 180V | 24V | - | - | - | - | - | 20A | 480W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 95.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 5.00" L x 1.89" W x 4.88" H (127.0mm x 48.0mm x 124.0mm) | ATEX, EAC, IEC, IECEx, UL | Class I Div 2; 61010-2-201 |
|
787-1644AC/DC DIN RAIL SUPPLY 24V 960W |
11 |
|
Технический лист |
- | Box | Active | AC or DC | 1 | 320 ~ 575 VAC | 450V | 800V | 24V | - | - | - | - | - | 40A | 960W | 4.242 kV | Industrial, ITE (Commercial), Laboratory | 92% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | 7.80" L x 4.96" W x 5.00" H (198.0mm x 126.0mm x 127.0mm) | cURus, EAC, UL | 60950-1; 61010-1; UL 508 |
|

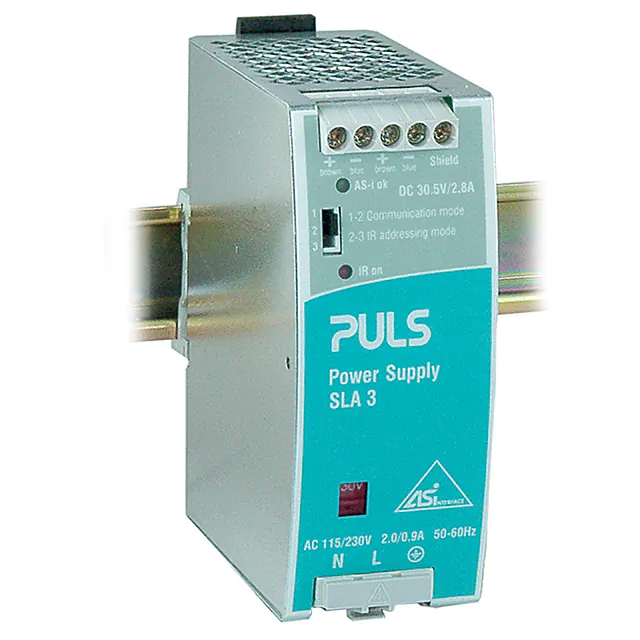

SLA3.100AC/DC DIN RAIL SUPPLY 30.6V 87W |
3 |
|
Технический лист |
SilverLine, AS-Interface® | Box | Active | AC | 1 | 85 ~ 132 VAC, 184 ~ 264 VAC | - | - | 30.6V | - | - | - | - | - | 2.8A | 87W | - | ITE (Commercial) | 90.5% | -25°C ~ 70°C (With Derating) | IP20 | 4.02" L x 1.93" W x 4.88" H (102.0mm x 49.0mm x 124.0mm) | ATEX, CSA, EAC, IEC, IECEx, NEC, UL | Class I Div 2; Class 2; 508; 60950-1 |
|
1478270000AC/DC DIN RAIL SUPPLY 48V 960W |
5 |
|
Технический лист |
PRO MAX (960W) | Bulk | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 370V | 48V | - | - | - | - | - | 20A | 960W | 4 kV | ITE (Commercial) | 94% | -25°C ~ 70°C | Adjustable Output, IP20 | 5.91" L x 5.51" W x 5.12" H (150.0mm x 140.0mm x 130.0mm) | CE, cULus, cuRus, EAC, TUV | - |
|
SDN10-24-480CAC/DC DIN RAIL SUPPLY 24V 240W |
4 |
|
Технический лист |
SDN-C | Bulk | Active | AC or DC | 1 | 320 ~ 540 VAC | 550V | 650V | 24V | - | - | - | - | - | 10A | 240W | - | Hazardous Locations, Industrial, ITE (Commercial) | 91% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 4.36" L x 2.36" W x 4.85" H (110.7mm x 59.9mm x 123.2mm) | CE, cULus, cURus, EAC | - |
|
|
2866679AC/DC DIN RAIL SUPPLY 48V 240W |
6 |
|
Технический лист |
Quint | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 48V | - | - | - | - | - | 5A | 240W | 4 kV | ITE (Commercial) | 92% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.92" L x 2.36" W x 5.12" H (125.0mm x 60.0mm x 130.0mm) | CB, cULus, cURus | - |
|
CPS20.121AC/DC DIN RAIL SUPPLY 12V 360W |
16 |
|
Технический лист |
DIMENSION C (405W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 30A | 360W | 3 kV | Hazardous Locations, ITE (Commercial) | 92.5% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Universal Input | 5.00" L x 2.56" W x 4.88" H (127.0mm x 65.0mm x 124.0mm) | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
CPS20.481AC/DC DIN RAIL SUPPLY 48V 480W |
11 |
|
Технический лист |
DIMENSION C (480W) | Box | Active | AC | 1 | 100 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 10A | 480W | 3 kV | Hazardous Locations, ITE (Commercial) | 93.9% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Universal Input | 5.00" L x 2.56" W x 4.88" H (127.0mm x 65.0mm x 124.0mm) | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
CPS20.361AC/DC DIN RAIL SUPPLY 36V 480W |
5 |
|
Технический лист |
DIMENSION C (480W) | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 36V | - | - | - | - | - | 13.3A | 480W | 3 kV | Hazardous Locations, ITE (Commercial) | 94.3% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Universal Input | 5.00" L x 2.56" W x 4.88" H (127.0mm x 65.0mm x 124.0mm) | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
781094-01AC/DC DIN RAIL SUP 24-28V 240W |
4 |
|
Технический лист |
- | Box | Active | AC | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | - | - | 24 ~ 28V | - | - | - | - | - | 10A | 240W | - | ITE (Commercial) | 91% | -25°C ~ 70°C | Adjustable Output, PFC | 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm) | cURus, UL | 60950-1 |
|

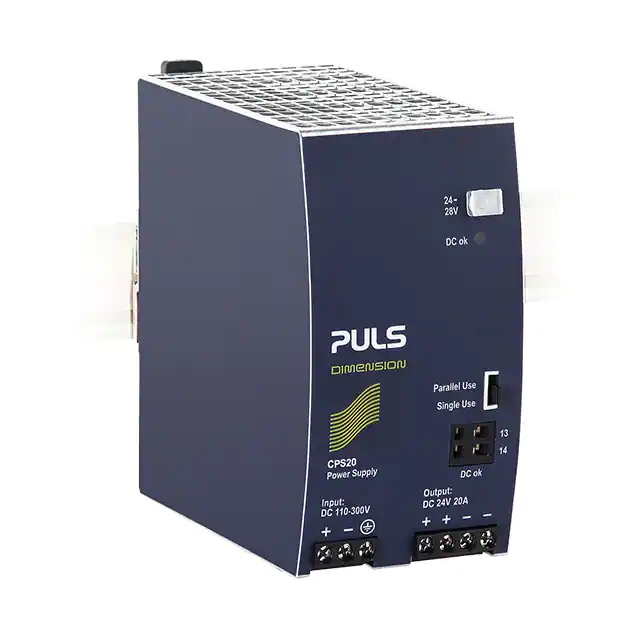

CPS20.241-D1DC/DC DIN RAIL SUPPLY 24V 480W |
17 |
|
Технический лист |
DIMENSION C (480W) | Bulk | Active | DC | 1 | - | 88V | 360V | 24V | - | - | - | - | - | 20A | 480W | 3 kV | ITE (Commercial) | 93.4% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 5.00" L x 2.56" W x 4.88" H (127.0mm x 65.0mm x 124.0mm) | ATEX, CSA, EAC, IEC, IECEx, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
2787-2448AC/DC DIN RAIL SUPPLY 24V 960W |
4 |
|
Технический лист |
- | Box | Active | AC | 1 | 180 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 40A | 960W | 3.51 kV | Laboratory | 96% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | 5.12" L x 4.72" W x 5.12" H (130.0mm x 120.0mm x 130.0mm) | CE, UL | 61010-1 |
|
6EP14363BA00AC/DC DIN RAIL SUPPLY 24V |
7 |
|
Технический лист |
6EP1 | Box | Active | AC | 1 | 320 ~ 550 VAC | - | - | 24V | - | - | - | - | - | 20A | - | - | Industrial, ITE (Commercial) | 90% | 0°C ~ 70°C | Adjustable Output, IP20 | 4.92" L x 6.30" W x 4.92" H (125.0mm x 160.0mm x 125.0mm) | CE, CSA, EAC, UL | 60950-1; UL 508 |
