Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CP10.241-R1AC/DC DIN RAIL SUPPLY 24V 240W |
24 |
|
Технический лист |
DIMENSION CP (240W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 500 V | Hazardous Locations, Industrial, ITE (Commercial), Laboratory | 94.7% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 4.61" L x 1.54" W x 4.88" H (117.0mm x 39.0mm x 124.0mm) | CE, cULus, EAC | 60950-1; 61010-1; 62368-1; ATEX; 508 |
|
1075240TRIO-PS-2G/1500DC/24DC/8 |
10 |
|
Технический лист |
- | Bulk | Active | DC | 1 | - | 510V | 1.65kV | 24V | - | - | - | - | - | 8A | 192W | 2.6 kV | ITE (Commercial) | 91.5% | -25°C ~ 70°C (With Derating) | Adjustable Output | 6.18" L x 3.46" W x 5.12" H (157.0mm x 88.0mm x 130.0mm) | CB, cUL, cUR, EAC, UL, UR | - |
|
CS10.481AC/DC DIN RAIL SUPPLY 48V 240W |
22 |
|
Технический лист |
DIMENSION C (240W) | Box | Active | AC | 1 | 100 ~ 120 VAC, 200 ~ 240 VAC | - | - | 48V | - | - | - | - | - | 5A | 240W | 3 kV | ITE (Commercial) | 91.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
SDN5-24-480CAC/DC DIN RAIL SUPPLY 24V 120W |
10 |
|
Технический лист |
SDN-C | Bulk | Active | AC or DC | 1 | 320 ~ 540 VAC | 550V | 650V | 24V | - | - | - | - | - | 5A | 120W | - | Hazardous Locations, Industrial, ITE (Commercial) | 85% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 4.36" L x 1.97" W x 4.85" H (110.7mm x 50.0mm x 123.2mm) | CE, cULus, cURus, EAC | - |
|
85002EVOLUTION POWER SUPPLY 3-PHASE, |
11 |
|
Технический лист |
- | Box | Active | AC or DC | 1 | 360 ~ 520 VAC (3 Phase) | 480V | 745V | 24V | - | - | - | - | - | 20A | 480W | - | ITE (Commercial) | 90% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 5.35" L x 4.45" W x 5.20" H (136.0mm x 113.0mm x 132.0mm) | CE, cULus, EAC, UKCA | - |
|
2904611AC/DC DIN RAIL SUPPLY 48V 480W |
20 |
|
Технический лист |
Quint | Bulk | Active | AC | 1 | 100 ~ 240 VAC | - | - | 48V | - | - | - | - | - | 10A | 480W | - | Industrial, ITE (Commercial) | 95% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Remote On/Off | 4.80" L x 2.76" W x 5.12" H (122.0mm x 70.0mm x 130.0mm) | CSA, UL | - |
|
S8VS-18024AAC/DC DIN RAIL SUPPLY 24V 180W |
14 |
|
Технический лист |
S8VS (180W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 7.5A | 180W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.93" L x 2.95" W x 4.53" H (125.3mm x 75.0mm x 115.0mm) | CE, cULus, cURus, VDE | - |
|
2904626AC/DC DIN RAIL SUPPLY 48V 480W |
10 |
|
Технический лист |
Quint | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 90.2V | 350V | 48V | - | - | - | - | - | 10A | 480W | 4 kV | Hazardous Locations, Industrial, ITE (Commercial), Laboratory | 95% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.92" L x 2.76" W x 5.12" H (125.0mm x 70.0mm x 130.0mm) | CB, CSA, CSAus, cUL, cULus, cURus, EAC, SIQ, UL | 60950-1; 61010-1; UL 508 |
|
2905010DC/DC DIN RAIL SUPPLY 24V |
4 |
|
Технический лист |
Quint | Bulk | Active | DC | 1 | - | 67.2V | 154V | 24V | - | - | - | - | - | 10A | - | 1.5 kV | ITE (Commercial) | 92% | -25°C ~ 75°C (With Derating) | Adjustable Output, IP20 | 4.92" L x 1.89" W x 5.12" H (125.0mm x 48.0mm x 130.0mm) | cUL, cULus, EAC, UL | - |
|

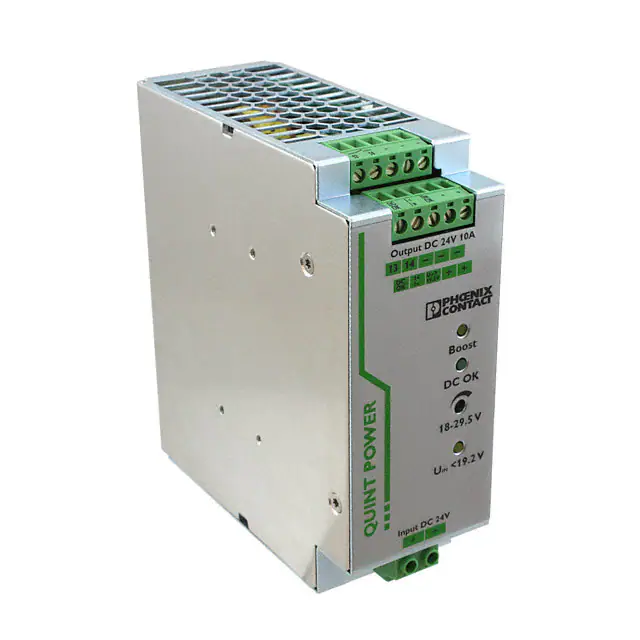

2320092DC/DC DIN RAIL SUPPLY 24V 240W |
22 |
|
Технический лист |
Quint | Bulk | Active | DC | 1 | - | 18V | 32V | 24V | - | - | - | - | - | 10A | 240W | - | ITE (Commercial) | 92% | -25°C ~ 60°C | - | 4.92" L x 1.89" W x 5.12" H (125.0mm x 48.0mm x 130.0mm) | cULus, VDE | - |
|

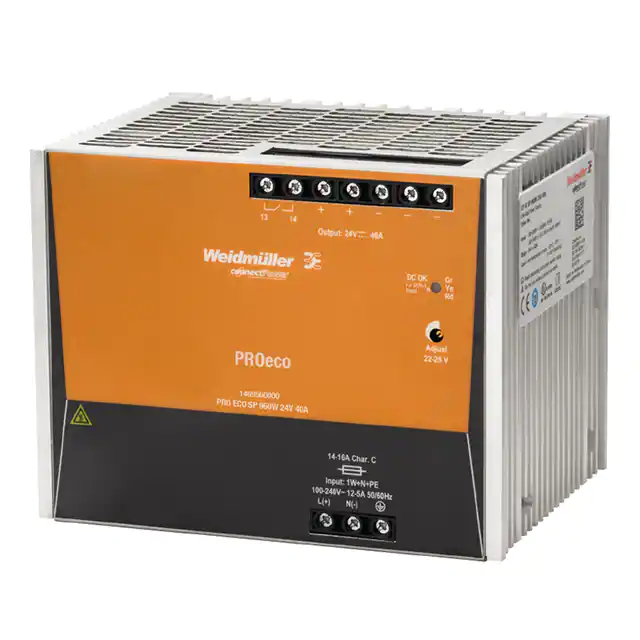

1469560000AC/DC DIN RAIL SUPPLY 24V 960W |
4 |
|
Технический лист |
PRO ECO3 (960W) | Bulk | Active | AC or DC | 1 | 320 ~ 575 VAC | 450V | 800V | 24V | - | - | - | - | - | 40A | 960W | 3 kV | Industrial, ITE (Commercial) | 90% | -25°C ~ 70°C | Adjustable Output, IP20 | 6.30" L x 4.72" W x 4.92" H (160.0mm x 120.0mm x 125.0mm) | CE, cULus, EAC, TUV | - |
|
2904613AC/DC DIN RAIL SUPPLY 110V 440W |
3 |
|
Технический лист |
- | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 90V | 350V | 110V | - | - | - | - | - | 4A | 440W | 4 kV | Hazardous Locations, ITE (Commerical), Laboratory | 94.7% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.92" L x 2.76" W x 5.12" H (125.0mm x 70.0mm x 130.0mm) | CB, CSA, SIQ, UL | 61010-1; 60950-1 |
|
TSP 600-148AC/DC DIN RAIL SUPPLY 48V 600W |
12 |
|
Технический лист |
TSP (600W) | Box | Active | AC | 1 | 85 ~ 132 VAC, 187 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 12.5A | 600W | - | Industrial, ITE (Commercial) | 87% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Remote On/Off, Universal Input | 6.50" L x 4.92" W x 4.92" H (165.1mm x 125.0mm x 125.0mm) | CB, CE, cURus, SIQ | - |
|
2910121DC/DC DIN RAIL SUPPLY 24V 480W |
8 |
|
Технический лист |
Quint4 | Box | Active | DC | 1 | - | 18V | 32V | 24V | - | - | - | - | - | 20A | 480W | 4 kV | Hazardous Locations, ITE (Commercial), Laboratory | 94.7% | -25°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off | 4.92" L x 2.76" W x 5.12" H (125.0mm x 70.0mm x 130.0mm) | CB, CSA, cULus, UL | 60950-1; 61010-1; ATEX |
|
2320908AC/DC DIN RAIL SUPPLY 24V 120W |
21 |
|
Технический лист |
Quint | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 4 kV | ITE (Commercial) | 90% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.92" L x 1.57" W x 5.12" H (125.0mm x 40.0mm x 130.0mm) | CB, CSA, cULus, cRUus | - |
|
CP20.241-S2AC/DC DIN RAIL SUPPLY 24V 480W |
14 |
|
Технический лист |
DIMENSION CP (480W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 150V | 24V | - | - | - | - | - | 20A | 480W | 500 V | Industrial, ITE (Commercial) | 94.2% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 5.00" L x 1.89" W x 4.88" H (127.0mm x 48.0mm x 124.0mm) | ATEX, EAC, IEC, IECEx, UL | Class I Div 2; 61010-2-201 |
|
781093-01AC/DC DIN RAIL SUP 24-28V 120W |
22 |
|
Технический лист |
- | Box | Active | AC | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | - | - | 24 ~ 28V | - | - | - | - | - | 5A | 120W | - | ITE (Commercial) | 89.4% | -25°C ~ 70°C | Adjustable Output, PFC | 4.61" L x 1.26" W x 4.88" H (117.0mm x 32.0mm x 124.0mm) | cURus, UL | 60950-1 |
|
2904617AC/DC DIN RAIL SUPPLY 24V 480W |
19 |
|
Технический лист |
Quint | Bulk | Active | AC or DC | 1 | 100 ~ 240 VAC | 110V | 250V | 24V | - | - | - | - | - | 20A | 480W | 4 kV | Hazardous Locations, Industrial, ITE (Commercial) | 94.2% | -40°C ~ 75°C (With Derating) | Adjustable Output, IP20 | 4.80" L x 2.76" W x 5.12" H (122.0mm x 70.0mm x 130.0mm) | cUL, cULus, EAC, UL, UR | - |
|
|
DRM-24V960W3PNDIN-RAIL CLIQ-M 960W/24V 3 PH |
16 |
|
Технический лист |
CliQ M (960W) | Box | Active | AC | 1 | 320 ~ 575 VAC (3 Phase), 380 ~ 575 VAC (2 Phase) | - | - | 24V | - | - | - | - | - | 40A | 960W | 4.86 kV | Industrial, ITE (Commercial), Laboratory | 95.78% | -25°C ~ 70°C | Adjustable Output, PFC, Remote On/Off | 5.06" L x 4.33" W x 4.88" H (128.5mm x 110.0mm x 124.0mm) | CB, CE, cULus, cURus, EAC, SIQ, UKCA | 60950-1; 61010-1; 62368-1; UL 508 |
|
S8VS-24024BAC/DC DIN RAIL SUPPLY 24V 240W |
20 |
|
Технический лист |
S8VS (240W) | Bulk | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.93" L x 3.94" W x 4.53" H (125.3mm x 100.0mm x 115.0mm) | CE, cULus, cURus, VDE | - |
