Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCL 024-112AC/DC DIN RAIL SUPPLY 12V 24W |
10 |
|
Технический лист |
TCL (24W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 85V | 375V | 12V | - | - | - | - | - | 2A | 24W | 3 kV | Industrial, ITE (Commercial) | 88% | -10°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 3.94" L x 1.06" W x 2.95" H (100.1mm x 26.9mm x 74.9mm) | CB, CE, cCSAus, cULus, cURus | - |
|
PIM60.245AC/DC DIN RAIL SUPPLY 24V 60W |
8 |
|
Технический лист |
PIANO (60W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 500 V | Industrial, ITE (Commercial), Laboratory | 91.8% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.58" L x 1.42" W x 3.54" H (91.0mm x 36.0mm x 90.0mm) | CB, CE, cULus, EAC | 61010-1; 62368-1; UL 508 |
|
PIM60.241AC/DC DIN RAIL SUPPLY 24V 60W |
6 |
|
Технический лист |
PIANO (60W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 500 V | Industrial, ITE (Commercial), Laboratory | 91.8% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.58" L x 1.42" W x 3.54" H (91.0mm x 36.0mm x 90.0mm) | CB, CE, cULus | 61010-1; 62368-1; UL 508 |
|
2838430000AC/DC DIN RAIL SUPPLY 24V 91W |
6 |
|
Технический лист |
PRO BAS (90W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 370V | 24V | - | - | - | - | - | 3.8A | 91W | 3.5 kV | Laboratory | 89.4% | -25°C ~ 70°C | PFC, Universal Input | 3.35" L x 3.35" W x 3.54" H (85.0mm x 85.0mm x 90.0mm) | - | 61010-1 |
|
|
DRF-12V240W1GTADIN-RAIL PS 240W / 12V (COATED) |
3 |
|
Технический лист |
Force-GT (240W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 375V | 12V | - | - | - | - | - | 20A | 240W | 4 kV | ITE (Commercial), Laboratory | 93.5% | -30°C ~ 70°C | Adjustable Output, DC Input Capable, PFC, Universal Input | 4.60" L x 1.57" W x 4.87" H (116.8mm x 39.9mm x 123.7mm) | CB, CCC, CE, cURus, EAC, KC, TUV, UKCA | 61010-1;60950-1;62368-1 |
|

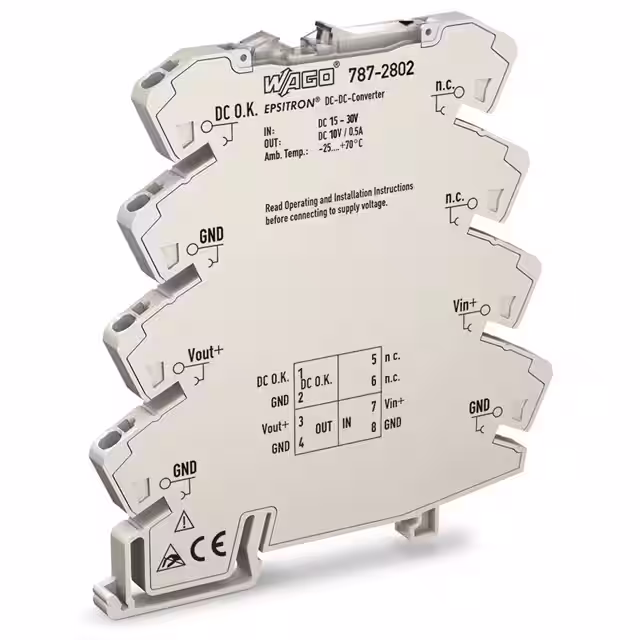

787-2802DC/DC DIN RAIL SUPPLY 10V 5W |
18 |
|
Технический лист |
- | Bag | Active | DC | 1 | - | 15V | 30V | 10V | - | - | - | - | - | 500mA | 5W | - | ITE (Commercial) | 89% | -25°C ~ 70°C | Adjustable Output, IP20 | 3.85" L x 0.24" W x 3.70" H (97.8mm x 6.0mm x 94.0mm) | CE, EAC, UL | 60950-1 |
|
TCL 012-124 DCDC/DC DIN RAIL SUPPLY 24V 24W |
16 |
|
Технический лист |
TCL-DC (24 ~ 60W) | Box | Active | DC | 1 | - | 9.5V | 18V | 24V | - | - | - | - | - | 1A | 24W | 1.5 kV | Industrial, ITE (Commercial) | 86% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 3.94" L x 1.06" W x 2.95" H (100.1mm x 26.9mm x 74.9mm) | CB, cULus | - |
|
|
2838440000AC/DC DIN RAIL SUPPLY 24V 120W |
4 |
|
Технический лист |
PRO BAS (120W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 370V | 24V | - | - | - | - | - | 5A | 120W | 3.5 kV | Laboratory | 90% | -25°C ~ 70°C | PFC, Universal Input | 3.94" L x 3.94" W x 5.12" H (100.0mm x 100.0mm x 130.0mm) | - | 61010-1 |
|
|
DRC-180BPWR SUPP, BATT & COND |
9 |
|
Технический лист |
DRC-180 (180W) | Bulk | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 27.6V | - | - | - | - | - | 4.5A | 124W | 3 kV | ITE (Commercial) | 90% | -20°C ~ 70°C (With Derating) | PFC, Universal Input | 4.53" L x 2.48" W x 4.93" H (115.0mm x 63.0mm x 125.2mm) | CB, CE, cURus, EAC | 62368-1 |
|
TSPC 050-124AC/DC DIN RAIL SUPPLY 24V 50W |
12 |
|
Технический лист |
TSPC (50W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.1A | 50W | - | Hazardous Locations, Industrial, ITE (Commercial) | 93% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.56" L x 1.45" W x 4.33" H (90.4mm x 36.8mm x 110.0mm) | CB, CE | - |
|

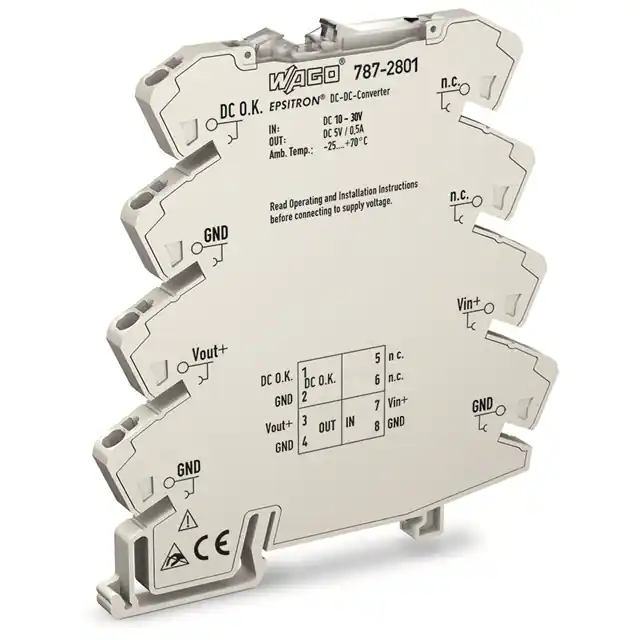

787-2801DC/DC DIN RAIL SUPPLY 5V 2.5W |
8 |
|
Технический лист |
- | Bag | Active | DC | 1 | - | 10V | 30V | 5V | - | - | - | - | - | 500mA | 2.5W | - | ITE (Commercial) | 82.5% | -25°C ~ 70°C | Adjustable Output, IP20 | 3.85" L x 0.24" W x 3.70" H (97.8mm x 6.0mm x 94.0mm) | CE, EAC, UL | 60950-1 |
|
TBL 060-124AC/DC DIN RAIL SUPPLY 24V 60W |
9 |
|
Технический лист |
TBL (60W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | - | Industrial, ITE (Commercial) | 85% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.15" L x 2.76" W x 3.52" H (54.5mm x 70.1mm x 89.4mm) | CB, CE, CSAus, cULus, cURus, SIQ | - |
|

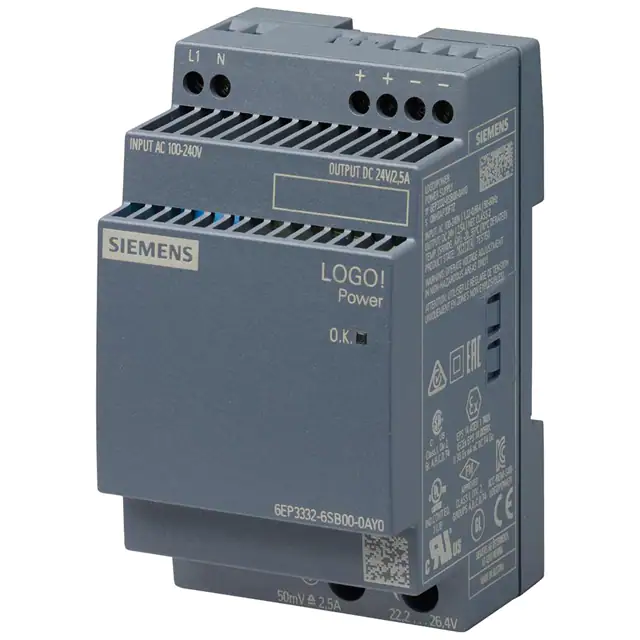

6EP33326SB000AY0AC/DC DIN RAIL SUPPLY 24V 60W |
14 |
|
Технический лист |
- | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 300V | 24V | - | - | - | - | - | 2.5A | 60W | - | ITE (Commercial) | 90% | -25°C ~ 70°C (With Derating) | Adjustable Output | 2.13" L x 2.09" W x 3.54" H (54.0mm x 53.0mm x 90.0mm) | CB, CE, CSA, cULus, cURus, FM, UL | 60950-1 |
|
TCL 024-112 DCDC/DC DIN RAIL SUPPLY 12V 24W |
5 |
|
Технический лист |
TCL-DC (24 ~ 60W) | Box | Active | DC | 1 | - | 18V | 75V | 12V | - | - | - | - | - | 2A | 24W | 1.5 kV | Industrial, ITE (Commercial) | 86% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 3.94" L x 1.06" W x 2.95" H (100.1mm x 26.9mm x 74.9mm) | CB, cULus | - |
|
DDR-240D-24DC/DC DIN RAIL SUPPLY 24V 240W |
4 |
|
Технический лист |
DDR-240 (240W) | Bulk | Active | DC | 1 | - | 67.2V | 154V | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial), Railway | 92% | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off | 4.47" L x 1.57" W x 4.93" H (113.5mm x 40.0mm x 125.2mm) | CE, EAC | - |
|
PIM60.121AC/DC DIN RAIL SUPPLY 12V 60W |
7 |
|
Технический лист |
PIANO (60W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 5A | 60W | - | ITE (Commercial), Laboratory | 90.7% | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 3.58" L x 1.42" W x 3.54" H (91.0mm x 36.0mm x 90.0mm) | CB, CE, cULus, EAC | 61010-1; 62368-1 |
|
TIB 080-112AC/DC DIN RAIL SUPPLY 12V 80W |
16 |
|
Технический лист |
TIB 080 (80W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 6.7A | 80W | 4.25 kV | Industrial, ITE (Commercial) | 88% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 3.71" L x 1.26" W x 4.50" H (94.2mm x 32.0mm x 114.2mm) | CB, CE, cULus, cURus, SIQ | - |
|
ECE60US24-SDAC/DC DIN RAIL SUPPLY 24V 60W |
4 |
|
Технический лист |
ECE60 (60W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 3 kV | ITE (Commercial) | 89% | -40°C ~ 70°C (With Derating) | Universal Input | 4.45" L x 1.57" W x 1.12" H (113.0mm x 40.0mm x 28.5mm) | CB, TUV, UL | 62368-1 |
|
787-1216AC/DC DIN RAIL SUPPLY 24V 100W |
3 |
|
Технический лист |
- | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 125V | 375V | 24V | - | - | - | - | - | 4.2A | 100W | 4.242 kV | Household Appliances, Industrial, ITE (Commercial) | 90% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | 2.07" L x 4.25" W x 3.54" H (52.5mm x 108.0mm x 90.0mm) | cURus, EAC, UL | 60335-1; 60950-1; 62368-1; UL 508 |
|
6EP19642BA00DC DIN RAIL SUPPLY 24V |
2 |
|
Технический лист |
6EP1 | Bulk | Active | DC | 1 | - | 19V | 29V | 24V | - | - | - | - | - | 10A | - | - | Hazardous Locations, Industrial, ITE (Commercial) | 97.1% | -20°C ~ 70°C | Adjustable Output, IP20 | 3.94" L x 1.18" W x 3.15" H (100.0mm x 30.0mm x 80.0mm) | CE, CSA, cUL, cULus, UL | 60950-1; UL 508 |
