Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CS10.241-S1AC/DC DIN RAIL SUPPLY 24V 240W |
3 |
|
Технический лист |
DIMENSION C (240W) | Box | Active | AC | 1 | 100 ~ 120 VAC, 200 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial) | 91.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | 4.61" L x 2.36" W x 4.88" H (117.0mm x 60.0mm x 124.0mm) | ABS, CSA, DNV GL, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
2904616QUINT PWR SUPPLY 1-PHASE, OUTPUT |
21 |
|
Технический лист |
- | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | - | Hazardous Locations, Industrial | 93.8% | -40°C ~ 75°C (With Derating) | IP20, Universal Input | 4.92" L x 1.97" W x 5.12" H (125.0mm x 50.0mm x 130.0mm) | ATEX, CB, CSA, IECEx, SIQ, UL | 61010-1; ATEX; IECEx; UL 508 |
|
SDN4-24-100LPAC/DC DIN RAIL SUPPLY 24V 96W |
10 |
|
Технический лист |
SDN-P | Bulk | Active | AC or DC | 1 | 85 ~ 132 VAC, 176 ~ 264 VAC | 210V | 375V | 24V | - | - | - | - | - | 3.8A | 96W | - | Hazardous Locations, Industrial, ITE (Commercial) | 88% | -10°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 4.55" L x 2.56" W x 4.88" H (115.6mm x 65.0mm x 124.0mm) | CE, cULus, cURus | - |
|
1478140000AC/DC DIN RAIL SUPPLY 24V 480W |
18 |
|
Технический лист |
PRO MAX (480W) | Bulk | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 370V | 24V | - | - | - | - | - | 20A | 480W | 4 kV | ITE (Commercial) | 92% | -25°C ~ 70°C | Adjustable Output, IP20 | 5.91" L x 3.54" W x 5.12" H (150.0mm x 90.0mm x 130.0mm) | CE, cULus, cuRus, EAC, TUV | - |
|
PIC480.481DAC/DC DIN RAIL SUPPLY 48V 480W |
10 |
|
Технический лист |
PIANO (480W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 10A | 480W | 500 V | Industrial, ITE (Commercial), Laboratory | 95.7% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 5.00" L x 2.32" W x 4.88" H (127.0mm x 59.0mm x 124.0mm) | CB, CE, cULus | 61010-1; 62368-1; UL 508 |
|

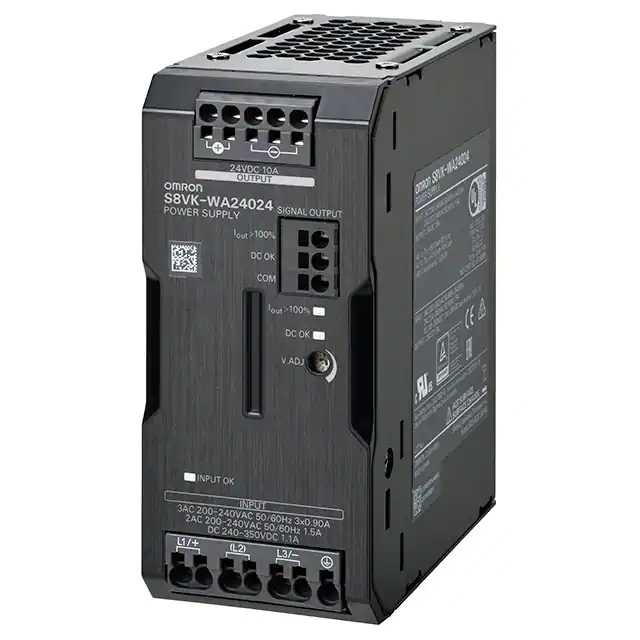

S8VK-WA24024AC/DC DIN RAIL SUPPLY 24V 240W |
16 |
|
Технический лист |
S8VK-WA (240W) | Bulk | Active | AC or DC | 1 | 170 ~ 264 VAC, 265 ~ 300 VAC (3 Phase) | 240V | 350V | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial) | 93% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 4.39" L x 2.17" W x 4.88" H (111.4mm x 55.0mm x 124.0mm) | CE, cURus, RCM, TUV, UL | - |
|
CP10.241-C1AC/DC DIN RAIL SUPPLY 24V 240W |
10 |
|
Технический лист |
DIMENSION CP (240W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 150V | 24V | - | - | - | - | - | 10A | 240W | - | Hazardous Locations, ITE (Commercial) | 95.2% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.61" L x 1.54" W x 4.88" H (117.0mm x 39.0mm x 124.0mm) | ATEX, DNV GL, EAC, IEC, IECEx, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
TSP 600-124AC/DC DIN RAIL SUPPLY 24V 600W |
6 |
|
Технический лист |
TSP (600W) | Box | Active | AC | 1 | 85 ~ 132 VAC, 187 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 25A | 600W | - | Industrial, ITE (Commercial) | 87% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Remote On/Off, Universal Input | 6.50" L x 4.92" W x 4.92" H (165.1mm x 125.0mm x 125.0mm) | CB, CE, cURus, SIQ | - |
|
2866734AC/DC DIN RAIL SUPPLY 24V 120W |
18 |
|
Технический лист |
Quint | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (2 Phase) | 450V | 800V | 24V | - | - | - | - | - | 5A | 120W | 4 kV | ITE (Commercial) | 89% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.92" L x 1.57" W x 5.12" H (125.0mm x 40.0mm x 130.0mm) | CB, cULus, cURus | - |
|
CD5.051DC/DC DIN RAIL SUPPLY 5V 50W |
3 |
|
Технический лист |
DIMENSION CD (50W) | Box | Active | DC | 1 | - | 18V | 32.4V | 5V | - | - | - | - | - | 10A | 50W | 500 V | Industrial, ITE (Commercial) | 81.5% | -25°C ~ 70°C (With Derating) | Adjustable Output | 4.02" L x 1.26" W x 4.88" H (102.0mm x 32.0mm x 124.0mm) | CB, CE, cULus, cURus | 508; 60950-1 |
|

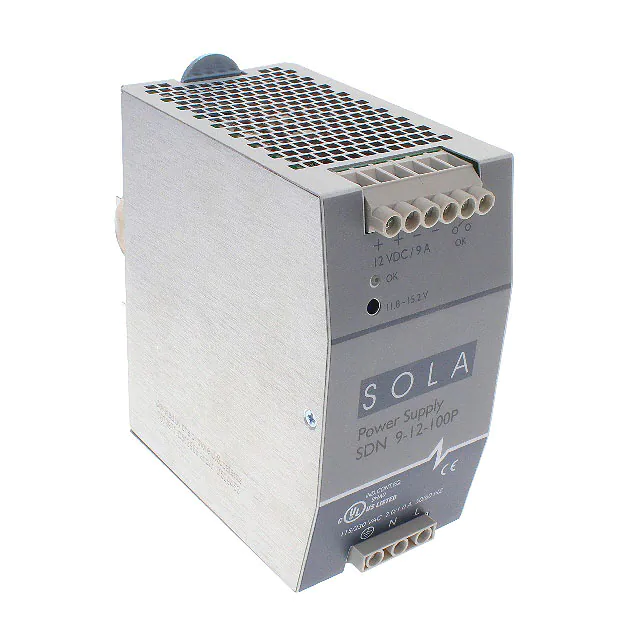

SDN9-12-100PAC/DC DIN RAIL SUPPLY 12V 108W |
14 |
|
Технический лист |
SDN-P | Bulk | Active | AC or DC | 1 | 85 ~ 132 VAC, 176 ~ 264 VAC | 210V | 375V | 12V | - | - | - | - | - | 9A | 108W | - | Hazardous Locations, Industrial, ITE (Commercial) | 84% | -10°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 4.55" L x 2.56" W x 4.88" H (115.6mm x 65.0mm x 124.0mm) | CE, cULus, cURus | - |
|
2905007DC/DC DIN RAIL SUPPLY 12V |
16 |
|
Технический лист |
Quint | Bulk | Active | DC | 1 | - | 9V | 18V | 12V | - | - | - | - | - | 8A | - | 1.5 kV | ITE (Commercial) | 89% | -25°C ~ 75°C (With Derating) | Adjustable Output, IP20 | 4.92" L x 1.26" W x 5.12" H (125.0mm x 32.0mm x 130.0mm) | cUL, cULus, EAC, UL | - |
|
CD5.243DC/DC DIN RAIL SUPPLY 24V 84W |
15 |
|
Технический лист |
DIMENSION CD (92 ~ 120W) | Bulk | Active | DC | 1 | - | 10.8V | 16.2V | 24V | - | - | - | - | - | 4A | 84W | - | ITE (Commercial) | 87.7% | -25°C ~ 70°C (With Derating) | - | 4.02" L x 1.26" W x 4.88" H (102.0mm x 32.0mm x 124.0mm) | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL | Class I Div 2; 508; 60950-1 |
|
CD5.242DC/DC DIN RAIL SUPPLY 24V 120W |
7 |
|
Технический лист |
DIMENSION CD (92 ~ 120W) | Bulk | Active | DC | 1 | - | 36V | 60V | 24V | - | - | - | - | - | 5A | 120W | - | ITE (Commercial) | 90.3% | -25°C ~ 70°C (With Derating) | - | 4.02" L x 1.26" W x 4.88" H (102.0mm x 32.0mm x 124.0mm) | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL | Class I Div 2; 508; 60950-1 |
|
2905009DC/DC DIN RAIL SUPPLY 24V |
3 |
|
Технический лист |
Quint | Bulk | Active | DC | 1 | - | 42V | 96V | 24V | - | - | - | - | - | 10A | - | 1.5 kV | ITE (Commercial) | 91% | -25°C ~ 75°C (With Derating) | Adjustable Output, IP20 | 4.92" L x 1.89" W x 5.12" H (125.0mm x 48.0mm x 130.0mm) | cUL, cULus, EAC, UL | - |
|
ADN20-24-1PM-CAC/DC DIN RAIL SUPPLY 24V 480W |
7 |
|
Технический лист |
ADN-C (120-960W) | Tray | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 24V | - | - | - | - | - | 20A | 480W | - | Hazardous Locations, Industrial, ITE (Commercial) | 90% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 4.96" L x 3.42" W x 4.85" H (126.0mm x 87.0mm x 123.0mm) | CE, cULus, UL | Class I Div 2; 508; 60950-1 |
|
2787-2147AC/DC DIN RAIL SUPPLY 24V 480W |
17 |
|
Технический лист |
- | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 130V | 240V | 24V | - | - | - | - | - | 20A | 480W | 3.51 kV | Laboratory | 95.4% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | 5.12" L x 2.76" W x 5.12" H (130.0mm x 70.0mm x 130.0mm) | CE, UL | 61010-1 |
|

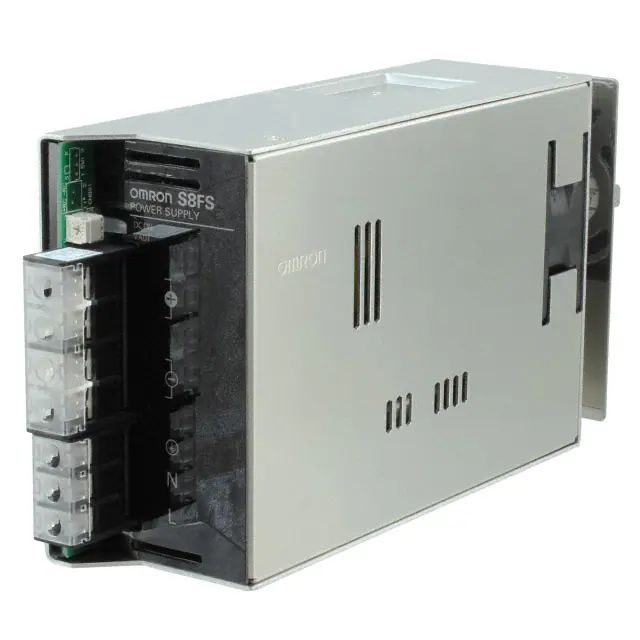

S8FS-G60024CDAC/DC DIN RAIL SUPPLY 24V 600W |
17 |
|
Технический лист |
S8FS-G (600W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 27A | 600W | 3 kV | ITE (Commercial) | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 7.48" L x 1.66" W x 4.02" H (170.0mm x 42.2mm x 102.0mm) | CE, cURus, TUV, UL | - |
|
S8VK-S48024AC/DC DIN RAIL SUPPLY 24V 480W |
11 |
|
Технический лист |
S8VK-S (480W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 350V | 24V | - | - | - | - | - | 20A | 480W | 3 kV | ITE (Commercial) | 93% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.81" L x 2.36" W x 4.88" H (122.2mm x 60.0mm x 124.0mm) | CE, cURus, TUV | - |
|
2320144DC/DC DIN RAIL SUPPLY 24V 120W |
16 |
|
Технический лист |
Quint | Bulk | Active | DC | 1 | - | 30V | 60V | 24V | - | - | - | - | - | 5A | 120W | - | ITE (Commercial) | 91.5% | -25°C ~ 70°C | - | 4.92" L x 1.26" W x 5.12" H (125.0mm x 32.0mm x 130.0mm) | CB, cULus | - |
