Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TSP 360-124 EXAC/DC DIN RAIL SUPPLY 24V 360W |
48 |
|
Технический лист |
TSP-EX (360W) | Box | Active | AC | 1 | 85 ~ 132 VAC, 187 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 15A | 360W | - | Hazardous Locations, Industrial, ITE (Commercial) | 87% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Remote On/Off, Universal Input | 4.92" L x 3.15" W x 4.92" H (125.0mm x 80.0mm x 125.0mm) | CB, CE, cURus, SIQ | - |
|
VHK200W-Q48-S24-DINDC/DC DIN RAIL SUPPLY 24V 200W |
49 |
|
Технический лист |
MDU (200W) | Box | Active | DC | 1 | - | 18V | 75V | 24V | - | - | - | - | - | 8.3A | 200W | - | - | 86% | -40°C ~ 85°C | - | 4.23" L x 4.01" W x 2.07" H (107.4mm x 101.9mm x 52.6mm) | CE | - |
|
PS6R-J24AC/DC DIN RAIL SUPPLY 24V 480W |
40 |
|
Технический лист |
PS6R (480W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 350V | 24V | - | - | - | - | - | 20A | 480W | 3 kV | Industrial, ITE (Commercial) | 93% | -10°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.92" L x 3.35" W x 4.92" H (125.0mm x 85.0mm x 125.0mm) | CE, cULus, TUV | 62368-1 |
|
CP20.241-V1AC/DC DIN RAIL SUPPLY 24V 480W |
35 |
|
Технический лист |
DIMENSION CP (480W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 88V | 180V | 24V | - | - | - | - | - | 20A | 480W | - | Hazardous Locations, Industrial, ITE (Commercial) | 95.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | 5.00" L x 1.89" W x 4.88" H (127.0mm x 48.0mm x 124.0mm) | ATEX, EAC, IEC, IECEx, UL | Class I Div 2; 61010-2-201 |
|
XT40.721AC/DC DIN RAIL SUPPLY 72V 960W |
29 |
|
Технический лист |
DIMENSION X (960W) | Box | Active | AC | 1 | 300 ~ 460 VAC (3 Phase) | - | - | 72V | - | - | - | - | - | 13A | 960W | 3 kV | ITE (Commercial) | 95.5% | -25°C ~ 70°C (With Derating) | IP20 | 6.18" L x 3.78" W x 4.88" H (157.0mm x 96.0mm x 124.0mm) | EAC, IEC, UL | 508; 60950-1; 61010-2-201 |
|
RPS60-12-CUAC/DC DIN RAIL SUPPLY 12V 60W |
607 |
|
Технический лист |
RPS60 (60W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 12V | - | - | - | - | - | 5A | 60W | 4 kV | Industrial, ITE (Commercial) | 86% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.85" L x 1.69" W x 4.32" H (97.8mm x 43.0mm x 109.8mm) | CE, cULus | 62368-1; UL 508 |
|
56YSD60S-2402500AC/DC DIN RAIL SUPPLY 24V 60W |
244 |
|
Технический лист |
56YSD60S (60W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | - | Industrial, ITE (Commercial) | 90% | -20°C ~ 50°C | Adjustable Output, IP20 | 3.54" L x 2.07" W x 2.28" H (90.0mm x 52.5mm x 58.0mm) | BSMI, CE, EAC, TUV, UL | 508; 60950-1 |
|
RPS120-12-CUAC/DC DIN RAIL SUPPLY 12V 96W |
184 |
|
Технический лист |
RPS120 (120W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 12V | - | - | - | - | - | 8A | 96W | 4 kV | Industrial, ITE (Commercial) | 89% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.84" L x 1.69" W x 4.32" H (97.5mm x 43.0mm x 109.8mm) | CE, cULus | 62368-1; UL 508 |
|
RPS120-48-CUAC/DC DIN RAIL SUPPLY 48V 120W |
149 |
|
Технический лист |
RPS120 (120W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 48V | - | - | - | - | - | 2.5A | 120W | 4 kV | Industrial, ITE (Commercial) | 89% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.84" L x 1.69" W x 4.32" H (97.5mm x 43.0mm x 109.8mm) | CE, cULus | 62368-1; UL 508 |
|
DSP30-15AC/DC DIN RAIL SUPPLY 15V 30W |
190 |
|
Технический лист |
DSP (7.5-100W) | Bulk | Not For New Designs | AC or DC | 1 | 90 ~ 264 VAC | 120V | 370V | 15V | - | - | - | - | - | 2A | 30W | 3 kV | ITE (Commercial) | 83% | -25°C ~ 71°C (With Derating) | Adjustable Output, Universal Input | 2.19" L x 2.09" W x 3.58" H (55.6mm x 53.1mm x 90.9mm) | CE | - |
|
KHEA30F-24AC/DC DIN RAIL SUPPLY 24V 30W |
33 |
|
Технический лист |
KHEA (30W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1.3A | 30W | 3 kV | ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.72" L x 0.89" W x 2.95" H (94.5mm x 22.5mm x 75.0mm) | CE, cULus, cURus, TUV | - |
|
PS5R-VA12AC/DC DIN RAIL SUPPLY 12V 7.2W |
47 |
|
Технический лист |
PS5R-V (7.5W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 100V | 370V | 12V | - | - | - | - | - | 600mA | 7.2W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 79% | -25°C ~ 75°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.76" L x 1.77" W x 2.95" H (70.0mm x 45.0mm x 75.0mm) | CE, cULus, TUV | 62368-1 |
|
TBLC 25-124AC/DC DIN RAIL SUPPLY 24V 25W |
77 |
|
Технический лист |
TBLC (25W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1.05A | 25W | 3 kV | Household Appliances, Industrial, ITE (Commercial) | 87% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.15" L x 1.42" W x 3.52" H (54.6mm x 36.1mm x 89.4mm) | CB, CE, cULus, cURus, SIQ | - |
|
DSP60-15AC/DC DIN RAIL SUPPLY 15V 60W |
143 |
|
Технический лист |
DSP (7.5-100W) | Bulk | Not For New Designs | AC or DC | 1 | 90 ~ 264 VAC | 120V | 370V | 15V | - | - | - | - | - | 4A | 60W | 3 kV | ITE (Commercial) | 85% | -25°C ~ 71°C (With Derating) | Adjustable Output, Universal Input | 2.19" L x 2.80" W x 3.58" H (55.6mm x 71.0mm x 90.9mm) | CE | - |
|
TBL 015-105AC/DC DIN RAIL SUPPLY 5V 12W |
28 |
|
Технический лист |
TBL (15W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 2.4A | 12W | - | Industrial, ITE (Commercial) | 73% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.15" L x 1.04" W x 3.52" H (54.5mm x 26.3mm x 89.5mm) | CB, CE, CSAus, cULus, cURus, SIQ | - |
|
KHEA60F-12AC/DC DIN RAIL SUPPLY 12V 60W |
56 |
|
Технический лист |
KHEA (60W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 4.5A | 60W | 3 kV | ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.72" L x 1.26" W x 3.54" H (94.5mm x 32.0mm x 90.0mm) | CE, cURus, TUV | - |
|
S8FS-G03012CDAC/DC DIN RAIL SUPPLY 12V 30W |
89 |
|
Технический лист |
S8FS-G (30W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 3A | 30W | 3 kV | ITE (Commercial) | 86% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.90" L x 1.43" W x 3.23" H (99.0mm x 36.2mm x 82.0mm) | CE, cURus, TUV, UL | - |
|

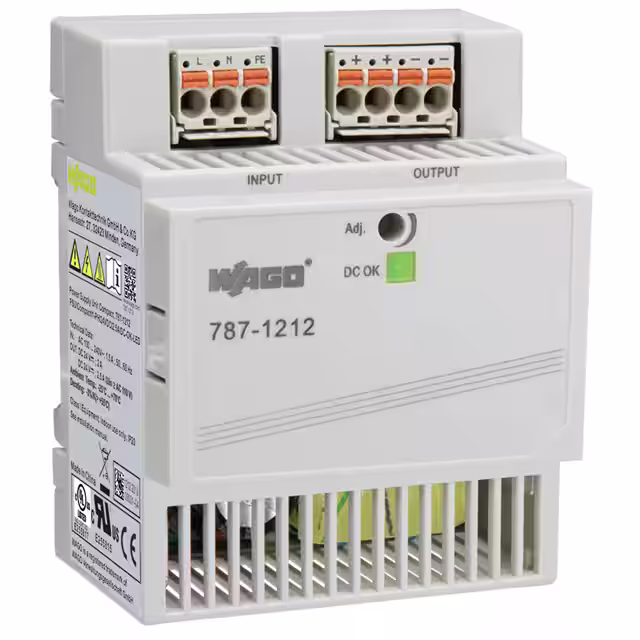

787-1212AC/DC DIN RAIL SUPPLY 24V 60W |
58 |
|
Технический лист |
- | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 125V | 375V | 24V | - | - | - | - | - | 2.5A | 60W | 4.242 kV | Household Appliances, Industrial, ITE (Commercial) | 89% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | 2.07" L x 2.83" W x 3.54" H (52.5mm x 72.0mm x 90.0mm) | cURus, EAC, UL | 60335-1; 60950-1; 62368-1; UL 508 |
|

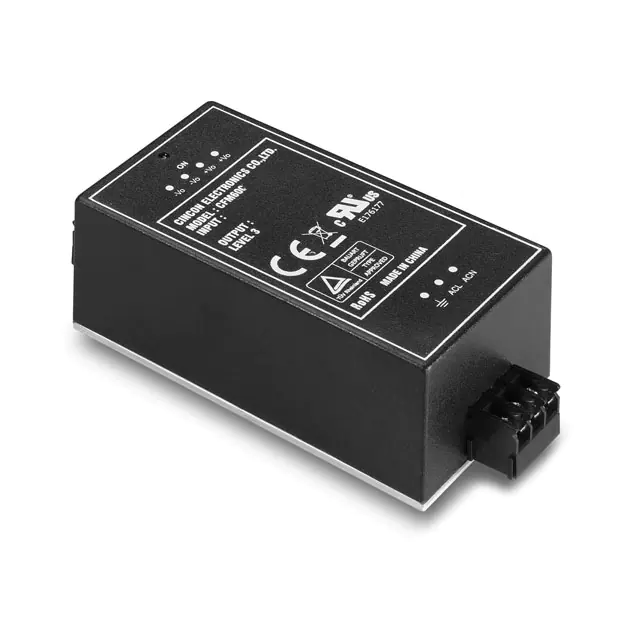

CFM60C480-DRAC/DC DIN RAIL SUPPLY 48V 60W |
45 |
|
Технический лист |
CFM60CXXX-DR (60W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 1.25A | 60W | 4.242 kV | ITE (Commercial) | 88% | 0°C ~ 70°C (With Derating) | Universal Input | 4.33" L x 2.32" W x 1.62" H (110.0mm x 59.0mm x 41.2mm) | CE, cURus, FCC, TUV | - |
|
|
CFM60C050-DRAC/DC DIN RAIL SUPPLY 5V 40W |
37 |
|
Технический лист |
CFM60CXXX-DR (60W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 8A | 40W | 4.242 kV | ITE (Commercial) | 77% | 0°C ~ 70°C (With Derating) | Universal Input | 4.33" L x 2.32" W x 1.62" H (110.0mm x 59.0mm x 41.2mm) | CE, cURus, FCC, TUV | - |
