Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TBLC 06-124AC/DC DIN RAIL SUPPLY 24V 6W |
29 |
|
Технический лист |
TBLC (6W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 250mA | 6W | 3 kV | Household Appliances, Industrial, ITE (Commercial) | 79% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.15" L x 0.71" W x 3.52" H (54.6mm x 18.0mm x 89.4mm) | CB, CE, cULus, cURus, SIQ | - |
|
DNR60US12AC/DC DIN RAIL SUPPLY 12V 60W |
317 |
|
Технический лист |
DNR (60W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 90V | 375V | 12V | - | - | - | - | - | 5A | 60W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 86% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.53" L x 1.59" W x 3.54" H (115.0mm x 40.5mm x 90.0mm) | CE | 62368-1 |
|
|
DNR60US05AC/DC DIN RAIL SUPPLY 5V 60W |
108 |
|
Технический лист |
DNR (60W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 90V | 375V | 5V | - | - | - | - | - | 10A | 60W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 79% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.53" L x 1.59" W x 3.54" H (115.0mm x 40.5mm x 90.0mm) | CE | 62368-1 |
|
WDR-60-5AC/DC DIN RAIL SUPPLY 5V 50W |
41 |
|
Технический лист |
WDR-60 (60W) | Box | Active | AC or DC | 1 | 180 ~ 550 VAC | 254V | 780V | 5V | - | - | - | - | - | 10A | 50W | 4.7 kV | Laboratory | 83.5% | -30°C ~ 85°C (With Derating) | Adjustable Output | 4.02" L x 1.26" W x 4.93" H (102.0mm x 32.0mm x 125.2mm) | CE, EAC, TUV, UL | - |
|
DRL-48V120W1AAAC/DC DIN RAIL SUPPLY 48V 120W |
62 |
|
Технический лист |
LYTE (120W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 2.5A | 120W | 3 kV | ITE (Commercial) | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 4.63" L x 1.57" W x 4.87" H (117.6mm x 40.0mm x 123.6mm) | CB, CCC, CE, cURus, TUV | - |
|
1088491AC/DC DIN RAIL SUPPLY 24V 60W |
45 |
|
Технический лист |
Step | Box | Active | AC or DC | 1 | 100 ~ 240 VAC | 110V | 250V | 24V | - | - | - | - | - | 2.5A | 60W | - | Household Appliances, Laboratory | 94.5% | -10°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.17" L x 2.13" W x 3.54" H (55.0mm x 54.0mm x 90.0mm) | cULus, UL | 60335-1; 61010-1 |
|
DSP60-5AC/DC DIN RAIL SUPPLY 5V 60W |
61 |
|
Технический лист |
DSP (7.5-100W) | Bulk | Not For New Designs | AC or DC | 1 | 90 ~ 264 VAC | 120V | 370V | 5V | - | - | - | - | - | 7A | 60W | 3 kV | ITE (Commercial) | 80% | -25°C ~ 71°C (With Derating) | Adjustable Output, Universal Input | 2.19" L x 2.80" W x 3.58" H (55.6mm x 71.0mm x 90.9mm) | CE | - |
|
DPP30-24AC/DC DIN RAIL SUPPLY 24V 30W |
168 |
|
Технический лист |
DPP (15-100W) | Bulk | Not For New Designs | AC | 1 | 85 ~ 132 VAC, 176 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1.3A | 30W | 3 kV | ITE (Commercial) | 84% | -10°C ~ 71°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 3.58" L x 1.77" W x 2.95" H (90.9mm x 45.0mm x 74.9mm) | CE | - |
|
DPP25-5AC/DC DIN RAIL SUPPLY 5V 25W |
136 |
|
Технический лист |
DPP (15-100W) | Bulk | Not For New Designs | AC | 1 | 85 ~ 132 VAC, 176 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 5A | 25W | 3 kV | ITE (Commercial) | 78% | -10°C ~ 71°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 3.58" L x 1.77" W x 2.95" H (90.9mm x 45.0mm x 74.9mm) | CE | - |
|

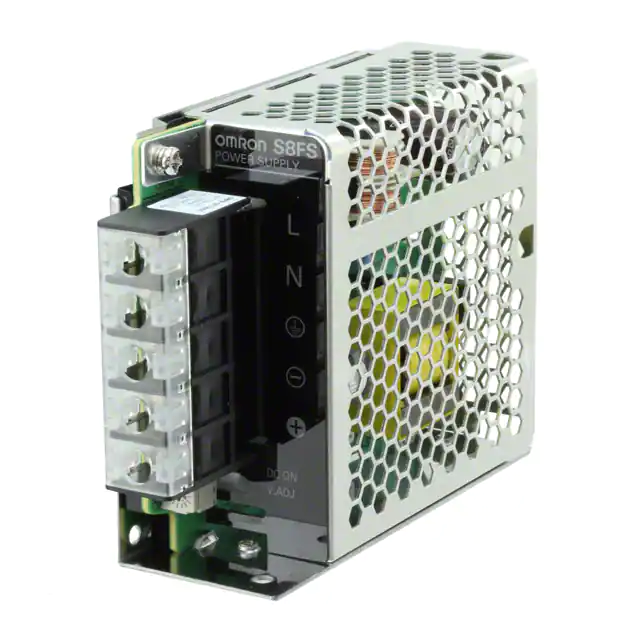

S8FS-G01505CDAC/DC DIN RAIL SUPPLY 5V 15W |
86 |
|
Технический лист |
S8FS-G (15W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 3A | 15W | 3 kV | ITE (Commercial) | 80% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.90" L x 1.43" W x 3.23" H (99.0mm x 36.2mm x 82.0mm) | CE, cURus, TUV, UL | - |
|
2903001AC/DC DIN RAIL SUPPLY 15V 56W |
39 |
|
Технический лист |
UNO | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 15V | - | - | - | - | - | 3.7A | 56W | 4 kV | ITE (Commercial) | 89% | -25°C ~ 70°C (With Derating) | IP20, Universal Input | 3.31" L x 1.38" W x 3.54" H (84.0mm x 35.0mm x 90.0mm) | CB, cUL, cULus, cUR, cURus, UL, UR | - |
|
DRS-24V100W1NRAC/DC DIN RAIL SUPPLY 24V 100W |
269 |
|
Технический лист |
Sync (100W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.8A | 100W | 3 kV | ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 3.94" L x 1.77" W x 2.95" H (100.0mm x 45.0mm x 75.0mm) | CB, CE, cULus, cURus, TUV | - |
|

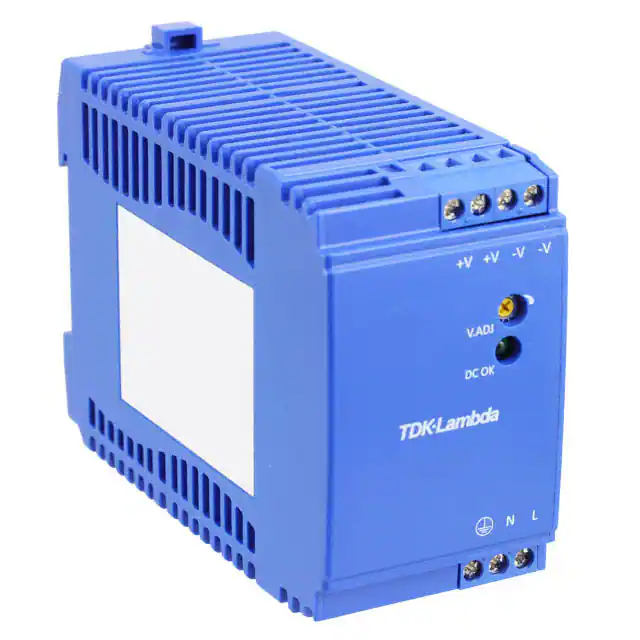

DRB100-24-1AC/DC DIN RAIL SUPPLY 24V 100W |
409 |
|
Технический лист |
DRB (15-100W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 373V | 24V | - | - | - | - | - | 4.2A | 100W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 91% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.94" L x 1.77" W x 2.95" H (100.0mm x 45.0mm x 75.0mm) | CE, cULus, cURus | - |
|

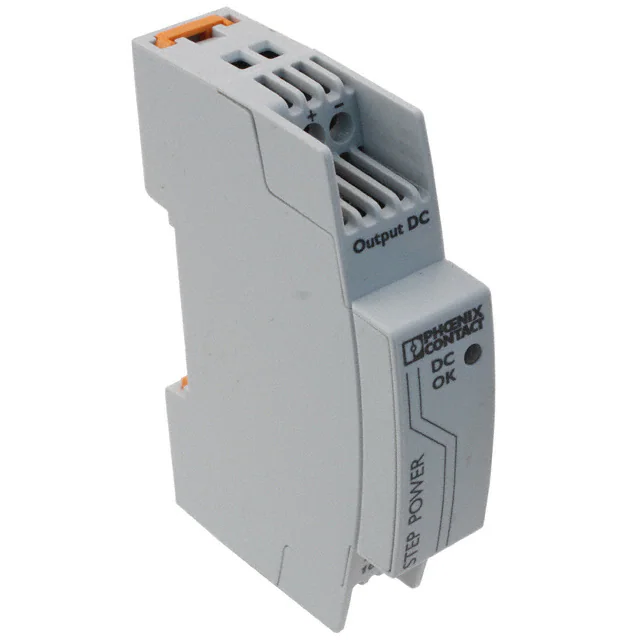

2868538AC/DC DIN RAIL SUPPLY 12V 12W |
32 |
|
Технический лист |
Step | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 95V | 250V | 12V | - | - | - | - | - | 1A | 12W | 4 kV | ITE (Commercial) | 83% | -25°C ~ 70°C (With Derating) | IP20, Load Sharing, Universal Input | 2.40" L x 0.71" W x 3.54" H (61.0mm x 18.0mm x 90.0mm) | - | - |
|
S8FS-G03024CDAC/DC DIN RAIL SUPPLY 24V 30W |
166 |
|
Технический лист |
S8FS-G (30W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1.5A | 30W | 3 kV | ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.90" L x 1.43" W x 3.23" H (99.0mm x 36.2mm x 82.0mm) | CE, cURus, TUV, UL | - |
|
PS5R-VB24AC/DC DIN RAIL SUPPLY 24V 16W |
160 |
|
Технический лист |
PS5R-V (15W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 100V | 370V | 24V | - | - | - | - | - | 650mA | 16W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 84% | -25°C ~ 75°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.74" L x 0.89" W x 3.54" H (95.0mm x 22.5mm x 90.0mm) | CE, cULus, TUV | 62368-1 |
|
|
DRL-24V120W1AAAC/DC DIN RAIL SUPPLY 24V 120W |
268 |
|
Технический лист |
LYTE (120W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 3 kV | ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 4.63" L x 1.57" W x 4.87" H (117.6mm x 40.0mm x 123.6mm) | CB, CCC, CE, cURus, TUV | - |
|

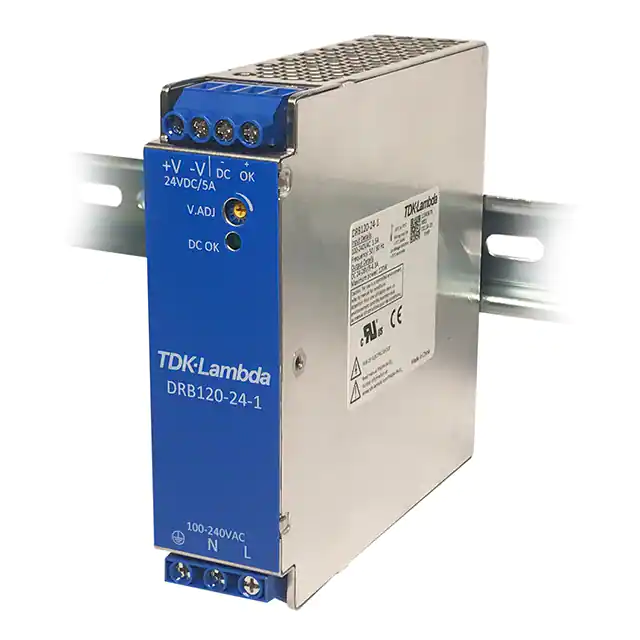

DRB120-24-1AC/DC DIN RAIL SUPPLY 24V 120W |
61 |
|
Технический лист |
DRB (120-480W) | Bulk | Active | AC | 1 | 85 ~ 265 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 3 kV | Industrial, ITE (Commercial) | 93% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.92" L x 1.38" W x 4.88" H (125.0mm x 35.0mm x 124.0mm) | CE, cULus, cURus, EAC | - |
|
DSP100-15AC/DC DIN RAIL SUPPLY 15V 100W |
28 |
|
Технический лист |
DSP (7.5-100W) | Bulk | Not For New Designs | AC or DC | 1 | 90 ~ 264 VAC | 120V | 370V | 15V | - | - | - | - | - | 5A | 100W | 3 kV | ITE (Commercial) | 85% | -25°C ~ 71°C (With Derating) | Adjustable Output, Universal Input | 2.19" L x 3.54" W x 3.58" H (55.6mm x 89.9mm x 90.9mm) | CE | - |
|

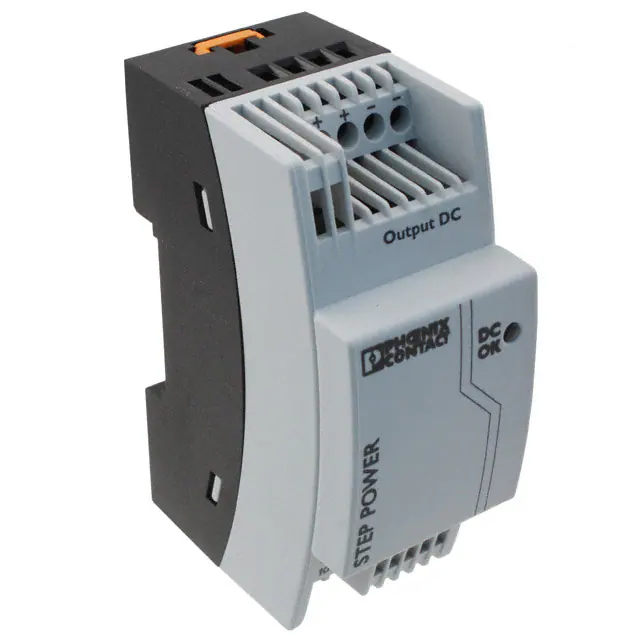

2868567AC/DC DIN RAIL SUPPLY 12V 18W |
84 |
|
Технический лист |
Step | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 95V | 250V | 12V | - | - | - | - | - | 1.5A | 18W | 4 kV | ITE (Commercial) | 84% | -25°C ~ 70°C (With Derating) | IP20, Load Sharing, Universal Input | 2.40" L x 1.42" W x 3.54" H (61.0mm x 36.0mm x 90.0mm) | - | - |
