Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DDR-15L-3.3DC/DC DIN RAIL SUPPLY 3.3V 15W |
142 |
|
Технический лист |
DDR-15 (15W) | Box | Active | DC | 1 | - | 18V | 75V | 3.3V | - | - | - | - | - | 4.5A | 15W | 4 kV | ITE (Commercial) | 84% | -40°C ~ 85°C (With Derating) | Adjustable Output | 2.15" L x 0.69" W x 3.54" H (54.5mm x 17.5mm x 90.0mm) | CE, EAC | - |
|
DSP10-15AC/DC DIN RAIL SUPPLY 15V 10W |
232 |
|
Технический лист |
DSP (7.5-100W) | Bulk | Not For New Designs | AC or DC | 1 | 90 ~ 264 VAC | 120V | 370V | 15V | - | - | - | - | - | 670mA | 10W | 3 kV | ITE (Commercial) | 78% | -25°C ~ 71°C (With Derating) | Universal Input | 2.19" L x 0.71" W x 3.58" H (55.6mm x 18.0mm x 90.9mm) | CE | - |
|
HDR-100-12AC/DC DIN RAIL SUPPLY 12V 85W |
24 |
|
Технический лист |
HDR-100 (100W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 7.1A | 85W | 4 kV | ITE (Commercial) | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 2.15" L x 2.76" W x 3.54" H (54.5mm x 70.0mm x 90.0mm) | CB, CE, cULus, cURus, TUV | - |
|
DDR-30L-5DC/DC DIN RAIL SUPPLY 5V 30W |
329 |
|
Технический лист |
DDR-30 (30W) | Box | Active | DC | 1 | - | 18V | 75V | 5V | - | - | - | - | - | 6A | 30W | 4 kV | ITE (Commercial) | 86% | -40°C ~ 85°C (With Derating) | Adjustable Output | 2.15" L x 1.38" W x 3.54" H (54.5mm x 35.0mm x 90.0mm) | CE, EAC | - |
|
RPS120-24-CUAC/DC DIN RAIL SUPPLY 24V 120W |
245 |
|
Технический лист |
RPS120 (120W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 24V | - | - | - | - | - | 5A | 120W | 4 kV | Industrial, ITE (Commercial) | 89% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.84" L x 1.69" W x 4.32" H (97.5mm x 43.0mm x 109.8mm) | CE, cULus | 62368-1; UL 508 |
|

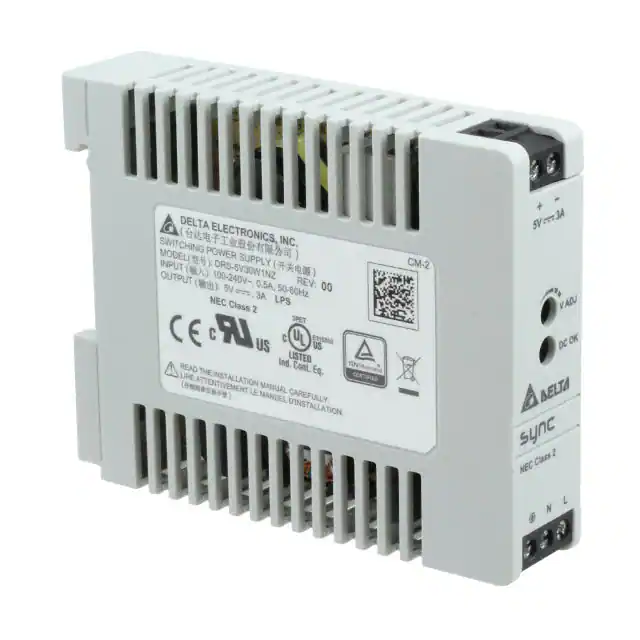

DRS-5V30W1NZAC/DC DIN RAIL SUPPLY 5V 30W |
293 |
|
Технический лист |
Sync (30W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 3A | 30W | 3 kV | ITE (Commercial) | 79% | -20°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.52" L x 0.83" W x 2.95" H (89.5mm x 21.0mm x 75.0mm) | CB Scheme, CE, EAC, EN, NEC Class 2, SIQ, UL | 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-2; 61000-6-3; 61000-6-4; 61204-3; 62368-1 |
|
|
HDR-100-12NAC/DC DIN RAIL SUPPLY 12V 90W |
176 |
|
Технический лист |
HDR-100 (100W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 7.5A | 90W | 4 kV | ITE (Commercial) | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 2.15" L x 2.76" W x 3.54" H (54.5mm x 70.0mm x 90.0mm) | CB, CE, cULus, cURus, TUV | - |
|
SDR-75-48AC/DC DIN RAIL SUPPLY 48V 77W |
17 |
|
Технический лист |
SDR-75 (75W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 1.6A | 77W | 3 kV | Industrial, ITE (Commercial) | 89% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.02" L x 1.26" W x 4.93" H (102.0mm x 32.0mm x 125.2mm) | CB, CE, cURus, TUV | - |
|
DRL30-24-1AC/DC DIN RAIL SUPPLY 24V 30W |
148 |
|
Технический лист |
DRL (10-100W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 373V | 24V | - | - | - | - | - | 1.25A | 30W | 3 kV | Hazardous Locations, ITE (Commercial) | 90% | -20°C ~ 71°C (With Derating) | Adjustable Output, Universal Input | 2.19" L x 1.42" W x 3.58" H (55.6mm x 36.1mm x 90.9mm) | CE | - |
|
|
HDR-100-15NAC/DC DIN RAIL SUPPLY 15V 98W |
413 |
|
Технический лист |
HDR-100 (100W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 15V | - | - | - | - | - | 6.5A | 98W | 4 kV | ITE (Commercial) | 89% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 2.15" L x 2.76" W x 3.54" H (54.5mm x 70.0mm x 90.0mm) | CB, CE, cULus, cURus, TUV | - |
|
DDR-60G-15DC/DC DIN RAIL SUPPLY 15V 60W |
141 |
|
Технический лист |
DDR-60 (60W) | Box | Active | DC | 1 | - | 9V | 36V | 15V | - | - | - | - | - | 4A | 60W | 4 kV | ITE (Commercial) | 91% | -40°C ~ 85°C (With Derating) | Adjustable Output | 2.15" L x 2.07" W x 3.54" H (54.5mm x 52.5mm x 90.0mm) | CE, EAC | - |
|
DRL60-12-1AC/DC DIN RAIL SUPPLY 12V 60W |
422 |
|
Технический лист |
DRL (10-100W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 373V | 12V | - | - | - | - | - | 4.5A | 60W | 3 kV | Hazardous Locations, ITE (Commercial) | 87% | -20°C ~ 71°C (With Derating) | Adjustable Output, Universal Input | 2.19" L x 2.13" W x 3.58" H (55.6mm x 54.0mm x 90.9mm) | CE | - |
|

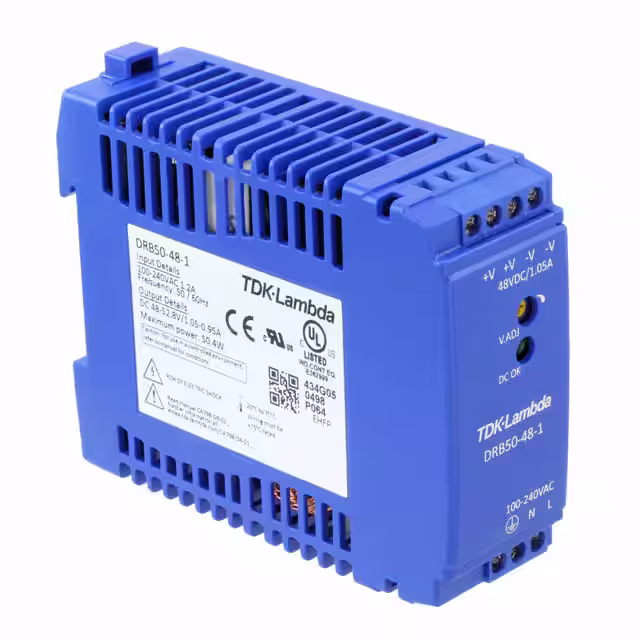

DRB50-48-1AC/DC DIN RAIL SUPPLY 48V 50W |
118 |
|
Технический лист |
DRB (15-100W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 373V | 48V | - | - | - | - | - | 1.05A | 50W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 91% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.54" L x 1.18" W x 2.95" H (90.0mm x 30.0mm x 75.0mm) | CE, cULus, cURus | - |
|
DNR30US05AC/DC DIN RAIL SUPPLY 5V 30W |
172 |
|
Технический лист |
DNR (30W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 90V | 375V | 5V | - | - | - | - | - | 6A | 30W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 79% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.53" L x 1.59" W x 3.54" H (115.0mm x 40.5mm x 90.0mm) | CE | 62368-1 |
|
MDR-100-48AC/DC DIN RAIL SUPPLY 48V 96W |
103 |
|
Технический лист |
MDR-100 (96W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 2A | 96W | 3 kV | Industrial, ITE (Commercial) | 87% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 3.94" L x 2.17" W x 3.54" H (100.0mm x 55.0mm x 90.0mm) | CCC, cURus, TUV | - |
|
DSP30-12AC/DC DIN RAIL SUPPLY 12V 30W |
143 |
|
Технический лист |
DSP (7.5-100W) | Bulk | Not For New Designs | AC or DC | 1 | 90 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 2.1A | 30W | 3 kV | ITE (Commercial) | 82% | -25°C ~ 71°C (With Derating) | Adjustable Output, Universal Input | 2.19" L x 2.09" W x 3.58" H (55.6mm x 53.1mm x 90.9mm) | CE | - |
|

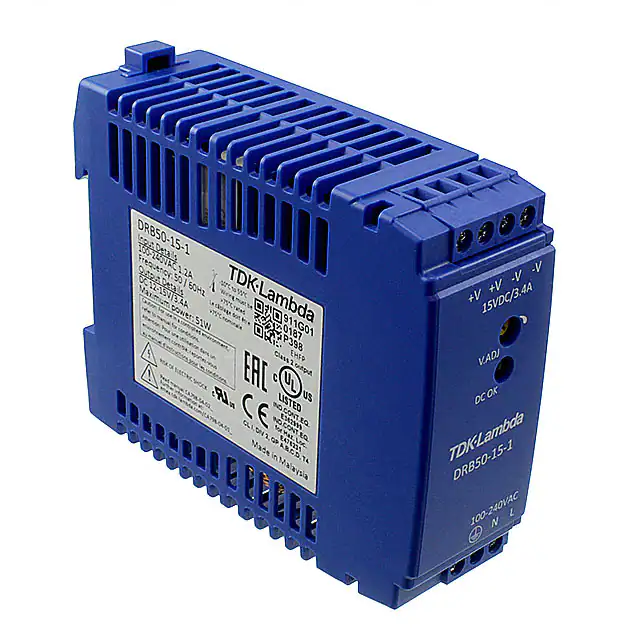

DRB50-15-1AC/DC DIN RAIL SUPPLY 15V 51W |
230 |
|
Технический лист |
DRB (15-100W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 373V | 15V | - | - | - | - | - | 3.4A | 51W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.54" L x 1.18" W x 2.95" H (89.9mm x 30.0mm x 74.9mm) | CE, cULus, cURus | - |
|
RPS240-48-CUAC/DC DIN RAIL SUPPLY 48V 240W |
199 |
|
Технический лист |
RPS240 (240W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 48V | - | - | - | - | - | 5A | 240W | 4 kV | Industrial, ITE (Commercial) | 93% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 5.12" L x 1.97" W x 5.35" H (130.0mm x 50.0mm x 136.0mm) | CE, cULus | 62368-1; UL 508 |
|
RPS240-24-CUAC/DC DIN RAIL SUPPLY 24V 240W |
163 |
|
Технический лист |
RPS240 (240W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 24V | - | - | - | - | - | 10A | 240W | 4 kV | Industrial, ITE (Commercial) | 93% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 5.12" L x 1.97" W x 5.35" H (130.0mm x 50.0mm x 136.0mm) | CE, cULus | 62368-1; UL 508 |
|
RPS240-12-CUAC/DC DIN RAIL SUPPLY 12V 216W |
144 |
|
Технический лист |
RPS240 (240W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 12V | - | - | - | - | - | 18A | 216W | 4 kV | Industrial, ITE (Commercial) | 90% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 5.12" L x 1.97" W x 5.35" H (130.0mm x 50.0mm x 136.0mm) | CE, cULus | 62368-1; UL 508 |
