Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADN10-24-3PM-CAC/DC DIN RAIL SUPPLY 24V 240W |
119 |
|
Технический лист |
ADN-C (120-960W) | Bulk | Active | AC or DC | 1 | 320 ~ 540 VAC (3 Phase) | 450V | 760V | 24V | - | - | - | - | - | 10A | 240W | - | Hazardous Locations, Industrial, ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 4.85" L x 2.36" W x 4.36" H (123.0mm x 60.0mm x 111.0mm) | CE | - |
|
LOK4001-2RLDGAC/DC DIN RAIL SUPPLY 5.1V 50W |
50 |
|
Технический лист |
Melcher LOK4 (50W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 5.1V | - | - | - | - | - | 5.2A | 50W | 4.3 kV | ITE (Commercial) | 70% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 4.47" L x 1.50" W x 3.54" H (113.6mm x 38.0mm x 90.0mm) | cCSAus, CE, cULus, NEMKO, TUV | - |
|
ADN40-24-1PM-CAC/DC DIN RAIL SUPPLY 24V 960W |
48 |
|
Технический лист |
ADN-C (120-960W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 24V | - | - | - | - | - | 40A | 960W | - | Hazardous Locations, Industrial, ITE (Commercial) | 90% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 4.81" L x 7.09" W x 4.85" H (122.0mm x 180.0mm x 122.0mm) | CE, cULus, UL | Class I Div 2; 508; 60950-1 |
|

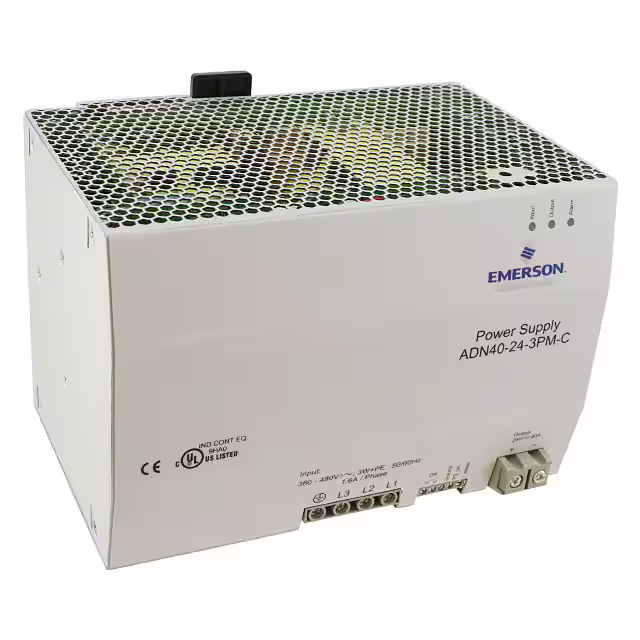

ADN40-24-3PM-CAC/DC DIN RAIL SUPPLY 24V 960W |
33 |
|
Технический лист |
ADN-C (120-960W) | Bulk | Active | AC | 1 | 320 ~ 540 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 40A | 960W | - | Hazardous Locations, Industrial, ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 4.68" L x 7.09" W x 4.85" H (123.0mm x 180.0mm x 123.0mm) | CE | - |
|
|
GDG220S24-15WAC/DC DIN RAIL SUPPLY 24V 100W |
19,999 |
|
- |
- | Case | Active | AC | 1 | 90 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 625mA | 100W | 4 kV | ITE (Commercial) | 80% | -20°C ~ 60°C | Universal Input | - | - | - |
|
LI30-20B24PR2AC/DC DIN RAIL SUPPLY 24V 36W |
614 |
|
Технический лист |
LI30-20BxxPR2 (30W) | Bulk | Not For New Designs | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 1.5A | 36W | 4 kV | ITE (Commercial) | 89% | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | 2.28" L x 1.38" W x 3.65" H (58.0mm x 35.0mm x 92.7mm) | CB, CE, cURus | 62368-1 |
|
|
LI30-20B05PR2AC/DC DIN RAIL SUPPLY 5V 15W |
614 |
|
Технический лист |
LI30-20BxxPR2 (30W) | Tray | Not For New Designs | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 5V | - | - | - | - | - | 3A | 15W | 4 kV | ITE (Commercial) | 82% | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | 2.28" L x 1.38" W x 3.65" H (58.0mm x 35.0mm x 92.7mm) | CB, CE, cURus | 62368-1 |
|
|
LI30-20B12PR2AC/DC DIN RAIL SUPPLY 12V 24W |
176 |
|
Технический лист |
LI30-20BxxPR2 (30W) | Tray | Not For New Designs | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 2A | 24W | 4 kV | ITE (Commercial) | 88% | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | 2.28" L x 1.38" W x 3.65" H (58.0mm x 35.0mm x 92.7mm) | CB, CE, cURus | 62368-1 |
|
DMP1-12025AC/DC DIN RAIL SUPPLY 12V 36W |
1,192 |
|
Технический лист |
DM | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 3A | 36W | - | Industrial, ITE (Commercial) | 84% | -10°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | 3.54" L x 0.90" W x 4.02" H (89.9mm x 22.9mm x 102.1mm) | CE, cULus | 60950-1; UL 508 |
|
|
LI60-20B24PR2AC/DC DIN RAIL SUPPLY 24V 60W |
102 |
|
Технический лист |
LI60-20BxxPR2 (60W) | Tray | Not For New Designs | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 2.5A | 60W | 4 kV | ITE (Commercial) | 90% | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | 2.28" L x 2.05" W x 3.65" H (58.0mm x 52.0mm x 92.7mm) | CB, CE, cURus | 62368-1 |
|
|
0165N-24V30W1ACQAC/DC DIN RAIL SUPPLY 24V 30W |
299 |
|
Технический лист |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
DRC60US15AC/DC DIN RAIL SUPPLY 15V 60W |
264 |
|
Технический лист |
DRC60 (60W) | Box | Not For New Designs | AC | 1 | 85 ~ 264 VAC | - | - | 15V | - | - | - | - | - | 4A | 60W | 4 kV | ITE (Commercial) | 89% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 2.28" L x 2.05" W x 3.65" H (58.0mm x 52.0mm x 92.7mm) | TUV, UL | 62368-1 |
|
DRP024V060W1AZAC/DC DIN RAIL SUPPLY 24V 60W |
516 |
|
Технический лист |
CliQ (60W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 4 kV | ITE (Commercial) | 87% | -20°C ~ 75°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 4.75" L x 1.26" W x 4.45" H (120.6mm x 32.0mm x 113.0mm) | CB Scheme, CE, CSA, EAC, EN, SIQ, UL | 107.1-01; 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 62368-1 |
|
DMP1-24006AC/DC DIN RAIL SUPPLY 24V 16W |
568 |
|
Технический лист |
DM | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 680mA | 16W | - | Industrial, ITE (Commercial) | 81% | -10°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | 3.54" L x 0.90" W x 4.02" H (89.9mm x 22.9mm x 102.1mm) | CE, cULus | 60950-1; UL 508 |
|
|
DMP1-24006-ACMEPower Supply, 24VDC, 0.625A, 1Ph |
568 |
|
- |
DM | Retail Package | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 680mA | 16W | - | Industrial, ITE (Commercial) | 81% | -10°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | 3.54" L x 0.90" W x 4.02" H (89.9mm x 22.9mm x 102.1mm) | CE, cULus | 60950-1; UL 508 |
|

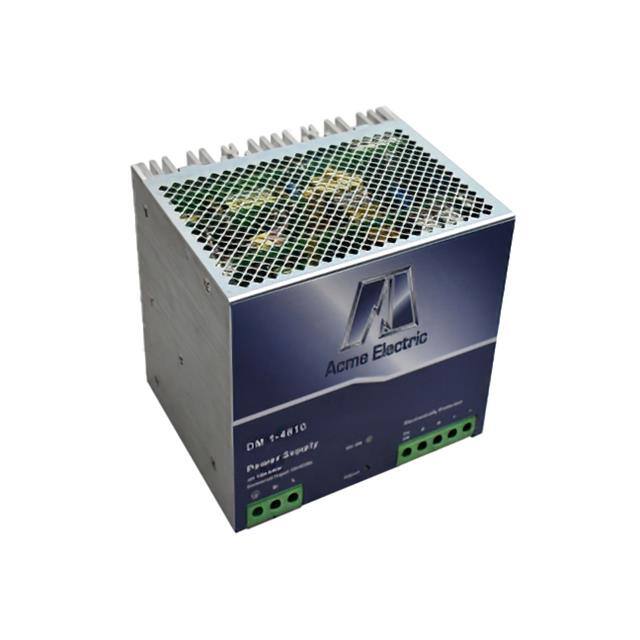

DM1-4810AC/DC DIN RAIL SUPPLY 48V 306W |
186 |
|
Технический лист |
DM | Box | Active | AC | 1 | 90 ~ 254 VAC, 100 ~ 240 VAC | - | - | 48V | - | - | - | - | - | 6.37A | 306W | - | Industrial, ITE (Commercial) | 90% | -10°C ~ 60°C (With Derating) | Adjustable Output | 5.12" L x 6.14" W x 4.96" H (130.0mm x 156.0mm x 126.0mm) | CE, cULus | 60950-1; UL 508 |
|
DRP012V030W1AZAC/DC DIN RAIL SUPPLY 12V 30W |
223 |
|
Технический лист |
CliQ (30W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 2.5A | 30W | 4 kV | ITE (Commercial) | 85% | -20°C ~ 75°C (With Derating) | Adjustable Output, Universal Input | 3.96" L x 1.26" W x 3.94" H (100.6mm x 32.0mm x 100.0mm) | CB Scheme, CE, CSA, EAC, EN, SIQ, UL | 107.1-01; 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-2 |
|
VDRS-20-15AC/DC DIN RAIL SUPPLY 15V 20W |
0 |
|
Технический лист |
VDRS-20 (24W) | Bulk | Obsolete | AC | 1 | 88 ~ 264 VAC | - | - | 15V | - | - | - | - | - | 1.4A | 20W | 3 kV | ITE (Commercial) | 85% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.90" L x 0.91" W x 3.54" H (99.0mm x 23.0mm x 90.0mm) | CE, cULus, cURus, TUV | - |
|
|
PDRD-75-48AC/DC DIN RAIL SUPPLY 48V 77W |
129 |
|
Технический лист |
PDRD-75 (75W) | Box | Not For New Designs | AC or DC | 1 | 85 ~ 305 VAC | 120V | 430V | 48V | - | - | - | - | - | 1.6A | 77W | 4 kV | ITE (Commercial), Laboratory | 91% | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | 3.44" L x 1.26" W x 4.33" H (87.5mm x 32.0mm x 110.0mm) | CE, cURus, UKCA | 61010-1; 62368-1 |
|
VDRS-40-24AC/DC DIN RAIL SUPPLY 24V 40W |
0 |
|
Технический лист |
VDRS-40 (41W) | Bulk | Obsolete | AC | 1 | 88 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1.7A | 40W | 3 kV | ITE (Commercial) | 84% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.90" L x 1.57" W x 3.54" H (99.0mm x 40.0mm x 90.0mm) | CE, cULus, cURus, TUV | - |
