Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2320830AC/DC DIN RAIL SUPPLY 24V 480W |
0 |
|
Технический лист |
Quint | Bulk | Obsolete | AC or DC | 1 | 360 ~ 575 VAC (2 Phase) | 450V | 840V | 24V | - | - | - | - | - | 20A | 480W | 1.5 kV | ITE (Commercial) | 92% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.92" L x 4.72" W x 5.12" H (125.0mm x 120.0mm x 130.0mm) | cULus, cURus, UL | - |
|

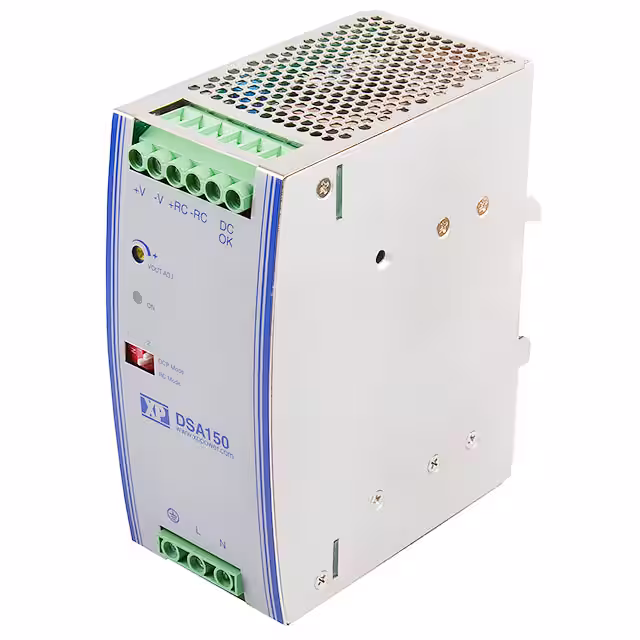

DSA150PS24AC/DC DIN RAIL SUPPLY 24V 150W |
0 |
|
Технический лист |
DSA150 (150W) | Box | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 6.25A | 150W | 3 kV | ITE (Commercial) | 87% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | 3.92" L x 2.18" W x 4.92" H (99.8mm x 55.5mm x 125.2mm) | - | - |
|
|
DSA150PS48AC/DC DIN RAIL SUPPLY 48V 150W |
0 |
|
Технический лист |
DSA150 (150W) | Box | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 3.12A | 150W | 3 kV | ITE (Commercial) | 87% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | 3.92" L x 2.18" W x 4.92" H (99.8mm x 55.5mm x 125.2mm) | - | - |
|

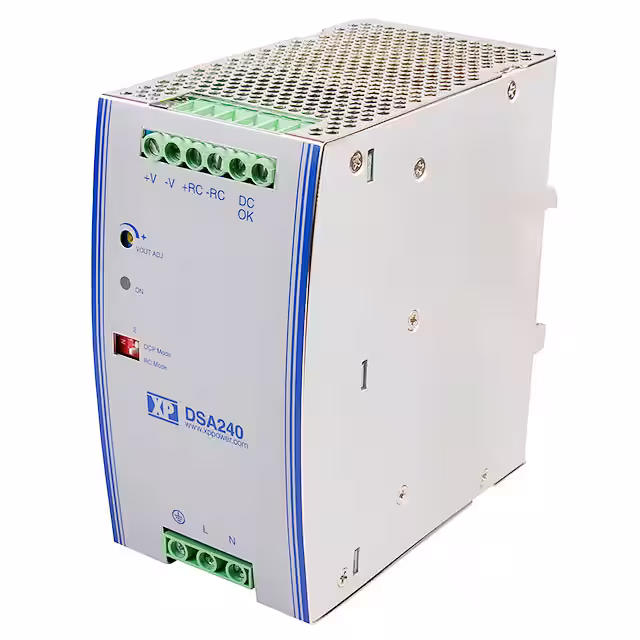

DSA240PS24AC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
Технический лист |
DSA240 (240W) | Box | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | 4.64" L x 2.59" W x 4.93" H (117.8mm x 65.8mm x 125.2mm) | - | - |
|
|
DSA240PS48AC/DC DIN RAIL SUPPLY 48V 240W |
0 |
|
Технический лист |
DSA240 (240W) | Box | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 5A | 240W | 3 kV | ITE (Commercial) | 92% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | 4.64" L x 2.59" W x 4.93" H (117.8mm x 65.8mm x 125.2mm) | - | - |
|

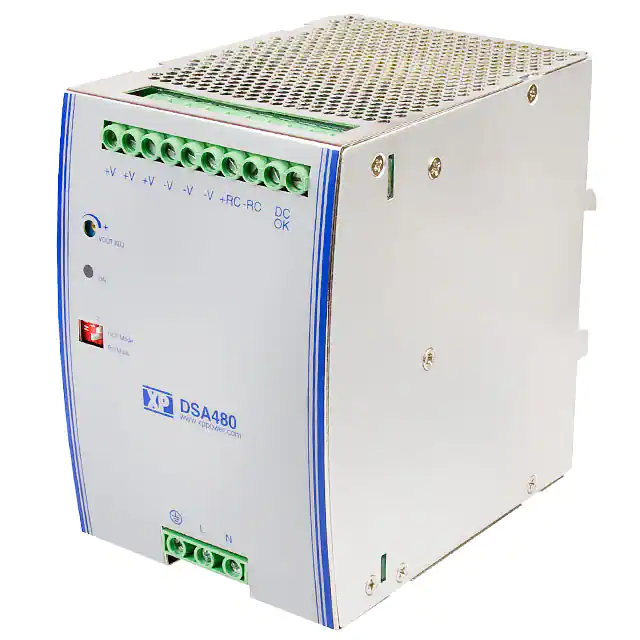

DSA480PS24AC/DC DIN RAIL SUPPLY 24V 480W |
0 |
|
Технический лист |
DSA480 (480W) | Box | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 3 kV | ITE (Commercial) | 93% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | 4.85" L x 3.39" W x 4.91" H (123.3mm x 86.3mm x 124.8mm) | - | - |
|
|
DSA480PS48AC/DC DIN RAIL SUPPLY 48V 480W |
0 |
|
Технический лист |
DSA480 (480W) | Box | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 10A | 480W | 3 kV | ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | 4.85" L x 3.39" W x 4.91" H (123.3mm x 86.3mm x 124.8mm) | - | - |
|

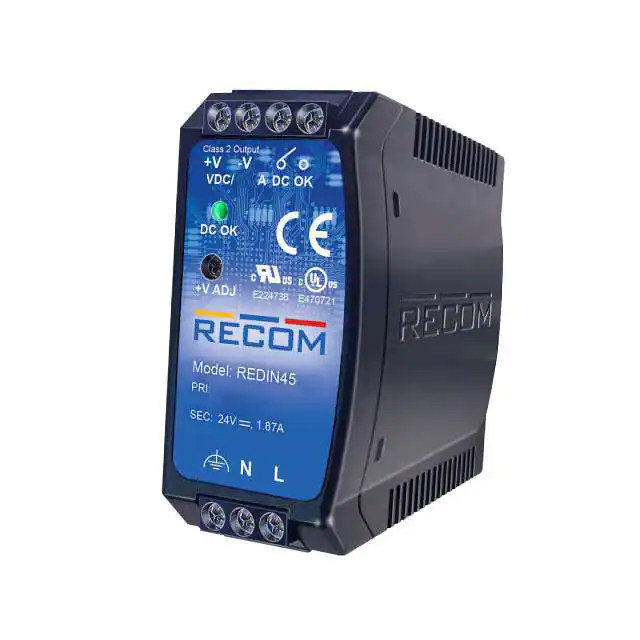

REDIN45-24AC/DC DIN RAIL SUPPLY 24V 45W |
0 |
|
- |
POWERLINE REDIN45 (45W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1.875A | 45W | 3.75 kV | ITE (Commercial) | 86% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.98" L x 1.78" W x 3.62" H (101.2mm x 45.1mm x 92.0mm) | CB, CE, cURus | - |
|
REDIN60-12AC/DC DIN RAIL SUPPLY 12V 60W |
0 |
|
- |
POWERLINE REDIN60 (60W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 5A | 60W | 3.75 kV | ITE (Commercial) | 84% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.98" L x 1.78" W x 3.62" H (101.2mm x 45.1mm x 92.0mm) | CB, CE, cURus | - |
|
|
REDIN60-24AC/DC DIN RAIL SUPPLY 24V 60W |
0 |
|
- |
POWERLINE REDIN60 (60W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 3.75 kV | ITE (Commercial) | 86% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.98" L x 1.78" W x 3.62" H (101.2mm x 45.1mm x 92.0mm) | CB, CE, cURus | - |
|
RAC40-05SB-STAC/DC DIN RAIL SUPPLY 5V 40W |
0 |
|
Технический лист |
POWERLINE RAC40-B (40W) | Box | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 8A | 40W | 3 kV | ITE (Commercial) | 81% | -40°C ~ 70°C (With Derating) | Universal Input | 4.41" L x 2.51" W x 1.28" H (111.9mm x 63.7mm x 32.5mm) | CE | - |
|
|
RAC40-12SB-STAC/DC DIN RAIL SUPPLY 12V 40W |
0 |
|
Технический лист |
POWERLINE RAC40-B (40W) | Box | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 3.33A | 40W | 3 kV | ITE (Commercial) | 84% | -40°C ~ 70°C (With Derating) | Universal Input | 4.41" L x 2.51" W x 1.28" H (111.9mm x 63.7mm x 32.5mm) | CE | - |
|
|
RAC40-15SB-STAC/DC DIN RAIL SUPPLY 15V 40W |
0 |
|
Технический лист |
POWERLINE RAC40-B (40W) | Box | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 15V | - | - | - | - | - | 2.67A | 40W | 3 kV | ITE (Commercial) | 83% | -40°C ~ 70°C (With Derating) | Universal Input | 4.41" L x 2.51" W x 1.28" H (111.9mm x 63.7mm x 32.5mm) | CE | - |
|
|
RAC40-24SB-STAC/DC DIN RAIL SUPPLY 24V 40W |
0 |
|
Технический лист |
POWERLINE RAC40-B (40W) | Box | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1.67A | 40W | 3 kV | ITE (Commercial) | 83% | -40°C ~ 70°C (With Derating) | Universal Input | 4.41" L x 2.51" W x 1.28" H (111.9mm x 63.7mm x 32.5mm) | CE | - |
|
RAC40-12DB-STAC/DC DIN RAIL SUPPLY +/-12V 40W |
0 |
|
Технический лист |
POWERLINE RAC40-B (40W) | Box | Obsolete | AC | 2 | 90 ~ 264 VAC | - | - | 12V | -12V | - | - | - | - | 1.67A, 1.67A | 40W | 3 kV | ITE (Commercial) | 83% | -40°C ~ 70°C (With Derating) | Universal Input | 4.41" L x 2.51" W x 1.28" H (111.9mm x 63.7mm x 32.5mm) | CE | - |
|
|
RAC40-15DB-STAC/DC DIN RAIL SUPPLY +/-15V 40W |
0 |
|
Технический лист |
POWERLINE RAC40-B (40W) | Box | Obsolete | AC | 2 | 90 ~ 264 VAC | - | - | 15V | -15V | - | - | - | - | 1.33A, 1.33A | 40W | 3 kV | ITE (Commercial) | 83% | -40°C ~ 70°C (With Derating) | Universal Input | 4.41" L x 2.51" W x 1.28" H (111.9mm x 63.7mm x 32.5mm) | CE | - |
|
|
RAC40-0512DB-STAC/DC DIN RAIL SUPPLY 5V 12V 40W |
0 |
|
Технический лист |
POWERLINE RAC40-B (40W) | Box | Obsolete | AC | 2 | 90 ~ 264 VAC | - | - | 5V | 12V | - | - | - | - | 5A, 1.25A | 40W | 3 kV | ITE (Commercial) | 82% | -40°C ~ 70°C (With Derating) | Universal Input | 4.41" L x 2.51" W x 1.28" H (111.9mm x 63.7mm x 32.5mm) | CE | - |
|
RAC40-0512TB-STAC/DC DIN RAIL SUP 5V +/-12V 40W |
0 |
|
Технический лист |
POWERLINE RAC40-B (40W) | Box | Obsolete | AC | 3 | 90 ~ 264 VAC | - | - | 5V | 12V | -12V | - | - | - | 5A, 600mA, 600mA | 40W | 3 kV | ITE (Commercial) | 82% | -40°C ~ 70°C (With Derating) | Universal Input | 4.41" L x 2.51" W x 1.28" H (111.9mm x 63.7mm x 32.5mm) | CE | - |
|
|
RAC40-0515TB-STAC/DC DIN RAIL SUP 5V +/-15V 40W |
0 |
|
Технический лист |
POWERLINE RAC40-B (40W) | Box | Obsolete | AC | 3 | 90 ~ 264 VAC | - | - | 5V | 15V | -15V | - | - | - | 5A, 500mA, 500mA | 40W | 3 kV | ITE (Commercial) | 81% | -40°C ~ 70°C (With Derating) | Universal Input | 4.41" L x 2.51" W x 1.28" H (111.9mm x 63.7mm x 32.5mm) | CE | - |
|
2904372AC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
Технический лист |
UNO | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial) | 93% | -25°C ~ 70°C (With Derating) | IP20, Load Sharing, Universal Input | 4.92" L x 1.77" W x 5.12" H (125.0mm x 45.0mm x 130.0mm) | CB, cULus, cURus | - |
