Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

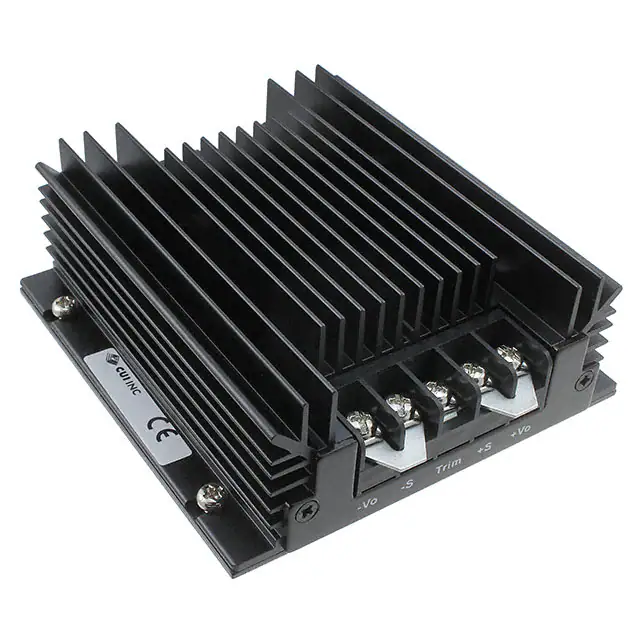

VHK150W-Q48-S28-DINDC/DC DIN RAIL SUPPLY 28V 150W |
0 |
|
Технический лист |
VHK150W-DIN (150W) | Box | Active | DC | 1 | - | 18V | 75V | 28V | - | - | - | - | - | 5.4A | 150W | - | - | 89% | -40°C ~ 85°C | - | 4.23" L x 4.01" W x 2.07" H (107.4mm x 101.9mm x 52.6mm) | CE | - |
|
|
VHK150W-Q48-S48-DINDC/DC DIN RAIL SUPPLY 48V 150W |
0 |
|
Технический лист |
VHK150W-DIN (150W) | Box | Active | DC | 1 | - | 18V | 75V | 48V | - | - | - | - | - | 3.12A | 150W | - | - | 87% | -40°C ~ 85°C | - | 4.23" L x 4.01" W x 2.07" H (107.4mm x 101.9mm x 52.6mm) | CE | - |
|
ADA600F-24-N1UAC/DC DIN RAIL SUPPLY 24V 360W |
0 |
|
Технический лист |
ADA (600W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 15A | 360W (600W Forced Air) | 3 kV | ITE (Commercial) | 86% | -10°C ~ 71°C (With Derating) | Adjustable Output, PFC, Universal Input | 7.68" L x 5.00" W x 2.56" H (195.0mm x 127.0mm x 65.0mm) | CE, CSA, cURus, TUV, UL | 60950-1; 62368-1 |
|
2467290000PRO TOPDC 24V/24V 5A EX |
0 |
|
- |
* | Bulk | Active | DC | 1 | - | 14V | 31.2V | 24V | - | - | - | - | - | 5A | 120W | 1.41 kV | ITE (Commercial), Laboratory | 89% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Remote On/Off | 4.92" L x 1.38" W x 5.12" H (125.0mm x 35.0mm x 130.0mm) | - | 60950-1; 61010-1 |
|
LDD240-WUDC/DC DIN RAIL SUPPLY 5-55V 240W |
0 |
|
Технический лист |
LDD240-WU (240W) | Bulk | Active | DC | 1 | - | 11V | 55V | 5 ~ 55V | - | - | - | - | - | 10A | 240W | 4.2 kV | ITE (Commercial) | 92% | -40°C ~ 70°C (With Derating) | Adjustable Output | 4.33" L x 1.57" W x 4.53" H (110.0mm x 40.0mm x 115.0mm) | - | - |
|
|
ADA600F-24-N1WAC/DC DIN RAIL SUPPLY 24V 360W |
0 |
|
Технический лист |
ADA (600W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 15A | 360W (600W Forced Air) | 3 kV | ITE (Commercial) | 86% | -10°C ~ 71°C (With Derating) | Adjustable Output, Load Sharing, PFC, Universal Input | 7.68" L x 5.00" W x 2.56" H (195.0mm x 127.0mm x 65.0mm) | CE, CSA, cURus, TUV, UL | 60950-1; 62368-1 |
|
|
ADA600F-48-RN1AC/DC DIN RAIL SUPPLY 48V 336W |
0 |
|
Технический лист |
ADA (600W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 7A | 336W (600W Forced Air) | 3 kV | ITE (Commercial) | 89% | -10°C ~ 71°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | 7.68" L x 5.00" W x 2.56" H (195.0mm x 127.0mm x 65.0mm) | CE, CSA, cURus, TUV, UL | 60950-1; 62368-1 |
|
|
CACN-3A-1-10-G2FIXED POWER SUPPLY |
0 |
|
Технический лист |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
288-895DC/DC DIN RAIL SUPPLY 18V |
0 |
|
Технический лист |
- | Box | Active | DC | 1 | - | 19V | 24V | 18V | - | - | - | - | - | 400mA | - | 900 V | ITE (Commercial) | 82% | -25°C ~ 70°C | - | 0.98" L x 1.97" W x 3.35" H (25.0mm x 50.0mm x 85.0mm) | CE | - |
|
6EP31340TA000AY0DC/DC DIN RAIL SUPPLY 24V |
0 |
|
Технический лист |
6EP3 | Box | Active | DC | 1 | - | 14V | 32V | 24V | - | - | - | - | - | 10A | - | - | Industrial, ITE (Commercial) | 93% | -25°C ~ 70°C | Adjustable Output, IP20 | 4.72" L x 1.65" W x 4.92" H (120.0mm x 42.0mm x 125.0mm) | CB, CE, cULus | 60950-1; UL 508 |
|
9919371212DC/DC DIN RAIL SUPPLY 12V 50W |
0 |
|
Технический лист |
CP-DCDC (50W) | Bulk | Obsolete | DC | 1 | - | 9V | 16V | 12V | - | - | - | - | - | 3A | 50W | - | ITE (Commercial) | 80% | -10°C ~ 50°C | - | 5.16" L x 2.24" W x 3.86" H (131.0mm x 57.0mm x 98.0mm) | CE, CSA, UL | - |
|

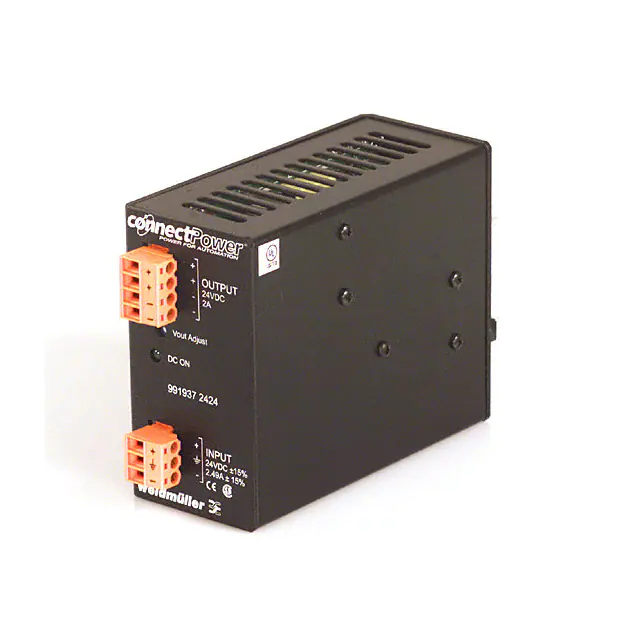

9919372424DC/DC DIN RAIL SUPPLY 24V 50W |
0 |
|
Технический лист |
CP-DCDC (50W) | Bulk | Obsolete | DC | 1 | - | 18V | 30V | 24V | - | - | - | - | - | 2A | 50W | - | ITE (Commercial) | 80% | -10°C ~ 50°C | - | 5.16" L x 2.24" W x 3.86" H (131.0mm x 57.0mm x 98.0mm) | CE, CSA, UL | - |
|
|
16183.2AC/DC DIN RAIL SUPPLY |
0 |
|
Технический лист |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SPD121201PAC/DC DIN RAIL SUPPLY 12V 120W |
0 |
|
Технический лист |
SPD (120W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 210V | 315V | 12V | - | - | - | - | - | 10A | 120W | - | Hazardous Locations, Industrial, ITE (Commercial) | 87% | -35°C ~ 71°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | 4.41" L x 2.53" W x 4.88" H (112.0mm x 64.3mm x 124.0mm) | CCC, CE, cULus, TUV | - |
N.jpg)
|
SPD241201BNAC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
Технический лист |
SPD (120W) | Box | Obsolete | AC or DC | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | 210V | 375V | 24V | - | - | - | - | - | 5A | 120W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 86% | -20°C ~ 71°C (With Derating) | Adjustable Output, IP20, PFC | 4.69" L x 2.52" W x 4.90" H (119.0mm x 64.0mm x 124.5mm) | CCC, CE, cULus, TUV | - |
|
|
S8VK-WB24048POWER SUPPLY 3 PHASE 480VAC PWR |
0 |
|
Технический лист |
S8VK-W (240W) | Box | Active | AC or DC | 1 | 320 ~ 576 VAC (3 Phase) | 450V | 810V | 48V | - | - | - | - | - | 5A | 240W | 3 kV | Industrial, ITE (Commercial) | 93% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC | 4.78" L x 2.17" W x 4.88" H (121.4mm x 55.0mm x 124.0mm) | CE, UL | 62368-1; UL 508 |
|
|
DHP480-24-1AC/DC DIN RAIL SUPPLY 24V 480W |
0 |
|
- |
DHP480 (480W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 3 kV | Hazardous Locations, ITE (Commercial) | 91% | -10°C ~ 70°C (With Derating) | PFC, Universal Input | 5.51" L x 5.34" W x 4.92" H (140.0mm x 135.0mm x 125.0mm) | CE | - |
|
LWR1301-6EGAC/DC DIN RAIL SUP 12.35V 125W |
0 |
|
Технический лист |
Melcher W (125W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12.35V | - | - | - | - | - | 7.5A | 125W | 2.8 kV | ITE (Commercial) | 88% | -40°C ~ 60°C | Adjustable Output, PFC, Universal Input | 4.47" L x 4.05" W x 5.43" H (113.6mm x 103.0mm x 138.0mm) | cCSAus, CE, cULus, NEMKO, TUV | - |
|
DRP024V960W3BAAC/DC DIN RAIL SUPPLY 24V 960W |
0 |
|
Технический лист |
CliQ II (960W) | Bulk | Active | AC | 1 | 320 ~ 600 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 40A | 960W | 4 kV | ITE (Commercial) | 92% | -25°C ~ 65°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 10.04" L x 4.62" W x 4.76" H (255.0mm x 117.30mm x 121.0mm) | CB, CE, CSA, cULus, cURus | - |
|
|
SMP11-S20-DC24V-10AAC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
Технический лист |
SMP11 | Bulk | Obsolete | AC | 1 | 88 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | Industrial, ITE (Commercial) | 93% | -40°C ~ 71°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | 4.59" L x 2.52" W x 4.90" H (116.6mm x 64.0mm x 124.5mm) | TUV, UL | - |
