Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S8VS-12024AP-FAC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
Технический лист |
S8VS (120W) | Bulk | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.78" L x 1.97" W x 4.53" H (121.3mm x 50.0mm x 115.0mm) | CE, cULus, cURus, VDE | - |
|
|
S8VS-12024A-FAC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
Технический лист |
S8VS (120W) | Bulk | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.78" L x 1.97" W x 4.53" H (121.3mm x 50.0mm x 115.0mm) | CE, cULus, cURus, VDE | - |
|
|
S8VK-T24024-400AC/DC DIN RAIL SUPPLY 240W |
0 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
6EP33320TA000AY0SITOP PSU3400/1ACDC/DC24V/2.5A |
0 |
|
Технический лист |
6EP3 | Bulk | Active | AC or DC | 1 | 88 ~ 264 VAC | 18V | 264V | 24V | - | - | - | - | - | 2.5A | - | - | ITE (Commercial) | - | - | Adjustable Output | - | - | - |
|
|
BB-SDR-480-48AC/DC DIN RAIL SUPPLY 48V 480W |
0 |
|
Технический лист |
SDR-480 (480W) | Bulk | Active | AC | 1 | 90 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 10A | 480W | 3 kV | Industrial, ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output | 5.06" L x 3.37" W x 4.93" H (128.5mm x 85.5mm x 125.2mm) | CB, CE, cULus, TUV | - |
N.jpg)
|
SPD241201NAC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
Технический лист |
SPD (120W) | Box | Obsolete | AC or DC | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | 210V | 375V | 24V | - | - | - | - | - | 5A | 120W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 86% | -35°C ~ 71°C (With Derating) | Adjustable Output, IP20, PFC | 4.69" L x 2.52" W x 4.90" H (119.0mm x 64.0mm x 124.5mm) | CCC, CE, cULus, TUV | - |
|
S8TS-03012F-E1AC/DC DIN RAIL SUPPLY 12V 30W |
1 |
|
Технический лист |
S8TS (30W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 2.5A | 30W | 3 kV | ITE (Commercial) | 73% | -10°C ~ 55°C (With Derating) | Adjustable Output, Universal Input | 4.72" L x 1.69" W x 4.72" H (120.0mm x 43.0mm x 120.0mm) | CE, cULus, cURus, VDE | - |
|
ADA600F-24-N1AC/DC DIN RAIL SUPPLY 24V 360W |
0 |
|
Технический лист |
ADA (600W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 15A | 360W (600W Forced Air) | 3 kV | ITE (Commercial) | 86% | -10°C ~ 71°C (With Derating) | Adjustable Output, PFC, Universal Input | 7.68" L x 5.00" W x 2.56" H (195.0mm x 127.0mm x 65.0mm) | CE, CSA, cURus, TUV, UL | 60950-1; 62368-1 |
|
|
ADA600F-30-N1AC/DC DIN RAIL SUPPLY 30V 360W |
0 |
|
Технический лист |
ADA (600W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 30V | - | - | - | - | - | 12A | 360W (600W Forced Air) | 3 kV | ITE (Commercial) | 87% | -10°C ~ 71°C (With Derating) | Adjustable Output, PFC, Universal Input | 7.68" L x 5.00" W x 2.56" H (195.0mm x 127.0mm x 65.0mm) | CE, CSA, cURus, TUV, UL | 60950-1; 62368-1 |
|
|
ADA600F-36-N1AC/DC DIN RAIL SUPPLY 36V 360W |
0 |
|
Технический лист |
ADA (600W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 36V | - | - | - | - | - | 10A | 360W (594W Forced Air) | 3 kV | ITE (Commercial) | 87% | -10°C ~ 71°C (With Derating) | Adjustable Output, PFC, Universal Input | 7.68" L x 5.00" W x 2.56" H (195.0mm x 127.0mm x 65.0mm) | CE, CSA, cURus, TUV, UL | 60950-1; 62368-1 |
|
|
ADA600F-48-N1AC/DC DIN RAIL SUPPLY 48V 336W |
0 |
|
Технический лист |
ADA (600W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 7A | 336W (600W Forced Air) | 3 kV | ITE (Commercial) | 89% | -10°C ~ 71°C (With Derating) | Adjustable Output, PFC, Universal Input | 7.68" L x 5.00" W x 2.56" H (195.0mm x 127.0mm x 65.0mm) | CE, CSA, cURus, TUV, UL | 60950-1; 62368-1 |
|

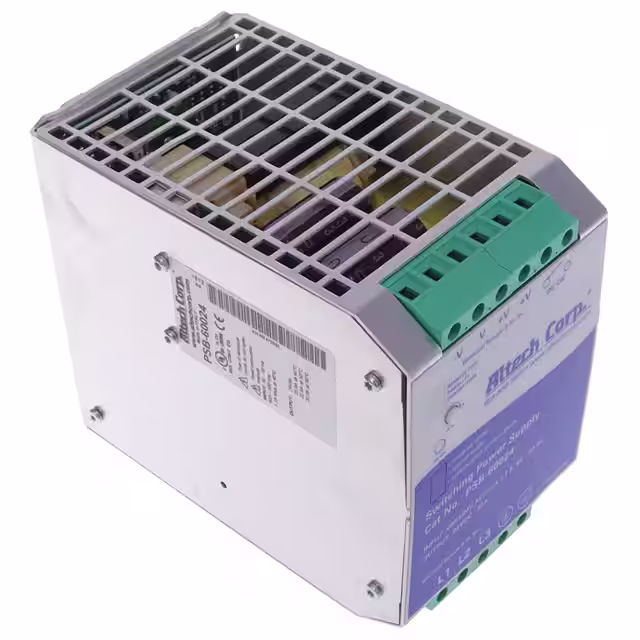

PSB-60024AC/DC DIN RAIL SUPPLY 24V 600W |
0 |
|
Технический лист |
PSB-600 (600W) | Box | Active | AC | 1 | 330 ~ 550 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 25A | 600W | 3 kV | Industrial, ITE (Commercial) | 92% | -25°C ~ 70°C (With Derating) | Adjustable Output | 5.59" L x 3.35" W x 4.88" H (142.0mm x 85.0mm x 124.0mm) | CE, cULus | 508; 60950-1 |
|
VHK150W-Q24-S5-DINDC/DC DIN RAIL SUPPLY 5V 150W |
0 |
|
Технический лист |
VHK150W-DIN (150W) | Box | Active | DC | 1 | - | 9V | 36V | 5V | - | - | - | - | - | 25A | 150W | - | - | 87% | -40°C ~ 85°C | - | 4.23" L x 4.01" W x 2.07" H (107.4mm x 101.9mm x 52.6mm) | CE | - |
|
|
VHK150W-Q24-S15-DINDC/DC DIN RAIL SUPPLY 15V 150W |
0 |
|
Технический лист |
VHK150W-DIN (150W) | Box | Active | DC | 1 | - | 9V | 36V | 15V | - | - | - | - | - | 10A | 150W | - | - | 86% | -40°C ~ 85°C | - | 4.23" L x 4.01" W x 2.07" H (107.4mm x 101.9mm x 52.6mm) | CE | - |
|
|
VHK150W-Q24-S28-DINDC/DC DIN RAIL SUPPLY 28V 150W |
0 |
|
Технический лист |
VHK150W-DIN (150W) | Box | Active | DC | 1 | - | 9V | 36V | 28V | - | - | - | - | - | 5.4A | 150W | - | - | 87% | -40°C ~ 85°C | - | 4.23" L x 4.01" W x 2.07" H (107.4mm x 101.9mm x 52.6mm) | CE | - |
|
|
VHK150W-Q24-S48-DINDC/DC DIN RAIL SUPPLY 48V 150W |
0 |
|
Технический лист |
VHK150W-DIN (150W) | Box | Active | DC | 1 | - | 9V | 36V | 48V | - | - | - | - | - | 3.12A | 150W | - | - | 84% | -40°C ~ 85°C | - | 4.23" L x 4.01" W x 2.07" H (107.4mm x 101.9mm x 52.6mm) | CE | - |
|
|
VHK150W-Q48-S5-DINDC/DC DIN RAIL SUPPLY 5V 150W |
0 |
|
Технический лист |
VHK150W-DIN (150W) | Box | Active | DC | 1 | - | 18V | 75V | 5V | - | - | - | - | - | 25A | 150W | - | - | 90% | -40°C ~ 85°C | - | 4.23" L x 4.01" W x 2.07" H (107.4mm x 101.9mm x 52.6mm) | CE | - |
|
|
VHK150W-Q48-S12-DINDC/DC DIN RAIL SUPPLY 12V 150W |
0 |
|
Технический лист |
VHK150W-DIN (150W) | Box | Active | DC | 1 | - | 18V | 75V | 12V | - | - | - | - | - | 12.5A | 150W | - | - | 88% | -40°C ~ 85°C | - | 4.23" L x 4.01" W x 2.07" H (107.4mm x 101.9mm x 52.6mm) | CE | - |
|
|
VHK150W-Q48-S15-DINDC/DC DIN RAIL SUPPLY 15V 150W |
0 |
|
Технический лист |
VHK150W-DIN (150W) | Box | Active | DC | 1 | - | 18V | 75V | 15V | - | - | - | - | - | 10A | 150W | - | - | 88% | -40°C ~ 85°C | - | 4.23" L x 4.01" W x 2.07" H (107.4mm x 101.9mm x 52.6mm) | CE | - |
|
|
VHK150W-Q48-S24-DINDC/DC DIN RAIL SUPPLY 24V 150W |
0 |
|
Технический лист |
VHK150W-DIN (150W) | Box | Active | DC | 1 | - | 18V | 75V | 24V | - | - | - | - | - | 6.5A | 150W | - | - | 87.5% | -40°C ~ 85°C | - | 4.23" L x 4.01" W x 2.07" H (107.4mm x 101.9mm x 52.6mm) | CE | - |
