Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPD24901AC/DC DIN RAIL SUPPLY 24V 91W |
0 |
|
Технический лист |
SPD (90W) | Box | Obsolete | AC or DC | 1 | 90 ~ 132 VAC, 186 ~ 264 VAC | 210V | 370V | 24V | - | - | - | - | - | 3.8A | 91W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 85% | -25°C ~ 71°C (With Derating) | Adjustable Output, IP20, PFC | 4.59" L x 2.52" W x 4.90" H (116.6mm x 64.0mm x 124.5mm) | CCC, CE, cULus, TUV | - |
|
2787-2135PSU, PRO 2 1-PH |
0 |
|
Технический лист |
- | Bulk | Active | AC or DC | 1 | 90 ~ 264 VAC | 130V | 240V | 12V | - | - | - | - | - | 15A | 180W | 3.15 kV | Laboratory | 95.3% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | 5.12" L x 2.76" W x 5.12" H (130.0mm x 70.0mm x 130.0mm) | UL | 61010-1 |
|
|
S82K-24024AC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
Технический лист |
S82K (240W) | Bulk | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Load Sharing, Remote Sense, Universal Input | 5.12" L x 11.02" W x 5.43" H (130.0mm x 280.0mm x 138.0mm) | CE, cULus, cURus, VDE | - |
|
|
6EP33337SC000AX0AC/DC DIN RAIL SUPPLY 24V |
0 |
|
Технический лист |
6EP3 | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 99V | 275V | 24V | - | - | - | - | - | 5A | - | - | ITE (Commercial) | 90.2% | -30°C ~ 70°C | Adjustable Output, IP20 | 4.92" L x 1.38" W x 5.31" H (125.0mm x 35.0mm x 135.0mm) | CE, CSA, UL | 60950-1 |
|
|
K26-STR-24VDC-2AAS-INTERFACE (EXCLUDING SENSORS) |
0 |
|
Технический лист |
- | Box | Active | AC | 1 | 110 ~ 250 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | - | Laboratory | 89% | -10°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 4.13" L x 1.77" W x 2.83" H (105.0mm x 45.0mm x 72.0mm) | CE, cULus | 61010-1 |
|
|
ADN20-24-3PM-CDAC-DC, 480W, 24V @ 20.0A 3-PHASE |
0 |
|
- |
ADN-C (120-960W) | Bulk | Active | AC or DC | 1 | 320 ~ 540 VAC | 450V | 760V | 24V | - | - | - | - | - | 20A | 480W | - | Industrial, ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | 4.68" L x 3.34" W x 4.85" H (119.0mm x 85.0mm x 123.0mm) | CE, cULus | 60950-1; UL 508 |
|
2866488AC/DC DIN RAIL SUPPLY 12V 120W |
0 |
|
Технический лист |
TRIO | Box | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 12V | - | - | - | - | - | 10A | 120W | 4 kV | ITE (Commercial) | 86% | -25°C ~ 70°C | IP20, Universal Input | 4.53" L x 1.57" W x 5.12" H (115.0mm x 40.0mm x 130.0mm) | cULus, cURus, UL | - |
|
|
8708700000AC/DC DIN RAIL SUPPLY 24V 250W |
0 |
|
- |
Connect Power Ecoline (250W) | Bulk | Obsolete | AC | 1 | 340 ~ 575 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 10A | 250W | 3 kV | ITE (Commercial) | 88% | -10°C ~ 70°C (With Derating) | Adjustable Output | 4.33" L x 8.96" W x 4.92" H (110.0mm x 227.5mm x 125.0mm) | CE, cULus, GOST, PSE | - |
|

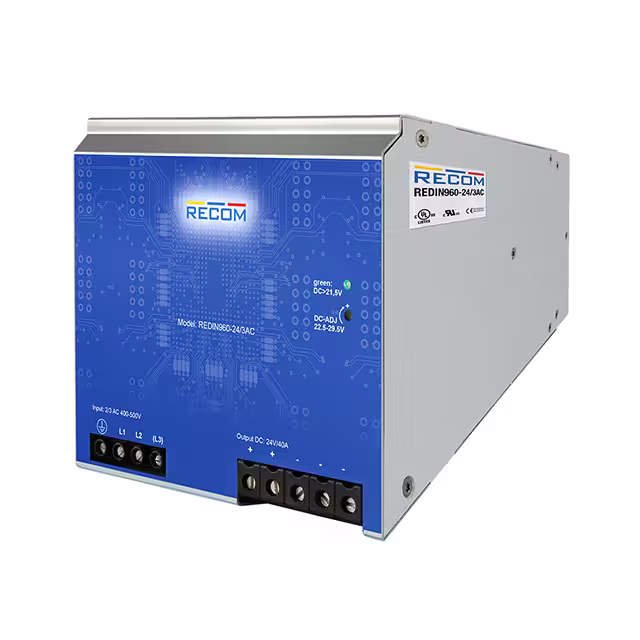

REDIN960-24/3ACAC/DC DIN RAIL SUPPLY 24V 960W |
0 |
|
Технический лист |
REDIN960/3AC (960W) | Box | Obsolete | AC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (2 Phase) | - | - | 24V | - | - | - | - | - | 40A | 960W | 4.242 kV | Hazardous Locations, ITE (Commercial) | 88.5% | -25°C ~ 55°C | Adjustable Output | 7.48" L x 5.47" W x 5.12" H (190.0mm x 139.0mm x 130.0mm) | CE, cULus, cURus | - |
|
|
S8TS-06024-E1.AC/DC DIN RAIL SUPPLY 24V 60W |
1 |
|
Технический лист |
S8TS (60W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 55°C (With Derating) | Adjustable Output, Universal Input | 4.72" L x 1.69" W x 4.72" H (120.0mm x 43.0mm x 120.0mm) | CE, cULus, cURus, VDE | - |
|
|
S8PE-F12024CDAC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
Технический лист |
S8PE (120W) | Bulk | Obsolete | AC | 1 | 340 ~ 766 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 5A | 120W | 3 kV | ITE (Commercial) | 84% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 5.51" L x 1.97" W x 4.92" H (140.0mm x 50.0mm x 125.0mm) | CE, cULus, cURus | - |
|

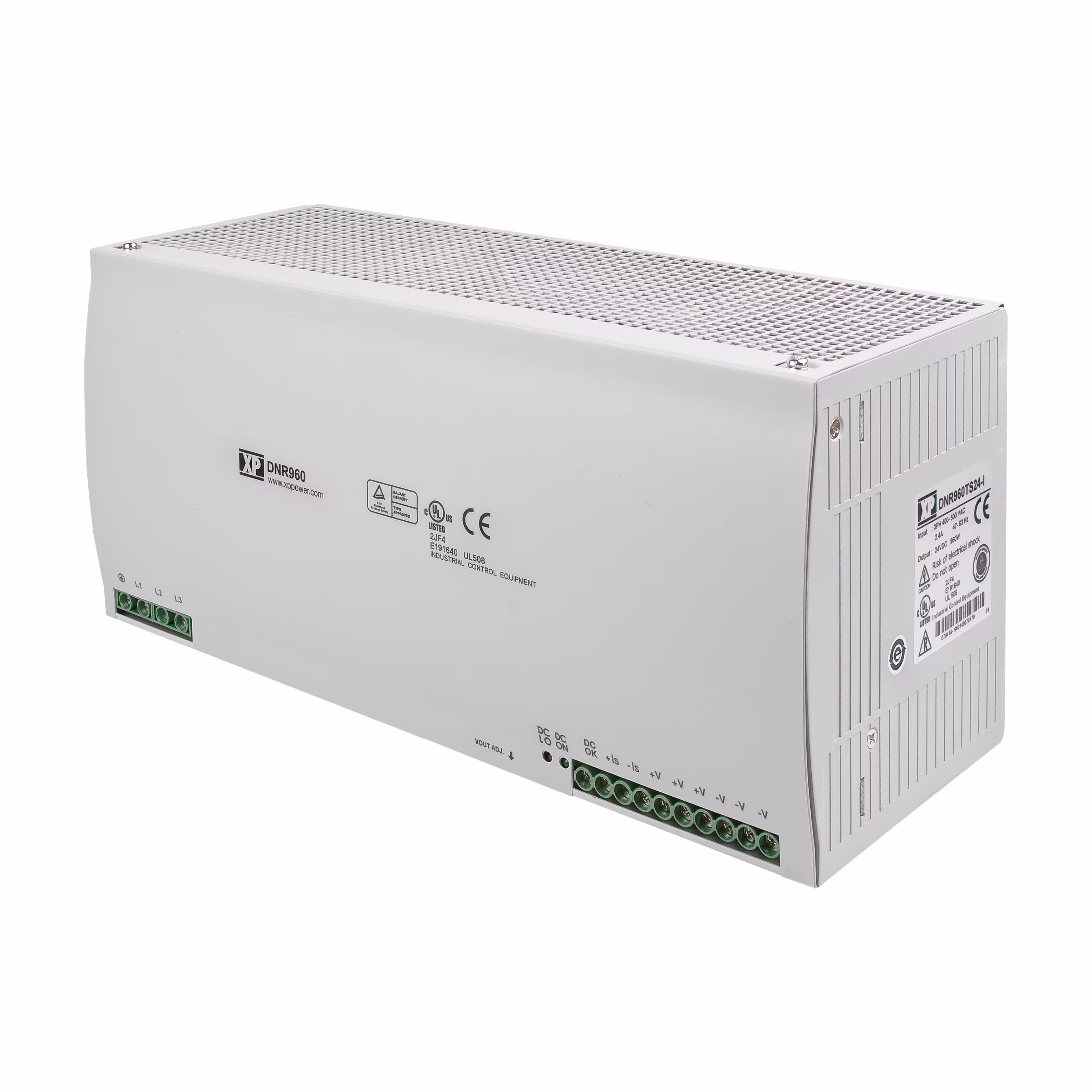

DNR960TS24-IAC/DC DIN RAIL SUPPLY 24V 960W |
0 |
|
Технический лист |
DNR-TS (960W) | Box | Obsolete | AC | 1 | 340 ~ 575 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 40A | 960W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 92% | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | 4.39" L x 10.86" W x 4.96" H (111.3mm x 275.7mm x 125.9mm) | - | 62368-1 |
|

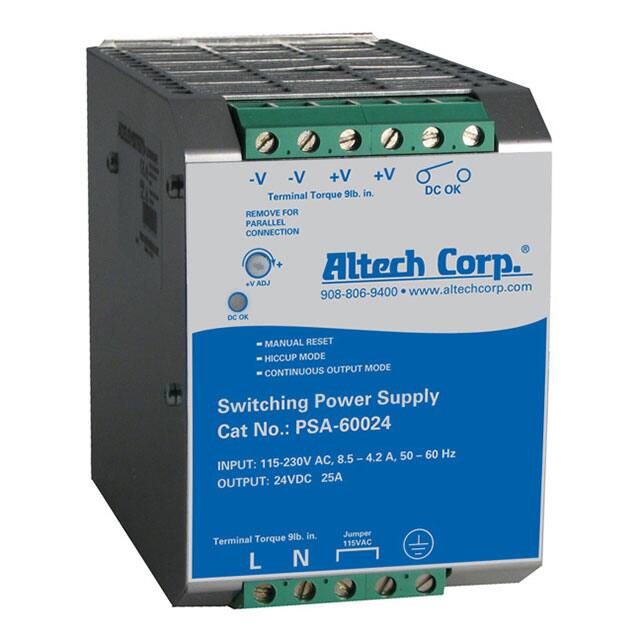

PSA-60024AC/DC DIN RAIL SUPPLY 24V 600W |
0 |
|
Технический лист |
PSA-600 (600W) | Box | Active | AC | 1 | 90 ~ 135 VAC, 180 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 25A | 600W | 3 kV | Industrial, ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | Adjustable Output | 5.59" L x 3.35" W x 4.88" H (142.0mm x 85.0mm x 124.0mm) | CE, cULus | 508; 60950-1 |
|
|
6EP13333BA108AC0AC/DC DIN RAIL SUPPLY 24V |
0 |
|
Технический лист |
6EP1 | Box | Active | AC | 1 | 85 ~ 264 VAC, 176 ~ 550 VAC | - | - | 24V | - | - | - | - | - | 5A | - | - | Industrial, ITE (Commercial) | 88% | -25°C ~ 70°C | Adjustable Output, IP20 | 4.76" L x 2.76" W x 4.92" H (121.0mm x 70.0mm x 125.0mm) | CE, CSA, cULus, EAC, UL | 60950-1; UL 508 |
|
|
UNOTEC2405NPOWER SUPPLY, 5A, 24V DC, DIN RA |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BB-SDR-480-24AC/DC DIN RAIL SUPPLY 24V 480W |
0 |
|
Технический лист |
SDR-480 (480W) | Bulk | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 3 kV | Industrial, ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output | 5.06" L x 3.37" W x 4.93" H (128.5mm x 85.5mm x 125.2mm) | CB, CE, cULus, TUV | - |
|
DN4013AC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
- |
- | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | - | ITE (Commercial) | 91.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 5.00" L x 2.44" W x 5.14" H (127.0mm x 62.0mm x 130.5mm) | CE, cULus, cURus | - |
|
LDC480-72PAC/DC DIN RAIL SUPPLY 72V 480W |
0 |
|
Технический лист |
LDC480 (480W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 72V | - | - | - | - | - | 6.7A | 480W | 4.2 kV | ITE (Commercial) | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 4.61" L x 2.20" W x 5.51" H (117.0mm x 56.0mm x 140.0mm) | - | - |
|
S8VS-18024-FAC/DC DIN RAIL SUPPLY 24V 180W |
0 |
|
Технический лист |
S8VS (180W) | Bulk | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 7.5A | 180W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.93" L x 2.95" W x 4.53" H (125.3mm x 75.0mm x 115.0mm) | CE, cULus, cURus, VDE | - |
|
|
2910128QUINT4-PS/48DC/48DC/5/PT |
0 |
|
Технический лист |
- | Bulk | Active | DC | 1 | - | 28.8V | 57.6V | 48V | - | - | - | - | - | 5A | 240W | 2 kV | Laboratory | 95.2% | -25°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off | 4.92" L x 1.97" W x 5.12" H (125.0mm x 50.0mm x 130.0mm) | CB, CSA, cULus, UL | 61010-1 |
