Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RPMD60-2415SGDC/DC DIN RAIL SUPPLY 15V 60W |
0 |
|
Технический лист |
POWERLINE Power Modules (60W) | Box | Active | DC | 1 | - | 18V | 36V | 15V | - | - | - | - | - | 4A | 60W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | 60950-1 |
|
PSW-12048AC/DC DIN RAIL SUPPLY 48V 120W |
0 |
|
- |
PSW-120 (120W) | Bulk | Active | AC or DC | 1 | 180 ~ 550 VAC | 254V | 780V | 48V | - | - | - | - | - | 2.5A | 120W | 3 kV | Industrial, ITE (Commercial) | 92% | -25°C ~ 70°C (With Derating) | Adjustable Output | 4.47" L x 1.57" W x 4.93" H (113.5mm x 40.0mm x 125.2mm) | CB, CE, cULus | 508; 60950-1 |
|

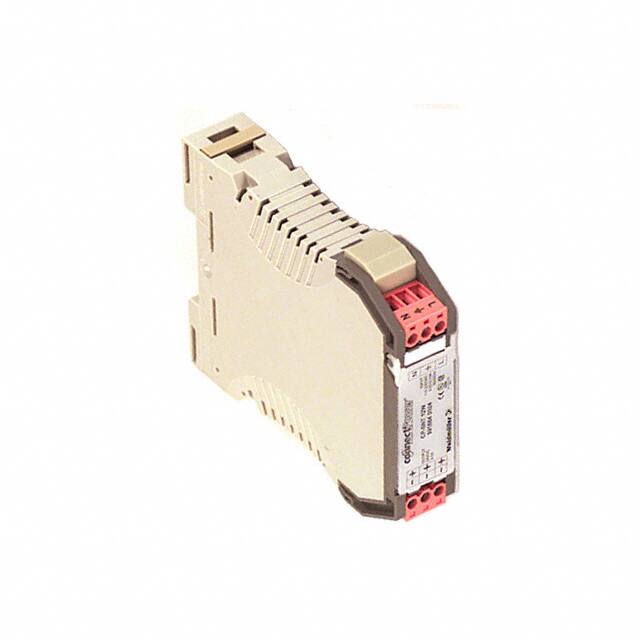

9918840024AC/DC DIN RAIL SUPPLY 24V 12W |
0 |
|
Технический лист |
Connect Power WAVE (12W) | Bulk | Obsolete | AC | 1 | 85 ~ 265 VAC | - | - | 24V | - | - | - | - | - | 500mA | 12W | 4 kV | ITE (Commercial) | 80% | -20°C ~ 50°C | Adjustable Output, Universal Input | 4.43" L x 0.89" W x 3.54" H (112.5mm x 22.5mm x 90.0mm) | CE, CSA, cULus, GOST | - |
|
|
ECB40W18-72S05-EDRTP+ FBL 127ISOLATED DC/DC CONVERTERS 40W 10 |
0 |
|
- |
ECB40W18 (40W) | Bulk | Active | DC | 1 | - | 10V | 160V | 5V | - | - | - | - | - | 8A | 40W | 4.2 kV | ITE (Commercial), Railway | 87% | -40°C ~ 95°C (With Derating) | Adjustable Output, Baseplate, Heat Sink, Remote On/Off | - | CE, UKCA | 50155; 62368-1 |
|
PSDR0200AC/DC DIN RAIL SUPPLY 24V 48W |
0 |
|
Технический лист |
PSDR | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2A | 48W | 3 kV | ITE (Commercial) | 80% | -25°C ~ 60°C | Adjustable Output, Universal Input | 3.89" L x 2.66" W x 4.50" H (99.0mm x 67.5mm x 114.5mm) | CE, cULus, cURus | - |
|
|
KHNA480F-24AC/DC POWER SUPPLY, DIN RAIL |
0 |
|
- |
KHNA (480W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 88V | 350V | 24V | - | - | - | - | - | 20A | 480W | 3 kV | ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | 4.61" L x 2.76" W x 4.88" H (117.0mm x 70.0mm x 124.0mm) | CE, cURus, DEMKO, UKCA, UL | 60950-1; 62368-1 |
|
DNR480TS48-IAC/DC DIN RAIL SUPPLY 48V 480W |
0 |
|
Технический лист |
DNR-TS (480W) | Box | Obsolete | AC | 1 | 340 ~ 575 VAC (3 Phase) | - | - | 48V | - | - | - | - | - | 10A | 480W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 91% | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | 4.39" L x 5.91" W x 4.87" H (111.3mm x 150.0mm x 123.6mm) | - | - |
|
|
RPMD60-243.3SG/NDC/DC DIN RAIL SUPPLY 3.3V 60W |
0 |
|
Технический лист |
POWERLINE Power Modules (60W) | Box | Active | DC | 1 | - | 18V | 36V | 3.3V | - | - | - | - | - | 18.2A | 60W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | 60950-1 |
|
|
RPMD60-4805SG/NDC/DC DIN RAIL SUPPLY 5V 60W |
0 |
|
Технический лист |
POWERLINE Power Modules (60W) | Box | Active | DC | 1 | - | 36V | 75V | 5V | - | - | - | - | - | 12A | 60W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | 60950-1 |
|
|
RPMD60-4812SG/NDC/DC DIN RAIL SUPPLY 12V 60W |
0 |
|
Технический лист |
POWERLINE Power Modules (60W) | Box | Active | DC | 1 | - | 36V | 75V | 12V | - | - | - | - | - | 5A | 60W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | 60950-1 |
|
|
RPMD60-4815SG/NDC/DC DIN RAIL SUPPLY 15V 60W |
0 |
|
Технический лист |
POWERLINE Power Modules (60W) | Box | Active | DC | 1 | - | 36V | 75V | 15V | - | - | - | - | - | 4A | 60W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | 60950-1 |
|
|
RPMD60-483.3SG/NDC/DC DIN RAIL SUPPLY 3.3V 60W |
0 |
|
Технический лист |
POWERLINE Power Modules (60W) | Box | Active | DC | 1 | - | 36V | 75V | 3.3V | - | - | - | - | - | 18.2A | 60W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | 60950-1 |
|
|
RPMD60-2405SG/NDC/DC DIN RAIL SUPPLY 5V 60W |
0 |
|
Технический лист |
POWERLINE Power Modules (60W) | Box | Active | DC | 1 | - | 18V | 36V | 5V | - | - | - | - | - | 1A | 60W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | 60950-1 |
|
|
RPMD60-2412SG/NDC/DC DIN RAIL SUPPLY 12V 60W |
0 |
|
Технический лист |
POWERLINE Power Modules (60W) | Box | Active | DC | 1 | - | 18V | 36V | 12V | - | - | - | - | - | 5A | 60W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | 60950-1 |
|
|
RPMD60-2415SG/NDC/DC DIN RAIL SUPPLY 15V 60W |
0 |
|
Технический лист |
POWERLINE Power Modules (60W) | Box | Active | DC | 1 | - | 18V | 36V | 15V | - | - | - | - | - | 4A | 60W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | 60950-1 |
|
|
LIF960-22B48DINRAIL AC DC CONVERTER 960W 1 O |
0 |
|
Технический лист |
LIF960-22Bxx (960W) | Box | Not For New Designs | AC or DC | 1 | 180 ~ 264 VAC | 254V | 370V | 48V | - | - | - | - | - | 20A | 960W | 4 kV | Industrial, ITE (Commercial), Laboratory | 95% | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.94" L x 4.33" W x 4.88" H (125.5mm x 110.0mm x 124.0mm) | CE, cULus, EN, TUV, UKCA, UL | 61010-1; 62368-1; UL 508 |
|
|
LIF960-22B24DINRAIL AC DC CONVERTER 960W 1 O |
0 |
|
Технический лист |
LIF960-22Bxx (960W) | Box | Not For New Designs | AC or DC | 1 | 180 ~ 264 VAC | 254V | 370V | 24V | - | - | - | - | - | 40A | 960W | 4 kV | Industrial, ITE (Commercial), Laboratory | 95% | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.94" L x 4.33" W x 4.88" H (125.5mm x 110.0mm x 124.0mm) | CE, cULus, EN, TUV, UKCA, UL | 61010-1; 62368-1; UL 508 |
|
S8VS-09024AC/DC DIN RAIL SUPPLY 24V 90W |
0 |
|
Технический лист |
S8VS (90W) | Bulk | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 3.75A | 90W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.78" L x 1.97" W x 4.53" H (121.3mm x 50.0mm x 115.0mm) | CE, cULus, cURus, VDE | - |
|

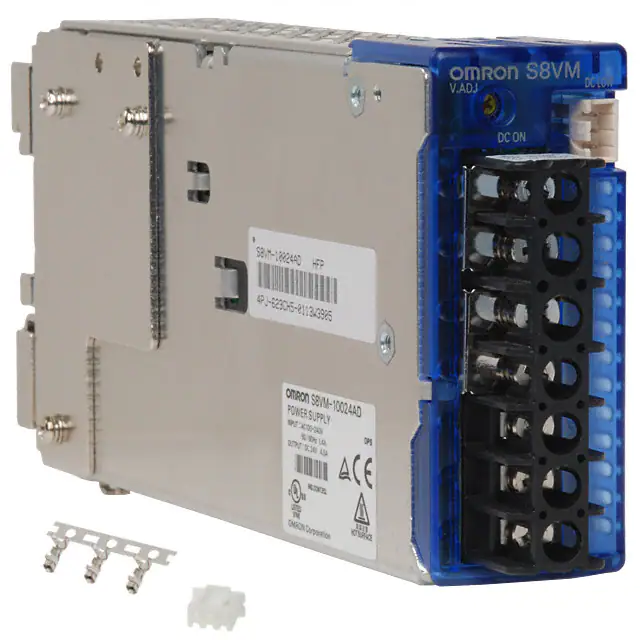

S8VM-10024ADAC/DC DIN RAIL SUPPLY 24V 100W |
0 |
|
Технический лист |
S8VM (100W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 4.5A | 100W | 3 kV | ITE (Commercial) | 82% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 6.48" L x 1.44" W x 3.33" H (164.5mm x 36.6mm x 84.5mm) | CE, cULus, cURus, VDE | - |
|
|
16112.2AC/DC DIN RAIL SUPPLY |
0 |
|
Технический лист |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
