Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPMA241001SCCAC/DC DIN RAIL SUPPLY 24V 91W |
0 |
|
Технический лист |
SPMA | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 350V | 24V | - | - | - | - | - | 3.8A | 91W | 4 kV | Industrial, ITE (Commercial) | 89% | -30°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.50" L x 2.80" W x 3.60" H (63.5mm x 71.1mm x 91.4mm) | CE | 62368-1; UL 508 |
|
|
SPMA121001SCCAC/DC DIN RAIL SUPPLY 12V 85W |
0 |
|
Технический лист |
SPMA | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 350V | 12V | - | - | - | - | - | 7.1A | 85W | 4 kV | Industrial, ITE (Commercial) | 87% | -30°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.50" L x 2.80" W x 3.60" H (63.5mm x 71.1mm x 91.4mm) | CE | 62368-1; UL 508 |
|
|
SPMA151001SCCAC/DC DIN RAIL SUPPLY 15V 92W |
0 |
|
Технический лист |
SPMA | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 350V | 15V | - | - | - | - | - | 6.13A | 92W | 4 kV | Industrial, ITE (Commercial) | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.50" L x 2.80" W x 3.60" H (63.5mm x 71.1mm x 91.4mm) | CE | 62368-1; UL 508 |
|
PS-C12012AC/DC DIN RAIL SUPPLY 12V 120W |
0 |
|
- |
PS-C120 (120W) | Bulk | Active | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 12V | - | - | - | - | - | 10A | 120W | 3 kV | Industrial, ITE (Commercial) | 89% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.47" L x 1.57" W x 4.93" H (113.5mm x 40.0mm x 125.2mm) | CB, CE, cULus, cURus | 508; 60950-1 |
|
|
PS-C12024AC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
- |
PS-C120 (120W) | Bulk | Active | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 24V | - | - | - | - | - | 5A | 120W | 3 kV | Industrial, ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.47" L x 1.57" W x 4.93" H (113.5mm x 40.0mm x 125.2mm) | CB, CE, cULus, cURus | 508; 60950-1 |
|
|
PSP-24024AC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
- |
PSP-240 (240W) | Bulk | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 10A | 240W | 4.242 kV | Industrial, ITE (Commercial) | 84% | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.94" L x 3.94" W x 4.93" H (125.5mm x 100.0mm x 125.2mm) | CB, CE, cULus, cURus | 508; 60950-1 |
|
|
PSP-24048AC/DC DIN RAIL SUPPLY 48V 240W |
0 |
|
- |
PSP-240 (240W) | Bulk | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 5A | 240W | 4.242 kV | Industrial, ITE (Commercial) | 85% | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 4.94" L x 3.94" W x 4.93" H (125.5mm x 100.0mm x 125.2mm) | CB, CE, cULus, cURus | 508; 60950-1 |
|
DRS-240-36AC/DC DIN RAIL SUPPLY 36V 238W |
0 |
|
Технический лист |
DRS-240 (240W) | Box | Active | AC or DC | 1 | 90 ~ 305 VAC | 127V | 431V | 36V | - | - | - | - | - | 6.6A | 238W | 4 kV | ITE (Commercial) | 92% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, PMBus™ | 5.09" L x 3.37" W x 4.93" H (129.2mm x 85.5mm x 125.2mm) | CB, CE, cURus, EAC, UKCA | 62368-1 |
|
|
DRS-240-12CANAC/DC DIN RAIL SUPPLY 12V 240W |
0 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

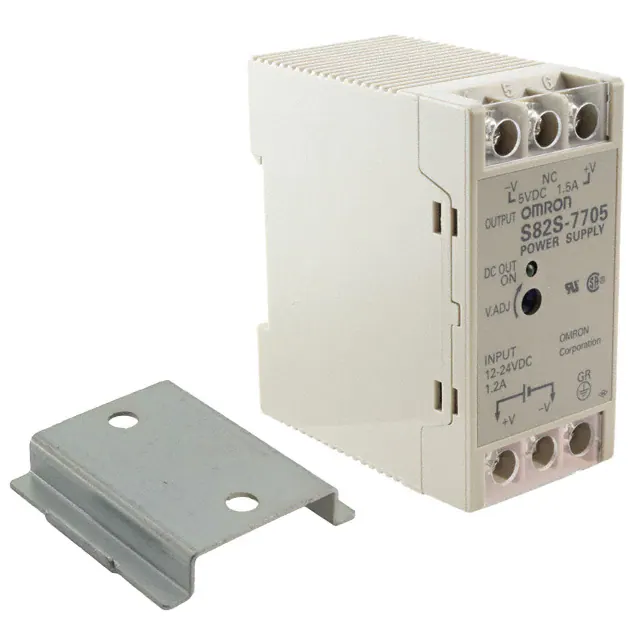

S82S-7705DC/DC DIN RAIL SUPPLY 5V 7.5W |
0 |
|
Технический лист |
S82S (7.5W) | Bulk | Obsolete | DC | 1 | - | 12V | 24V | 5V | - | - | - | - | - | 1.5A | 7.5W | - | - | - | - | - | 2.56" L x 1.48" W x 2.95" H (65.0mm x 37.5mm x 75.0mm) | CE, CSA, UL, VDE | - |
|
|
S82S-7712DC/DC DIN RAIL SUPPLY 12V 7.2W |
0 |
|
Технический лист |
S82S (7.5W) | Bulk | Obsolete | DC | 1 | - | 12V | 24V | 12V | - | - | - | - | - | 600mA | 7.2W | - | - | - | - | - | 2.56" L x 1.48" W x 2.95" H (65.0mm x 37.5mm x 75.0mm) | CE, CSA, UL, VDE | - |
|

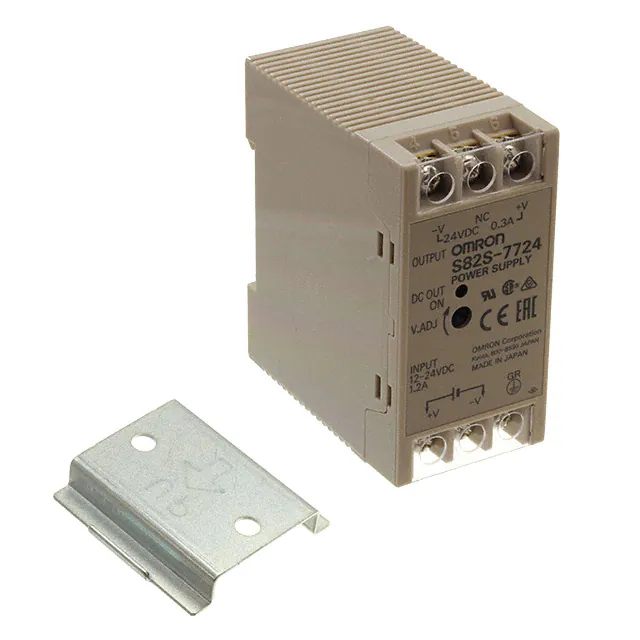

S82S-7724DC/DC DIN RAIL SUPPLY 24V 7.2W |
0 |
|
Технический лист |
S82S (7.5W) | Bulk | Obsolete | DC | 1 | - | 12V | 24V | 24V | - | - | - | - | - | 300mA | 7.2W | - | - | - | - | - | 2.56" L x 1.48" W x 2.95" H (65.0mm x 37.5mm x 75.0mm) | CE, CSA, UL, VDE | - |
|
787-1014DC/DC DIN RAIL SUPPLY 24V 48W |
0 |
|
Технический лист |
- | Box | Active | DC | 1 | - | 110V | 140V | 24V | - | - | - | - | - | 2A | 48W | 4.242 kV | Industrial, ITE (Commercial), Laboratory | 85% | -40°C ~ 70°C | IP20 | 2.17" L x 2.83" W x 3.50" H (55.0mm x 72.0mm x 89.0mm) | EAC | 60950-1; 61010-1; UL 508 |
|
RPMD60-243.3SGDC/DC DIN RAIL SUPPLY 3.3V 60W |
0 |
|
Технический лист |
POWERLINE Power Modules (60W) | Box | Active | DC | 1 | - | 18V | 36V | 3.3V | - | - | - | - | - | 18.2A | 60W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | 60950-1 |
|
|
RPMD60-4805SGDC/DC DIN RAIL SUPPLY 5V 60W |
0 |
|
Технический лист |
POWERLINE Power Modules (60W) | Box | Active | DC | 1 | - | 36V | 75V | 5V | - | - | - | - | - | 12A | 60W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | 60950-1 |
|
|
RPMD60-4812SGDC/DC DIN RAIL SUPPLY 12V 60W |
0 |
|
Технический лист |
POWERLINE Power Modules (60W) | Box | Active | DC | 1 | - | 36V | 75V | 12V | - | - | - | - | - | 5A | 60W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | 60950-1 |
|
|
RPMD60-4815SGDC/DC DIN RAIL SUPPLY 15V 60W |
0 |
|
Технический лист |
POWERLINE Power Modules (60W) | Box | Active | DC | 1 | - | 36V | 75V | 15V | - | - | - | - | - | 4A | 60W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | 60950-1 |
|
|
RPMD60-483.3SGDC/DC DIN RAIL SUPPLY 3.3V 60W |
0 |
|
Технический лист |
POWERLINE Power Modules (60W) | Box | Active | DC | 1 | - | 36V | 75V | 3.3V | - | - | - | - | - | 18.2A | 60W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | 60950-1 |
|
|
RPMD60-2405SGDC/DC DIN RAIL SUPPLY 5V 60W |
0 |
|
Технический лист |
POWERLINE Power Modules (60W) | Box | Active | DC | 1 | - | 18V | 36V | 5V | - | - | - | - | - | 1A | 60W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | 60950-1 |
|
|
RPMD60-2412SGDC/DC DIN RAIL SUPPLY 12V 60W |
0 |
|
Технический лист |
POWERLINE Power Modules (60W) | Box | Active | DC | 1 | - | 18V | 36V | 12V | - | - | - | - | - | 5A | 60W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | 60950-1 |
