Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LDN240-12AC/DC DIN RAIL SUPPLY 12V 240W |
0 |
|
Технический лист |
LDN240 (240W) | Box | Obsolete | AC | 1 | 90 ~ 132 VAC, 187 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 16A | 240W | 4.2 kV | ITE (Commercial) | 84% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 4.61" L x 2.48" W x 5.51" H (117.0mm x 63.0mm x 140.0mm) | - | - |
|
2866983AC/DC DIN RAIL SUPPLY 24V 36W |
0 |
|
Технический лист |
MINI | Box | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 1.5A | 36W | 4 kV | ITE (Commercial) | 84% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Universal Input | 3.74" L x 1.38" W x 3.90" H (95.0mm x 35.0mm x 99.0mm) | cULus, cURus | - |
|
SMP23-L20-DC24V-10AAC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
Технический лист |
SMP23 | Bulk | Obsolete | AC | 1 | 340 ~ 575 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | Industrial, ITE (Commercial) | 90% | -40°C ~ 71°C (With Derating) | Adjustable Output, IP20 | 4.41" L x 3.50" W x 4.88" H (112.0mm x 89.0mm x 124.0mm) | TUV, UL | - |
|
|
S8VK-T12024-400AC/DC DIN RAIL SUPPLY 120W |
0 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LDW120-48PAC/DC DIN RAIL SUPPLY 48V 120W |
0 |
|
Технический лист |
LDW120 (120W) | Box | Active | AC or DC | 1 | 187 ~ 550 VAC (1 ~ 2 Phase) | 250V | 725V | 48V | - | - | - | - | - | 2.5A | 120W | 4.2 kV | ITE (Commercial) | 86% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing | 4.33" L x 1.57" W x 4.53" H (110.0mm x 40.0mm x 115.0mm) | - | - |
|
787-1007AC/DC DIN RAIL SUPPLY 18V 20W |
0 |
|
Технический лист |
- | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 300V | 18V | - | - | - | - | - | 1.1A | 20W | 4.242 kV | Industrial, ITE (Commercial), Laboratory | 85% | -25°C ~ 60°C | IP20, Universal Input | 2.17" L x 2.13" W x 3.50" H (55.0mm x 54.0mm x 89.0mm) | cURus, EAC, UL | 60950-1; 61010-1; UL 508 |
|
|
15917.2DC/DC DIN RAIL SUPPLY 15V |
0 |
|
Технический лист |
- | Box | Active | DC | 1 | - | - | - | 15V | - | - | - | - | - | 500mA | - | - | ITE (Commercial) | 83% | -20°C ~ 50°C | - | 3.67" L x 0.24" W x 4.04" H (93.1mm x 6.2mm x 102.5mm) | - | - |
|
|
TSP240-124-3PAC400AC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
Технический лист |
TSP-3P (240W) | Box | Obsolete | AC | 1 | 320 ~ 440 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 10A | 240W | - | Hazardous Locations, Industrial, ITE (Commercial) | 92% | -25°C ~ 60°C | IP20 | 4.33" L x 2.13" W x 4.33" H (110.0mm x 54.1mm x 110.0mm) | CB, CE, SIQ | - |
|
1105790000AC/DC DIN RAIL SUPPLY 24V 90W |
0 |
|
- |
Connect Power Pro-H (90W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 4A | 90W | 4 kV | ITE (Commercial) | 85% | -25°C ~ 70°C | Adjustable Output, Load Sharing, Remote On/Off, Universal Input | 4.33" L x 1.38" W x 4.33" H (110.0mm x 35.0mm x 110.0mm) | CE, CSA, cULus, cURus, GOST | - |
|

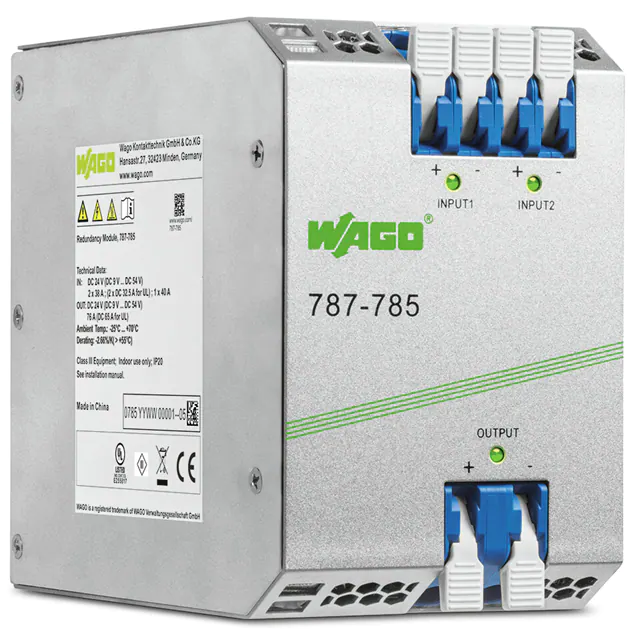

787-785/000-040DC/DC DIN RAIL SUPPLY 24V 1824W |
0 |
|
Технический лист |
- | Box | Active | DC | 1 | - | 18V | 54V | 24V | - | - | - | - | - | 76A | 1824W | 500 V | Industrial | 97% | -25°C ~ 70°C | Adjustable Output, IP20 | 6.02" L x 3.27" W x 5.12" H (153.0mm x 83.0mm x 130.0mm) | CCC, CE, EAC, UL | UL 508 |
|
VHK50W-Q24-S3R3-DINDC/DC DIN RAIL SUPPLY 3.3V 50W |
0 |
|
Технический лист |
VHK50W-DIN (50W) | Box | Active | DC | 1 | - | 9V | 36V | 3.3V | - | - | - | - | - | 10A | 50W | - | - | 75% | -40°C ~ 85°C | - | 4.23" L x 4.01" W x 2.07" H (107.4mm x 101.9mm x 52.6mm) | CE | - |
|
|
VHK50W-Q24-S5-DINDC/DC DIN RAIL SUPPLY 5V 50W |
0 |
|
Технический лист |
VHK50W-DIN (50W) | Box | Active | DC | 1 | - | 9V | 36V | 5V | - | - | - | - | - | 10A | 50W | - | - | 79% | -40°C ~ 85°C | - | 4.23" L x 4.01" W x 2.07" H (107.4mm x 101.9mm x 52.6mm) | CE | - |
|
|
VHK50W-Q24-S15-DINDC/DC DIN RAIL SUPPLY 15V 50W |
0 |
|
Технический лист |
VHK50W-DIN (50W) | Box | Active | DC | 1 | - | 9V | 36V | 15V | - | - | - | - | - | 3.33A | 50W | - | - | 82% | -40°C ~ 85°C | - | 4.23" L x 4.01" W x 2.07" H (107.4mm x 101.9mm x 52.6mm) | CE | - |
|
|
VHK50W-Q24-S24-DINDC/DC DIN RAIL SUPPLY 24V 50W |
0 |
|
Технический лист |
VHK50W-DIN (50W) | Box | Active | DC | 1 | - | 9V | 36V | 24V | - | - | - | - | - | 2.08A | 50W | - | - | 82% | -40°C ~ 85°C | - | 4.23" L x 4.01" W x 2.07" H (107.4mm x 101.9mm x 52.6mm) | CE | - |
|
|
VHK50W-Q24-S48-DINDC/DC DIN RAIL SUPPLY 48V 50W |
0 |
|
Технический лист |
VHK50W-DIN (50W) | Box | Active | DC | 1 | - | 9V | 36V | 48V | - | - | - | - | - | 1.04A | 50W | - | - | 82% | -40°C ~ 85°C | - | 4.23" L x 4.01" W x 2.07" H (107.4mm x 101.9mm x 52.6mm) | CE | - |
|
|
VHK50W-Q48-S3R3-DINDC/DC DIN RAIL SUPPLY 3.3V 50W |
0 |
|
Технический лист |
VHK50W-DIN (50W) | Box | Active | DC | 1 | - | 18V | 75V | 3.3V | - | - | - | - | - | 10A | 50W | - | - | 76% | -40°C ~ 85°C | - | 4.23" L x 4.01" W x 2.07" H (107.4mm x 101.9mm x 52.6mm) | CE | - |
|
|
VHK50W-Q48-S12-DINDC/DC DIN RAIL SUPPLY 12V 50W |
0 |
|
Технический лист |
VHK50W-DIN (50W) | Box | Active | DC | 1 | - | 18V | 75V | 12V | - | - | - | - | - | 4.16A | 50W | - | - | 83% | -40°C ~ 85°C | - | 4.23" L x 4.01" W x 2.07" H (107.4mm x 101.9mm x 52.6mm) | CE | - |
|
|
VHK50W-Q48-S15-DINDC/DC DIN RAIL SUPPLY 15V 50W |
0 |
|
Технический лист |
VHK50W-DIN (50W) | Box | Active | DC | 1 | - | 18V | 75V | 15V | - | - | - | - | - | 3.33A | 50W | - | - | 83% | -40°C ~ 85°C | - | 4.23" L x 4.01" W x 2.07" H (107.4mm x 101.9mm x 52.6mm) | CE | - |
|
|
VHK50W-Q48-S24-DINDC/DC DIN RAIL SUPPLY 24V 50W |
0 |
|
Технический лист |
VHK50W-DIN (50W) | Box | Active | DC | 1 | - | 18V | 75V | 24V | - | - | - | - | - | 2.08A | 50W | - | - | 83% | -40°C ~ 85°C | - | 4.23" L x 4.01" W x 2.07" H (107.4mm x 101.9mm x 52.6mm) | CE | - |
|
|
VHK50W-Q48-S28-DINDC/DC DIN RAIL SUPPLY 28V 50W |
0 |
|
Технический лист |
VHK50W-DIN (50W) | Box | Active | DC | 1 | - | 18V | 75V | 28V | - | - | - | - | - | 1.78A | 50W | - | - | 83% | -40°C ~ 85°C | - | 4.23" L x 4.01" W x 2.07" H (107.4mm x 101.9mm x 52.6mm) | CE | - |
