Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RPMD40-2405SGWDC/DC DIN RAIL SUPPLY 5V 40W |
0 |
|
Технический лист |
POWERLINE Power Modules (40W) | Box | Active | DC | 1 | - | 9.5V | 36V | 5V | - | - | - | - | - | 8A | 40W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | 60950-1 |
|
|
RPMD40-2412SGWDC/DC DIN RAIL SUPPLY 12V 40W |
0 |
|
Технический лист |
POWERLINE Power Modules (40W) | Box | Active | DC | 1 | - | 9.5V | 36V | 12V | - | - | - | - | - | 3.33A | 40W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | 60950-1 |
|
|
RPMD40-2415SGWDC/DC DIN RAIL SUPPLY 15V 40W |
0 |
|
Технический лист |
POWERLINE Power Modules (40W) | Box | Active | DC | 1 | - | 9.5V | 36V | 15V | - | - | - | - | - | 2.67A | 40W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | 60950-1 |
|
|
RPMD40-243.3SGWDC/DC DIN RAIL SUPPLY 3.3V 40W |
0 |
|
Технический лист |
POWERLINE Power Modules (40W) | Box | Active | DC | 1 | - | 9.5V | 36V | 3.3V | - | - | - | - | - | 12.1A | 40W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | 60950-1 |
|
|
RPMD40-4805SGWDC/DC DIN RAIL SUPPLY 5V 40W |
0 |
|
Технический лист |
POWERLINE Power Modules (40W) | Box | Active | DC | 1 | - | 18V | 75V | 5V | - | - | - | - | - | 8A | 40W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | 60950-1 |
|
|
RPMD40-4812SGWDC/DC DIN RAIL SUPPLY 12V 40W |
0 |
|
Технический лист |
POWERLINE Power Modules (40W) | Box | Active | DC | 1 | - | 18V | 75V | 12V | - | - | - | - | - | 3.33A | 40W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | 60950-1 |
|
|
RPMD40-4815SGWDC/DC DIN RAIL SUPPLY 15V 40W |
0 |
|
Технический лист |
POWERLINE Power Modules (40W) | Box | Active | DC | 1 | - | 18V | 75V | 15V | - | - | - | - | - | 2.67A | 40W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | 60950-1 |
|
|
RPMD40-483.3SGWDC/DC DIN RAIL SUPPLY 3.3V 40W |
0 |
|
Технический лист |
POWERLINE Power Modules (40W) | Box | Active | DC | 1 | - | 18V | 75V | 3.3V | - | - | - | - | - | 12.1A | 40W | - | ITE (Commercial) | - | - | - | 4.58" L x 0.96" W x 2.26" H (116.3mm x 24.5mm x 57.6mm) | CE, LVD | 60950-1 |
|
8951340000AC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
Технический лист |
Connect Power Pro-M (120W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 4 kV | ITE (Commercial) | 90% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.92" L x 1.57" W x 5.12" H (125.0mm x 40.0mm x 130.0mm) | CE, cULus, cURus, GOST, TUV | - |
|
S8FS-G15024CD-RAC/DC DIN RAIL SUPPLY 24V 156W |
0 |
|
Технический лист |
S8FS-G | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 80V | 370V | 24V | - | - | - | - | - | 6.5A | 156W | 3 kV | Industrial, ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Remote On/Off, Universal Input | 7.00" L x 3.82" W x 1.54" H (177.7mm x 97.0mm x 39.2mm) | CE, cURus, TUV, UL | 60950-1; 62368-1; UL 508 |
|
|
SPD15181BAC/DC DIN RAIL SUPPLY 15V 18W |
0 |
|
- |
SPD (18W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 15V | - | - | - | - | - | 1.2A | 18W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 77% | -20°C ~ 71°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.49" L x 0.89" W x 3.54" H (114.0mm x 22.5mm x 90.0mm) | CCC, CE, cULus, cURus, TUV | - |
|
SPMA121001AC/DC DIN RAIL SUPPLY 12V 85W |
0 |
|
Технический лист |
SPMA | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 350V | 12V | - | - | - | - | - | 7.1A | 85W | 4 kV | Industrial, ITE (Commercial) | 87% | -30°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.50" L x 2.80" W x 3.60" H (63.5mm x 71.1mm x 91.4mm) | CE | 62368-1; UL 508 |
|
|
SPMA241001SAC/DC DIN RAIL SUPPLY 24V 101W |
0 |
|
Технический лист |
SPMA | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 350V | 24V | - | - | - | - | - | 4.2A | 101W | 4 kV | Industrial, ITE (Commercial) | 89% | -30°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.50" L x 2.80" W x 3.60" H (63.5mm x 71.1mm x 91.4mm) | CE | 62368-1; UL 508 |
|
|
SPMA151001AC/DC DIN RAIL SUPPLY 15V 92W |
0 |
|
Технический лист |
SPMA | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 350V | 15V | - | - | - | - | - | 6.13A | 92W | 4 kV | Industrial, ITE (Commercial) | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 2.50" L x 2.80" W x 3.60" H (63.5mm x 71.1mm x 91.4mm) | CE | 62368-1; UL 508 |
|
JVA151500S05-DFDC/DC DIN RAIL SUPPLY 5V 10W |
0 |
|
Технический лист |
JVA15 (15W) | Bulk | Obsolete | DC | 1 | - | 200V | 1500V | 5V | - | - | - | - | - | 2A | 10W | 4 kV | ITE (Commercial) | 72% | -40°C ~ 70°C (With Derating) | Remote On/Off | 5.78" L x 5.43" W x 5.43" H (146.8mm x 137.9mm x 137.9mm) | UL | - |
|
|
JVA151500S15-DFDC/DC DIN RAIL SUPPLY 15V 15W |
0 |
|
Технический лист |
JVA15 (15W) | Bulk | Obsolete | DC | 1 | - | 200V | 1500V | 15V | - | - | - | - | - | 1A | 15W | 4 kV | ITE (Commercial) | 72% | -40°C ~ 70°C (With Derating) | Remote On/Off | 5.78" L x 5.43" W x 5.43" H (146.8mm x 137.9mm x 137.9mm) | UL | - |
|
|
ECB40W18-72S05-EDRTISOLATED DC/DC CONVERTERS 40W 10 |
0 |
|
- |
ECB40W18 (40W) | Bulk | Active | DC | 1 | - | 10V | 160V | 5V | - | - | - | - | - | 8A | 40W | 4.2 kV | ITE (Commercial), Railway | 87% | -40°C ~ 95°C (With Derating) | Adjustable Output, Baseplate, Remote On/Off | 5.63" L x 2.56" W x 0.87" H (143.0mm x 65.0mm x 22.1mm) | CE, UKCA | 50155; 62368-1 |
|
|
BB-WDR-120-12PS, DIN, WIDE VOLTAGE INPUT, 120 |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

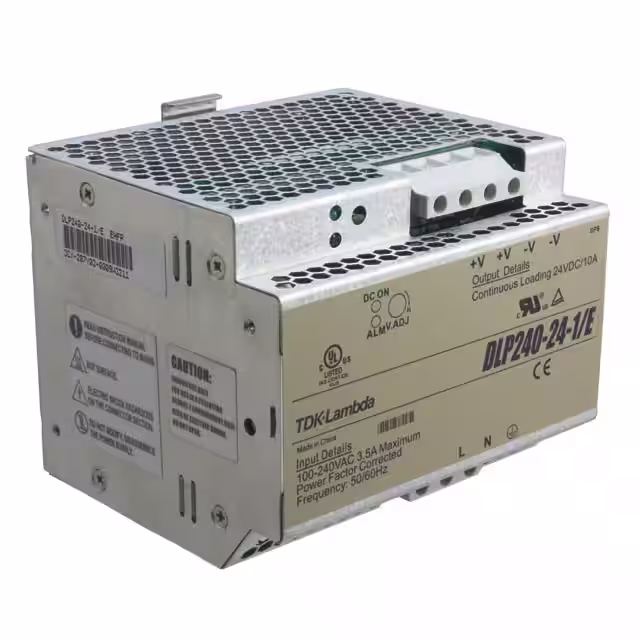

DLP240-24-1/EAC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
Технический лист |
DLP240 (240W) | Bulk | Obsolete | AC | 1 | 85 ~ 132 VAC, 170 ~ 265 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial) | 86% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.33" L x 4.72" W x 3.82" H (110.0mm x 120.0mm x 97.0mm) | CE | - |
|
|
DLP240-24-1AC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
Технический лист |
DLP240 (240W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 2 kV | ITE (Commercial) | 86% | -10°C ~ 60°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 4.33" L x 4.45" W x 4.72" H (110.0mm x 113.0mm x 120.0mm) | CE | - |
