Ферритовые сердечники
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип ядра | Устройство поставщика Упаковка | Материал | Диаметр | Коэффициент индуктивности (Al) | Допуск | Зазор | Эффективная проницаемость (µe) | Начальная проницаемость (µi) | Коэффициент сердечника (ΣI/A) мм⁻¹ | Эффективная длина (le) мм | Эффективная площадь (Ae) мм² | Минимальное поперечное сечение сердечника (Amin) мм² | Эффективная Магнитный объем (Ve) мм³ | Отделка | Высота | Длина | Ширина |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3067990871FERRITE CORE ROD 67 |
8,483 |
|
Технический лист |
- | Bulk | Active | ROD | - | 67 | 0.118" (3.00mm) | - | - | Ungapped | 20.0 | 40 | - | - | 7.07 | - | - | Uncoated | - | 0.984" (25.00mm) | - |
|
B64290L0038X049FERRITE CORE TOROID 610NH N49 |
7,019 |
|
Технический лист |
TX10/6/4 | Box | Active | Toroid | - | N49 | 0.425" (10.80mm) | 610 nH | ±25% | Ungapped | - | 1500 | 3.07 | 24.07 | 7.83 | - | 188.0 | Epoxy | 0.187" (4.75mm) | - | - |
|
B62152P0008X030FERRITE CORE 2 HOLE 3.1UH N30 |
10,221 |
|
Технический лист |
MHB2/P-3.6/2.1/2.5 | Box | Active | Multi-Hole (2) | - | N30 | - | 3.1 µH | ±30% | Ungapped | - | 4300 | 1.78 | 3.7 | 2.1 | - | 7.8 | Parylene | 0.100" (2.54mm) | 0.144" (3.65mm) | 0.085" (2.15mm) |
|
B64290L0658X087FERRITE CORE TOROID 970NH N87 |
3,791 |
|
Технический лист |
TX14/9/5 | Box | Active | Toroid | - | N87 | 0.594" (15.10mm) | 970 nH | ±25% | Ungapped | - | 2200 | 2.84 | 34.98 | 12.3 | - | 430.0 | Epoxy | 0.236" (6.00mm) | - | - |
|
3061990861FERRITE CORE ROD 61 |
2,708 |
|
Технический лист |
- | Bulk | Active | ROD | - | 61 | 0.098" (2.50mm) | - | - | Ungapped | 27.0 | 125 | - | - | 4.91 | - | - | Uncoated | - | 0.787" (20.00mm) | - |
|

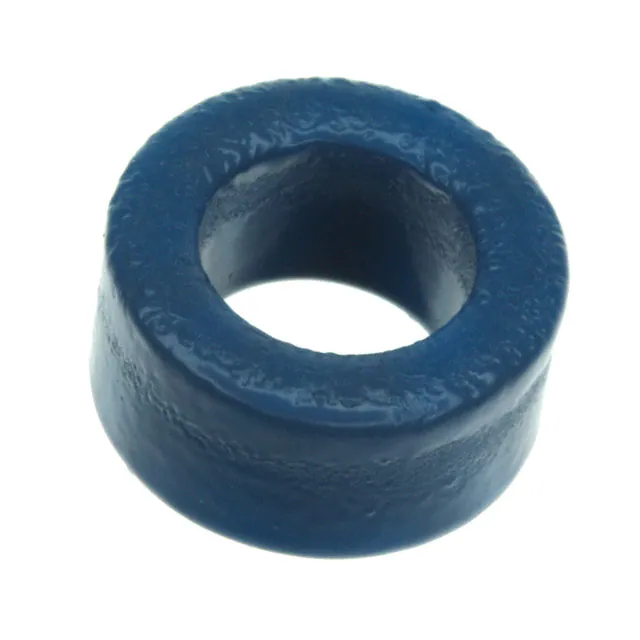

B64290L0742X087FERRITE CORE TOROID 1.33UH N87 |
2,685 |
|
Технический лист |
TX13/7.9/6.4 | Bulk | Active | Toroid | - | N87 | 0.535" (13.60mm) | 1.33 µH | ±25% | Ungapped | - | 2200 | 2.08 | 31.17 | 14.96 | - | 466.0 | Epoxy | 0.281" (7.15mm) | - | - |
|
5995000301FERRITE CORE TOROID 1707NH 95 |
4,406 |
|
Технический лист |
HF | Bag | Active | Toroid | - | 95 | 0.500" (12.70mm) | 1707 nH | ±25% | Ungapped | - | 3000 | 0.02209 | 29.7 | 13.4 | - | 398.0 | Uncoated | 0.193" (4.90mm) | - | - |
|
|
3061990871FERRITE CORE ROD 61 |
3,118 |
|
Технический лист |
- | Bulk | Active | ROD | - | 61 | 0.118" (3.00mm) | - | - | Ungapped | 29.0 | 125 | - | - | 7.07 | - | - | Uncoated | - | 0.984" (25.00mm) | - |
|

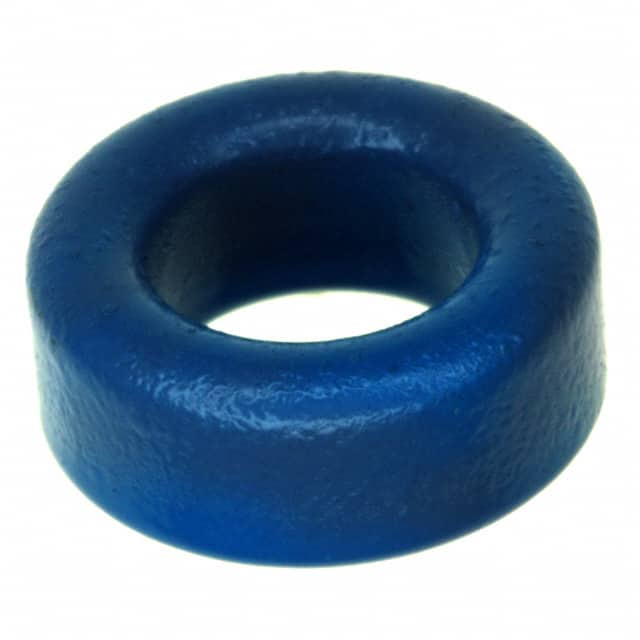

B64290L0044X038FERRITE CORE TOROID 5.11UH T38 |
5,176 |
|
Технический лист |
TX12.5/7.5/5 | Bulk | Active | Toroid | - | T38 | 0.535" (13.60mm) | 5.11 µH | ±30% | Ungapped | - | 10000 | 2.46 | 30.09 | 12.23 | - | 368.0 | Epoxy | 0.234" (5.95mm) | - | - |
|
B66413G0000X197FERRITE CORE EFD N97 1PC |
3,859 |
|
Технический лист |
EFD15/8/5 | Box | Active | EFD | EFD 15 x 8 x 5 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.295" (7.50mm) | 0.591" (15.00mm) | 0.183" (4.65mm) |
|
B66305G0130X187FERRITE CORE E 112NH N87 |
3,571 |
|
Технический лист |
E13/7/4 | Box | Active | E | E 13 x 7 x 4 | N87 | - | 112 nH | - | Gapped | 215.0 | 2200 | 2.39 | 29.6 | 12.4 | 12.2 | 367.0 | Uncoated | 0.256" (6.50mm) | 0.496" (12.60mm) | 0.146" (3.70mm) |
|
|
3067990861FERRITE CORE ROD 67 |
6,353 |
|
Технический лист |
- | Bulk | Active | ROD | - | 67 | 0.098" (2.50mm) | - | - | Ungapped | 19.0 | 40 | - | - | 4.91 | - | - | Uncoated | - | 0.787" (20.00mm) | - |
|

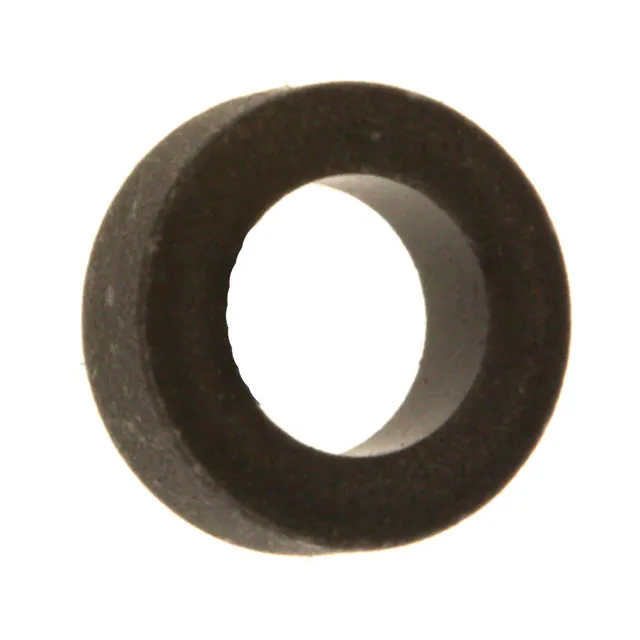

B64290P0037X038FERRITE CORE TOROID 2.53UH T38 |
7,391 |
|
Технический лист |
TC6.3/3.8/2.5 | Bulk | Active | Toroid | - | T38 | 0.249" (6.32mm) | 2.53 µH | ±30% | Ungapped | - | 10000 | 4.97 | 15.21 | 3.06 | - | 46.5 | Parylene | 0.099" (2.52mm) | - | - |
|
5967000201FERRITE CORE TOROID 67 |
7,891 |
|
Технический лист |
- | Bulk | Active | Toroid | - | 67 | 0.375" (9.53mm) | - | - | Ungapped | - | 40 | - | 20.7 | 7.2 | - | 150.0 | Uncoated | 0.125" (3.18mm) | - | - |
|
E20/10/6-3C94FERRITE CORE E 3C94 |
10,671 |
|
Технический лист |
- | Bulk | Active | E | E 20 x 10 x 6 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.402" (10.20mm) | 0.787" (20.00mm) | 0.232" (5.90mm) |
|
5943005101FERRITE CORE TOROID 43 |
11,149 |
|
Технический лист |
- | Bulk | Active | Toroid | - | 43 | 0.630" (16.00mm) | - | ±20% | Ungapped | - | 800 | - | 38.5 | 14.5 | - | 560.0 | Uncoated | - | - | - |
|
|
YW41003TCFERRITE CORE TOROID 4.392UH W |
10,074 |
|
Технический лист |
- | Bulk | Active | Toroid | - | W | 0.375" (9.53mm) | 4.392 µH | ±30% | Ungapped | - | 10000 | - | 20.7 | 7.3 | - | 151.0 | Parylene | 0.125" (3.18mm) | - | - |
|

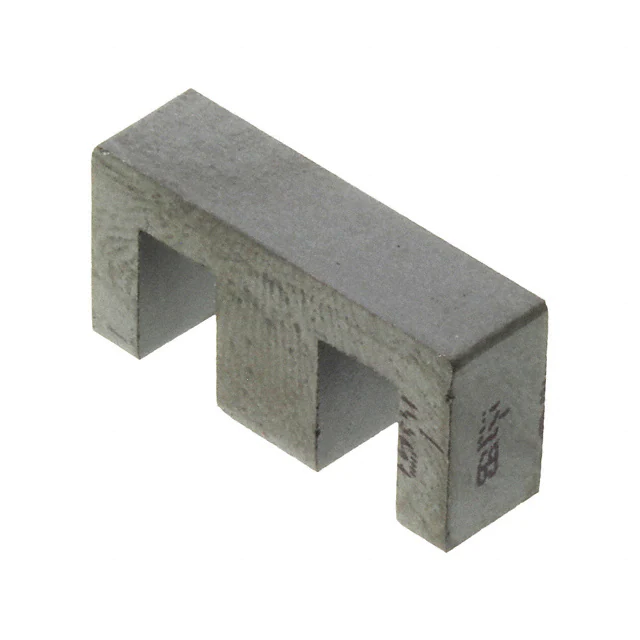

B66311G0000X127FERRITE CORE E N27 1PC |
4,870 |
|
Технический лист |
E20/10/6 | Box | Active | E | E 20 x 10 x 6 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.394" (10.00mm) | 0.803" (20.40mm) | 0.232" (5.90mm) |
|
5961001121FERRITE CORE TOROID 75NH 61 |
2,896 |
|
Технический лист |
- | Box | Active | Toroid | - | 61 | 0.530" (13.45mm) | 75 nH | ±25% | Ungapped | - | 125 | 2.08 | 31.2 | 15.0 | - | 470.0 | Plastic | 0.280" (7.11mm) | - | - |
|
|
3078990881FERRITE CORE ROD 78 |
2,678 |
|
Технический лист |
- | Bulk | Active | ROD | - | 78 | 0.157" (4.00mm) | - | - | Ungapped | 31.0 | 2300 | - | - | 12.6 | - | - | Uncoated | - | 1.181" (30.00mm) | - |
