Ферритовые сердечники
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип ядра | Устройство поставщика Упаковка | Материал | Диаметр | Коэффициент индуктивности (Al) | Допуск | Зазор | Эффективная проницаемость (µe) | Начальная проницаемость (µi) | Коэффициент сердечника (ΣI/A) мм⁻¹ | Эффективная длина (le) мм | Эффективная площадь (Ae) мм² | Минимальное поперечное сечение сердечника (Amin) мм² | Эффективная Магнитный объем (Ve) мм³ | Отделка | Высота | Длина | Ширина |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B66307G0500X187FERRITE CORE E N87 1PC |
2,850 |
|
Технический лист |
E16/8/5 | Box | Active | E | E 16 x 8 x 5 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.323" (8.20mm) | 0.630" (16.00mm) | 0.185" (4.70mm) |
|

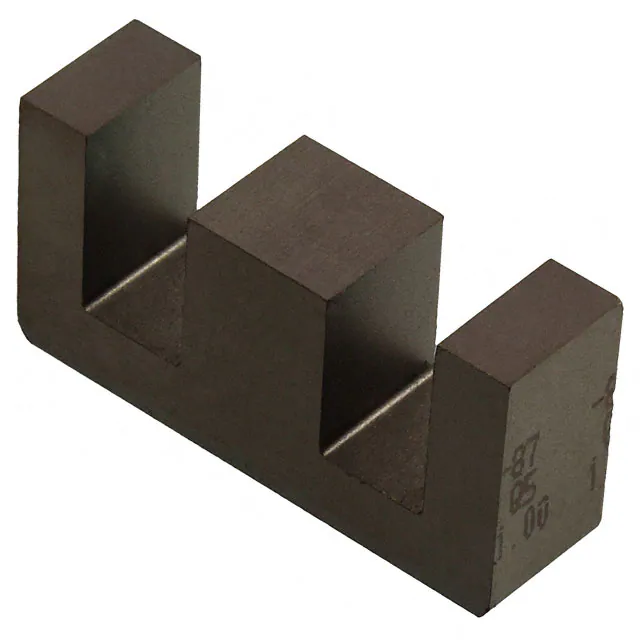

B66317G1000X187FERRITE CORE E N87 1PC |
3,048 |
|
Технический лист |
E25/13/7 | Box | Active | E | E 25 x 13 x 7 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.504" (12.80mm) | 0.984" (25.00mm) | 0.295" (7.50mm) |
|
B66317G0500X187FERRITE CORE E N87 1PC |
2,937 |
|
Технический лист |
E25/13/7 | Box | Active | E | E 25 x 13 x 7 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.504" (12.80mm) | 0.984" (25.00mm) | 0.295" (7.50mm) |
|

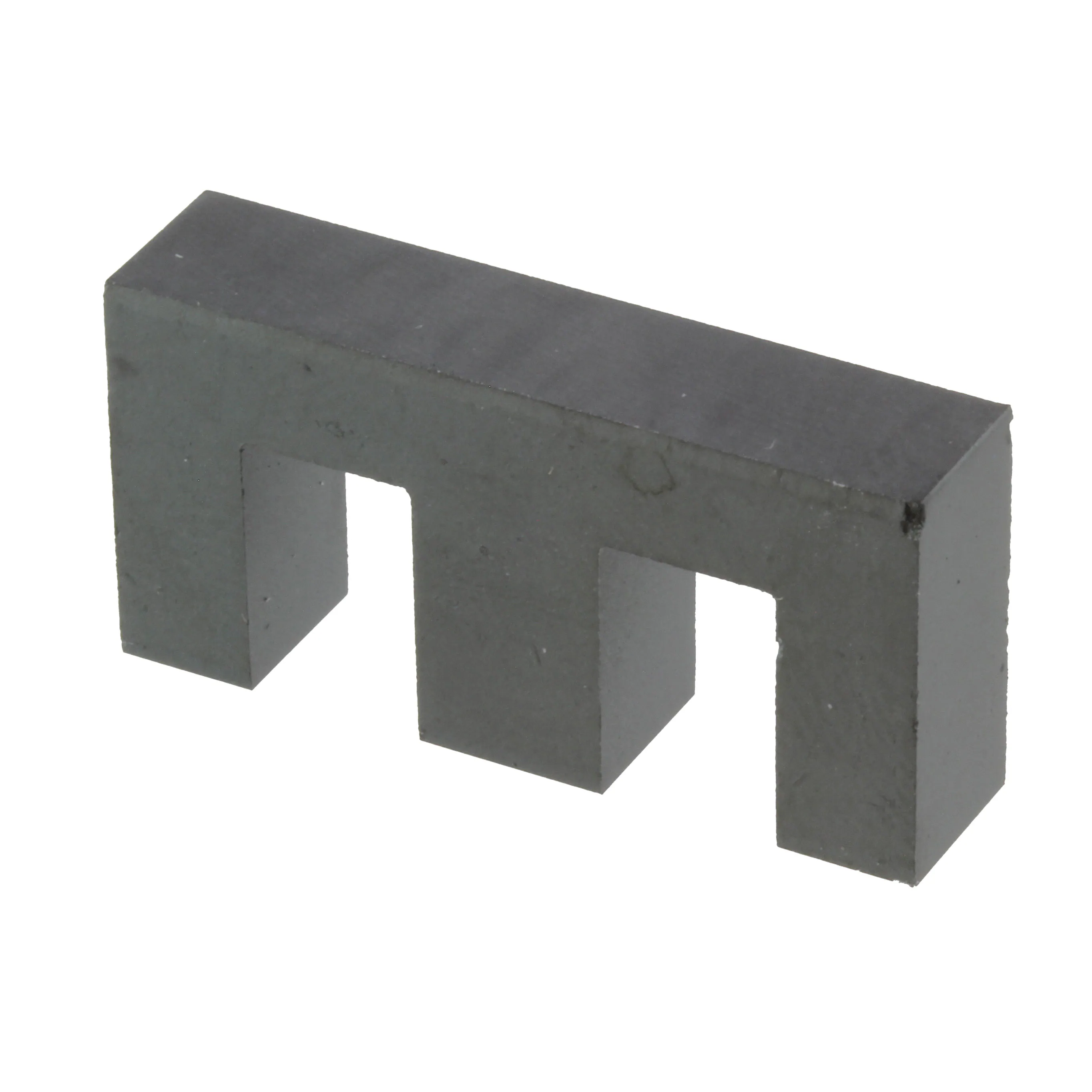

B66319G0000X187FERRITE CORE E N87 1PC |
2,479 |
|
Технический лист |
E30/15/7 | Box | Active | E | E 30 x 15 x 7 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.598" (15.20mm) | 1.181" (30.00mm) | 0.287" (7.30mm) |
|
B64290P0037X049FERRITE CORE TOROID 330NH N49 |
9,745 |
|
Технический лист |
TC6.3/3.8/2.5 | Box | Active | Toroid | R 6.3 x 3.8 x 2.5 | N49 | 0.248" (6.30mm) | 330 nH | ±25% | Gapped | - | 1500 | 4.97 | 15.21 | 3.06 | - | 46.5 | Parylene | 0.098" (2.50mm) | - | - |
|

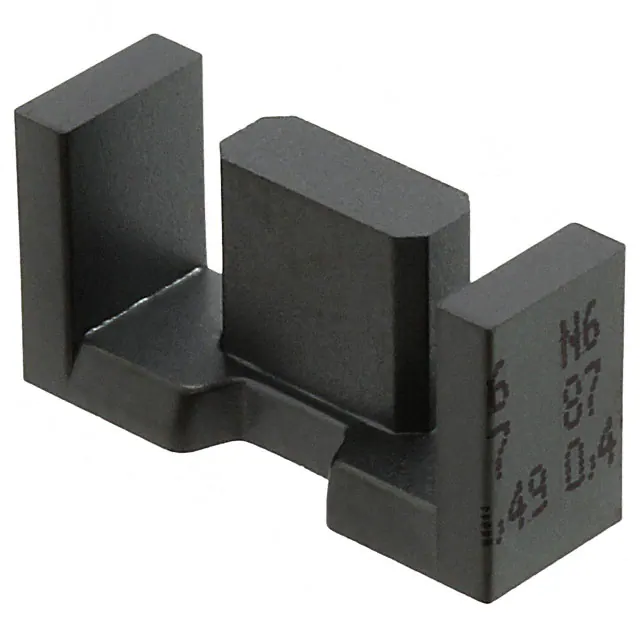

B66417U0100K187FERRITE CORE EFD N87 1PC |
3,777 |
|
Технический лист |
EFD20/10/7 | Box | Active | EFD | EFD 20 x 10 x 7 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.394" (10.00mm) | 0.787" (20.00mm) | 0.262" (6.65mm) |
|

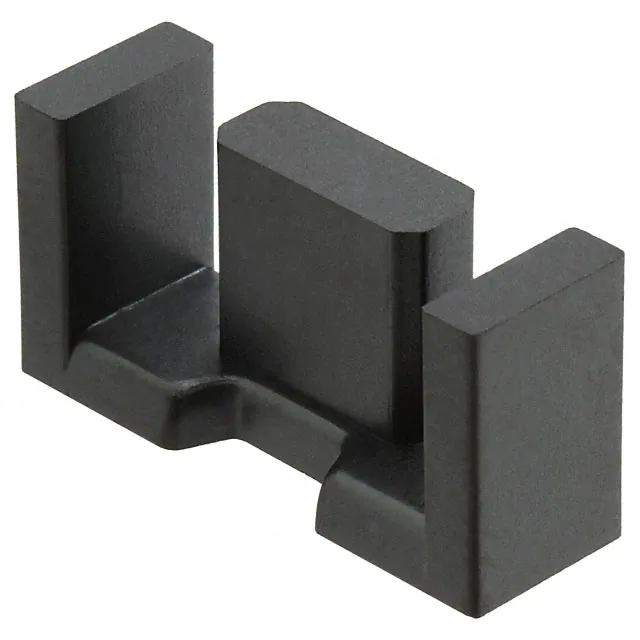

B66417U0160K187FERRITE CORE EFD N87 1PC |
3,359 |
|
Технический лист |
EFD20/10/7 | Box | Active | EFD | EFD 20 x 10 x 7 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.394" (10.00mm) | 0.787" (20.00mm) | 0.262" (6.65mm) |
|
TX10/6/4-3C94FERRITE CORE TOROID 3C94 |
2,220 |
|
Технический лист |
- | Bulk | Active | Toroid | - | 3C94 | - | - | - | Ungapped | - | - | 3.07 | 24.1 | 7.8 | - | 3.07 | Epoxy | 0.167" (4.25mm) | - | - |
|
0077040A7FERRITE CORE TOROID 66NH KOOL MU |
4,599 |
|
Технический лист |
- | Bulk | Active | Toroid | - | Kool Mu | 0.425" (10.80mm) | 66 nH | ±12% | Ungapped | - | 125 | - | 23.0 | 9.57 | - | 220.0 | Coated | 0.181" (4.60mm) | - | - |
|
B66311G0090X127FERRITE CORE E N27 1PC |
4,135 |
|
Технический лист |
E20/10/6 | Box | Active | E | E 20 x 10 x 6 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.394" (10.00mm) | 0.803" (20.40mm) | 0.232" (5.90mm) |
|
B66317G0160X187FERRITE CORE E N87 1PC |
2,382 |
|
Технический лист |
E25/13/7 | Box | Active | E | E 25 x 13 x 7 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.504" (12.80mm) | 0.984" (25.00mm) | 0.295" (7.50mm) |
|
|
0077130A7FERRITE CORE TOROID 53NH KOOL MU |
3,605 |
|
Технический лист |
- | Bulk | Active | Toroid | - | Kool Mu | 0.465" (11.81mm) | 53 nH | ±12% | Ungapped | - | 125 | - | 26.9 | 9.06 | - | 244.0 | Coated | 0.181" (4.60mm) | - | - |
|
B64290P0751X038FERRITE CORE TOROID 5.5UH T38 |
7,416 |
|
Технический лист |
TC8/4/4 | Box | Active | Toroid | - | T38 | 0.316" (8.02mm) | 5.5 µH | ±30% | Ungapped | - | 10000 | 2.26 | 17.42 | 7.7 | - | 134.0 | Parylene | 0.158" (4.02mm) | - | - |
|
5967000301FERRITE CORE TOROID 67 |
19,652 |
|
Технический лист |
- | Box | Active | Toroid | - | 67 | 0.500" (12.70mm) | - | - | Ungapped | - | 40 | - | 29.5 | 12.9 | - | 380.0 | Uncoated | 0.188" (4.78mm) | - | - |
|

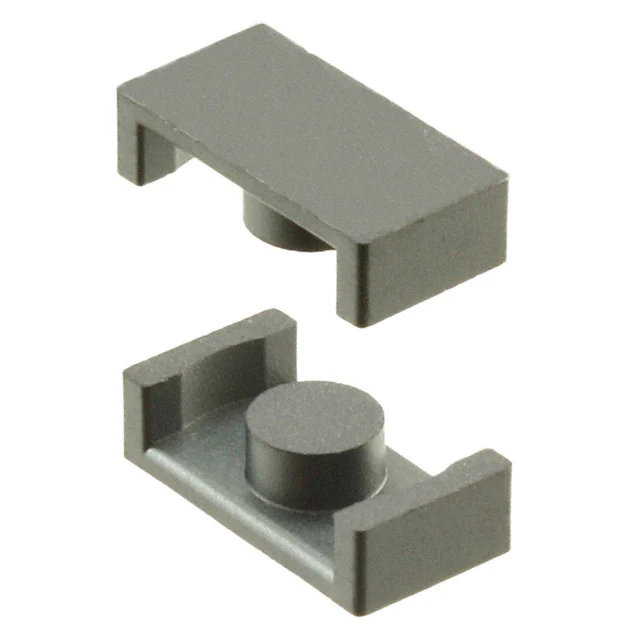

B65523J0000R087FERRITE CORE ER 800NH N87 2PCS |
15,843 |
|
Технический лист |
ER9.5 | Box | Active | ER | ER 9.5 x 5 | N87 | - | 800 nH | -20%, +30% | Ungapped | 1000.0 | 2200 | 1.54 | 13.6 | 8.81 | - | 120.0 | Uncoated | 0.098" (2.50mm) | 0.374" (9.50mm) | 0.197" (5.00mm) |
|
B64290L0719X087FERRITE CORE TOROID 1.66UH N87 |
5,961 |
|
Технический лист |
TX22/14/7.9 | Box | Active | Toroid | - | N87 | 0.917" (23.30mm) | 1.66 µH | ±25% | Ungapped | - | 2200 | 1.66 | 54.2 | 32.6 | - | 1763.0 | Epoxy | 0.354" (9.00mm) | - | - |
|

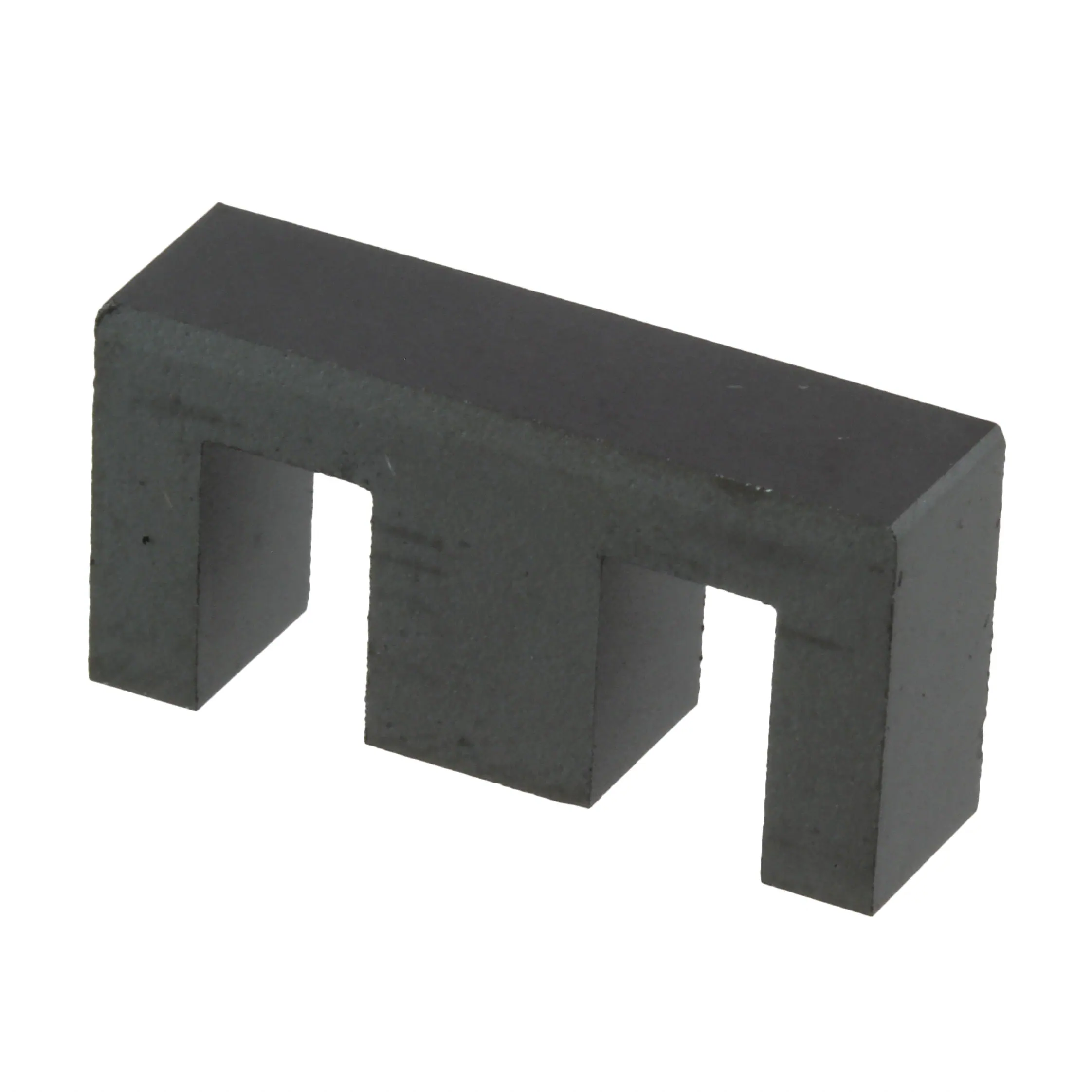

B66311G0500X187FERRITE CORE E N87 1PC |
3,766 |
|
Технический лист |
E20/10/6 | Box | Active | E | E 20 x 10 x 6 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.394" (10.00mm) | 0.803" (20.40mm) | 0.232" (5.90mm) |
|
4061287011FERRITE CORE ROD 61 |
3,012 |
|
Технический лист |
- | Bulk | Active | ROD | - | 61 | 0.250" (6.35mm) | - | - | Ungapped | 29.0 | 125 | - | 25.0 | 7.07 | - | - | Uncoated | - | 0.870" (22.10mm) | - |
|
|
TX10/6/4-3E27FERRITE CORE TOROID 3E+27 |
2,622 |
|
Технический лист |
- | Bulk | Active | Toroid | - | 3E27 | - | - | - | Ungapped | - | - | 3.07 | 24.1 | 7.8 | - | 3.07 | Epoxy | 0.167" (4.25mm) | - | - |
|
PLT14/5/1.5/S-3C95FERRITE CORE PLT 3C95 |
7,510 |
|
Технический лист |
- | Bulk | Active | PLT | PLT 14 x 5 x 1.5 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.059" (1.50mm) | 0.551" (14.00mm) | 0.197" (5.00mm) |
