Ферритовые сердечники
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип ядра | Устройство поставщика Упаковка | Материал | Диаметр | Коэффициент индуктивности (Al) | Допуск | Зазор | Эффективная проницаемость (µe) | Начальная проницаемость (µi) | Коэффициент сердечника (ΣI/A) мм⁻¹ | Эффективная длина (le) мм | Эффективная площадь (Ae) мм² | Минимальное поперечное сечение сердечника (Amin) мм² | Эффективная Магнитный объем (Ve) мм³ | Отделка | Высота | Длина | Ширина |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T60006L2102W947FERRITE CORE 4.2UH |
225 |
|
Технический лист |
- | Box | Active | - | - | - | 4.256" (108.10mm) | 4.2 µH | - | Ungapped | - | - | - | 280.0 | 247.0 | - | - | Uncoated | 1.193" (30.30mm) | - | - |
|

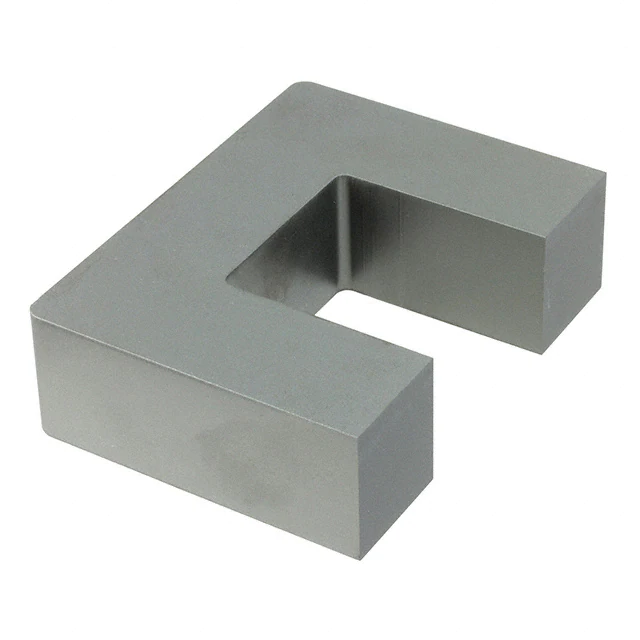

B67370A0002X187FERRITE CORE U N87 1PC |
66 |
|
Технический лист |
U101/76/30 | Box | Active | U | U 101 x 76 x 30 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 2.992" (76.00mm) | 3.976" (101.00mm) | 1.181" (30.00mm) |
|
PM114/93-3C94FERRITE CORE PM 3C94 2PC SET |
35 |
|
Технический лист |
- | Bulk | Active | PM | PM 114 x 93 | 3C94 | 4.488" (114.00mm) | - | - | - | - | - | - | - | - | - | - | Uncoated | 3.661" (93.00mm) | - | - |
|
5943000901FERRITE CORE TOROID 43 |
5,142 |
|
Технический лист |
- | Bulk | Active | Toroid | - | 43 | 0.230" (5.84mm) | - | ±20% | Ungapped | - | 800 | - | 13.0 | 4.1 | - | 53.0 | Uncoated | 0.120" (3.05mm) | - | - |
|
3078990821FERRITE CORE ROD 78 |
86,069 |
|
Технический лист |
- | Bulk | Active | ROD | - | 78 | 0.030" (0.76mm) | - | - | Ungapped | 48.0 | 2300 | - | - | 0.442 | - | - | Uncoated | - | 0.295" (7.50mm) | - |
|
3078990831FERRITE CORE ROD 78 |
9,706 |
|
Технический лист |
- | Bulk | Active | ROD | - | 78 | 0.039" (1.00mm) | - | - | Ungapped | 48.0 | 2300 | - | - | 0.785 | - | - | Uncoated | - | 0.394" (10.00mm) | - |
|
5995000101FERRITE CORE TOROID 595NH 95 |
1,023 |
|
Технический лист |
HF | Bag | Active | Toroid | - | 95 | 0.234" (5.95mm) | 595 nH | ±25% | Ungapped | - | 3000 | 0.06337 | 1.3 | 2.06 | - | 26.8 | Uncoated | 0.065" (1.65mm) | - | - |
|
5943000111FERRITE CORE TOROID 158NH 43 |
39,082 |
|
Технический лист |
- | Box | Active | Toroid | - | 43 | 0.236" (6.00mm) | 158 nH | ±20% | Ungapped | - | 800 | 6.3677 | 13.0 | 2.04 | - | 26.6 | Parylene | 0.067" (1.70mm) | - | - |
|
4052077111FERRITE CORE ROD 52 |
7,074 |
|
Технический лист |
- | Box | Active | ROD | - | 52 | 0.079" (2.00mm) | - | - | Ungapped | - | 250 | - | - | - | - | - | Uncoated | - | 0.591" (15.00mm) | - |
|
|
3067990821FERRITE CORE ROD 67 |
14,751 |
|
Технический лист |
- | Bulk | Active | ROD | - | 67 | 0.029" (0.75mm) | - | - | Ungapped | 22.0 | 40 | - | - | 0.442 | - | - | Uncoated | - | 0.295" (7.50mm) | - |
|
|
3067990831FERRITE CORE ROD 67 |
14,483 |
|
Технический лист |
- | Box | Active | ROD | - | 67 | 0.039" (1.00mm) | - | - | Ungapped | 22.0 | 40 | - | - | 0.785 | - | - | Uncoated | - | 0.394" (10.00mm) | - |
|
|
3061990831FERRITE CORE ROD 61 |
7,221 |
|
Технический лист |
- | Bulk | Active | ROD | - | 61 | 0.039" (1.00mm) | - | - | Ungapped | 35.0 | 125 | - | - | 0.785 | - | - | Uncoated | - | 0.394" (10.00mm) | - |
|
3061990841FERRITE CORE ROD 61 |
5,384 |
|
Технический лист |
- | Bulk | Active | ROD | - | 61 | 0.059" (1.50mm) | - | - | Ungapped | 35.0 | 125 | - | - | 1.77 | - | - | Uncoated | - | 0.591" (15.00mm) | - |
|
|
3078990851FERRITE CORE ROD 78 |
105,632 |
|
Технический лист |
- | Bulk | Active | ROD | - | 78 | 0.079" (2.00mm) | - | - | Ungapped | 31.0 | 2300 | - | - | 3.14 | - | - | Uncoated | - | 0.591" (15.00mm) | - |
|
5975000101FERRITE CORE TOROID 75 |
35,610 |
|
Технический лист |
- | Bulk | Active | Toroid | - | 75 | 0.230" (5.84mm) | - | ±20% | Ungapped | - | 5000 | - | 13.0 | 2.0 | - | 27.0 | Uncoated | 0.060" (1.52mm) | - | - |
|
|
5995000201FERRITE CORE TOROID 1295NH 95 |
11,722 |
|
Технический лист |
HF | Bag | Active | Toroid | - | 95 | 0.374" (9.50mm) | 1295 nH | ±25% | Ungapped | - | 3000 | 0.02911 | 20.9 | 7.18 | - | 150.0 | Uncoated | 0.126" (3.20mm) | - | - |
|
|
5961000801FERRITE CORE TOROID 61 |
1,980 |
|
Технический лист |
- | Bulk | Active | Toroid | - | 61 | 0.155" (3.94mm) | - | - | Ungapped | - | 125 | - | 9.2 | 1.1 | - | 9.7 | Uncoated | 0.050" (1.27mm) | - | - |
|
|
3078990871FERRITE CORE ROD 78 |
10,851 |
|
Технический лист |
- | Bulk | Active | ROD | - | 78 | 0.118" (3.00mm) | - | - | Ungapped | 36.0 | 2300 | - | - | 7.07 | - | - | Uncoated | - | 0.984" (25.00mm) | - |
|
|
5980000101FERRITE CORE TOROID 120NH 80 |
1,737 |
|
Технический лист |
HF | Bag | Active | Toroid | - | 80 | 0.234" (5.95mm) | 120 nH | ±25% | Ungapped | - | 550 | 0.06259 | 12.85 | 2.054 | - | 26.0 | Uncoated | 0.065" (1.65mm) | - | - |
|
B64290P0036X830FERRITE CORE TOROID 700NH N30 |
48,382 |
|
Технический лист |
TC4.0/2.4/1.6 | Box | Active | Toroid | - | N30 | 0.158" (4.02mm) | 700 nH | ±25% | Ungapped | - | 4300 | 7.7 | 9.63 | 1.25 | - | 12.0 | Parylene | 0.064" (1.62mm) | - | - |
