Ферритовые сердечники
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип ядра | Устройство поставщика Упаковка | Материал | Диаметр | Коэффициент индуктивности (Al) | Допуск | Зазор | Эффективная проницаемость (µe) | Начальная проницаемость (µi) | Коэффициент сердечника (ΣI/A) мм⁻¹ | Эффективная длина (le) мм | Эффективная площадь (Ae) мм² | Минимальное поперечное сечение сердечника (Amin) мм² | Эффективная Магнитный объем (Ve) мм³ | Отделка | Высота | Длина | Ширина |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PQ50/50-3C95FERRITE CORE PQ 3C95 2PC SET |
317 |
|
Технический лист |
- | Bulk | Active | PQ | PQ 50 x 50 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.969" (50.00mm) | 2.008" (51.00mm) | 1.260" (32.00mm) |
|
ER64/13/51-3C92FERRITE CORE ER 3C92 |
1,683 |
|
Технический лист |
- | Bulk | Active | ER | ER 64 x 13 x 51 | 3C92 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.500" (12.70mm) | 2.520" (64.00mm) | 2.000" (50.80mm) |
|
B64290L0699X037FERRITE CORE TOROID 13.9UH T37 |
138 |
|
Технический лист |
TX63/38/25 | Box | Active | Toroid | - | T37 | 2.571" (65.30mm) | 13.9 µH | ±25% | Ungapped | - | 5500 | 0.5 | 152.1 | 305.9 | - | 46530.0 | Epoxy | 1.047" (26.60mm) | - | - |
|

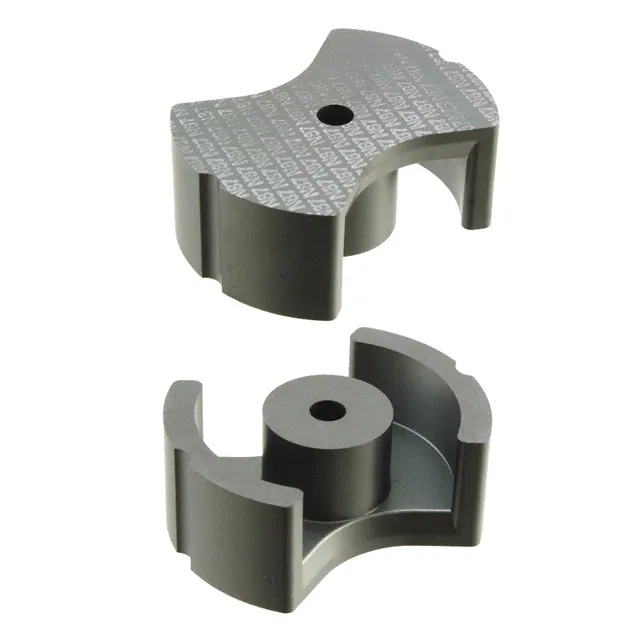

B65646A0000R087FERRITE CORE PM 7.4UH N87 2PCS |
180 |
|
Технический лист |
PM50/39 | Box | Active | PM | PM 50 x 39 | N87 | 1.969" (50.00mm) | 7.4 µH | -20%, +30% | Ungapped | 1340.0 | 2200 | 0.227 | 84.0 | 370.0 | 280.0 | 31000.0 | Uncoated | 0.768" (19.50mm) | - | - |
|
ZW48613TCFERRITE CORE TOROID 11.04UH W |
238 |
|
Технический лист |
- | Bulk | Active | Toroid | - | W | 3.465" (88.02mm) | 11.04 µH | ±30% | Ungapped | - | 10000 | - | 215.0 | 189.0 | - | 40852.0 | Epoxy | 0.538" (13.67mm) | - | - |
|

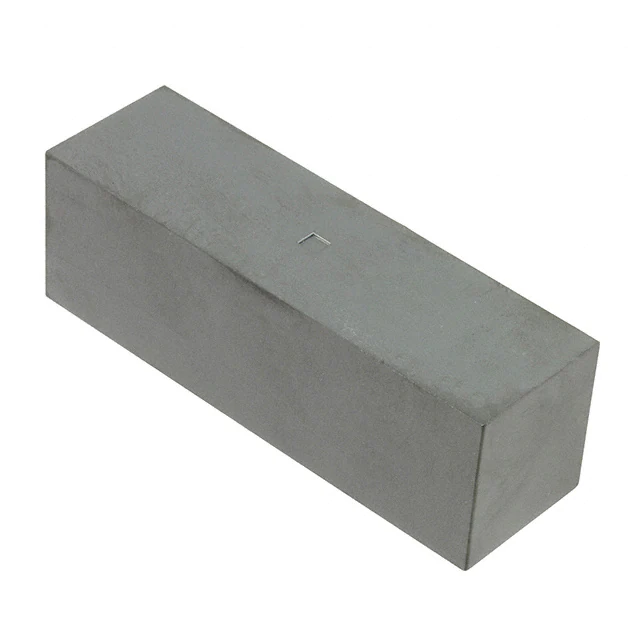

B67345B0002X087FERRITE CORE I N87 1PC |
119 |
|
Технический лист |
I93/28/30 | Box | Active | I | I 93 x 28 x 30 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 1.102" (28.00mm) | 3.661" (93.00mm) | 1.181" (30.00mm) |
|

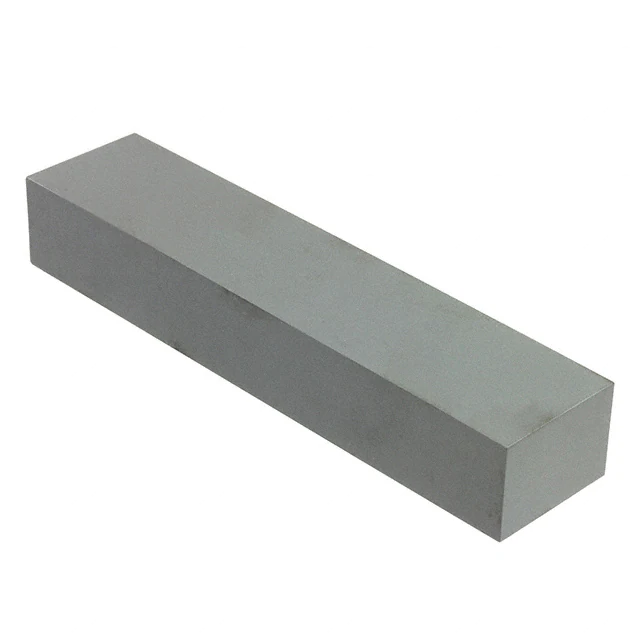

B67385P0000X187FERRITE CORE I N87 1PC |
107 |
|
Технический лист |
I126/28/20 | Box | Active | I | I 126 x 28 x 20 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 1.102" (28.00mm) | 4.961" (126.00mm) | 0.787" (20.00mm) |
|
|
C055254A2FERRITE CORE TOROID 168NH MPP |
864 |
|
Технический лист |
- | Bulk | Active | Toroid | - | MPP | 1.605" (40.77mm) | 168 nH | ±8% | Ungapped | - | 125 | - | 98.4 | 107.0 | - | 10600.0 | Coated | 0.605" (15.37mm) | - | - |
|
T60006L2063W517FERRITE CORE TOROID 59UH |
6,119 |
|
Технический лист |
- | Box | Active | Toroid | - | - | 2.650" (67.30mm) | 59 µH | - | Ungapped | - | - | - | 178.0 | 124.0 | - | - | Uncoated | 1.126" (28.60mm) | - | - |
|

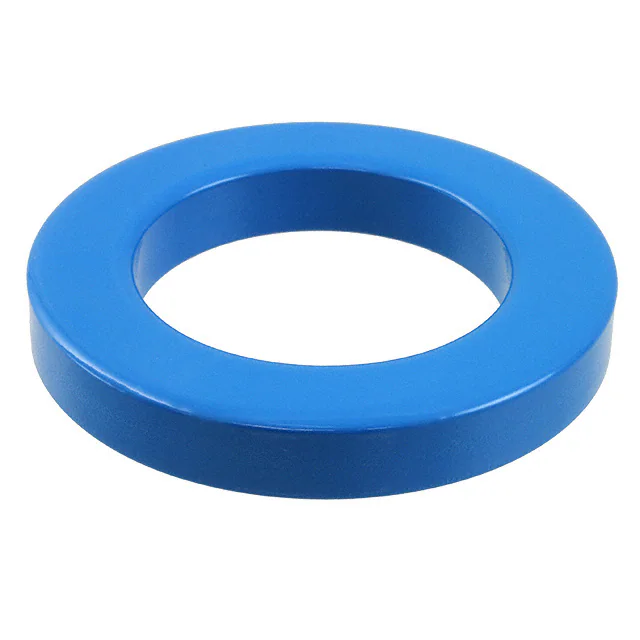

B64290L0084X830FERRITE CORE TOROID 5.5UH N30 |
672 |
|
Технический лист |
TX102/66/15 | Box | Active | Toroid | - | N30 | 4.126" (104.80mm) | 5.5 µH | ±25% | Ungapped | - | 4200 | 0.96 | 255.3 | 267.2 | - | 68220.0 | Epoxy | 0.650" (16.50mm) | - | - |
|
5943017501FERRITE CORE TOROID 43 |
114 |
|
Технический лист |
- | Bulk | Active | Toroid | - | 43 | - | - | ±25% | Ungapped | - | 800 | - | 251.0 | 300.0 | - | 70500.0 | Uncoated | - | - | 3.976" (101.00mm) |
|
|
T60006L2080V091FERRITE CORE TOROID 9.67UH |
434 |
|
Технический лист |
- | Box | Active | Toroid | - | - | 3.378" (85.80mm) | 9.67 µH | - | Ungapped | - | - | - | 204.0 | 228.0 | - | - | Uncoated | 1.004" (25.50mm) | - | - |
|
|
T60006L2080V140FERRITE CORE TOROID 94UH |
144 |
|
Технический лист |
- | Box | Active | Toroid | - | - | 3.378" (85.80mm) | 94 µH | - | Ungapped | - | - | - | 204.0 | 228.0 | - | - | Uncoated | 1.004" (25.50mm) | - | - |
|
|
T60006L2090W518FERRITE CORE TOROID 81UH |
512 |
|
Технический лист |
- | Box | Active | Toroid | - | - | 3.756" (95.40mm) | 81 µH | - | Ungapped | - | - | - | 236.0 | 228.0 | - | - | Uncoated | 0.972" (24.70mm) | - | - |
|
|
0055440A2FERRITE CORE TOROID 59NH MPP |
85 |
|
Технический лист |
- | Bulk | Active | Toroid | - | MPP | 1.875" (47.63mm) | 59 nH | ±8% | Ungapped | - | 26 | - | 107.0 | 199.0 | - | 21300.0 | Coated | 0.745" (18.92mm) | - | - |
|
P66/56-3C91FERRITE CORE P 3C91 2PC SET |
209 |
|
Технический лист |
- | Bulk | Active | P (Pot Core) | P 66 x 56 | 3C91 | 2.610" (66.29mm) | - | - | - | - | - | - | - | - | - | - | Uncoated | 2.256" (57.30mm) | - | - |
|
|
ZW49740TCFERRITE CORE TOROID 11.823UH W |
179 |
|
Технический лист |
- | Bulk | Active | Toroid | - | W | 5.650" (143.50mm) | 11.823 µH | ±30% | Ungapped | - | 10000 | - | 381.5 | 422.3 | - | 161086.0 | Epoxy | 1.039" (26.40mm) | - | - |
|
|
T60006L2102V080FERRITE CORE TOROID 19.1UH |
268 |
|
Технический лист |
- | Box | Active | Toroid | - | - | 4.256" (108.10mm) | 19.1 µH | - | Ungapped | - | - | - | 280.0 | 247.0 | - | - | Uncoated | 1.193" (30.30mm) | - | - |
|
T60006L2102W468FERRITE CORE TOROID 55UH |
139 |
|
Технический лист |
- | Box | Active | Toroid | - | - | 4.256" (108.10mm) | 55 µH | - | Ungapped | - | - | - | 280.0 | 247.0 | - | - | Coated | 1.193" (30.30mm) | - | - |
|
|
T60006L2160V066FERRITE CORE TOROID 13UH |
125 |
|
Технический лист |
- | Box | Active | Toroid | - | - | 6.571" (166.90mm) | 13 µH | - | Ungapped | - | - | - | 456.0 | 274.0 | - | - | Uncoated | 1.201" (30.50mm) | - | - |
