Ферритовые сердечники
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип ядра | Устройство поставщика Упаковка | Материал | Диаметр | Коэффициент индуктивности (Al) | Допуск | Зазор | Эффективная проницаемость (µe) | Начальная проницаемость (µi) | Коэффициент сердечника (ΣI/A) мм⁻¹ | Эффективная длина (le) мм | Эффективная площадь (Ae) мм² | Минимальное поперечное сечение сердечника (Amin) мм² | Эффективная Магнитный объем (Ve) мм³ | Отделка | Высота | Длина | Ширина |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

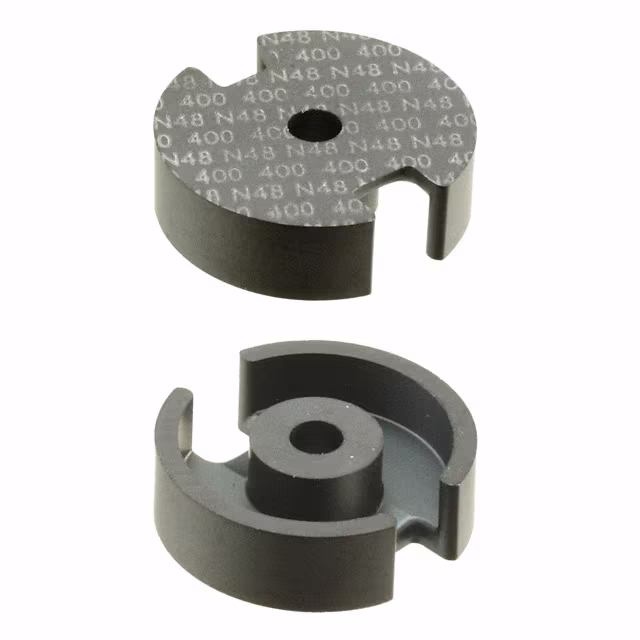

B65651T0400A048FERRITE CORE P 400NH N48 2PCS |
677 |
|
Технический лист |
P18/11 | Box | Active | P (Pot Core) | P 18 x 11 | N48 | 0.724" (18.40mm) | 400 nH | ±3% | Gapped | 192.0 | - | 0.6 | 25.9 | 43.0 | - | 1114.0 | Uncoated | 0.209" (5.30mm) | - | - |
|
C055121A2FERRITE CORE TOROID 35NH MPP |
1,869 |
|
Технический лист |
- | Bulk | Active | Toroid | - | MPP | 0.680" (17.27mm) | 35 nH | ±8% | Ungapped | - | 60 | - | 41.2 | 19.2 | - | 791.0 | Coated | 0.280" (7.11mm) | - | - |
|
PQ35/35-3C95FERRITE CORE PQ 3C95 2PC SET |
455 |
|
Технический лист |
- | Bulk | Active | PQ | PQ 35 x 35 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.366" (34.70mm) | 1.421" (36.10mm) | 1.024" (26.00mm) |
|
T60006L2030W423FERRITE CORE TOROID 66UH |
1,630 |
|
Технический лист |
- | Box | Active | Toroid | - | - | 1.299" (33.00mm) | 66 µH | ±30% | Ungapped | - | - | - | 78.5 | 40.0 | - | - | Uncoated | 0.492" (12.50mm) | - | - |
|
B65651D0100A033FERRITE CORE P 100NH M33 2PCS |
1,909 |
|
Технический лист |
P18/11 | Box | Active | P (Pot Core) | P 18 x 11 | M33 | 0.724" (18.40mm) | 100 nH | ±3% | Gapped | 48.0 | 750 | 0.6 | 25.9 | 43.0 | - | 1114.0 | Uncoated | 0.209" (5.30mm) | - | - |
|

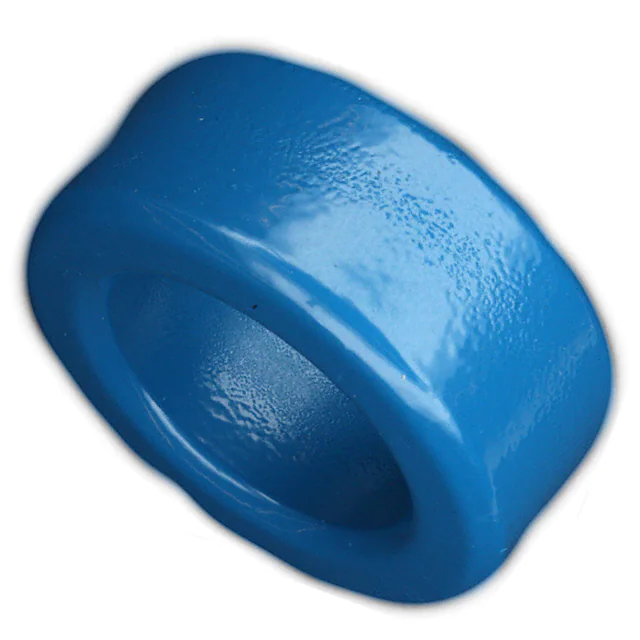

B64290L0674X038FERRITE CORE TOROID 13.5UH T38 |
216 |
|
Технический лист |
TX36/23/15 | Tray | Active | Toroid | - | T38 | 1.476" (37.50mm) | 13.5 µH | ±30% | Ungapped | - | 10000 | 0.94 | 89.65 | 95.89 | - | 8597.0 | Epoxy | 0.638" (16.20mm) | - | - |
|

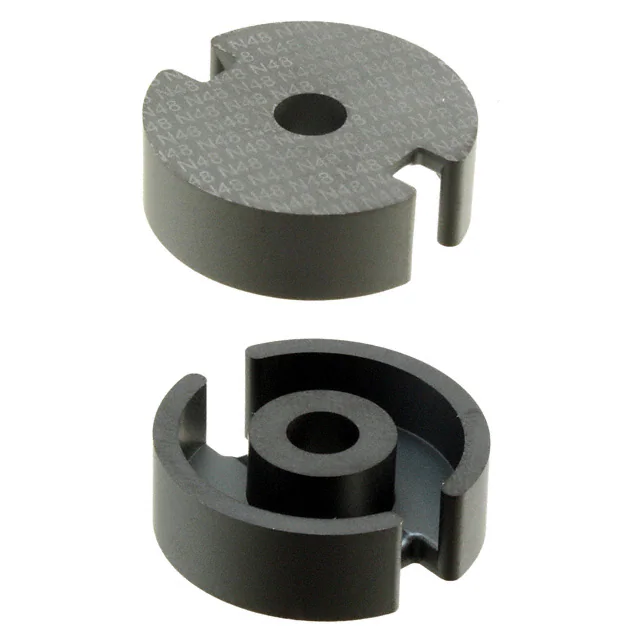

B65671D0000R048FERRITE CORE P 4.9UH N48 2PCS |
1,255 |
|
Технический лист |
P26/16 | Box | Active | P (Pot Core) | P 26 x 16 | N48 | 1.024" (26.00mm) | 4.9 µH | -20%, +30% | Ungapped | 1560.0 | - | 0.4 | 37.2 | 93.0 | 76.5 | 3460.0 | Uncoated | 0.321" (8.15mm) | - | - |
|
ER51/10/38-3C92FERRITE CORE ER 3C92 |
501 |
|
Технический лист |
- | Bulk | Active | ER | ER 51 x 10 x 38 | 3C92 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.400" (10.16mm) | 2.008" (51.00mm) | 1.500" (38.10mm) |
|
|
C058894A2FERRITE CORE TOROID 75NH HIGH FL |
400 |
|
Технический лист |
- | Bulk | Active | Toroid | - | High Flux | 1.090" (27.69mm) | 75 nH | ±8% | Ungapped | - | 60 | - | 63.5 | 65.4 | - | 4150.0 | Coated | 0.470" (11.94mm) | - | - |
|

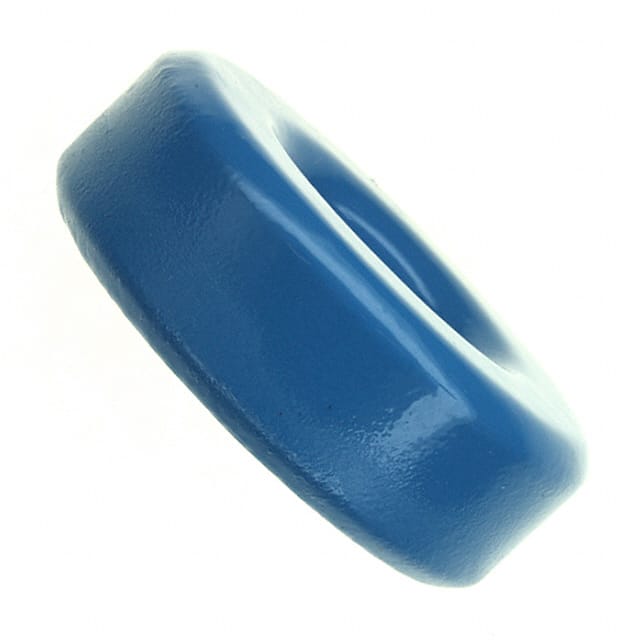

B64290L0668X038FERRITE CORE TOROID 17.6UH T38 |
1,042 |
|
Технический лист |
TX38/19/13 | Tray | Active | Toroid | - | T38 | 1.551" (39.40mm) | 17.6 µH | ±30% | Ungapped | - | 10000 | 0.71 | 82.97 | 116.2 | - | 9644.0 | Epoxy | 0.543" (13.80mm) | - | - |
|
|
0077110A7FERRITE CORE TOROID 75NH KOOL MU |
368 |
|
Технический лист |
- | Bulk | Active | Toroid | - | Kool Mu | 2.250" (57.15mm) | 75 nH | ±8% | Ungapped | - | 60 | - | 143.0 | 144.0 | - | 20700.0 | Coated | 0.550" (13.97mm) | - | - |
_3C91.jpg)
|
P30/19-3C91FERRITE CORE P 3C91 2PC SET |
165 |
|
Технический лист |
- | Bulk | Active | P (Pot Core) | P 30 x 19 | 3C91 | 1.181" (30.00mm) | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.740" (18.80mm) | - | - |
|
TX36/23/10-4C65FERRITE CORE TOROID 4C65 |
348 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 36 x 23 x 10 | 4C65 | 1.463" (37.15mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.430" (10.92mm) | - | - |
|
|
UR70/33/17-3C90FERRITE CORE UR 3C90 |
162 |
|
Технический лист |
- | Bulk | Active | UR | UR 70 x 33 x 17 | 3C90 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.313" (33.35mm) | 2.692" (68.37mm) | 0.679' (17.25mm) |
|

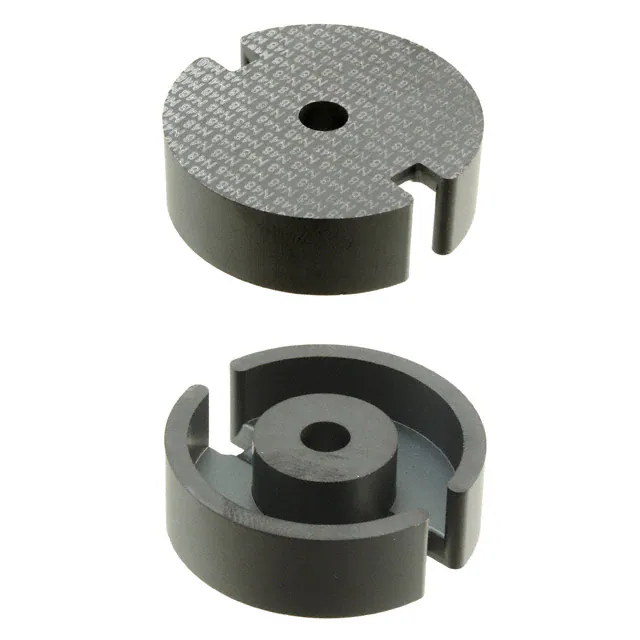

B65611D0000R048FERRITE CORE P 7.6UH N48 2PCS |
198 |
|
Технический лист |
P36/22 | Tray | Active | P (Pot Core) | P 36 x 22 | N48 | 1.417" (36.00mm) | 7.6 µH | -20%, +30% | Ungapped | 1560.0 | - | 0.26 | 52.0 | 202.0 | - | 10500.0 | Uncoated | 0.433" (11.00mm) | - | - |
|
|
T60006L2030W514FERRITE CORE TOROID 88UH |
3,934 |
|
Технический лист |
- | Box | Active | Toroid | - | - | 1.291" (32.80mm) | 88 µH | - | Ungapped | - | - | - | 78.5 | 57.0 | - | - | Uncoated | 0.701" (17.80mm) | - | - |
|
E64/10/50-3F36FERRITE CORE E 3F36 |
1,001 |
|
Технический лист |
- | Bulk | Active | E | E 64 x 10 x 50 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.402" (10.20mm) | 2.520" (64.00mm) | 2.000" (50.80mm) |
|
PLT64/50/5-3F4FERRITE CORE PLT 3F4 |
925 |
|
Технический лист |
- | Bulk | Active | PLT | PLT 64 x 50 x 5 | 3F4 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.200" (5.08mm) | 2.520" (64.00mm) | 2.000" (50.80mm) |
|
|
PLT64/50/5-3C95FERRITE CORE PLT 3C95 |
12,580 |
|
Технический лист |
- | Bulk | Active | PLT | PLT 64 x 50 x 5 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.200" (5.08mm) | 2.520" (64.00mm) | 2.000" (50.80mm) |
|

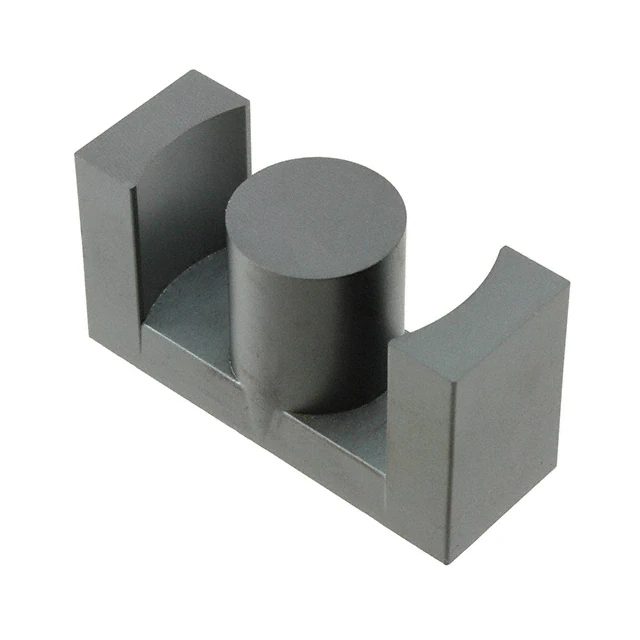

B66397G0000X187FERRITE CORE ETD N87 1PC |
525 |
|
Технический лист |
ETD59/31/22 | Box | Active | ETD | ETD 59 x 31 x 22 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 1.228" (31.20mm) | 2.354" (59.80mm) | 0.870" (22.10mm) |
