Ферритовые сердечники
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип ядра | Устройство поставщика Упаковка | Материал | Диаметр | Коэффициент индуктивности (Al) | Допуск | Зазор | Эффективная проницаемость (µe) | Начальная проницаемость (µi) | Коэффициент сердечника (ΣI/A) мм⁻¹ | Эффективная длина (le) мм | Эффективная площадь (Ae) мм² | Минимальное поперечное сечение сердечника (Amin) мм² | Эффективная Магнитный объем (Ve) мм³ | Отделка | Высота | Длина | Ширина |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

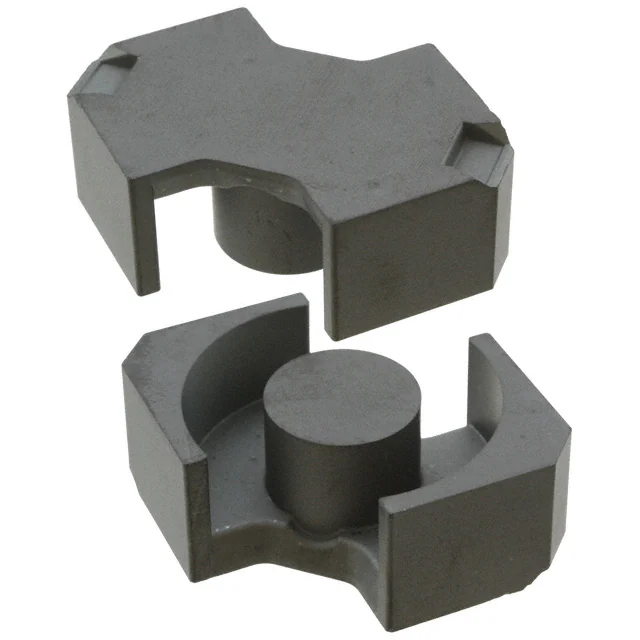

B65815E0000R049FERRITE CORE RM 3.7UH N49 2PCS |
926 |
|
Технический лист |
RM12 | Box | Active | RM | RM 12 | N49 | - | 3.7 µH | -20%, +30% | Ungapped | 1150.0 | 1500 | 0.39 | 57.0 | 146.0 | 125.0 | 8320.0 | Uncoated | 0.484" (12.30mm) | 1.480" (37.60mm) | 0.634" (16.10mm) |
|

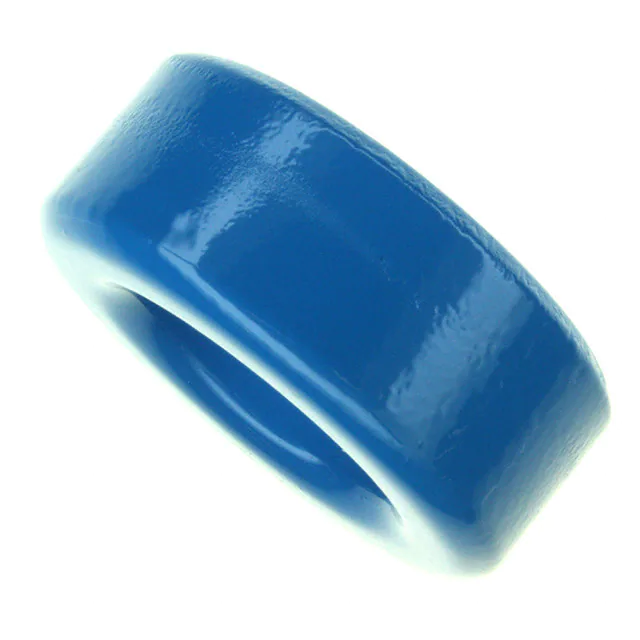

B64290L0659X830FERRITE CORE TOROID 7UH N30 |
101 |
|
Технический лист |
TX40/24/16 | Tray | Active | Toroid | - | N30 | 1.646" (41.80mm) | 7 µH | ±25% | Ungapped | - | 4300 | 0.77 | 96.29 | 125.3 | 125.3 | 12070.0 | Epoxy | 0.677" (17.20mm) | - | - |
|
E80/38/20-3C92FERRITE CORE E 3C92 |
134 |
|
Технический лист |
- | Bulk | Active | E | E 80 x 38 x 20 | 3C92 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.500" (38.10mm) | 3.150" (80.00mm) | 0.780" (19.80mm) |
|
TX42/26/18-3E27-M7FERRITE CORE TOROID 3E+27 |
102 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 42 x 26 x 18 | 3E27 | 1.697" (43.15mm) | - | ±25% | Ungapped | 7000.0 | - | 0.769 | 103.0 | 134.0 | - | 13810.0 | Epoxy | 0.736" (18.70mm) | - | - |
|
ETD59/31/22-3C94FERRITE CORE ETD 3C94 |
357 |
|
Технический лист |
- | Bulk | Active | ETD | ETD 59 x 31 x 22 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.220" (31.00mm) | 2.354" (59.80mm) | 0.852" (21.65mm) |
|
TX40/24/16-3C94FERRITE CORE TOROID 3C94 |
307 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 40 x 24 x 16 | 3C94 | 1.640" (41.65mm) | - | ±25% | Ungapped | 2300.0 | - | 0.769 | 96.3 | 125.0 | - | 12100.0 | Epoxy | 0.673" (17.10mm) | - | - |
|
PQ40/30-3F36FERRITE CORE PQ 3F36 2PC SET |
227 |
|
Технический лист |
- | Bulk | Active | PQ | PQ 40 x 30 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.181" (30.00mm) | 1.634" (41.50mm) | 1.102" (28.00mm) |
|
TX40/24/16-3C90FERRITE CORE TOROID 3C90 |
186 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 40 x 24 x 16 | 3C90 | 1.640" (41.65mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.673" (17.10mm) | - | - |
|
|
B65671W0000Y038FERRITE CORE P 22UH T38 2PCS |
757 |
|
Технический лист |
P26/16 | Box | Active | P (Pot Core) | P 26 x 16 | T38 | 1.024" (26.00mm) | 22 µH | -30%, +40% | Ungapped | 6480.0 | 10000 | 0.37 | 40.0 | 108.0 | 87.0 | 4320.0 | Uncoated | 0.321" (8.15mm) | - | - |
|
B66387Q0400K187FERRITE CORE E 400NH N87 |
230 |
|
Технический лист |
E65/32/27 | Bulk | Active | E | E 65 x 32 x 27 | N87 | - | 400 nH | ±10% | Distributed Gapped | - | 2200 | 0.27 | 147.0 | 535.0 | 529.0 | 78600.0 | Uncoated | 1.291" (32.80mm) | 2.559" (65.00mm) | 1.079" (27.40mm) |
|

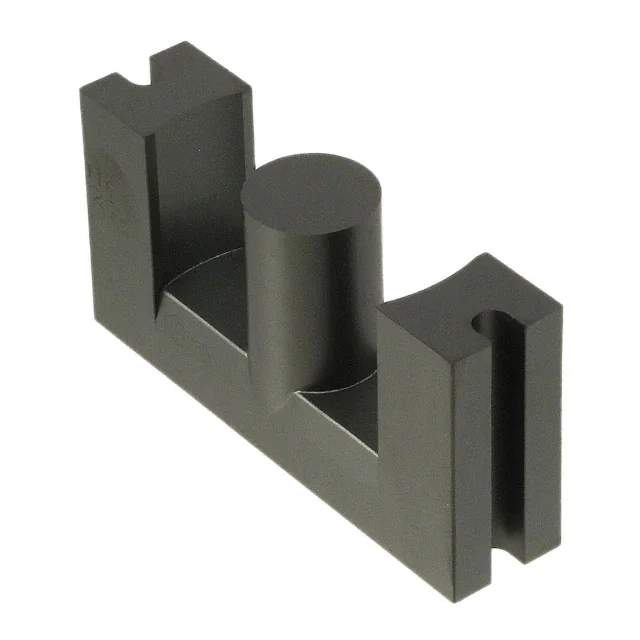

B66343G0000X127FERRITE CORE EC N27 1PC |
164 |
|
Технический лист |
EC70/35/16 | Box | Active | EC | EC 70 x 35 x 16 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 1.364" (34.65mm) | 2.756" (70.00mm) | 0.661" (16.80mm) |
|
E58/11/38-3F4FERRITE CORE E 3F4 |
343 |
|
Технический лист |
- | Bulk | Active | E | E 58 x 11 x 38 | 3F4 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.413" (10.50mm) | 2.299" (58.40mm) | 1.500" (38.10mm) |
|
B66395G0500X187FERRITE CORE ETD N87 |
319 |
|
Технический лист |
ETD54/28/19 | Box | Active | ETD | ETD 54 x 28 x 19 | N87 | - | - | - | Gapped | - | 2200 | 0.45 | 127.0 | 280.0 | 280.0 | 35600.0 | Uncoated | 1.094" (27.80mm) | 2.156" (54.50mm) | 0.760" (19.30mm) |
|
LRF251515MKCXFERRITE CORE TOROID 38.1UH |
208 |
|
Технический лист |
FL-V | Bulk | Active | Toroid | - | Nanocrystalline | 1.114" (28.30mm) | 38.1 µH | - | Ungapped | - | - | - | - | 63.0 | - | - | Uncoated | - | 2.512" (63.80mm) | 0.689" (17.50mm) |
|
|
PQ35/30-3C95FERRITE CORE PQ 3C95 2PC SET |
361 |
|
Технический лист |
- | Bulk | Active | PQ | PQ 35 x 30 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.181" (30.00mm) | 1.421" (36.10mm) | 1.024" (26.00mm) |
|
B65877B0000R095FERRITE CORE PQ 6.3UH N95 2PCS |
652 |
|
Технический лист |
PQ26/20 | Box | Active | PQ | PQ 26 x 20 | N95 | - | 6.3 µH | -20%, +30% | Ungapped | 1820.0 | 2000 | 0.363 | 44.4 | 122.3 | 108.8 | 5435.0 | Uncoated | 0.397" (10.08mm) | 1.043" (26.50mm) | 0.748" (19.00mm) |
|
|
B65701T0250G048FERRITE CORE N48 |
370 |
|
Технический лист |
P30/19 | Box | Active | - | P 30 x 19 | N48 | 1.200" (30.50mm) | - | - | Gapped | - | 2300 | 0.33 | 45.0 | 136.0 | - | 6120.0 | Uncoated | 0.374" (9.50mm) | - | - |
|
B64290L0022X097FERRITE CORE TOROID N97 |
674 |
|
Технический лист |
TX42/26/13 | Box | Active | Toroid | - | N97 | - | - | - | Gapped | - | 2300 | - | - | - | - | - | Epoxy | - | - | - |
|

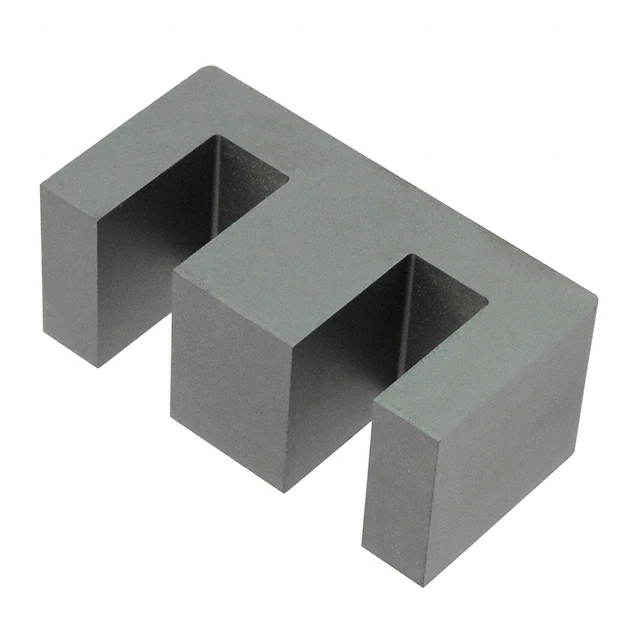

B66387G0000X127FERRITE CORE E N27 1PC |
156 |
|
Технический лист |
E65/32/27 | Box | Active | E | E 65 x 32 x 27 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 1.291" (32.80mm) | 2.559" (65.00mm) | 1.079" (27.40mm) |
|
B64290L0659X037FERRITE CORE TOROID 9.8UH T37 |
248 |
|
Технический лист |
TX40/24/16 | Box | Active | Toroid | - | T37 | 1.646" (41.80mm) | 9.8 µH | ±25% | Ungapped | - | 6000 | 0.77 | 96.29 | 125.3 | 125.3 | 12070.0 | Epoxy | 0.677" (17.20mm) | - | - |
