Ферритовые сердечники
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип ядра | Устройство поставщика Упаковка | Материал | Диаметр | Коэффициент индуктивности (Al) | Допуск | Зазор | Эффективная проницаемость (µe) | Начальная проницаемость (µi) | Коэффициент сердечника (ΣI/A) мм⁻¹ | Эффективная длина (le) мм | Эффективная площадь (Ae) мм² | Минимальное поперечное сечение сердечника (Amin) мм² | Эффективная Магнитный объем (Ve) мм³ | Отделка | Высота | Длина | Ширина |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
I93/28/16-3C94FERRITE CORE I 3C94 |
1,544 |
|
Технический лист |
- | Bulk | Active | I | I 93 x 28 x 16 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.083" (27.50mm) | 3.661" (93.00mm) | 0.630" (16.00mm) |
|

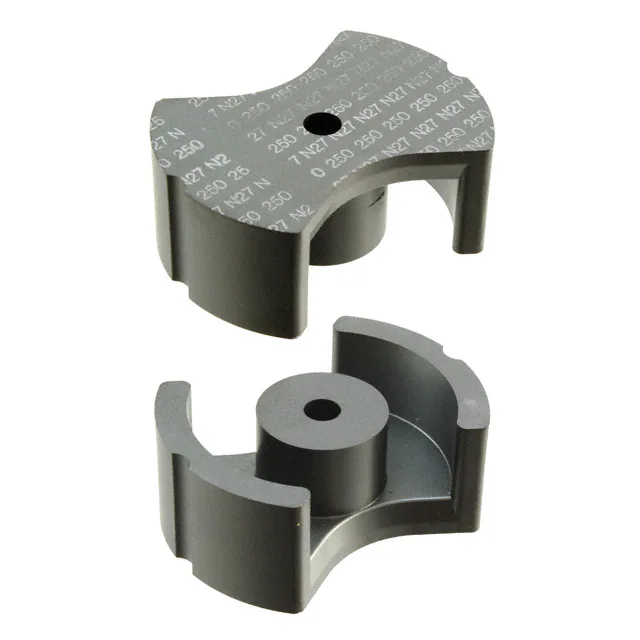

B65646A0250A027FERRITE CORE PM 250NH N27 2PCS |
699 |
|
Технический лист |
PM50/39 | Box | Active | PM | PM 50 x 39 | N27 | 1.969" (50.00mm) | 250 nH | ±3% | Gapped | 45.0 | 2000 | 0.227 | 84.0 | 370.0 | 280.0 | 31000.0 | Uncoated | 0.768" (19.50mm) | - | - |
|
B64290L0043X037FERRITE CORE TOROID 13UH T37 |
176 |
|
Технический лист |
TX58.3/32/18 | Box | Active | Toroid | - | T37 | 2.366" (60.10mm) | 13 µH | ±25% | Ungapped | - | 6000 | 0.58 | 134.0 | 230.0 | - | 30710.0 | Epoxy | 0.760" (19.30mm) | - | - |
|
B65981Q0100K097FERRITE CORE PQ 100NH N97 |
193 |
|
Технический лист |
PQ50/50 | Tray | Active | PQ | PQ 50 x 50 | N97 | - | 100 nH | ±10% | Distributed Gapped | - | - | 0.342 | 113.0 | 332.0 | 314.0 | 37630.0 | Uncoated | 0.984" (25.00mm) | 1.969" (50.00mm) | 6.702" (190.0mm) |
|
B65646A0000R027FERRITE CORE PM 7.4UH N27 2PCS |
150 |
|
Технический лист |
PM50/39 | Box | Active | PM | PM 50 x 39 | N27 | 1.969" (50.00mm) | 7.4 µH | -20%, +30% | Ungapped | 1340.0 | 2000 | 0.227 | 84.0 | 370.0 | 280.0 | 31000.0 | Uncoated | 0.768" (19.50mm) | - | - |
|
TX58/41/18-4C65FERRITE CORE TOROID 4C65 |
419 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 58 x 41 x 18 | 4C65 | 2.354" (59.80mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.729" (18.60mm) | - | - |
|
|
I100/25/25-3C94FERRITE CORE I 3C94 |
104 |
|
Технический лист |
- | Bulk | Active | I | I 100 x 25 x 25 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.000" (25.40mm) | 4.000" (101.60mm) | 1.000" (25.40mm) |
|
PM50/39-3C94FERRITE CORE PM 3C94 2PC SET |
198 |
|
Технический лист |
- | Bulk | Active | PM | PM 50 x 39 | 3C94 | 1.969" (50.00mm) | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.535" (39.00mm) | - | - |
|
TX80/40/15-4C65FERRITE CORE TOROID 4C65 |
161 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 80 x 40 x 15 | 4C65 | 3.268" (83.00mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.626" (15.90mm) | - | - |
|
B65713A0400A027FERRITE CORE PM 400NH N27 2PCS |
74 |
|
Технический лист |
PM87/70 | Box | Active | PM | PM 87 x 70 | N27 | 3.425" (87.00mm) | 400 nH | ±3% | Gapped | 51.0 | 2000 | 0.16 | 146.0 | 910.0 | 700.0 | 133000.0 | Uncoated | 1.378" (35.00mm) | - | - |
|
8995101021FERRITE CORE EFD 95 SET |
3,580 |
|
Технический лист |
- | Bulk | Active | EFD | - | 95 | - | - | ±25% | Ungapped | - | 3000 | 327.0 | 23.6 | 7.2 | 6.6 | 171.0 | Uncoated | 0.205" (5.20mm) | - | - |
|
9478102002FERRITE CORE E 78 SET |
2,262 |
|
Технический лист |
- | Bulk | Active | E | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 234.0 | 29.6 | 12.7 | 12.2 | 376.0 | Uncoated | 0.250" (6.35mm) | 0.500" (12.70mm) | - |
|
5978002101FERRITE CORE TOROID 78 |
1,285 |
|
Технический лист |
- | Bulk | Active | Toroid | - | 78 | - | - | ±25% | Ungapped | - | 2300 | - | 10.4 | 1.5 | - | 15.7 | Uncoated | 0.050" (1.27mm) | - | - |
|
9077002002FERRITE CORE U 77 |
12,003 |
|
Технический лист |
- | Bulk | Active | U | - | 77 | - | - | - | Ungapped | - | 2000 | 168.0 | 20.8 | 12.4 | - | 257.0 | Uncoated | 0.160" (4.06mm) | 0.340" (8.64mm) | 0.180" (4.57mm) |
|
|
B64290A0038X010FERRITE CORE TOROID |
1,402 |
|
Технический лист |
T10/6/4 | Box | Active | Toroid | - | - | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | - | - | - |
|
|
B64290L0643X830FERRITE CORE TOROID N30 |
6,932 |
|
Технический лист |
TX12.5/7.5/4.1 | Box | Active | Toroid | - | N30 | - | - | - | Gapped | - | 4300 | - | - | - | - | - | Epoxy | - | - | - |
|
8978101021FERRITE CORE EFD 78 SET |
6,840 |
|
Технический лист |
- | Bulk | Active | EFD | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 327.0 | 23.6 | 7.2 | 6.6 | 171.0 | Uncoated | 0.205" (5.20mm) | - | - |
|
9498201002FERRITE CORE E SET |
2,797 |
|
Технический лист |
- | Bulk | Active | E | - | - | - | - | ±25% | Ungapped | - | 2400 | 134.0 | 20.1 | 15.3 | 15.0 | 315.0 | Uncoated | - | 0.551" (14.00mm) | 0.197" (5.00mm) |
|
B66307G0060X127FERRITE CORE E N27 1PC |
8,153 |
|
Технический лист |
E16/8/5 | Box | Active | E | E 16 x 8 x 5 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.323" (8.20mm) | 0.630" (16.00mm) | 0.185" (4.70mm) |
|
9478201002FERRITE CORE E 78 SET |
2,458 |
|
Технический лист |
- | Bulk | Active | E | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 134.0 | 20.1 | 15.3 | 15.0 | 315.0 | Uncoated | - | 0.551" (14.00mm) | 0.197" (5.00mm) |
