Ферритовые сердечники
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип ядра | Устройство поставщика Упаковка | Материал | Диаметр | Коэффициент индуктивности (Al) | Допуск | Зазор | Эффективная проницаемость (µe) | Начальная проницаемость (µi) | Коэффициент сердечника (ΣI/A) мм⁻¹ | Эффективная длина (le) мм | Эффективная площадь (Ae) мм² | Минимальное поперечное сечение сердечника (Amin) мм² | Эффективная Магнитный объем (Ve) мм³ | Отделка | Высота | Длина | Ширина |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC47EPC30-ZFERRITE CORE EPCS 1.57UH 2PC |
480 |
|
Технический лист |
EPC | Tray | Active | EPC | EPC 30 | PC47 | - | 1.57 µH | ±25% | Ungapped | - | - | 1.35 | 75.3 | 55.6 | - | 4190.0 | Uncoated | 0.689" (17.50mm) | 1.185" (30.10mm) | 0.315" (8.00mm) |
|
B66459G0000X187FERRITE CORE ELP N87 1PC |
652 |
|
Технический лист |
ELP38/8/25 | Box | Active | ELP | ELP 38 x 8 x 25 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.324" (8.25mm) | 1.500" (38.10mm) | 1.000" (25.40mm) |
_3C91.jpg)
|
P22/13-3C91FERRITE CORE P 3C91 2PC SET |
1,341 |
|
Технический лист |
- | Bulk | Active | P (Pot Core) | P 22 x 13 | 3C91 | 0.866" (22.00mm) | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.528" (13.40mm) | - | - |
|
PLT43/28/4.1-3F36FERRITE CORE PLT 3F36 |
139 |
|
Технический лист |
- | Bulk | Active | PLT | PLT 43 x 28 x 4.1 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.161" (4.10mm) | 1.700" (43.20mm) | 1.098" (27.90mm) |
|

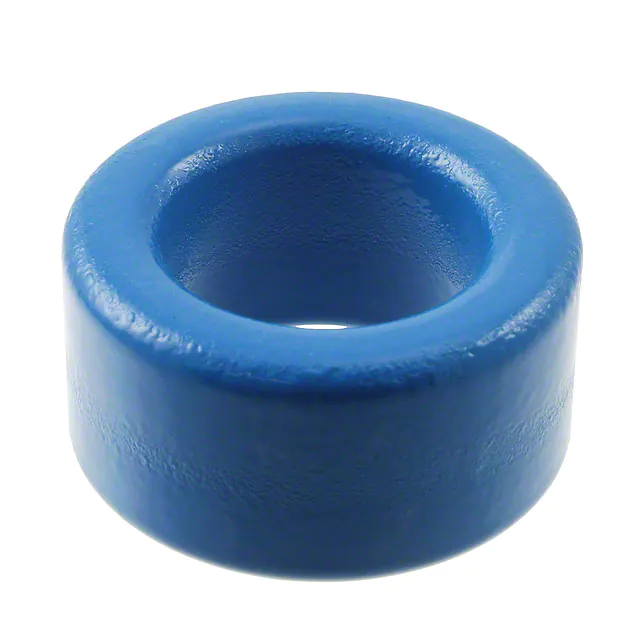

B64290L0647X038FERRITE CORE TOROID 13.1UH T38 |
460 |
|
Технический лист |
TX29/19/15 | Box | Active | Toroid | - | T38 | 1.220" (31.00mm) | 13.1 µH | ±30% | Ungapped | - | 10000 | 0.96 | 73.78 | 76.98 | - | 5680.0 | Epoxy | 0.634" (16.10mm) | - | - |
|
TX32/19/13-3E27FERRITE CORE TOROID 3E+27 |
365 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 32 x 19 x 13 | 3E27 | 1.281" (32.55mm) | - | ±25% | Ungapped | 5500.0 | - | 0.99 | 76.0 | 76.5 | - | 5820.0 | Epoxy | 0.528" (13.40mm) | - | - |
|

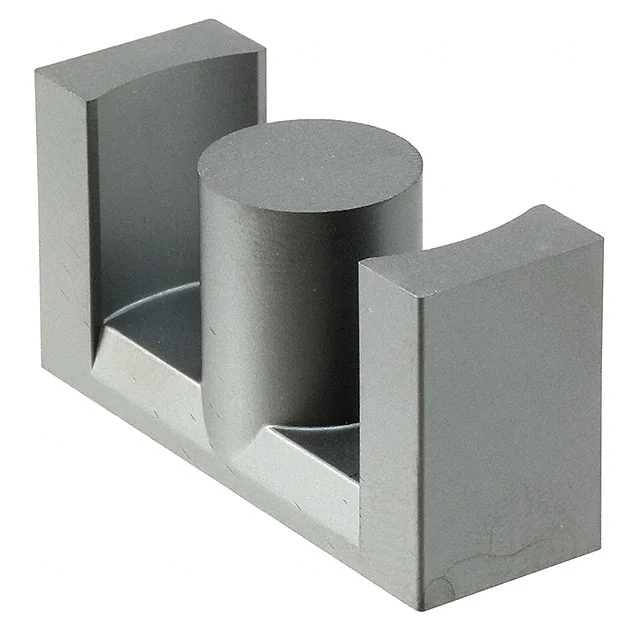

B66365G1000X187FERRITE CORE ETD N87 1PC |
288 |
|
Технический лист |
ETD44/22/15 | Box | Active | ETD | ETD 44 x 22 x 15 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.886" (22.50mm) | 1.724" (43.80mm) | 0.598" (15.20mm) |
|
B65811J0250A048FERRITE CORE RM 250NH N48 2PCS |
800 |
|
Технический лист |
RM8 | Bulk | Active | RM | RM 8 | N48 | - | 250 nH | ±3% | Gapped | 134.0 | - | 0.59 | 38.0 | 64.0 | 55.0 | 2430.0 | Uncoated | 0.324" (8.25mm) | 0.913" (23.20mm) | 0.433" (11.00mm) |
|
P26/16/I-3C91FERRITE CORE P 3C91 2PC SET |
176 |
|
Технический лист |
- | Bulk | Active | P (Pot Core) | P 26 x 16 | 3C91 | 1.004" (25.50mm) | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.638" (16.20mm) | - | - |
|
PQ32/20-3F36FERRITE CORE PQ 3F36 2PC SET |
450 |
|
Технический лист |
- | Bulk | Active | PQ | PQ 32 x 20 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.811" (20.60mm) | 1.299" (33.00mm) | 0.866" (22.00mm) |
|
|
P22/13/I-3C91FERRITE CORE P 3C91 2PC SET |
122 |
|
Технический лист |
- | Bulk | Active | P (Pot Core) | P 22 x 13 | 3C91 | 0.866" (22.00mm) | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.528" (13.40mm) | - | - |
|
E43/10/28-3F4FERRITE CORE E 3F4 |
553 |
|
Технический лист |
- | Bulk | Active | E | E 43 x 10 x 28 | 3F4 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.374" (9.50mm) | 1.700" (43.20mm) | 1.098" (27.90mm) |
|
B66367G0000X127FERRITE CORE ETD N27 1PC |
215 |
|
Технический лист |
ETD49/25/16 | Box | Active | ETD | ETD 49 x 25 x 16 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.980" (24.90mm) | 1.909" (48.50mm) | 0.657" (16.70mm) |
|
PC95PQI26/12Z-12FERRITE CORE HPQ 11.95UH 1SET |
601 |
|
Технический лист |
Planar | Tray | Active | HPQ, PQD | PQI 26 x 12 | PC95 | - | 11.95 µH | ±25% | Ungapped | - | - | 0.22 | 123.0 | 27.7 | 109.0 | 3410.0 | Uncoated | 0.287" (7.30mm) | 1.043" (26.50mm) | 0.748" (19.00mm) |
|
5695362321FERRITE CORE PS 95 SET |
153 |
|
Технический лист |
- | Bulk | Active | PS | - | 95 | - | - | ±25% | Ungapped | - | 3000 | 29.0 | 50.0 | 164.0 | - | 9780.0 | Uncoated | 0.429" (10.90mm) | - | - |
|
B64290A0048X830FERRITE CORE TOROID 5.46UH N30 |
122 |
|
Технический лист |
T34/20.5/12.5 | Box | Active | Toroid | R 34 x 20.5 x 12.5 | N30 | 1.339" (34.00mm) | 5.46 µH | ±25% | Ungapped | - | 4300 | 0.99 | 82.06 | 82.6 | - | 6778.0 | Uncoated | 0.492" (12.50mm) | - | - |
|
B65947A0000X022FERRITE CORE PS N22 |
116 |
|
Технический лист |
PS35/10.8 | Box | Active | PS | PS 35 x 10.8 | N22 | 1.378" (35.00mm) | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.425" (10.80mm) | - | - |
|
|
B65651D0160A048FERRITE CORE P 160NH N48 2PCS |
916 |
|
Технический лист |
P18/11 | Box | Active | P (Pot Core) | P 18 x 11 | N48 | 0.724" (18.40mm) | 160 nH | ±3% | Gapped | 77.0 | - | 0.6 | 25.9 | 43.0 | - | 1114.0 | Uncoated | 0.209" (5.30mm) | - | - |
|
ETD54/28/19-3C94FERRITE CORE ETD 3C94 |
943 |
|
Технический лист |
- | Bulk | Active | ETD | ETD 54 x 28 x 19 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.087" (27.60mm) | 2.156" (54.50mm) | 0.744" (18.90mm) |
|
|
B65671W0000R087FERRITE CORE P 5.5UH N87 2PCS |
701 |
|
Технический лист |
P26/16 | Box | Active | P (Pot Core) | P 26 x 16 | N87 | 1.024" (26.00mm) | 5.5 µH | -20%, +30% | Ungapped | 1620.0 | 2200 | 0.37 | 40.0 | 108.0 | 87.0 | 4320.0 | Uncoated | 0.321" (8.15mm) | - | - |
