Ферритовые сердечники
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип ядра | Устройство поставщика Упаковка | Материал | Диаметр | Коэффициент индуктивности (Al) | Допуск | Зазор | Эффективная проницаемость (µe) | Начальная проницаемость (µi) | Коэффициент сердечника (ΣI/A) мм⁻¹ | Эффективная длина (le) мм | Эффективная площадь (Ae) мм² | Минимальное поперечное сечение сердечника (Amin) мм² | Эффективная Магнитный объем (Ve) мм³ | Отделка | Высота | Длина | Ширина |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B65701W0000R030FERRITE CORE P 11.5UH N30 2PCS |
645 |
|
Технический лист |
P30/19 | Box | Active | P (Pot Core) | P 30 x 19 | N30 | 1.200" (30.50mm) | 11.5 µH | -20%, +30% | Ungapped | 2900.0 | 4300 | 0.32 | 46.0 | 145.0 | 117.0 | 6670.0 | Uncoated | 0.374" (9.50mm) | - | - |
|

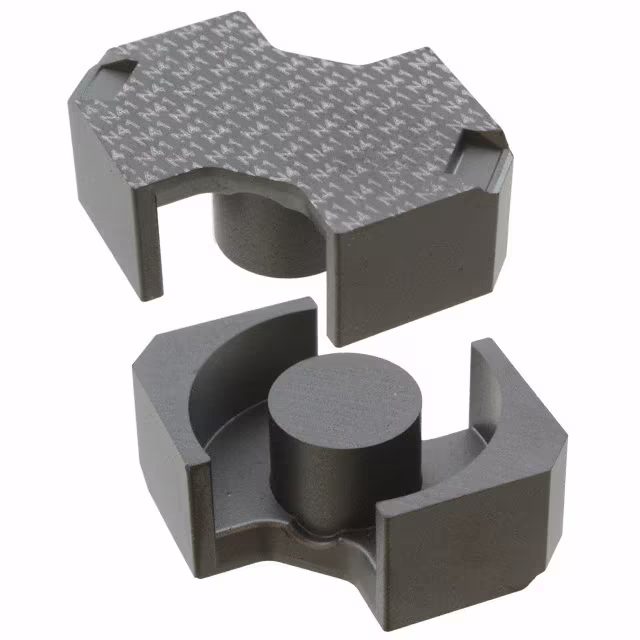

B65815E0000R041FERRITE CORE RM 6UH N41 2PCS |
347 |
|
Технический лист |
RM12 | Box | Active | RM | RM 12 | N41 | - | 6 µH | -20%, +30% | Ungapped | 1860.0 | 2800 | 0.39 | 57.0 | 146.0 | 125.0 | 8320.0 | Uncoated | 0.484" (12.30mm) | 1.480" (37.60mm) | 0.634" (16.10mm) |
|

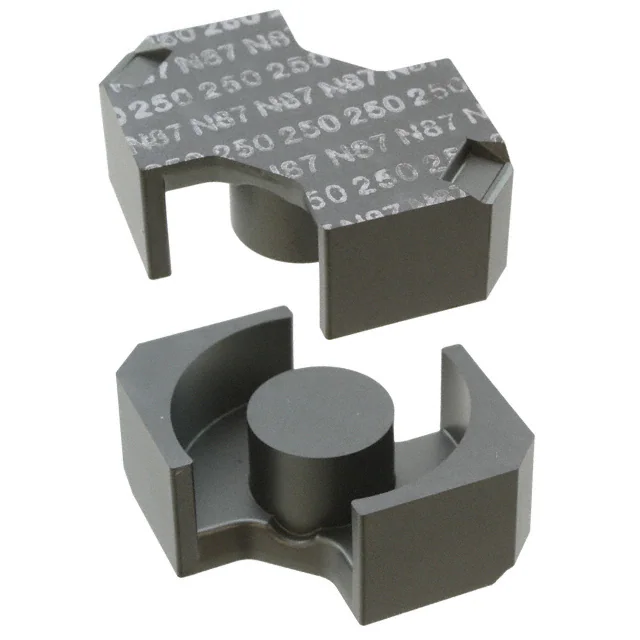

B65815E0250A087FERRITE CORE RM N87 2PCS |
591 |
|
Технический лист |
RM12 | Box | Active | RM | RM 12 | N87 | - | - | - | Gapped | - | - | 0.39 | 57.0 | 146.0 | - | 8320.0 | Uncoated | 0.484" (12.30mm) | 1.480" (37.60mm) | 0.634" (16.10mm) |
|
B64290L0668X087FERRITE CORE TOROID 3.87UH N87 |
165 |
|
Технический лист |
TX38/19/13 | Box | Active | Toroid | - | N87 | 1.551" (39.40mm) | 3.87 µH | ±25% | Ungapped | - | 2200 | 0.71 | 82.97 | 116.2 | - | 9644.0 | Epoxy | 0.543" (13.80mm) | - | - |
|

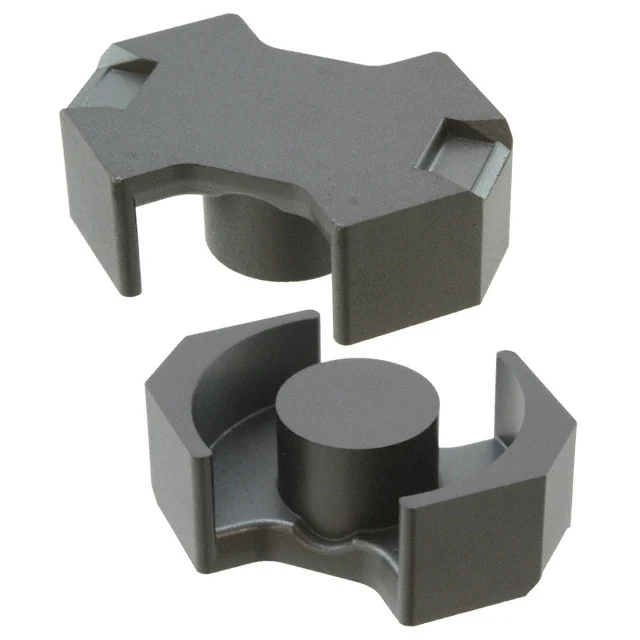

B65815E0160A087FERRITE CORE RM N87 |
407 |
|
Технический лист |
RM12 | Box | Active | RM | RM 12 | N87 | - | - | - | Gapped | - | 2200 | 0.39 | 57.0 | 146.0 | 125.0 | 8320.0 | Uncoated | 0.484" (12.30mm) | 1.480" (37.60mm) | 0.634" (16.10mm) |
|
B65815E0400J087FERRITE CORE RM N87 |
155 |
|
Технический лист |
RM12 | Box | Active | RM | RM 12 | N87 | - | - | - | Gapped | - | 2200 | 0.39 | 57.0 | 146.0 | 125.0 | 8320.0 | Uncoated | 0.484" (12.30mm) | 1.480" (37.60mm) | 0.634" (16.10mm) |
|
B65879A0000R097FERRITE CORE PQ 6.5UH N97 2PCS |
236 |
|
Технический лист |
PQ32/20 | Box | Active | PQ | PQ 32 x 20 | N97 | - | 6.5 µH | -20%, +30% | Ungapped | 1625.0 | 2300 | 0.314 | 48.4 | 154.2 | 127.5 | 7460.0 | Uncoated | 0.404" (10.25mm) | 1.260" (32.00mm) | 0.866" (22.00mm) |
|
TX42/26/13-3C90FERRITE CORE TOROID 3C90 |
861 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 42 x 26 x 13 | 3C90 | 1.697" (43.15mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.531" (13.50mm) | - | - |
|
|
TX40/24/16-3E10-MFERRITE CORE TOROID |
139 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 40 x 24 x 16 | - | 1.640" (41.65mm) | - | ±30% | Ungapped | 10000.0 | - | 0.769 | 96.3 | 125.0 | - | 12100.0 | Epoxy | 0.673" (17.10mm) | - | - |
|
B65811F0250A048FERRITE CORE RM 250NH N48 2PCS |
1,744 |
|
Технический лист |
RM8 | Bulk | Active | RM | RM 8 | N48 | - | 250 nH | ±3% | Gapped | 134.0 | - | 0.68 | 35.1 | 52.0 | - | 1825.0 | Uncoated | 0.324" (8.25mm) | 0.913" (23.20mm) | 0.433" (11.00mm) |
|
B66459G0000X197FERRITE CORE ELP N97 1PC |
657 |
|
Технический лист |
ELP38/8/25 | Box | Active | ELP | ELP 38 x 8 x 25 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.324" (8.25mm) | 1.500" (38.10mm) | 1.000" (25.40mm) |
_3C91.jpg)
|
P26/16-3F3FERRITE CORE P 4.6UH 3F3 2PC SET |
630 |
|
Технический лист |
- | Bulk | Active | P (Pot Core) | P 26 x 16 | 3F3 | 1.004" (25.50mm) | 4.6 µH | ±25% | Ungapped | 1470.0 | - | 0.4 | 37.6 | 93.9 | 77.4 | 3530.0 | Uncoated | 0.634" (16.10mm) | - | - |
|
B66335G2000X187FERRITE CORE E N87 1PC |
369 |
|
Технический лист |
E55/28/21 | Box | Active | E | E 55 x 28 x 21 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 1.094" (27.80mm) | 2.165" (55.00mm) | 0.827" (21.00mm) |
|
|
TX40/24/16-3E27FERRITE CORE TOROID 3E+27 |
754 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 40 x 24 x 16 | 3E27 | 1.640" (41.65mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.673" (17.10mm) | - | - |
|
E55/28/25-3C94FERRITE CORE E 3C94 |
419 |
|
Технический лист |
- | Bulk | Active | E | E 55 x 28 x 25 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.083" (27.50mm) | 2.213" (56.20mm) | 0.984" (25.00mm) |
|

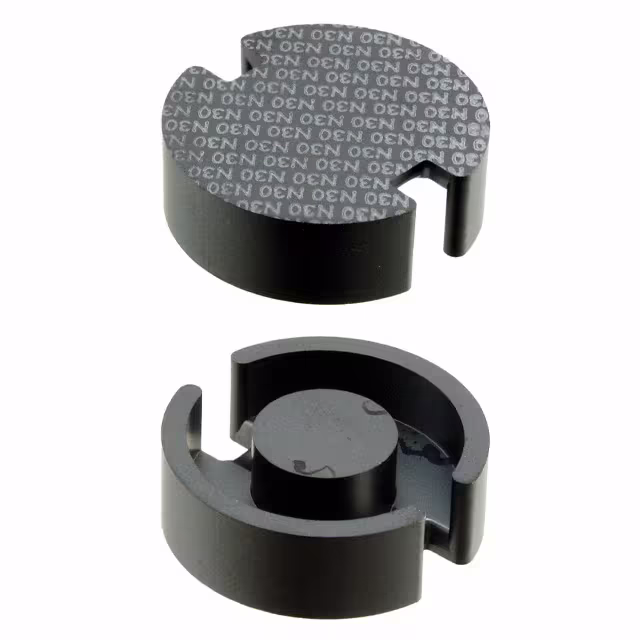

B65671W0000R030FERRITE CORE P 9.7UH N30 2PCS |
750 |
|
Технический лист |
P26/16 | Box | Active | P (Pot Core) | P 26 x 16 | N30 | 1.024" (26.00mm) | 9.7 µH | -20%, +30% | Ungapped | 2860.0 | 4300 | 0.37 | 40.0 | 108.0 | 87.0 | 4320.0 | Uncoated | 0.321" (8.15mm) | - | - |
|
B66335Q0250K187FERRITE CORE E 250NH N87 |
276 |
|
Технический лист |
E55/28/21 | Bulk | Active | E | E 55 x 28 x 21 | N87 | - | 250 nH | ±10% | Distributed Gapped | - | - | 0.35 | 124.0 | 354.0 | 351.0 | 43900.0 | Uncoated | 0.827" (21.00mm) | 2.165" (55.00mm) | 1.094" (27.80mm) |
|
B65879Q0100K097FERRITE CORE PQ 100NH N95 2=1PCS |
267 |
|
Технический лист |
PQ32/30 | Bulk | Active | PQ | - | N95 | - | 100 nH | ±10% | Distributed Gapped | - | - | 0.441 | 67.8 | 153.8 | 127.5 | 10440.0 | Uncoated | 0.598" (15.19mm) | 1.102" (28.00mm) | 0.886" (22.50mm) |
|
|
B65671D0400A048FERRITE CORE P 400NH N48 2PCS |
700 |
|
Технический лист |
P26/16 | Box | Active | P (Pot Core) | P 26 x 16 | N48 | 1.024" (26.00mm) | 400 nH | ±3% | Gapped | 127.0 | - | 0.4 | 37.2 | 93.0 | 76.5 | 3460.0 | Uncoated | 0.321" (8.15mm) | - | - |
|
B64290L0674X065FERRITE CORE TOROID 6.8UH T65 |
522 |
|
Технический лист |
TX36/23/15 | Box | Active | Toroid | - | T65 | 1.476" (37.50mm) | 6.8 µH | ±30% | Ungapped | - | 5000 | 0.94 | 89.65 | 95.89 | - | 8597.0 | Epoxy | 0.638" (16.20mm) | - | - |
