Ферритовые сердечники
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип ядра | Устройство поставщика Упаковка | Материал | Диаметр | Коэффициент индуктивности (Al) | Допуск | Зазор | Эффективная проницаемость (µe) | Начальная проницаемость (µi) | Коэффициент сердечника (ΣI/A) мм⁻¹ | Эффективная длина (le) мм | Эффективная площадь (Ae) мм² | Минимальное поперечное сечение сердечника (Amin) мм² | Эффективная Магнитный объем (Ve) мм³ | Отделка | Высота | Длина | Ширина |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B66363G0500X127FERRITE CORE ETD N27 1PC |
599 |
|
Технический лист |
ETD39/20/13 | Box | Active | ETD | ETD 39 x 20 x 13 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.787" (20.00mm) | 1.531" (38.90mm) | 0.504" (12.80mm) |
|
B65807J0250A087FERRITE CORE RM 250NH N87 2PCS |
840 |
|
Технический лист |
RM6 | Box | Active | RM | RM 6 | N87 | - | 250 nH | ±3% | Gapped | 155.0 | - | 0.78 | 28.6 | 36.6 | 31.0 | 1050.0 | Uncoated | 0.246" (6.25mm) | 0.701" (17.90mm) | 0.323" (8.20mm) |
|

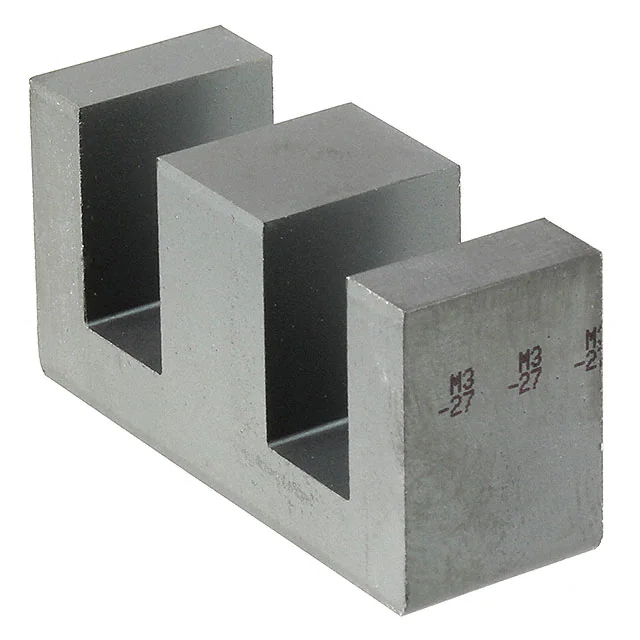

B66325G0000X127FERRITE CORE E N27 1PC |
723 |
|
Технический лист |
E42/21/15 | Box | Active | E | E 42 x 21 x 15 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.835" (21.20mm) | 1.654" (42.00mm) | 0.598" (15.20mm) |
|
P14/8-3D3FERRITE CORE P 1UH 2PC SET |
1,903 |
|
Технический лист |
- | Bulk | Active | P (Pot Core) | P 14 x 8 | - | 0.563" (14.30mm) | 1 µH | ±25% | Ungapped | 630.0 | - | 0.789 | 19.8 | 25.1 | 19.8 | 495.0 | Uncoated | 0.165" (4.20mm) | - | - |
|
B65541D0000R033FERRITE CORE P 970NH M33 2PCS |
732 |
|
Технический лист |
P14/8 | Box | Active | P (Pot Core) | P 14 x 8 | M33 | 0.563" (14.30mm) | 970 nH | -20%, +30% | Ungapped | 618.0 | 750 | 0.8 | 20.0 | 25.0 | 20.0 | 500.0 | Uncoated | 0.167" (4.25mm) | - | - |
|
B66484K0000X197FERRITE CORE I N97 1PC |
958 |
|
Технический лист |
I25/3/15 | Box | Active | I | I 25 x 3 x 15 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.098" (2.50mm) | 0.984" (25.00mm) | 0.583" (14.80mm) |
|
|
HF90T28X13X16FERRITE CORE TOROID |
864 |
|
Технический лист |
T | Tray | Active | Toroid | - | - | 1.102" (28.00mm) | - | - | Ungapped | - | 5000 | - | - | - | - | - | Epoxy | 0.512" (13.00mm) | - | - |
|
5980001001FERRITE CORE TOROID 350NH |
383 |
|
Технический лист |
HF | Bulk | Active | Toroid | - | - | - | 350 nH | ±25% | Ungapped | - | 550 | 198.0 | 73.0 | 37.0 | - | 2700.0 | Uncoated | 0.295" (7.49mm) | - | - |
|
PQ32/15-3C95FERRITE CORE PQ 3C95 2PC SET |
249 |
|
Технический лист |
- | Bulk | Active | PQ | PQ 32 x 15 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.591" (15.00mm) | 1.299" (33.00mm) | 0.866" (22.00mm) |
|

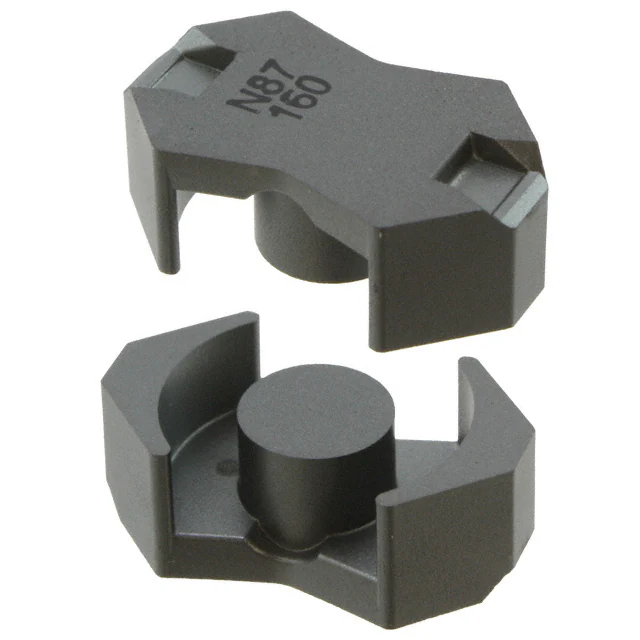

B65807J0160A087FERRITE CORE RM 160NH N87 2PCS |
725 |
|
Технический лист |
RM6 | Box | Active | RM | RM 6 | N87 | - | 160 nH | ±3% | Gapped | 99.0 | - | 0.78 | 28.6 | 36.6 | 31.0 | 1050.0 | Uncoated | 0.246" (6.25mm) | 0.701" (17.90mm) | 0.323" (8.20mm) |
|
|
B66484K0000X192FERRITE CORE I N92 1PC |
408 |
|
Технический лист |
I25/3/15 | Box | Active | I | I 25 x 3 x 15 | N92 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.098" (2.50mm) | 0.984" (25.00mm) | 0.583" (14.80mm) |
|
B66365G0000X127FERRITE CORE ETD N27 1PC |
237 |
|
Технический лист |
ETD44/22/15 | Box | Active | ETD | ETD 44 x 22 x 15 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.886" (22.50mm) | 1.724" (43.80mm) | 0.598" (15.20mm) |
|
PLT38/25/3.8-3F4FERRITE CORE PLT 3F4 |
750 |
|
Технический лист |
- | Bulk | Active | PLT | PLT 38 x 25 x 3.8 | 3F4 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.150" (3.81mm) | 1.500" (38.10mm) | 1.000" (25.40mm) |
|
B66481G0000X197FERRITE CORE EQ N97 1PC |
417 |
|
Технический лист |
EQ25/6/18 | Box | Active | EQ | EQ 25 x 6 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.220" (5.60mm) | 0.984" (25.00mm) | 0.709" (18.00mm) |
|
B66481G0000X608FERRITE CORE PCS200 |
2,369 |
|
Технический лист |
EQ25/6/18 | Bulk | Active | - | - | PC200 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TX26/15/20-3C90FERRITE CORE TOROID 3C90 |
533 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 26 x 15 x 10 | 3C90 | 1.061" (26.95mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.827" (21.00mm) | - | - |
|
|
TX29/19/7.6-3C94FERRITE CORE TOROID 3C94 |
325 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 29 x 19 x 7.6 | 3C94 | 0.640" (16.25mm) | - | ±25% | Ungapped | 2300.0 | - | 2.06 | 73.2 | 35.5 | - | 2600.0 | Epoxy | 0.258" (6.55mm) | - | - |
|
|
PLT43/28/4.1-3F4FERRITE CORE PLT 3F4 |
1,570 |
|
Технический лист |
- | Bulk | Active | PLT | PLT 43 x 28 x 4.1 | 3F4 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.161" (4.10mm) | 1.700" (43.20mm) | 1.098" (27.90mm) |
|
TX36/23/10-3C90FERRITE CORE TOROID 3C90 |
268 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 36 x 23 x 10 | 3C90 | 1.463" (37.15mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.430" (10.92mm) | - | - |
|
P18/11/I-3F46FERRITE CORE P 3F46 2PC SET |
158 |
|
Технический лист |
- | Bulk | Active | P (Pot Core) | P 18 x 11 | 3F46 | 0.701" (17.90mm) | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.417" (10.60mm) | - | - |
