Ферритовые сердечники
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип ядра | Устройство поставщика Упаковка | Материал | Диаметр | Коэффициент индуктивности (Al) | Допуск | Зазор | Эффективная проницаемость (µe) | Начальная проницаемость (µi) | Коэффициент сердечника (ΣI/A) мм⁻¹ | Эффективная длина (le) мм | Эффективная площадь (Ae) мм² | Минимальное поперечное сечение сердечника (Amin) мм² | Эффективная Магнитный объем (Ve) мм³ | Отделка | Высота | Длина | Ширина |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B66285G0000X149FERRITE CORE ELP N49 1PC |
1,200 |
|
Технический лист |
ELP22/6/16 | Box | Active | ELP | ELP 22 x 6 x 16 | N49 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.224" (5.70mm) | 0.858" (21.80mm) | 0.622" (15.80mm) |
|
0P42616UGFERRITE CORE P 5.667UH P |
693 |
|
Технический лист |
- | Bulk | Active | P | - | P | 1.004" (25.50mm) | 5.667 µH | - | Ungapped | - | 2500 | - | 37.6 | 93.9 | - | 3530.0 | Coated | 0.317" (8.05mm) | - | - |
|
B66482K0000X149FERRITE CORE I N49 1PC |
606 |
|
Технический лист |
I23/2/13 | Box | Active | I | I 23 x 2 x 13 | N49 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.083" (2.10mm) | 0.913" (23.20mm) | 0.492" (12.50mm) |
|
PC95EI22/8/16-ZFERRITE COR HE 8.01UH PCS95 1SET |
263 |
|
Технический лист |
Planar | Tray | Active | HE, PLT | EI 22 x 8 x 16 | PC95 | - | 8.01 µH | ±25% | Ungapped | - | - | 0.33 | 79.0 | 26.1 | 79.0 | 2060.0 | Uncoated | 0.315" (8.00mm) | 0.858" (21.80mm) | 0.622" (15.80mm) |
|
B66482G0000X149FERRITE CORE ER N49 1PC |
655 |
|
Технический лист |
ER23/5/13 | Box | Active | ER | ER 23 x 5 x 13 | N49 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.201" (5.10mm) | 0.913" (23.20mm) | 0.492" (12.50mm) |
|
9277010002FERRITE CORE U 77 |
636 |
|
Технический лист |
- | Bulk | Active | U | - | 77 | - | - | - | Ungapped | - | 2000 | 118.0 | 116.0 | 98.0 | - | 11300.0 | Uncoated | 0.812" (20.63mm) | 1.620" (41.15mm) | 0.460" (11.68mm) |
|
TX36/23/15-3C94FERRITE CORE TOROID 3C94 |
213 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 36 x 23 x 15 | 3C94 | 1.463" (37.15mm) | - | ±25% | Ungapped | 2300.0 | - | 0.919 | 89.7 | 97.5 | - | 8740.0 | Epoxy | 0.630" (16.00mm) | - | - |
|
B65531D0063A033FERRITE CORE P 63NH M33 2PCS |
1,273 |
|
Технический лист |
P11/7 | Box | Active | P (Pot Core) | P 11 x 7 | M33 | 0.445" (11.30mm) | 63 nH | ±3% | Gapped | 50.0 | 750 | 1.0 | 15.9 | 15.9 | - | 253.0 | Uncoated | 0.130" (3.30mm) | - | - |
|
B66457G0000X187FERRITE CORE ELP N87 1PC |
1,208 |
|
Технический лист |
ELP32/6/20 | Box | Active | ELP | ELP 32 x 6 x 20 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.250" (6.35mm) | 1.250" (31.75mm) | 0.801" (20.35mm) |
|
TX29/19/15-3C94FERRITE CORE TOROID 3C94 |
197 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 29 x 19 x 15 | 3C94 | 1.179" (29.95mm) | - | ±25% | Ungapped | 2300.0 | - | 0.98 | 73.2 | 73.9 | - | 5410.0 | Epoxy | 0.632" (16.05mm) | - | - |
|
B65805J0160A087FERRITE CORE RM 160NH N87 2PCS |
1,885 |
|
Технический лист |
RM5 | Box | Active | RM | RM 5 | N87 | - | 160 nH | ±3% | Gapped | 118.0 | - | 0.93 | 22.1 | 23.8 | 18.0 | 526.0 | Uncoated | 0.207" (5.25mm) | 0.575" (14.60mm) | 0.268" (6.80mm) |
|

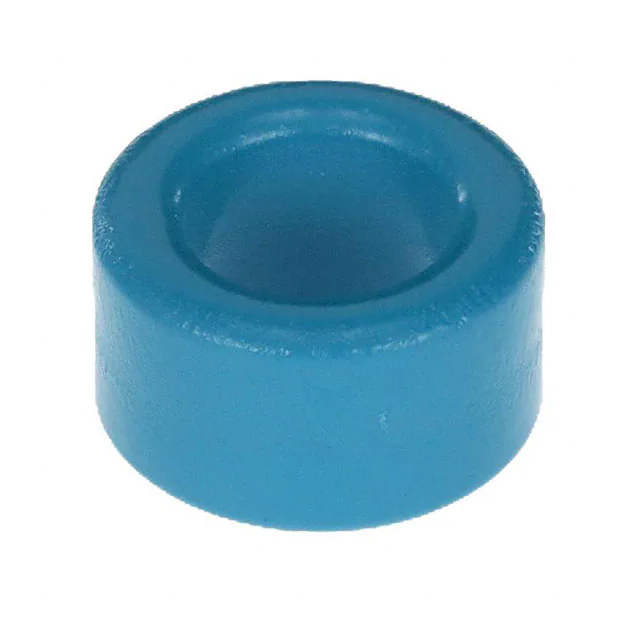

B64290L0651X065FERRITE CORE TOROID 6.2UH T65 |
730 |
|
Технический лист |
TX22/14/13 | Box | Active | Toroid | - | T65 | 0.917" (23.30mm) | 6.2 µH | ±30% | Ungapped | - | 5200 | 1.05 | 54.15 | 51.15 | - | 2789.0 | Epoxy | 0.543" (13.80mm) | - | - |
|
PC95EL22X8-ZFERRITE CORE EL 6.54UH PCS95 2PC |
149 |
|
Технический лист |
Planar | Tray | Active | EL | EL 22 x 8 | PC95 | - | 6.54 µH | ±25% | Ungapped | - | - | 0.41 | 66.2 | 27.3 | 64.2 | 1810.0 | Uncoated | 0.158" (4.02mm) | 0.866" (22.00mm) | 0.693" (17.60mm) |
|
B65807J0000R049FERRITE CORE RM 1.7UH N49 2PCS |
2,367 |
|
Технический лист |
RM6 | Box | Active | RM | RM 6 | N49 | - | 1.7 µH | -20%, +30% | Ungapped | 1060.0 | 1500 | 0.78 | 28.6 | 36.6 | 31.0 | 1050.0 | Uncoated | 0.246" (6.25mm) | 0.701" (17.90mm) | 0.323" (8.20mm) |
|
|
B65807J0000R097FERRITE CORE RM 2.4UH N97 2PCS |
2,923 |
|
Технический лист |
RM6 | Box | Active | RM | RM 6 | N97 | - | 2.4 µH | -20%, +30% | Ungapped | 1490.0 | 2300 | 0.78 | 28.6 | 36.6 | 31.0 | 1050.0 | Uncoated | 0.246" (6.25mm) | 0.701" (17.90mm) | 0.323" (8.20mm) |
|
B64290L0048X065FERRITE CORE TOROID 6.4UH T65 |
1,686 |
|
Технический лист |
TX34/20.5/12.5 | Box | Active | Toroid | - | T65 | 1.397" (35.50mm) | 6.4 µH | ±30% | Ungapped | - | 5000 | 0.99 | 82.06 | 82.6 | - | 6778.0 | Epoxy | 0.535" (13.60mm) | - | - |
|

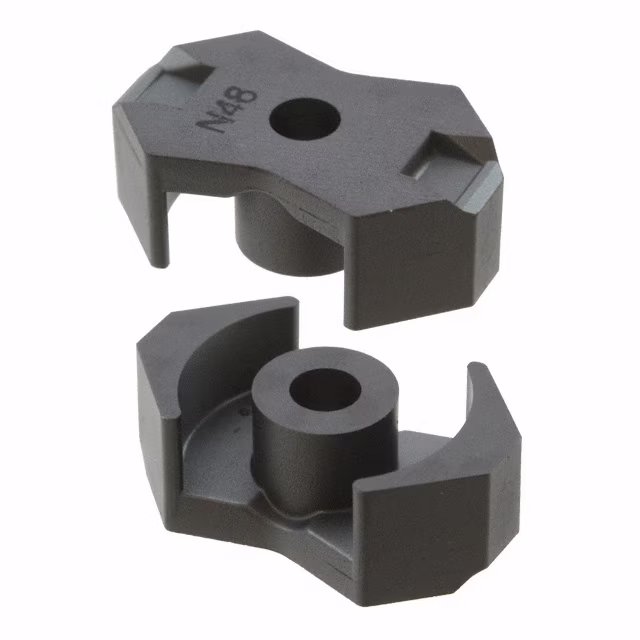

B65807C0000R048FERRITE CORE RM 2.2UH N48 2PCS |
1,473 |
|
Технический лист |
RM6 | Box | Active | RM | RM 6 | N48 | - | 2.2 µH | -20%, +30% | Ungapped | 1500.0 | - | 0.86 | 26.9 | 31.3 | - | 840.0 | Uncoated | 0.246" (6.25mm) | 0.701" (17.90mm) | 0.323" (8.20mm) |
|
B66501G0000X187FERRITE CORE ER N87 1PC |
9,245 |
|
Технический лист |
ER32/5/21 | Tray | Active | ER | ER 32 x 5 x 21 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.201" (5.10mm) | 1.260" (32.00mm) | 0.827" (21.00mm) |
|

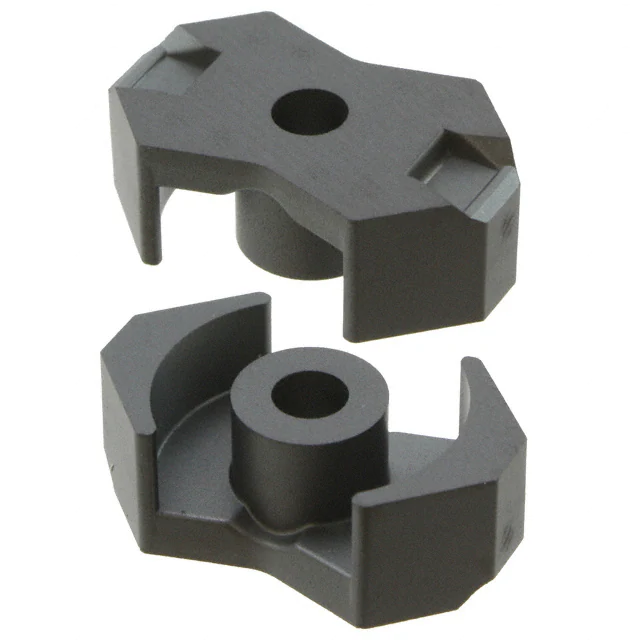

B65807C0250A048FERRITE CORE RM 250NH N48 2PCS |
1,542 |
|
Технический лист |
RM6 | Cut Tape (CT) | Active | RM | RM 6 | N48 | - | 250 nH | ±3% | Gapped | 171.0 | - | 0.86 | 26.9 | 31.3 | - | 840.0 | Uncoated | 0.246" (6.25mm) | 0.701" (17.90mm) | 0.323" (8.20mm) |
|
TX25/15/13-3E12FERRITE CORE TOROID |
212 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 25 x 15 x 13 | - | 1.007" (25.95mm) | - | ±30% | Ungapped | 12000.0 | - | 0.97 | 60.1 | 62.1 | - | 3740.0 | Epoxy | 0.539" (13.70mm) | - | - |
