Ферритовые сердечники
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип ядра | Устройство поставщика Упаковка | Материал | Диаметр | Коэффициент индуктивности (Al) | Допуск | Зазор | Эффективная проницаемость (µe) | Начальная проницаемость (µi) | Коэффициент сердечника (ΣI/A) мм⁻¹ | Эффективная длина (le) мм | Эффективная площадь (Ae) мм² | Минимальное поперечное сечение сердечника (Amin) мм² | Эффективная Магнитный объем (Ve) мм³ | Отделка | Высота | Длина | Ширина |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TX26/15/10-3E10-MFERRITE CORE TOROID |
578 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 26 x 15 x 10 | - | 1.061" (26.95mm) | - | ±30% | Ungapped | 10000.0 | - | 1.08 | 60.1 | 55.9 | - | 3360.0 | Epoxy | 0.429" (10.90mm) | - | - |
|
B66479G0000X197FERRITE CORE EQ N97 1PC |
3,035 |
|
Технический лист |
EQ13/9/3 | Box | Active | EQ | EQ 13 x 3 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.112" (2.85mm) | 0.504" (12.80mm) | 0.343" (8.70mm) |
|
B66285K0000X149FERRITE CORE I N49 |
227 |
|
Технический лист |
I22/2.5/16 | Tray | Active | I | I 22 x 2.5 x 16 | N49 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.098" (2.50mm) | 0.858" (21.80mm) | 0.622" (15.80mm) |
|
B65807J0400A087FERRITE CORE RM N87 |
1,645 |
|
Технический лист |
RM6 | Cut Tape (CT) | Active | RM | RM 6 | N87 | - | - | - | Gapped | - | 2200 | 0.78 | 28.6 | 36.6 | 31.0 | 1050.0 | Uncoated | 0.246" (6.25mm) | 0.701" (17.90mm) | 0.323" (8.20mm) |
|
TX25/15/10-3E12FERRITE CORE TOROID |
2,804 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 25 x 15 x 10 | - | 1.007" (25.95mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.429" (10.90mm) | - | - |
|
|
TX25/15/10-3C94FERRITE CORE TOROID 3C94 |
915 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 25 x 15 x 10 | 3C94 | 1.007" (25.95mm) | - | ±25% | Ungapped | 2300.0 | - | 1.23 | 60.2 | 48.9 | - | 2944.0 | Epoxy | 0.429" (10.90mm) | - | - |
|
5975005121FERRITE CORE TOROID 2.35UH 75 |
527 |
|
Технический лист |
- | Bulk | Active | Toroid | - | 75 | 0.665" (16.90mm) | 2.35 µH | -25%, +20% | Ungapped | - | 5000 | 2.6 | 38.5 | 14.5 | - | 560.0 | Plastic | 0.207" (5.25mm) | - | - |
|
|
HF90T22X10X14FERRITE CORE TOROID |
573 |
|
Технический лист |
T | Tray | Active | Toroid | - | - | 0.866" (22.00mm) | - | - | Ungapped | - | 5000 | - | - | - | - | - | Epoxy | 0.394" (10.00mm) | - | - |
|
PC95ER18/5/12-ZFERRITE CORE ER 3.5UH PCS95 2PC |
437 |
|
Технический лист |
Planar | Tray | Active | ER | ER 18 x 5 x 12 | PC95 | - | 3.5 µH | ±25% | Ungapped | - | - | 0.6 | 32.8 | 19.7 | 28.3 | 645.0 | Uncoated | 0.098" (2.50mm) | 0.715" (18.15mm) | 0.472" (12.00mm) |
|

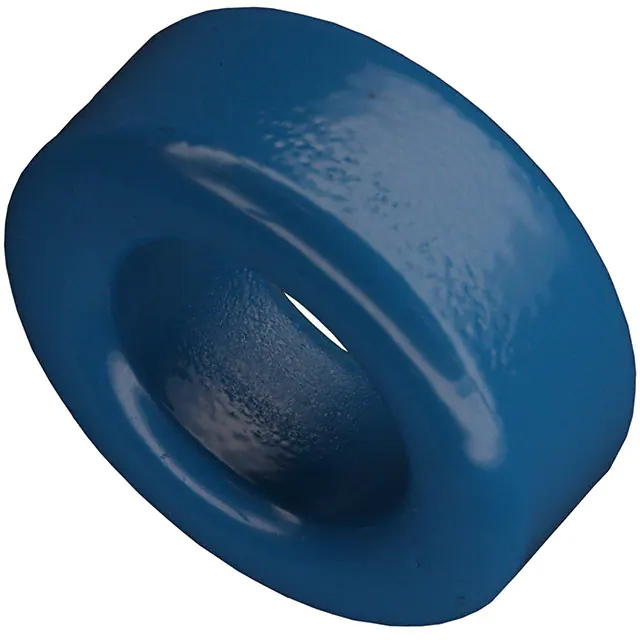

B64290L0618X037FERRITE CORE TOROID 6.97UH T37 |
2,448 |
|
Технический лист |
TX25.3/14.8/10 | Bulk | Active | Toroid | - | T37 | 1.047" (26.60mm) | 6.97 µH | ±25% | Ungapped | - | 6500 | 1.17 | 60.07 | 51.26 | - | 3079.0 | Epoxy | 0.433" (11.00mm) | - | - |
|

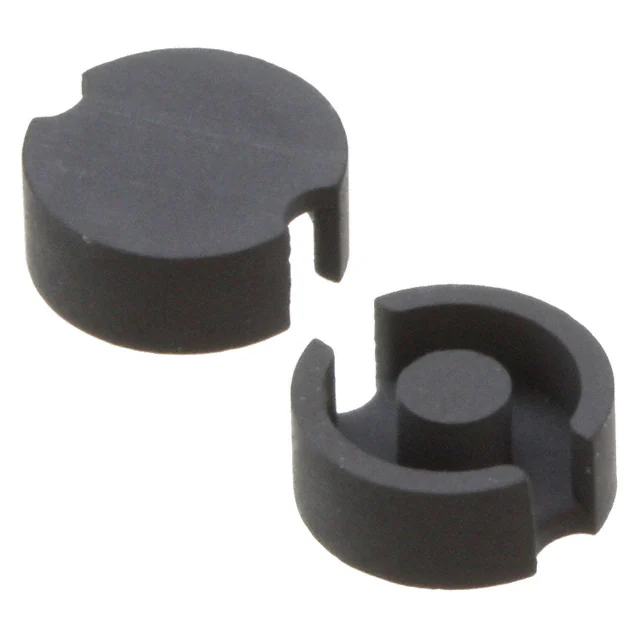

B65491C0000Y030FERRITE CORE P 500NH N30 2PCS |
249 |
|
Технический лист |
P3.3/2.6 | Box | Active | P (Pot Core) | P 3.3 x 2.6 | N30 | 0.132" (3.35mm) | 500 nH | -30%, +40% | Ungapped | 1480.0 | 4300 | 3.72 | 5.1 | 1.37 | - | 7.0 | Uncoated | 0.051" (1.29mm) | - | - |
|

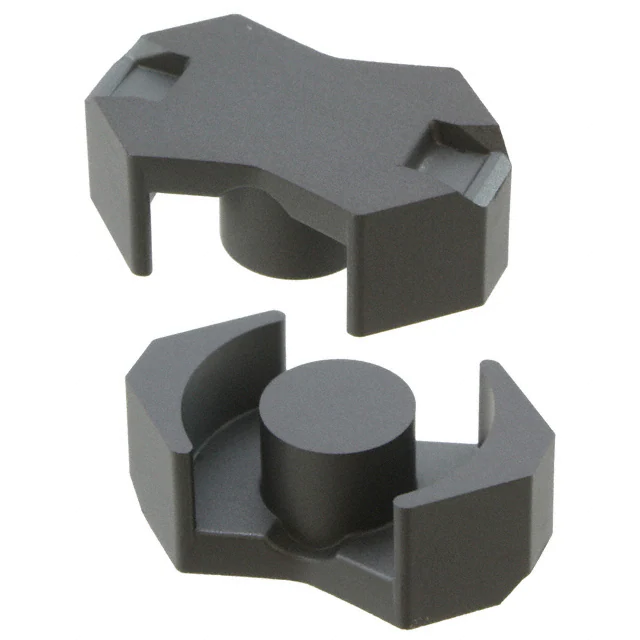

B65819J0000R030FERRITE CORE RM 5UH N30 2PCS |
244 |
|
Технический лист |
RM7 | Box | Active | RM | RM 7 | N30 | - | 5 µH | -20%, +30% | Ungapped | 2810.0 | 4300 | 0.7 | 30.4 | 43.0 | 39.0 | 1310.0 | Uncoated | 0.265" (6.75mm) | 0.799" (20.30mm) | - |
|
|
B66285K0000X197FERRITE CORE I N97 |
864 |
|
Технический лист |
I22/2.5/16 | Tray | Active | I | I 22 x 2.5 x 16 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.098" (2.50mm) | 0.858" (21.80mm) | 0.622" (15.80mm) |
|
B66389G0000X187FERRITE CORE E N87 1PC |
1,633 |
|
Технический лист |
E36/18/11 | Box | Active | E | E 36 x 18 x 11 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.709" (18.00mm) | 1.417" (36.00mm) | 0.453" (11.50mm) |
|
B66482G0000X197FERRITE CORE ER N97 1PC |
1,193 |
|
Технический лист |
ER23/5/13 | Box | Active | ER | ER 23 x 5 x 13 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.201" (5.10mm) | 0.913" (23.20mm) | 0.492" (12.50mm) |
|
HF60T22X10X14FERRITE CORE TOROID |
477 |
|
Технический лист |
T | Tray | Active | Toroid | - | - | 0.866" (22.00mm) | - | - | Ungapped | - | 1600 | - | - | - | - | - | Epoxy | 0.394" (10.00mm) | - | - |
|

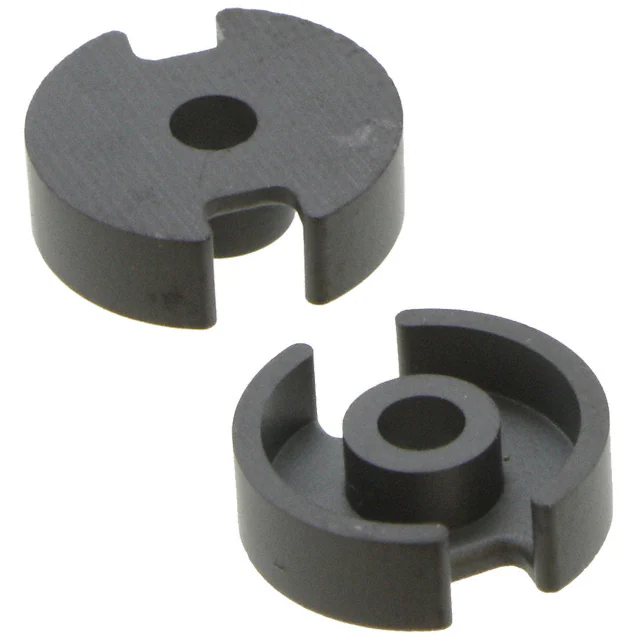

B65517D0000R048FERRITE CORE P 1.3UH N48 2PCS |
3,686 |
|
Технический лист |
P9/5 | Box | Active | P (Pot Core) | P 9 x 5 | N48 | 0.366" (9.30mm) | 1.3 µH | -20%, +30% | Ungapped | 1290.0 | - | 1.25 | 12.5 | 10.0 | - | 125.0 | Uncoated | 0.106" (2.70mm) | - | - |
|
PC95EL18X7.3-ZFERRITE CORE EL 4.76UH PCS95 2PC |
1,794 |
|
Технический лист |
Planar | Tray | Active | EL | EL 18 x 7.3 | PC95 | - | 4.76 µH | ±25% | Ungapped | - | - | 0.54 | 44.3 | 23.8 | 43.0 | 1050.0 | Uncoated | 0.144" (3.65mm) | 0.709" (18.00mm) | 0.567" (14.40mm) |
|
B65805J0000R608FERRITE CORE RM PC200 1=2PC |
1,573 |
|
Технический лист |
RM5 | Bulk | Active | RM | RM 5 | PC200 | - | - | -20%, +30% | Ungapped | 590.0 | 800 | 0.93 | 22.1 | 23.8 | 18.0 | 526.0 | Uncoated | 0.413" (10.50mm) | 0.575" (14.60mm) | 0.268" (6.80mm) |
|
|
TX26/15/10-3C94FERRITE CORE TOROID 3C94 |
168 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 26 x 15 x 10 | 3C94 | 1.061" (26.95mm) | - | ±25% | Ungapped | 2300.0 | - | 1.08 | 60.1 | 55.9 | - | 3360.0 | Epoxy | 0.429" (10.90mm) | - | - |
