Ферритовые сердечники
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип ядра | Устройство поставщика Упаковка | Материал | Диаметр | Коэффициент индуктивности (Al) | Допуск | Зазор | Эффективная проницаемость (µe) | Начальная проницаемость (µi) | Коэффициент сердечника (ΣI/A) мм⁻¹ | Эффективная длина (le) мм | Эффективная площадь (Ae) мм² | Минимальное поперечное сечение сердечника (Amin) мм² | Эффективная Магнитный объем (Ve) мм³ | Отделка | Высота | Длина | Ширина |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0058726A2FERRITE CORE TOROID 175NH HI FLX |
77 |
|
Технический лист |
- | Bulk | Active | Toroid | - | High Flux | 2.028" (51.51mm) | 175 nH | ±8% | Ungapped | - | 60 | - | 113.5 | 262.0 | - | 29700.0 | Coated | 0.850" (21.59mm) | - | - |
|
|
B64290A0730X010FERRITE CORE TOROID 900NH K10 |
19 |
|
Технический лист |
T87/54.3/13.5 | Box | Active | Toroid | R 87 x 54.3 x 13.5 | K10 | 3.425" (87.00mm) | 900 nH | ±25% | Ungapped | - | 700 | 0.99 | 213.9 | 216.7 | - | 46360.0 | Uncoated | 0.531" (13.50mm) | - | - |
|
|
MACC0125FERRITE CORE U AMORPHOUS |
23 |
|
Технический лист |
- | Bulk | Active | U | - | Amorphous | - | - | - | Ungapped | - | - | - | 64.3 | 610.0 | - | - | Uncoated | 2.402" (61.00mm) | 2.500" (63.50mm) | 1.378" (35.00mm) |
|

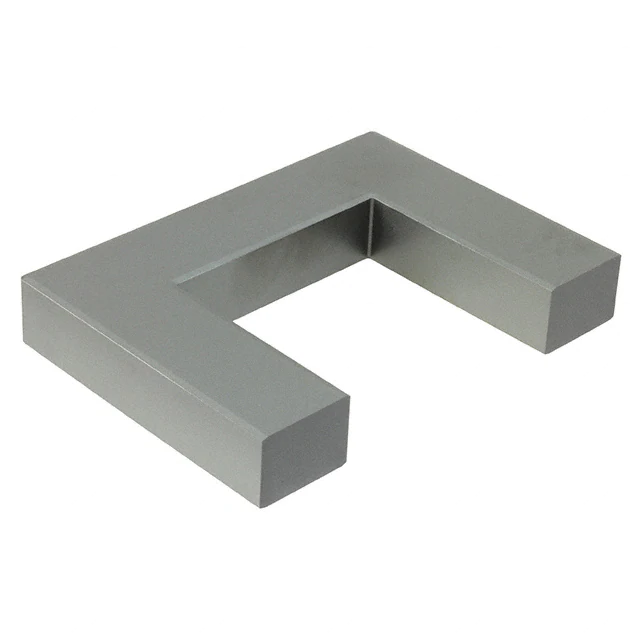

B67385G0000X187FERRITE CORE U N87 1PC |
12 |
|
Технический лист |
U126/91/20 | Box | Active | U | U 126 x 91 x 20 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 3.583" (91.00mm) | 4.961" (126.00mm) | 0.787" (20.00mm) |
|
PM87/70-3C94FERRITE CORE PM 3C94 2PC SET |
17 |
|
Технический лист |
- | Bulk | Active | PM | PM 87 x 70 | 3C94 | 3.425" (87.00mm) | - | - | - | - | - | - | - | - | - | - | Uncoated | 2.756" (70.00mm) | - | - |
|
|
TX140/106/25-3C94FERRITE CORE TOROID 3C94 |
12 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 140 x 106 x 25 | 3C94 | 5.528" (140.40mm) | - | ±20% | Ungapped | - | 2300 | 0.903 | 382.0 | 422.0 | - | 161100.0 | Epoxy | 0.996" (25.30mm) | - | - |
|
|
B64290A0705X010FERRITE CORE TOROID 1.1UH K10 |
10 |
|
Технический лист |
T140/103/25 | Box | Active | Toroid | R 140 x 103 x 25 | K10 | 5.512" (140.00mm) | 1.1 µH | ±25% | Ungapped | - | 700 | 0.82 | 375.8 | 458.9 | - | 172440.0 | Uncoated | 0.984" (25.00mm) | - | - |
|

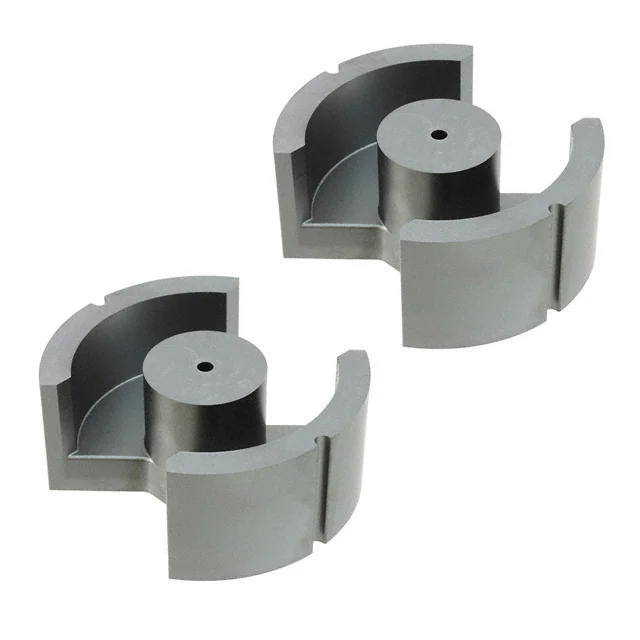

B65733A0000R087FERRITE CORE PM 16UH N87 2PCS |
9 |
|
Технический лист |
PM114/93 | Box | Active | PM | PM 114 x 93 | N87 | 4.488" (114.00mm) | 16 µH | -20%, +30% | Ungapped | 1480.0 | 2200 | 0.116 | 200.0 | 1720.0 | 1380.0 | 344000.0 | Uncoated | 1.831" (46.50mm) | - | - |
|
|
B65733A0630A027FERRITE CORE PM 630NH N27 2PCS |
11 |
|
Технический лист |
PM114/93 | Box | Active | PM | PM 114 x 93 | N27 | 4.488" (114.00mm) | 630 nH | ±3% | Gapped | 58.0 | 2000 | 0.116 | 200.0 | 1720.0 | 1380.0 | 344000.0 | Uncoated | 1.831" (46.50mm) | - | - |
|
5977000221FERRITE CORE TOROID 945NH 77 |
167 |
|
Технический лист |
- | Bag | Active | Toroid | - | 77 | 0.402" (10.20mm) | 945 nH | -30%, +25% | Ungapped | - | 2000 | 2.86 | 20.7 | 7.2 | - | 150.0 | Plastic | 0.150" (3.81mm) | - | - |
|
B64290L0038X037FERRITE CORE TOROID 2.66UH T37 |
414 |
|
Технический лист |
TX10/6/4 | Box | Active | Toroid | - | T37 | 0.425" (10.80mm) | 2.66 µH | ±25% | Ungapped | - | 6500 | 3.07 | 24.07 | 7.83 | - | 188.0 | Epoxy | 0.187" (4.75mm) | - | - |
|
B66453K0000X192FERRITE CORE I N92 |
539 |
|
Технический лист |
I18/2/10 | Tray | Active | I | I 18 x 2 x 10 | N92 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.079" (2.00mm) | 0.709" (18.00mm) | 0.394" (10.00mm) |
|
H5C2ER9.5/5-ZFERRITE CORE ER H5C2 2PC SET |
205 |
|
Технический лист |
- | Tray | Active | ER | ER 9.5 x 5 | H5C2 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.197" (5.00mm) | 0.374" (9.50mm) | 0.197" (5.00mm) |
|
B66307G0500X127FERRITE CORE E N27 1PC |
123 |
|
Технический лист |
E16/8/5 | Box | Active | E | E 16 x 8 x 5 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.323" (8.20mm) | 0.630" (16.00mm) | 0.185" (4.70mm) |
|
PC40EER40-ZFERRITE CORE EER PCS40 2PC SET |
41 |
|
Технический лист |
- | Tray | Active | EER | EER 40 | PC40 | - | - | ±25% | Gapped | - | - | 0.658 | 98.0 | 149.0 | - | 14600.0 | Uncoated | 0.882" (22.40mm) | 1.575" (40.00mm) | 0.524" (13.30mm) |
|
|
PLT22/16/2.5-3C90FERRITE CORE PLT 3C90 |
779 |
|
Технический лист |
- | Bulk | Active | PLT | PLT 22 x 16 x 2.5 | 3C90 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.224" (5.70mm) | 0.858" (21.80mm) | 0.622" (15.80mm) |
|
PC95ER9.5/5-ZFERRITE CORE ER 1.19UH PCS95 2PC |
149 |
|
Технический лист |
Planar | Tray | Active | ER | ER 9.5 x 5 | PC95 | - | 1.19 µH | ±25% | Ungapped | - | - | 1.67 | 8.47 | 14.2 | 7.6 | 120.0 | Uncoated | 0.098" (2.50mm) | 0.374" (9.50mm) | 0.197" (5.00mm) |
|
|
5952020501FERRITE CORE TOROID 52 |
357 |
|
Технический лист |
- | Box | Active | Toroid | - | 52 | - | - | ±25% | Ungapped | - | 250 | - | 30.6 | 14.4 | - | 442.0 | Uncoated | 0.250" (6.35mm) | - | - |
|
EC35/17/10-3C94FERRITE CORE EC 3C94 |
53 |
|
Технический лист |
- | Bulk | Active | EC | EC 35 x 17 x 10 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.681" (17.30mm) | 1.390" (35.30mm) | 0.374" (9.50mm) |
|

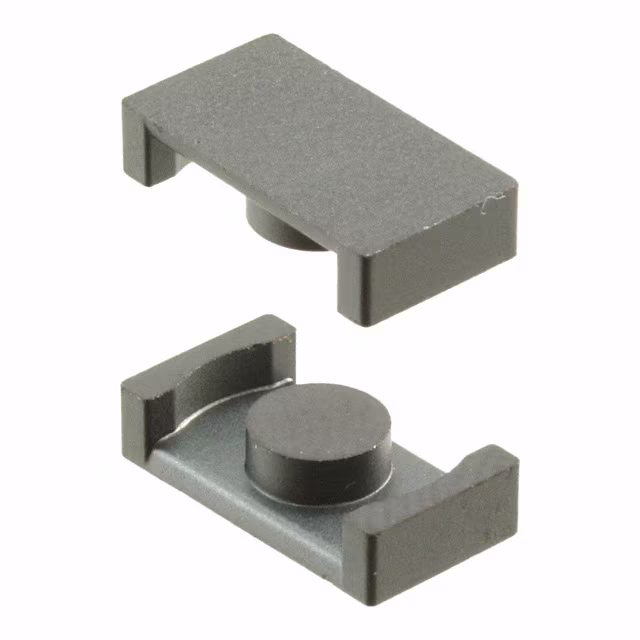

B65525J0000Y038FERRITE CORE ER 6.4UH T38 2PCS |
31 |
|
Технический лист |
ER11/5 | Box | Active | ER | ER 11 x 5 | T38 | - | 6.4 µH | -30%, +40% | Ungapped | 5600.0 | 10000 | 1.1 | 14.1 | 12.4 | - | 174.0 | Uncoated | 0.098" (2.50mm) | 0.433" (11.00mm) | 0.236" (6.00mm) |
