Ферритовые сердечники
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип ядра | Устройство поставщика Упаковка | Материал | Диаметр | Коэффициент индуктивности (Al) | Допуск | Зазор | Эффективная проницаемость (µe) | Начальная проницаемость (µi) | Коэффициент сердечника (ΣI/A) мм⁻¹ | Эффективная длина (le) мм | Эффективная площадь (Ae) мм² | Минимальное поперечное сечение сердечника (Amin) мм² | Эффективная Магнитный объем (Ve) мм³ | Отделка | Высота | Длина | Ширина |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E65/32/27-3C95FERRITE CORE E 3C95 |
85 |
|
Технический лист |
- | Bulk | Active | E | E 65 x 32 x 27 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.291" (32.80mm) | 2.559" (65.00mm) | 1.079" (27.40mm) |
|
B64290L0040X830FERRITE CORE TOROID 5.4UH N30 |
78 |
|
Технический лист |
TX58.3/40.8/17.6 | Tray | Active | Toroid | - | N30 | 2.366" (60.10mm) | 5.4 µH | ±25% | Ungapped | - | 4300 | 1.0 | 152.4 | 152.4 | - | 23230.0 | Epoxy | 0.740" (18.80mm) | - | - |
|

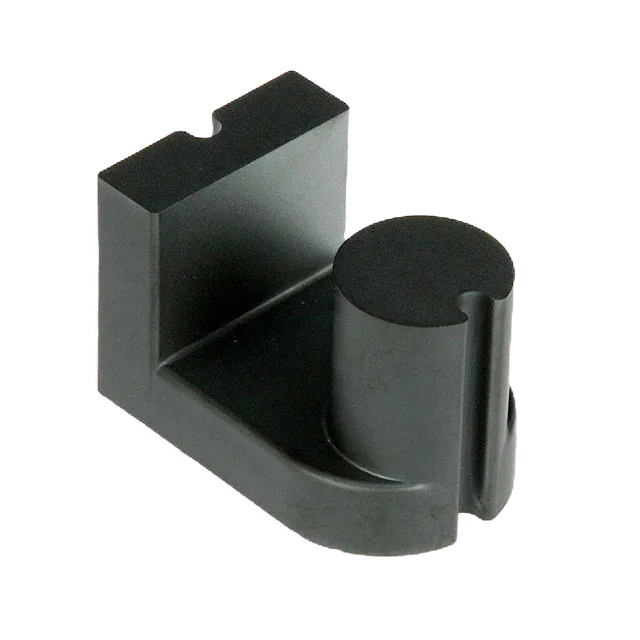

UR55/38/36-3C90FERRITE CORE UR 3C90 |
65 |
|
Технический лист |
- | Bulk | Active | UR | UR 55 x 38 x 36 | 3C90 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.476" (37.50mm) | 2.161" (54.90mm) | 0.925" (23.50mm) |
|
TX55/32/18-3E27FERRITE CORE TOROID 3E+27 |
95 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 55 x 32 x 18 | 3E27 | 2.264" (57.50mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.756" (19.20mm) | - | - |
|
B66297G0000X187FERRITE CORE ELP N87 |
18 |
|
Технический лист |
ELP102/20/38 | Tray | Active | ELP | ELP 102 x 20 x 38 | N87 | - | - | ±25% | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.799" (20.30mm) | 4.016" (102.00mm) | 1.476" (37.50mm) |
|
TX63/38/25-3E6FERRITE CORE TOROID |
20 |
|
Технический лист |
- | Bulk | Active | Toroid | - | - | 2.480" (63.00mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.984" (25.00mm) | - | - |
|
|
C058438A2FERRITE CORE TOROID 281NH HI FLX |
12 |
|
Технический лист |
- | Bulk | Active | Toroid | - | High Flux | 1.875" (47.63mm) | 281 nH | ±8% | Ungapped | - | 125 | - | 107.0 | 199.0 | - | 21300.0 | Coated | 0.745" (18.92mm) | - | - |
|
U126/91/20-3C94FERRITE CORE U 3C94 |
24 |
|
Технический лист |
- | Bulk | Active | U | U 126 x 91 x 20 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 3.583" (91.00mm) | 4.961" (126.00mm) | 0.787" (20.00mm) |
|
PM74/59-3C94FERRITE CORE PM 3C94 2PC SET |
10 |
|
Технический лист |
- | Bulk | Active | PM | PM 74 x 59 | 3C94 | 2.913" (74.00mm) | - | - | - | - | - | - | - | - | - | - | Uncoated | 2.323" (59.00mm) | - | - |
|
B65686A0000R087FERRITE CORE PM 10UH N87 2PCS |
18 |
|
Технический лист |
PM74/59 | Box | Active | PM | PM 74 x 59 | N87 | 2.913" (74.00mm) | 10 µH | -20%, +30% | Ungapped | 1290.0 | 2200 | 0.162 | 128.0 | 790.0 | 630.0 | 101000.0 | Uncoated | 1.161" (29.50mm) | - | - |
|
5977000101FERRITE CORE TOROID 77 |
468 |
|
Технический лист |
- | Box | Active | Toroid | - | 77 | 0.230" (5.84mm) | - | ±25% | Ungapped | - | 2000 | - | 13.0 | 2.0 | - | 27.0 | Uncoated | 0.060" (1.52mm) | - | - |
|
|
5967000101FERRITE CORE TOROID 67 |
864 |
|
Технический лист |
- | Box | Active | Toroid | - | 67 | 0.230" (5.84mm) | - | - | Ungapped | - | 40 | - | 13.0 | 2.0 | - | 27.0 | Uncoated | 0.060" (1.52mm) | - | - |
|
|
B64290A0035X038FERRITE CORE TOROID 1.02UH T38 |
481 |
|
Технический лист |
T2.5/1.5/1 | Box | Active | Toroid | R 2.5 x 1.5 x 1 | T38 | 0.098" (2.50mm) | 1.02 µH | ±30% | Ungapped | - | 10000 | 12.3 | 6.02 | 0.49 | - | 3.0 | Uncoated | 0.039" (1.00mm) | - | - |
|
5980000201FERRITE CORE TOROID 245NH |
982 |
|
Технический лист |
HF | Bulk | Active | Toroid | - | - | 0.374" (9.50mm) | 245 nH | ±25% | Ungapped | - | 550 | 286.0 | 20.7 | 7.3 | - | 150.0 | Uncoated | 0.125" (3.18mm) | - | - |
|
5975000221FERRITE CORE TOROID 2.2UH 75 |
308 |
|
Технический лист |
- | Bulk | Active | Toroid | - | 75 | 0.402" (10.20mm) | 2.2 µH | ±20% | Ungapped | - | 5000 | 2.8549 | 20.7 | 7.25 | - | 150.0 | Plastic | 0.150" (3.81mm) | - | - |
|
4077122011FERRITE CORE ROD 77 |
331 |
|
Технический лист |
- | Bulk | Active | ROD | - | 77 | 0.128" (3.25mm) | - | - | Ungapped | 29.0 | 2000 | - | 25.0 | 7.07 | - | - | Uncoated | - | 1.000" (25.40mm) | - |
|
5943000321FERRITE CORE TOROID 440NH 43 |
596 |
|
Технический лист |
- | Box | Active | Toroid | - | 43 | 0.530" (13.45mm) | 440 nH | -25%, +20% | Ungapped | - | 800 | 2.2904 | 29.5 | 12.9 | - | 381.0 | Plastic | 0.213" (5.40mm) | - | - |
|

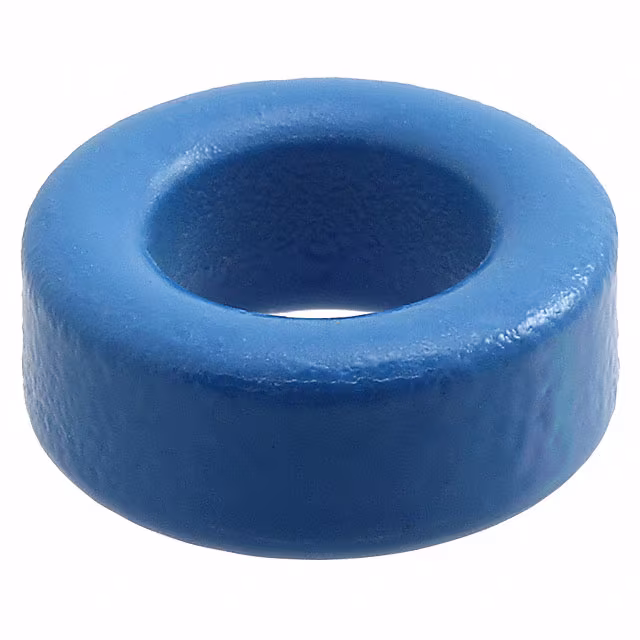

B64290L0045X027FERRITE CORE TOROID 1.29UH N27 |
486 |
|
Технический лист |
TX16/9.6/6.3 | Box | Active | Toroid | - | N27 | 0.677" (17.20mm) | 1.29 µH | ±25% | Ungapped | - | 2000 | 1.95 | 38.52 | 19.73 | - | 760.0 | Epoxy | 0.287" (7.30mm) | - | - |
|
TX13/7.9/6.4-3C90FERRITE CORE TOROID 3C90 |
667 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 13 x 7.9 x 6.4 | 3C90 | 0.526" (13.35mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.275" (7.00mm) | - | - |
|
B66317G0250X187FERRITE CORE E N87 1PC |
233 |
|
Технический лист |
E25/13/7 | Box | Active | E | E 25 x 13 x 7 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.504" (12.80mm) | 0.984" (25.00mm) | 0.295" (7.50mm) |
