Ферритовые сердечники
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип ядра | Устройство поставщика Упаковка | Материал | Диаметр | Коэффициент индуктивности (Al) | Допуск | Зазор | Эффективная проницаемость (µe) | Начальная проницаемость (µi) | Коэффициент сердечника (ΣI/A) мм⁻¹ | Эффективная длина (le) мм | Эффективная площадь (Ae) мм² | Минимальное поперечное сечение сердечника (Amin) мм² | Эффективная Магнитный объем (Ve) мм³ | Отделка | Высота | Длина | Ширина |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0076083A7FERRITE CORE TOROID 81NH KOOL MU |
78 |
|
Технический лист |
- | Bulk | Active | Toroid | - | Kool Mu HF | 1.605" (40.77mm) | 81 nH | ±8% | Ungapped | - | 60 | - | 98.4 | 107.0 | - | 10600.0 | Coated | 0.605" (15.37mm) | - | - |
|

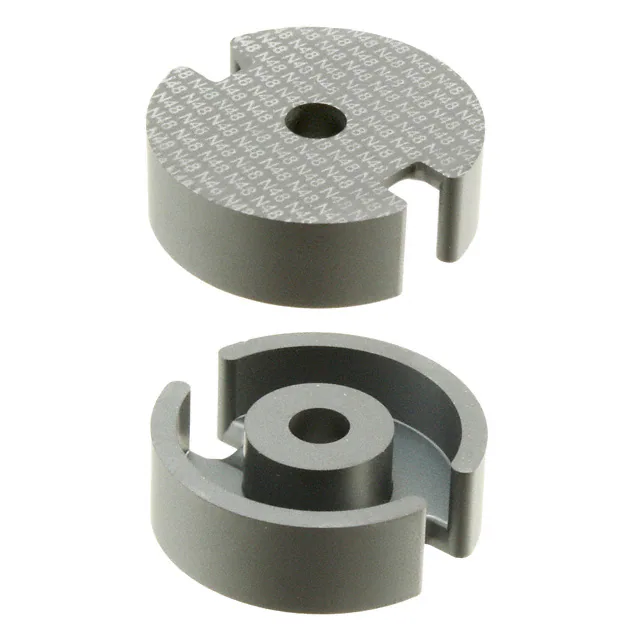

B65701D0000R048FERRITE CORE P 6.2UH N48 2PCS |
74 |
|
Технический лист |
P30/19 | Box | Active | P (Pot Core) | P 30 x 19 | N48 | 1.200" (30.50mm) | 6.2 µH | -20%, +30% | Ungapped | 1630.0 | - | 0.33 | 45.0 | 136.0 | - | 6120.0 | Uncoated | 0.374" (9.50mm) | - | - |
|
B66397G1000X187FERRITE CORE ETD N87 1PC |
87 |
|
Технический лист |
ETD59/31/22 | Box | Active | ETD | ETD 59 x 31 x 22 | N87 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 1.228" (31.20mm) | 2.354" (59.80mm) | 0.870" (22.10mm) |
|
5975011101FERRITE CORE TOROID 75 |
20 |
|
Технический лист |
- | Box | Active | Toroid | - | 75 | 2.900" (73.66mm) | - | ±25% | Ungapped | - | 5000 | - | 167.0 | 215.0 | - | 35900.0 | Uncoated | 0.500" (12.70mm) | - | - |
|
|
5978011101FERRITE CORE TOROID 78 |
19 |
|
Технический лист |
- | Bulk | Active | Toroid | - | 78 | 2.900" (73.66mm) | - | ±25% | Ungapped | - | 2300 | - | 167.0 | 215.0 | - | 35900.0 | Uncoated | 0.500" (12.70mm) | - | - |
|
TX51/32/19-3C90FERRITE CORE TOROID 3C90 |
8 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 51 x 32 x 19 | 3C90 | 2.069" (52.55mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.783" (19.90mm) | - | - |
|
B65981A0000R087FERRITE CORE PQ 6.5UH N87 2PCS |
25 |
|
Технический лист |
PQ50/50 | Box | Active | PQ | PQ 50 x 50 | N87 | - | 6.5 µH | -20%, +30% | Ungapped | 1770.0 | - | 0.342 | 113.0 | 330.0 | 290.0 | 37270.0 | Uncoated | 0.984" (25.00mm) | 1.969" (50.00mm) | 1.260" (32.00mm) |
|
B66371Q0400K187FERRITE CORE E 400NH N87 |
94 |
|
Технический лист |
E70/33/32 | Bulk | Active | E | E 70 x 33 x 32 | N87 | - | 400 nH | ±10% | Distributed Gapped | - | - | 0.22 | 149.0 | 683.0 | 676.0 | 102000.0 | Uncoated | 1.307" (33.20mm) | 2.776" (70.50mm) | 1.260" (32.00mm) |
|
B65981Q0400K097FERRITE CORE PQ 400NH N97 |
29 |
|
Технический лист |
PQ50/50 | Tray | Active | PQ | PQ 50 x 50 | N97 | - | 400 nH | ±10% | Distributed Gapped | - | - | 0.342 | 113.0 | 332.0 | 314.0 | 37630.0 | Uncoated | 0.984" (25.00mm) | 1.969" (50.00mm) | 1.260" (32.00mm) |
|

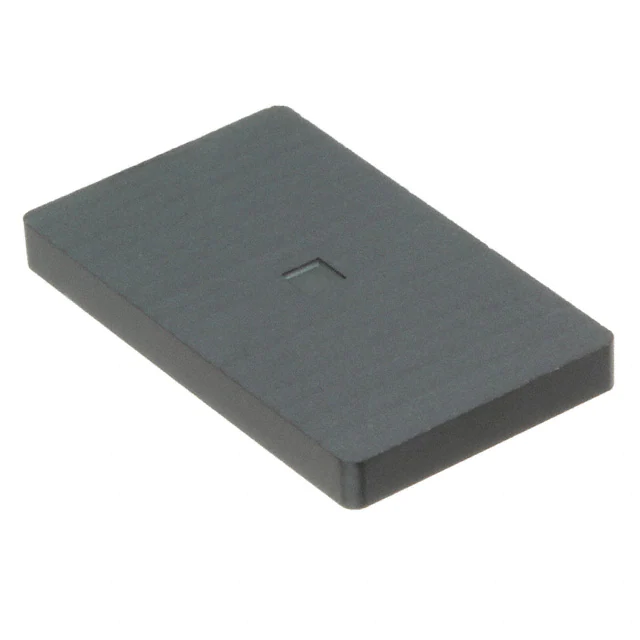

B66293K0000X187FERRITE CORE I N87 1PC |
49 |
|
Технический лист |
ILP58/4/38 | Box | Active | I | I 58 x 4 x 38 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.160" (4.06mm) | 2.299" (58.40mm) | 1.500" (38.10mm) |
|
|
MACC0004FERRITE CORE U AMORPHOUS |
28 |
|
Технический лист |
- | Bulk | Active | U | - | Amorphous | - | - | - | Ungapped | - | - | - | 107.0 | 124.0 | - | - | Uncoated | 1.004" (25.50mm) | 1.102" (28.00mm) | 0.591" (15.00mm) |
|
B66295G0000X195FERRITE CORE ELP N95 1PCS |
25 |
|
Технический лист |
ELP64/10/50 | Box | Active | ELP | ELP 64 x 10 x50 | N95 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.402" (10.20mm) | 2.520" (64.00mm) | 2.000" (50.80mm) |
|

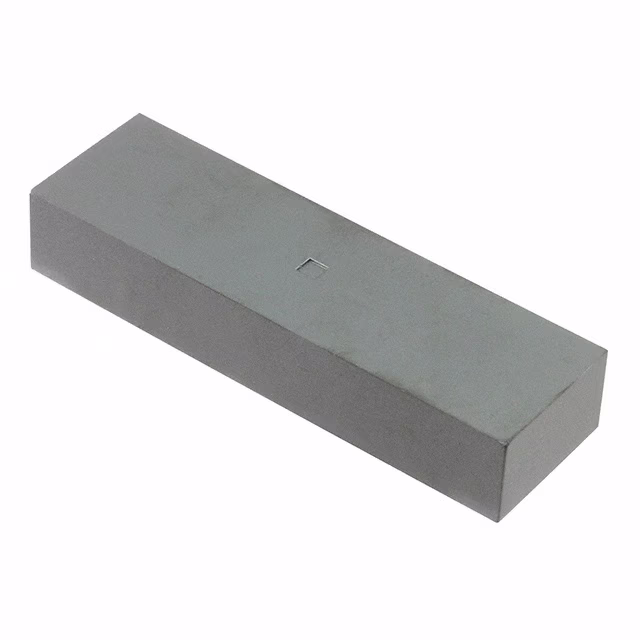

B67345B0004X087FERRITE CORE I N87 1PC |
86 |
|
Технический лист |
I93/28/16 | Box | Active | I | I 93 x 28 x 16 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 1.102" (28.00mm) | 3.661" (93.00mm) | 0.630" (16.00mm) |
|
|
ZW44932TCFERRITE CORE TOROID 23.6UH W |
73 |
|
Технический лист |
- | Bulk | Active | Toroid | - | W | 1.992" (50.60mm) | 23.6 µH | ±30% | Ungapped | - | 10000 | - | 127.0 | 239.0 | - | 30405.0 | Epoxy | 1.295" (32.90mm) | - | - |
|

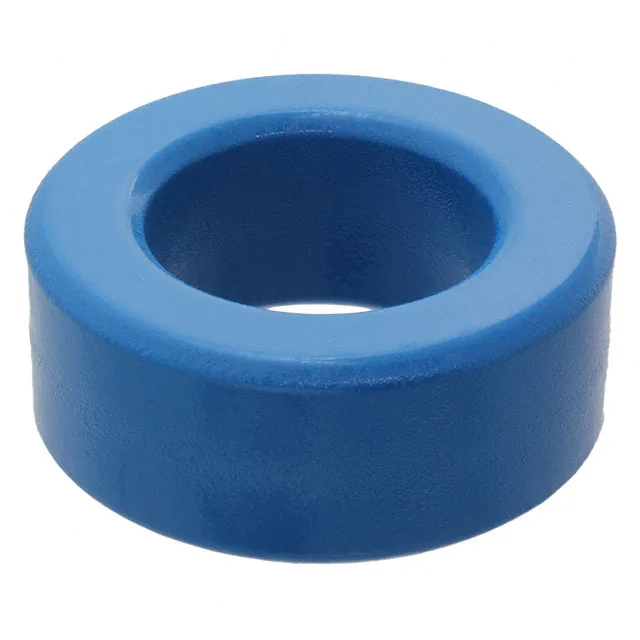

B64290L0699X087FERRITE CORE TOROID 5UH N87 |
75 |
|
Технический лист |
TX63/38/25 | Box | Active | Toroid | - | N87 | 2.571" (65.30mm) | 5 µH | ±25% | Ungapped | - | 2200 | 0.5 | 152.1 | 305.9 | - | 46530.0 | Epoxy | 1.047" (26.60mm) | - | - |
|
|
B65981Q0250K097FERRITE CORE PQ 250NH N97 |
46 |
|
Технический лист |
PQ50/50 | Tray | Active | PQ | PQ 50 x 50 | N97 | - | 250 nH | ±10% | Distributed Gapped | - | - | 0.342 | 113.0 | 332.0 | 314.0 | 37630.0 | Uncoated | 0.984" (25.00mm) | 1.969" (50.00mm) | 1.260" (32.00mm) |
|
5975011121FERRITE CORE TOROID 8.1UH 75 |
28 |
|
Технический лист |
- | Bulk | Active | Toroid | - | 75 | 2.978" (75.65mm) | 8.1 µH | -30%, +25% | Ungapped | - | 5000 | 0.77374 | 165.0 | 214.0 | - | 35288.0 | Plastic | 0.535" (13.60mm) | - | - |
|
5952003821FERRITE CORE TOROID 325NH 52 |
30 |
|
Технический лист |
- | Bulk | Active | Toroid | - | 52 | 2.433" (61.80mm) | 325 nH | ±25% | Ungapped | - | 250 | 0.92 | 145.0 | 158.0 | - | 22800.0 | Plastic | 0.539" (13.70mm) | - | - |
|
|
B65621J0000R048FERRITE CORE P 8.4UH N48 2PCS |
59 |
|
Технический лист |
P41/25 | Box | Active | P (Pot Core) | P 41 x 25 | N48 | 1.614" (41.00mm) | 8.4 µH | -20%, +30% | Ungapped | 1720.0 | - | 0.264 | 60.4 | 229.0 | 201.0 | 13832.0 | Uncoated | 0.492" (12.50mm) | - | - |
|
|
LRF462725MKDXCOMMON MODE COILS |
31 |
|
Технический лист |
FW | Bulk | Active | Toroid | - | Nanocrystalline | 1.945" (49.40mm) | 64.6 µH | - | Ungapped | - | - | - | 114.7 | 190.0 | - | - | Uncoated | 1.102" (28.00mm) | - | - |
