Ферритовые сердечники
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип ядра | Устройство поставщика Упаковка | Материал | Диаметр | Коэффициент индуктивности (Al) | Допуск | Зазор | Эффективная проницаемость (µe) | Начальная проницаемость (µi) | Коэффициент сердечника (ΣI/A) мм⁻¹ | Эффективная длина (le) мм | Эффективная площадь (Ae) мм² | Минимальное поперечное сечение сердечника (Amin) мм² | Эффективная Магнитный объем (Ve) мм³ | Отделка | Высота | Длина | Ширина |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TX63/38/25-3E27FERRITE CORE TOROID 3E+27 |
98 |
|
Технический лист |
- | Bulk | Active | Toroid | - | 3E27 | 2.480" (63.00mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.984" (25.00mm) | - | - |
|

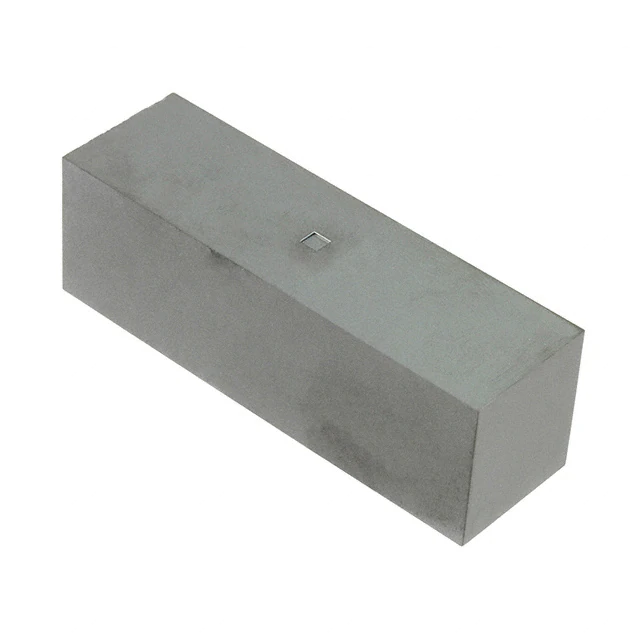

B67345B0002X027FERRITE CORE I N27 1PC |
47 |
|
Технический лист |
I93/28/30 | Box | Active | I | I 93 x 28 x 30 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 1.102" (28.00mm) | 3.661" (93.00mm) | 1.181" (30.00mm) |
|

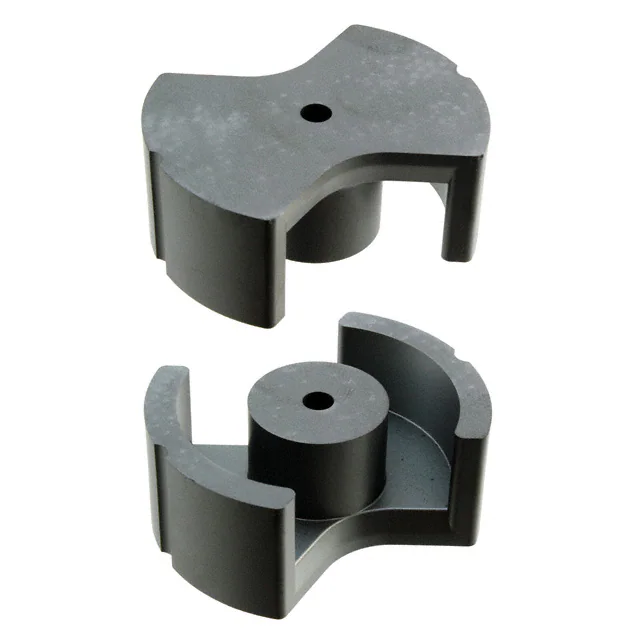

B65684A0000R027FERRITE CORE PM 9.2UH N27 2PCS |
46 |
|
Технический лист |
PM62/49 | Box | Active | PM | PM 62 x 49 | N27 | 2.441" (62.00mm) | 9.2 µH | -20%, +30% | Ungapped | 1400.0 | 2000 | 0.191 | 109.0 | 570.0 | 470.0 | 62000.0 | Uncoated | 0.965" (24.50mm) | - | - |
|
5978015901FERRITE CORE TOROID 78 |
21 |
|
Технический лист |
- | Tray | Active | Toroid | - | 78 | - | - | ±25% | Ungapped | - | 2300 | - | 230.0 | 277.0 | - | 63700.0 | Uncoated | 0.500" (12.70mm) | - | - |
|
5943015901FERRITE CORE TOROID 43 |
49 |
|
Технический лист |
- | Bulk | Active | Toroid | - | 43 | - | - | ±25% | Ungapped | - | 800 | - | 230.0 | 277.0 | - | 63700.0 | Uncoated | 0.500" (12.70mm) | - | - |
|
|
MACC0032FERRITE CORE AMORPHOUS CUT |
43 |
|
Технический лист |
- | Bulk | Active | - | - | - | - | - | - | Ungapped | - | - | - | 175.0 | 350.0 | - | - | Uncoated | 1.181" (30.00mm) | 3.228" (82.00mm) | 1.614" (41.00mm) |
|
B64290L0730X087FERRITE CORE TOROID 2.79UH N87 |
9 |
|
Технический лист |
TX87/54.3/13.5 | Box | Active | Toroid | - | N87 | 3.516" (89.30mm) | 2.79 µH | ±25% | Ungapped | - | 2200 | 0.99 | 213.9 | 216.7 | - | 46360.0 | Epoxy | 0.573" (14.80mm) | - | - |
|
LRF462725MKCXFERRITE CORE TOROID 64.6UH |
6 |
|
Технический лист |
FL-V | Bulk | Active | Toroid | - | Nanocrystalline | 1.945" (49.40mm) | 64.6 µH | - | Ungapped | - | - | - | - | 190.0 | - | - | Uncoated | - | 4.516" (114.70mm) | 1.102" (28.00mm) |
|
|
HF90T80X20X50FERRITE CORE TOROID |
24 |
|
Технический лист |
T | Tray | Active | Toroid | - | - | - | - | - | Ungapped | - | 5000 | - | - | - | - | - | Epoxy | 0.787" (20.00mm) | - | - |
|
|
B65691K0000R048FERRITE CORE P N48 |
75 |
|
Технический лист |
P59/36 | Box | Active | P (Pot Core) | - | N48 | 2.335" (59.30mm) | - | -20%, +30% | Ungapped | 1800.0 | - | 0.181 | 88.0 | 485.0 | 445.0 | 42680.0 | Uncoated | 1.402" (35.60mm) | - | - |
|
B67345B0001X027FERRITE CORE U N27 1PC |
12 |
|
Технический лист |
U93/76/30 | Box | Active | U | U 93 x 76 x 30 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 2.992" (76.00mm) | 3.661" (93.00mm) | 1.181" (30.00mm) |
|
B65982Q0250K095FERRITE CORE PQ 250NH N95 |
21 |
|
Технический лист |
PQ65/60 | Bulk | Active | PQ | PQ 65 x 60 | N95 | - | 250 nH | ±10% | Distributed Gapped | - | 3000 | 0.228 | 137.0 | 171.0 | 531.0 | 81950.0 | Uncoated | 1.181" (30.00mm) | 2.559" (65.00mm) | 1.772" (45.00mm) |
|
|
TX107/65/18-3C94FERRITE CORE TOROID 3C94 |
9 |
|
Технический лист |
- | Bulk | Active | Toroid | TX 107 x 65 x 18 | 3C94 | 4.228" (107.40mm) | - | ±25% | Ungapped | - | - | 0.7 | 259.0 | 370.0 | - | 96000.0 | Epoxy | 0.720" (18.30mm) | - | - |
|

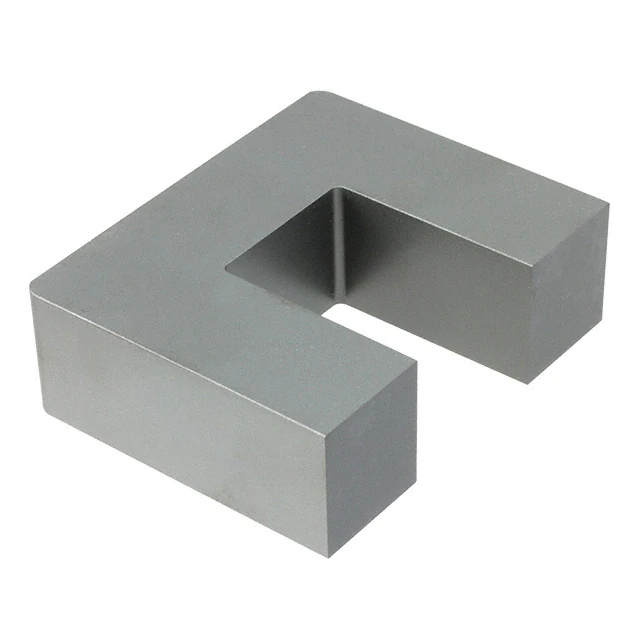

B67345B0001X087FERRITE CORE U N87 1PC |
9 |
|
Технический лист |
U93/76/30 | Box | Active | U | U 93 x 76 x 30 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 2.992" (76.00mm) | 3.661" (93.00mm) | 1.181" (30.00mm) |
|

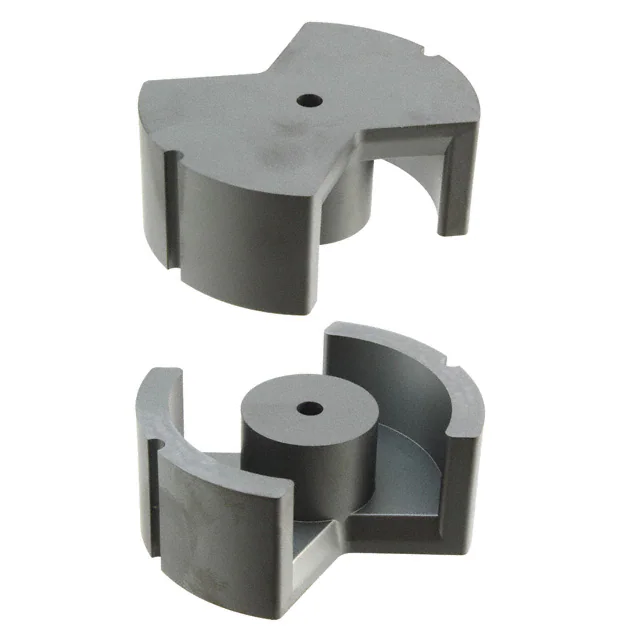

B65686A0315A027FERRITE CORE PM 315NH N27 2PCS |
20 |
|
Технический лист |
PM74/59 | Box | Active | PM | PM 74 x 59 | N27 | 2.913" (74.00mm) | 315 nH | ±3% | Gapped | 41.0 | 2000 | 0.162 | 128.0 | 790.0 | 630.0 | 101000.0 | Uncoated | 1.161" (29.50mm) | - | - |
|
|
T107/65/25-3C94FERRITE CORE TOROID 3C94 |
3 |
|
Технический лист |
- | Bulk | Active | Toroid | - | 3C94 | 4.213" (107.00mm) | - | - | Ungapped | - | - | 0.504 | 259.0 | 514.0 | - | 133000.0 | Uncoated | 0.984" (25.00mm) | - | - |
|
|
HF60T104X20X80FERRITE CORE TOROID |
5 |
|
Технический лист |
T | Tray | Active | Toroid | - | - | - | - | - | Ungapped | - | 1600 | - | - | - | - | - | Epoxy | 0.787" (20.00mm) | - | - |
|
B67374G0000X187FERRITE CORE U N87 1PC |
19 |
|
Технический лист |
U141/78/30 | Box | Active | U | U 141 x 78 x 30 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 3.091" (78.50mm) | 5.551" (141.00mm) | 1.181" (30.00mm) |
|
B65733A0000R027FERRITE CORE PM 16UH N27 2PCS |
6 |
|
Технический лист |
PM114/93 | Tray | Active | PM | PM 114 x 93 | N27 | 4.488" (114.00mm) | 16 µH | -20%, +30% | Ungapped | 1480.0 | 2000 | 0.116 | 200.0 | 1720.0 | 1380.0 | 344000.0 | Uncoated | 1.831" (46.50mm) | - | - |
|
B65949A0000X027FERRITE CORE P N27 |
4 |
|
Технический лист |
PCH150/30 | Box | Active | P (Pot Core) | P Core Half 150 x 30 | N27 | 5.906" (150.00mm) | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 1.181" (30.00mm) | - | - |
