Кабельные и шнуровые зажимы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Тип | Внешний диаметр кабеля (мин.) | Внешний диаметр кабеля (макс.) | Размер резьбы | Длина резьбы | Размер втулки кабелепровода | Размер отверстия панели | Материал | Включает | Цвет | Защита от проникновения | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
53112026CABLE GLND 5-10MM 1/2" NPT BRASS |
54 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | 1/2" NPT | 0.591" (15.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 1, 4X, 6, 12 | -40°C ~ 100°C | |
|

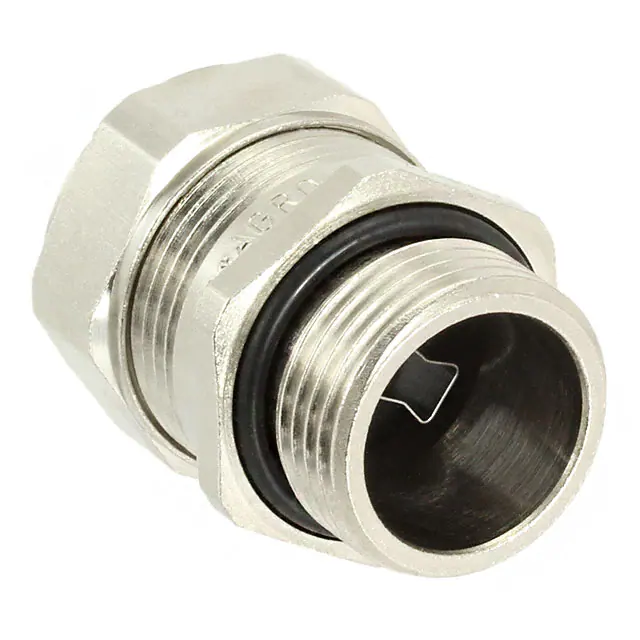

A1183.20CABLE GLAND 8-15MM M20 BRASS |
23 |
|
Технический лист |
Cable Gland, Long Entry | 0.315" (8.00mm) | 0.591" (15.00mm) | M20x1.5 | 0.394" (10.00mm) | - | 0.787" (20.0mm) | Brass, Nickel Plated | Contact Spring, O-Ring, Seal, Strain Relief | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | |
|
AIO-CSM50CABLE GLAND 32-38MM M50 POLYAMID |
15 |
|
Технический лист |
Cable Gland | 1.260" (32.00mm) | 1.496" (38.00mm) | M50x1.5 | 0.551" (14.00mm) | - | - | Polyamide (PA), Nylon | Panel Nut, Sealing Nut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
RT0L-14CG-NS2CABLE GRP 9-12.5MM 13/16-20 ZINC |
44 |
|
Технический лист |
Cable Grip | 0.354" (9.00mm) | 0.492" (12.50mm) | 13/16-20 | - | - | - | Zinc Alloy, Nickel Plated | O-Ring, Seal | Silver | - | - | |
|

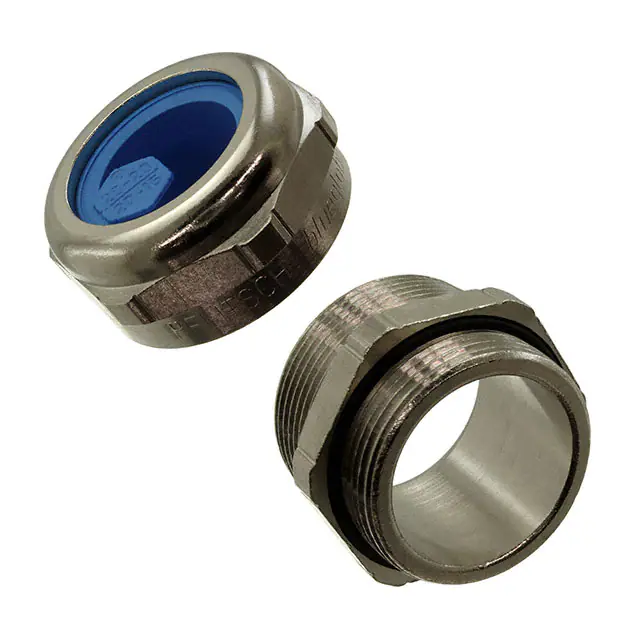

96574.6CABLE FEEDTHROUGH 20.07-24.89MM |
73 |
|
Технический лист |
Cable Feedthrough | 0.790" (20.07mm) | 0.980" (24.89mm) | M32x1.5 | 0.310" (7.87mm) | - | 1.260" (32.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
50.640 M/EMVCABLE GLAND 19-27MM M40 BRASS |
32 |
|
Технический лист |
Cable Gland | 0.748" (19.00mm) | 1.063" (27.00mm) | M40x1.5 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
3SU19000HG100AA0CABLE GLAND 5-12MM M20 PLASTIC |
12 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.472" (12.00mm) | M20 | - | - | - | Plastic | - | Black | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -25°C ~ 70°C | |
|

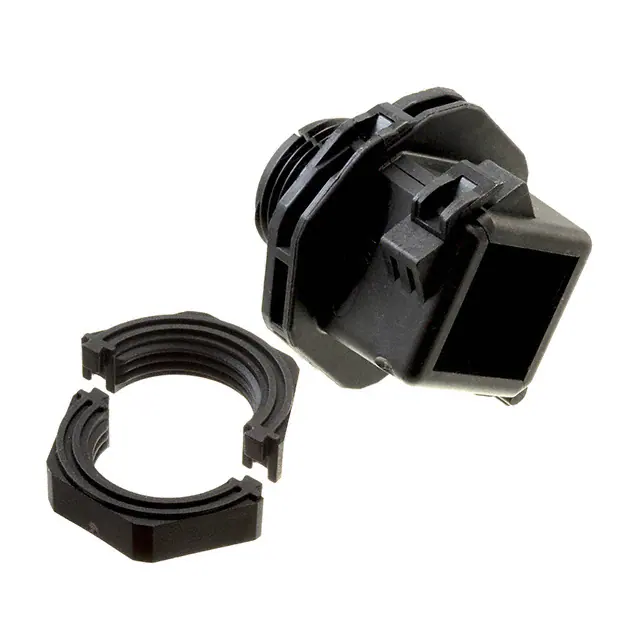

2584200000CABLE GLAND M20 POLYAMIDE |
79 |
|
Технический лист |
Cable Gland - Splittable Body | - | - | M20 | 0.591" (15.00mm) | - | - | Polyamide (PA), Nylon, Glass Filled | Seal | Black | IP66 - Dust Tight, Water Resistant | -40°C ~ 120°C | |
|
A1183.25CABLE GLND 12.5-20.5MM M25 BRASS |
92 |
|
Технический лист |
Cable Gland, Long Entry | 0.492" (12.50mm) | 0.807" (20.50mm) | M25x1.5 | 0.433" (11.00mm) | - | 0.984" (25.0mm) | Brass, Nickel Plated | Contact Spring, O-Ring, Seal, Strain Relief | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -60°C ~ 100°C | |
|
|
50.640M/EMV/LCABLE GLAND 19-27MM M40 BRASS |
26 |
|
Технический лист |
Cable Gland | 0.748" (19.00mm) | 1.063" (27.00mm) | M40x1.5 | 0.512" (13.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

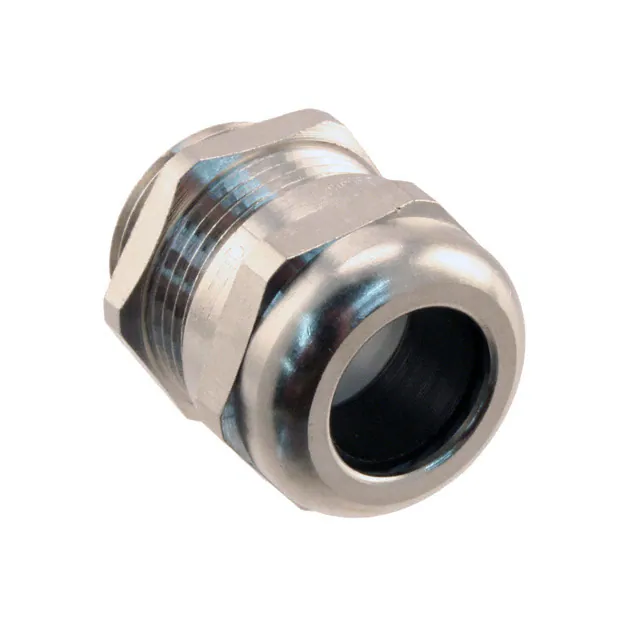

19000005084CABLE GLAND 10-14MM M20 BRASS |
46 |
|
Технический лист |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | M20 | - | - | - | Brass | Clamping Ring | - | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
CG-P-M90-2.0CABLE GLAND 66-77MM M90 POLYAMID |
17 |
|
Технический лист |
Cable Gland | 2.598" (66.00mm) | 3.031" (77.00mm) | M90 | 0.984" (25.00mm) | - | 3.555" (90.3mm) | Polyamide (PA66), Nylon 6/6 | Locknut, Seal | - | IP68 - Dust Tight, Waterproof | - | |
|
2584180000CABLE GLAND M25 POLYAMIDE |
29 |
|
Технический лист |
Cable Gland - Splittable Body | - | - | M25 | 0.591" (15.00mm) | - | - | Polyamide (PA), Nylon, Glass Filled | Seal | Black | IP66 - Dust Tight, Water Resistant | -40°C ~ 120°C | |
|
53112250CABLE GLND 11-18.01MM PG21 BRASS |
78 |
|
Технический лист |
Cable Gland | 0.433" (11.00mm) | 0.709" (18.01mm) | PG21 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

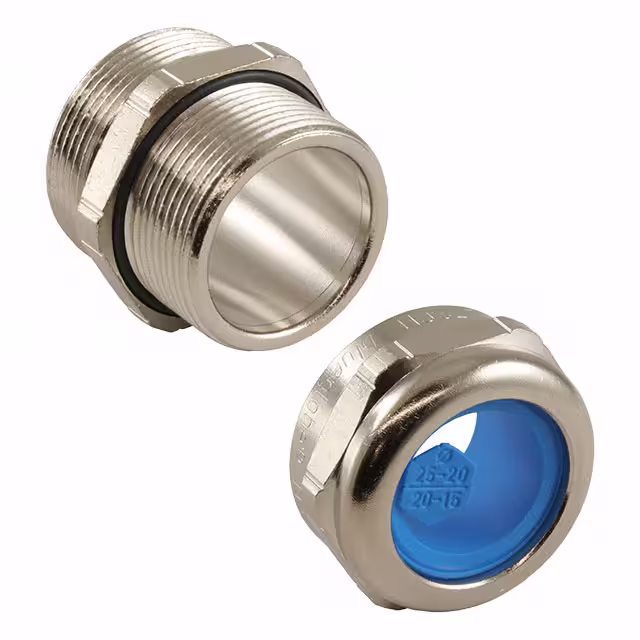

96574.6/15CABLE FEEDTHROUGH 20.07-24.89MM |
25 |
|
Технический лист |
Cable Feedthrough | 0.790" (20.07mm) | 0.980" (24.89mm) | M32x1.5 | - | - | 1.260" (32.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
2584160000CABLE GLAND M32 POLYAMIDE |
51 |
|
Технический лист |
Cable Gland - Splittable Body | - | - | M32 | 0.591" (15.00mm) | - | - | Polyamide (PA), Nylon, Glass Filled | Seal | Black | IP66 - Dust Tight, Water Resistant | -40°C ~ 120°C | |
|
53112140CABLE GLAND 7-15MM M32 BRASS |
43 |
|
Технический лист |
Cable Gland | 0.276" (7.00mm) | 0.591" (15.00mm) | M32x1.5 | 0.354" (9.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 4, 6, 12 | -40°C ~ 100°C | |
|
K257-1012-00CABLE GLAND 3-8MM M12 S STEEL |
33 |
|
Технический лист |
Cable Gland | 0.118" (3.00mm) | 0.315" (8.00mm) | M12x1.5 | 0.256" (6.50mm) | - | - | Stainless Steel | O-Ring, Seal | Silver | IP66/IP67/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 200°C | |
|
1569120000CABLE GLND 18.03-25MM PG29 BRASS |
12 |
|
Технический лист |
Cable Gland | 0.710" (18.03mm) | 0.984" (25.00mm) | PG29 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP54/IP66/IP67/IP68/IP69K - Dust Protected, Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
50.110/EMV/RCABLE GLAND 12-20MM 1" NPT BRASS |
18 |
|
Технический лист |
Cable Gland | 0.472" (12.00mm) | 0.787" (20.00mm) | 1" NPT | 0.551" (14.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C |
