Кабельные и шнуровые зажимы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Тип | Внешний диаметр кабеля (мин.) | Внешний диаметр кабеля (макс.) | Размер резьбы | Длина резьбы | Размер втулки кабелепровода | Размер отверстия панели | Материал | Включает | Цвет | Защита от проникновения | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
50016/7035/15CABLE GLAND 10-14MM PG16 |
0 |
|
Технический лист |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | PG16 | 0.591" (15.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
50.016 PASW15CABLE GLAND 10-14MM PG16 |
0 |
|
Технический лист |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | PG16 | 0.591" (15.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
09000005185CABLE GLND 10-12MM PG11 THERMOPL |
21 |
|
Технический лист |
Cable Gland | 0.394" (10.00mm) | 0.472" (12.00mm) | PG11 | - | - | - | Thermoplastic | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
EP-SGL-PG29-BL-BCABLE GLAND 18.01-25MM PG29 |
19 |
|
Технический лист |
Cable Gland | 0.709" (18.01mm) | 0.984" (25.00mm) | PG29 | 0.433" (11.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
50.016 PABSSWCABLE GLAND 10-14MM PG16 |
10 |
|
Технический лист |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | PG16 | 0.394" (10.00mm) | - | - | Polyamide (PA6), Nylon 6 | Strain Relief | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
50625PA7035/3X6CABLE GLAND M25 POLYAMIDE |
0 |
|
Технический лист |
Cable Gland | - | - | M25x1.5 | 0.315" (8.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Gray | IP65 - Dust Tight, Water Resistant | -40°C ~ 100°C | |
|
|
50625PA7035/3X7CABLE GLAND M25 POLYAMIDE |
0 |
|
Технический лист |
Cable Gland | - | - | M25x1.5 | 0.315" (8.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Gray | IP65 - Dust Tight, Water Resistant | -40°C ~ 100°C | |
|
GC3000-DCABLE GLAND 7-12MM 1/2" NPT |
0 |
|
Технический лист |
Cable Gland | 0.276" (7.00mm) | 0.472" (12.00mm) | 1/2" NPT | 0.550" (13.97mm) | - | - | Polyamide (PA6), Nylon 6 | - | Black | IP67 - Dust Tight, Waterproof | - | |
|
50.029 PACABLE GLAND 18.01-25MM PG29 |
0 |
|
Технический лист |
Cable Gland | 0.709" (18.01mm) | 0.984" (25.00mm) | PG29 | 0.433" (11.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
50021M25PA08/SWGCABLE GLAND M25 POLYAMIDE |
3 |
|
- |
Cable Gland | - | - | M25x1.5 | - | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | - | |
|
|
EP-SGL-NPT1-BL-BCABLE GLAND 18.01-25MM 1" NPT |
16 |
|
Технический лист |
Cable Gland | 0.709" (18.01mm) | 0.984" (25.00mm) | 1" NPT | 0.709" (18.01mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Gray | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
50021M25BS7035CABLE GLAND 13-18.01MM M25 |
19 |
|
Технический лист |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | M25x1.5 | 0.591" (15.00mm) | - | - | Polyamide (PA6), Nylon 6 | Strain Relief | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
50.029 PA7035CABLE GLAND 18.01-25MM PG29 |
0 |
|
Технический лист |
Cable Gland | 0.709" (18.01mm) | 0.984" (25.00mm) | PG29 | 0.433" (11.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

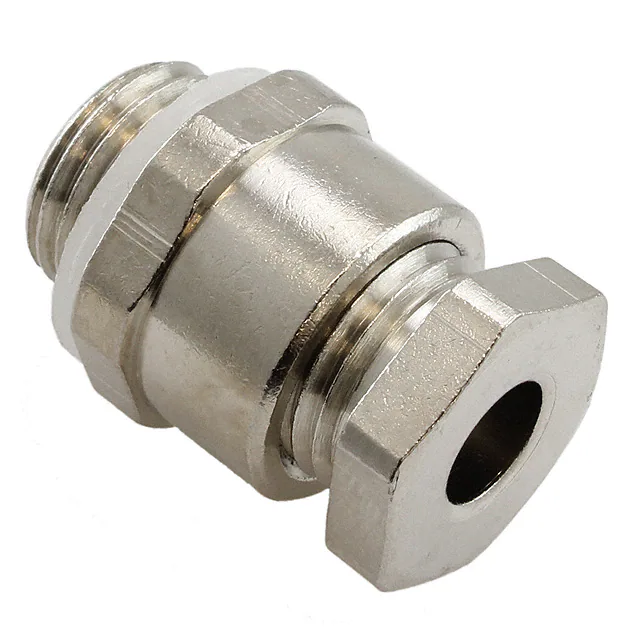

13050100CABLE GLAND 4-6MM PG7 BRASS |
6 |
|
Технический лист |
Cable Gland | 0.157" (4.00mm) | 0.236" (6.00mm) | PG7 | - | - | - | Brass | - | Silver | IP65 - Dust Tight, Water Resistant | -20°C ~ 100°C | |
|
50.110 PA/RSWCABLE GLAND 12-20MM 1" NPT |
16 |
|
Технический лист |
Cable Gland | 0.472" (12.00mm) | 0.787" (20.00mm) | 1" NPT | 0.709" (18.01mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
EP-SGL-M40-GR-FCABLE GLAND 22-32MM M40 POLYAMID |
15 |
|
Технический лист |
Cable Gland | 0.866" (22.00mm) | 1.260" (32.00mm) | M40x1.5 | 0.709" (18.01mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Gray | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
GC3000-GCABLE GLND 13.97-18.03MM 3/4"NPT |
0 |
|
Технический лист |
Cable Gland | 0.550" (13.97mm) | 0.710" (18.03mm) | 3/4" NPT | 0.550" (13.97mm) | - | - | Polyamide (PA66), Nylon 6/6 | - | Black | IP67 - Dust Tight, Waterproof | - | |
|
|
EP-SGL-M25-GR-ECABLE GLAND 11-16.99MM M25 |
22 |
|
Технический лист |
Cable Gland | 0.433" (11.00mm) | 0.669" (16.99mm) | M25x1.5 | 0.315" (8.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Gray | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
EP-SGL-M25-BL-ECABLE GLAND 11-16.99MM M25 |
17 |
|
Технический лист |
Cable Gland | 0.433" (11.00mm) | 0.669" (16.99mm) | M25x1.5 | 0.315" (8.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|

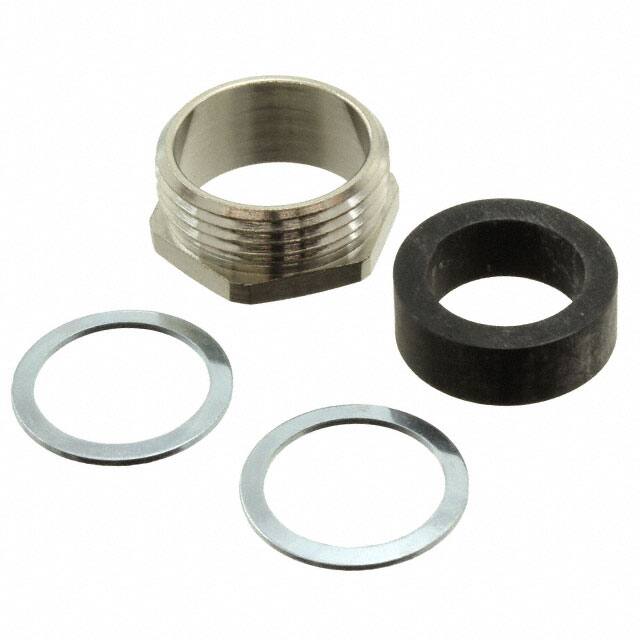

09000005115CABLE GLAND 14-16MM PG16 |
2 |
|
Технический лист |
Cable Gland | 0.551" (14.00mm) | 0.630" (16.00mm) | PG16 | - | - | - | - | - | - | - | - |
