Кабельные и шнуровые зажимы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Тип | Внешний диаметр кабеля (мин.) | Внешний диаметр кабеля (макс.) | Размер резьбы | Длина резьбы | Размер втулки кабелепровода | Размер отверстия панели | Материал | Включает | Цвет | Защита от проникновения | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1300980041CABLE GRIP 3.18-4.75MM 1/2" NPT |
4 |
|
Технический лист |
Cable Grip | 0.125" (3.18mm) | 0.187" (4.75mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
|
1300980069CABLE GRIP 9.53-11.1MM 1/2" NPT |
2 |
|
Технический лист |
Cable Grip | 0.375" (9.53mm) | 0.437" (11.10mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
50.650 PA7035CABLE GLAND 27-35MM M50 POLYAMID |
0 |
|
Технический лист |
Cable Gland | 1.063" (27.00mm) | 1.378" (35.00mm) | M50x1.5 | 0.472" (12.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
1300980071CABLE GRIP 9.53-11.1MM 1/2" NPT |
0 |
|
Технический лист |
Cable Grip | 0.375" (9.53mm) | 0.437" (11.10mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|

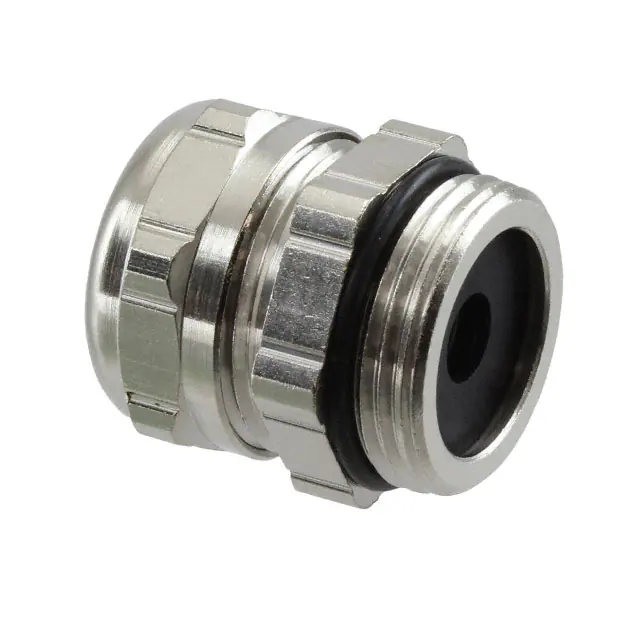

09000005086CABLE GLAND 6.5-9.5MM PG16 METAL |
0 |
|
Технический лист |
Cable Gland | 0.256" (6.50mm) | 0.374" (9.50mm) | PG16 | - | - | - | Metal | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 130°C | |
|
|
A1545.36.33CABLE GLAND 22-33MM PG36 |
5 |
|
Технический лист |
Cable Gland | 0.866" (22.00mm) | 1.299" (33.00mm) | PG36 | 0.591" (15.00mm) | - | 1.850" (47.0mm) | Polyamide (PA), Nylon | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|
K150-1032-00CABLE GLAND 17-25.5MM M32 BRASS |
1 |
|
Технический лист |
Cable Gland | 0.669" (17.00mm) | 1.004" (25.50mm) | M32x1.5 | 0.354" (9.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
50.625 YCABLE GLAND 11-16MM M25 BRASS |
0 |
|
Технический лист |
Cable Gland | 0.433" (11.00mm) | 0.630" (16.00mm) | M25x1.5 | 0.276" (7.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
1300980235CABLE GRIP 4.75-6.35MM 3/4" NPT |
1 |
|
Технический лист |
Cable Grip | 0.187" (4.75mm) | 0.250" (6.35mm) | 3/4" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
50.650 PA/FLCABLE GLAND 27-35MM M50 POLYAMID |
0 |
|
Технический лист |
Cable Gland | 1.063" (27.00mm) | 1.378" (35.00mm) | M50x1.5 | 0.472" (12.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
K155-1025-00CABLE GLAND 14-20.5MM M25 BRASS |
0 |
|
Технический лист |
Cable Gland | 0.551" (14.00mm) | 0.807" (20.50mm) | M25x1.5 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP67/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 200°C | |
|
|
1300980096CABLE GRIP 11.1-14.28MM 3/4" NPT |
0 |
|
Технический лист |
Cable Grip | 0.437" (11.10mm) | 0.562" (14.28mm) | 3/4" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
21797.6CABLE GLAND 6.6-9.4MM 1/2" NPT |
0 |
|
Технический лист |
Cable Gland | 0.260" (6.60mm) | 0.370" (9.40mm) | 1/2" NPT | 0.630" (16.00mm) | - | 0.840" (21.3mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
1300980161CABLE GRIP 20.63-23.8MM 1" NPT |
0 |
|
Технический лист |
Cable Grip | 0.812" (20.63mm) | 0.937" (23.80mm) | 1" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|

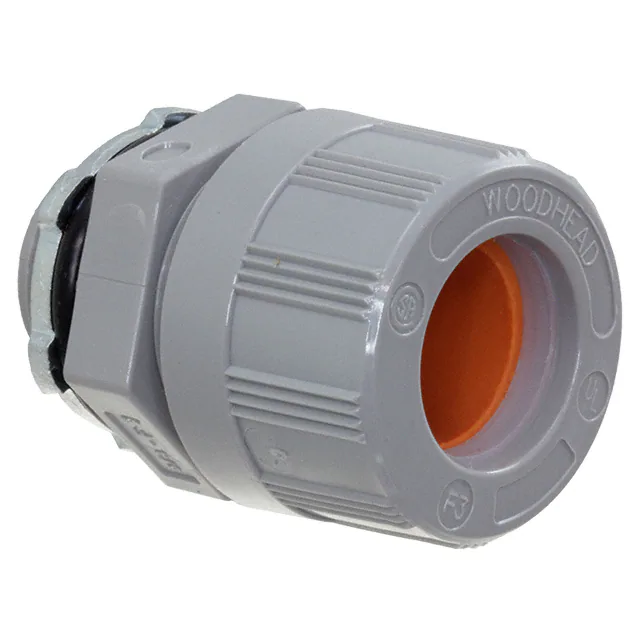

1300980121CABLE GRP 15.88-19.05MM 3/4" NPT |
1 |
|
Технический лист |
Cable Grip | 0.625" (15.88mm) | 0.750" (19.05mm) | 3/4" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
|
50.663 PA7035CABLE GLAND 32-42MM M63 POLYAMID |
0 |
|
Технический лист |
Cable Gland | 1.260" (32.00mm) | 1.654" (42.00mm) | M63x1.5 | 0.472" (12.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
19.529M32CABLE GLAND 19-26.5MM M32 BRASS |
0 |
|
Технический лист |
Cable Gland | 0.748" (19.00mm) | 1.043" (26.50mm) | M32x1.5 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | Sealing Ring | Silver | IP55 - Dust Protected, Water Resistant | -30°C ~ 100°C | |
|

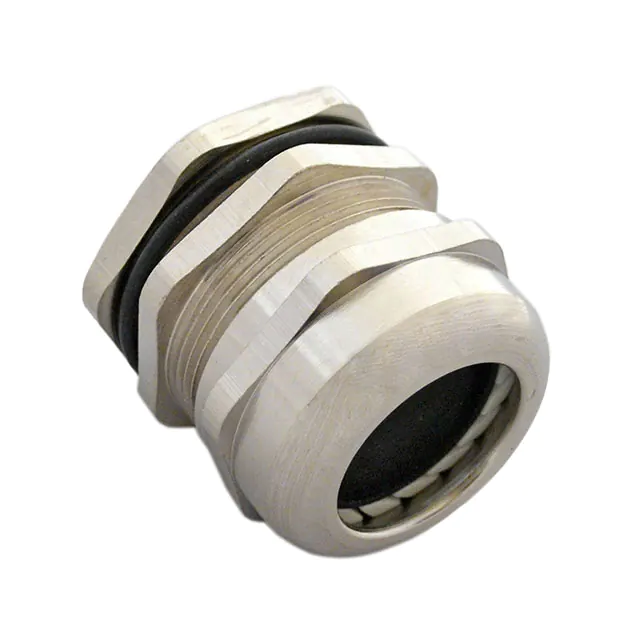

MPG-22329CABLE GLAND 18.03-24.89MM PG29 |
1 |
|
Технический лист |
Cable Gland | 0.710" (18.03mm) | 0.980" (24.89mm) | PG29 | 0.320" (8.13mm) | - | 1.460" (37.1mm) | Brass, Nickel Plated | Gasket | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
50.663 PA7001CABLE GLAND 32-42MM M63 POLYAMID |
5 |
|
Технический лист |
Cable Gland | 1.260" (32.00mm) | 1.654" (42.00mm) | M63x1.5 | 0.472" (12.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
50.663 PA/SWLCABLE GLAND 32-42MM M63 POLYAMID |
0 |
|
Технический лист |
Cable Gland | 1.260" (32.00mm) | 1.654" (42.00mm) | M63x1.5 | 0.709" (18.01mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C |
