Кабельные и шнуровые зажимы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Тип | Внешний диаметр кабеля (мин.) | Внешний диаметр кабеля (макс.) | Размер резьбы | Длина резьбы | Размер втулки кабелепровода | Размер отверстия панели | Материал | Включает | Цвет | Защита от проникновения | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
53806743CABLE GLAND 11-21MM M32 S STEEL |
0 |
|
Технический лист |
Cable Gland | 0.433" (11.00mm) | 0.827" (21.00mm) | M32x1.5 | 0.354" (9.00mm) | - | - | Stainless Steel | O-Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 2, 4X, 6, 12 | -40°C ~ 100°C | |
|
53105300CABLE GLAND 4.01-6MM M12 S STEEL |
0 |
|
Технический лист |
Cable Gland | 0.158" (4.01mm) | 0.236" (6.00mm) | M12x1.5 | 0.256" (6.50mm) | - | - | Stainless Steel | - | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 2, 4, 6, 12 | -20°C ~ 100°C | |
|
LEX3212MSHTSCABLE GLAND 44-56MM 2 1/2" NPT |
0 |
|
Технический лист |
Cable Gland | 1.732" (44.00mm) | 2.205" (56.00mm) | 2 1/2" NPT | 1.575" (40.0mm) | - | - | Brass, Nickel Plated | - | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 130°C | |
|

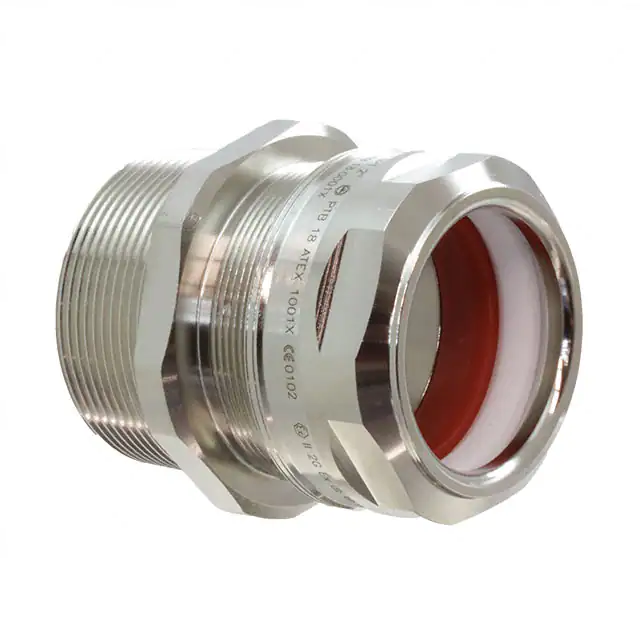

LEX3200VA/316LHTSCABLE GLAND 33.02-44.96MM 2" NPT |
1 |
|
Технический лист |
Cable Gland | 1.300" (33.02mm) | 1.770" (44.96mm) | 2" NPT | 1.063" (27.00mm) | - | 2.087" (53.0mm) | Stainless Steel | Sealing Ring | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 130°C | |
|
50.009 PACABLE GLAND 4-8MM PG9 POLYAMIDE |
0 |
|
Технический лист |
Cable Gland | 0.157" (4.00mm) | 0.315" (8.00mm) | PG9 | 0.315" (8.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
50011/7035/15CABLE GLAND 5-10MM PG11 POLYAMID |
0 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | PG11 | 0.591" (15.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
50.134 PACABLE GLAND 14-18.01MM 3/4" NPT |
0 |
|
Технический лист |
Cable Gland | 0.551" (14.00mm) | 0.709" (18.01mm) | 3/4" NPT | 0.591" (15.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
50.016 PA/SWCABLE GLAND 10-14MM PG16 |
0 |
|
Технический лист |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | PG16 | 0.394" (10.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
50.013 PACABLE GLAND 6-12MM PG13.5 |
0 |
|
Технический лист |
Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | PG13.5 | 0.354" (9.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
50.112PAR7035CABLE GLAND 7-12MM 1/2" NPT |
0 |
|
Технический лист |
Cable Gland | 0.276" (7.00mm) | 0.472" (12.00mm) | 1/2" NPT | 0.591" (15.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
50.009PA/SW/GCABLE GLAND 4-8MM PG9 POLY SET |
0 |
|
Технический лист |
Cable Gland | 0.157" (4.00mm) | 0.315" (8.00mm) | PG9 | 0.315" (8.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | - | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
50616PA7035/4X35CABLE GLAND M16 POLYAMIDE |
0 |
|
Технический лист |
Cable Gland | - | - | M16x1.5 | 0.315" (8.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Gray | IP65 - Dust Tight, Water Resistant | -40°C ~ 100°C | |
|
50.616 PA/FLCABLE GLAND 5-10MM M16 POLYAMIDE |
0 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | M16x1.5 | 0.315" (8.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
50.112 PACABLE GLAND 10-14MM 1/2" NPT |
0 |
|
Технический лист |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | 1/2" NPT | 0.591" (15.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
50.011PA/SW/GCABLE GLAND 5-10MM PG11 POLY SET |
4 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | PG11 | 0.315" (8.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | - | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

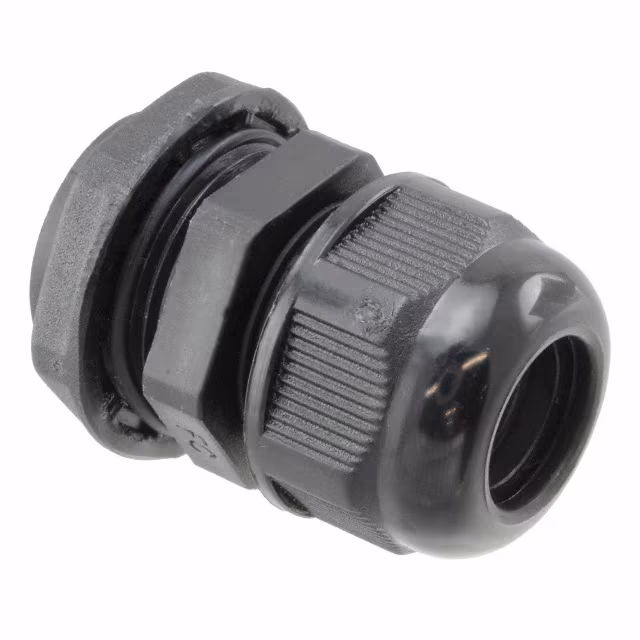

GCL1000-JCABLE GLAND 9-14MM M25 POLYAMIDE |
0 |
|
Технический лист |
Cable Gland | 0.354" (9.00mm) | 0.551" (14.00mm) | M25x1.5 | 0.591" (15.00mm) | - | 1.004" (25.5mm) | Polyamide (PA), Nylon | Locknut, O-Ring, Seal | Black | IP67 - Dust Tight, Waterproof | -30°C ~ 120°C | |
|
|
50013/7035/15CABLE GLAND 6-12MM PG13.5 |
0 |
|
Технический лист |
Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | PG13.5 | 0.591" (15.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
50.620 PA/FLCABLE GLAND 8-13MM M20 POLYAMIDE |
0 |
|
Технический лист |
Cable Gland | 0.315" (8.00mm) | 0.512" (13.00mm) | M20x1.5 | 0.315" (8.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
50620PA7035/2X6CABLE GLAND M20 POLYAMIDE |
0 |
|
Технический лист |
Cable Gland | - | - | M20x1.5 | 0.315" (8.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Gray | IP65 - Dust Tight, Water Resistant | -40°C ~ 100°C | |
|
50011PABS7035CABLE GLAND 5-10MM PG11 POLYAMID |
0 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | PG11 | 0.315" (8.00mm) | - | - | Polyamide (PA6), Nylon 6 | Strain Relief | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C |
