Кабельные и шнуровые зажимы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Тип | Внешний диаметр кабеля (мин.) | Внешний диаметр кабеля (макс.) | Размер резьбы | Длина резьбы | Размер втулки кабелепровода | Размер отверстия панели | Материал | Включает | Цвет | Защита от проникновения | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
09000005170CABLE GLAND PG36 THERMOPL |
3 |
|
Технический лист |
Cable Gland | - | - | PG36 | 0.512" (13.00mm) | - | - | Thermoplastic | - | Gray | IP68 - Dust Tight, Waterproof | - | |
|
1300980058CABLE GRP RA 6.35-7.93MM 1/2"NPT |
3 |
|
Технический лист |
Cable Grip - 90° | 0.250" (6.35mm) | 0.312" (7.93mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
50.663 PA/RSWCABLE GLAND 27-48MM M63 POLYAMID |
0 |
|
Технический лист |
Cable Gland | 1.063" (27.00mm) | 1.890" (48.00mm) | M63x1.5 | 0.472" (12.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
21521.6CABLE GLAND 11.5-16.5MM PG16 |
2 |
|
Технический лист |
Cable Gland | 0.453" (11.50mm) | 0.650" (16.50mm) | PG16 | 0.433" (11.00mm) | - | - | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | - | |
|
1411192CABLE GLAND 19-27MM M40 BRASS |
5 |
|
Технический лист |
Cable Gland | 0.748" (19.00mm) | 1.063" (27.00mm) | M40 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 100°C | |
|
|
50.663 PA7035LCABLE GLAND 32-42MM M63 POLYAMID |
4 |
|
Технический лист |
Cable Gland | 1.260" (32.00mm) | 1.654" (42.00mm) | M63x1.5 | 0.709" (18.01mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
S2536CABLE GLAND 27-34MM M50 POLYAMID |
0 |
|
Технический лист |
Cable Gland | 1.063" (27.00mm) | 1.339" (34.00mm) | M50x1.5 | 0.472" (12.00mm) | - | - | Polyamide (PA), Nylon | Locknut, O-Ring | Black | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
K257-1016-00CABLE GLAND 5-10.5MM M16 S STEEL |
4 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.413" (10.50mm) | M16x1.5 | 0.276" (7.00mm) | - | - | Stainless Steel | O-Ring, Seal | Silver | IP66/IP67/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 200°C | |
|

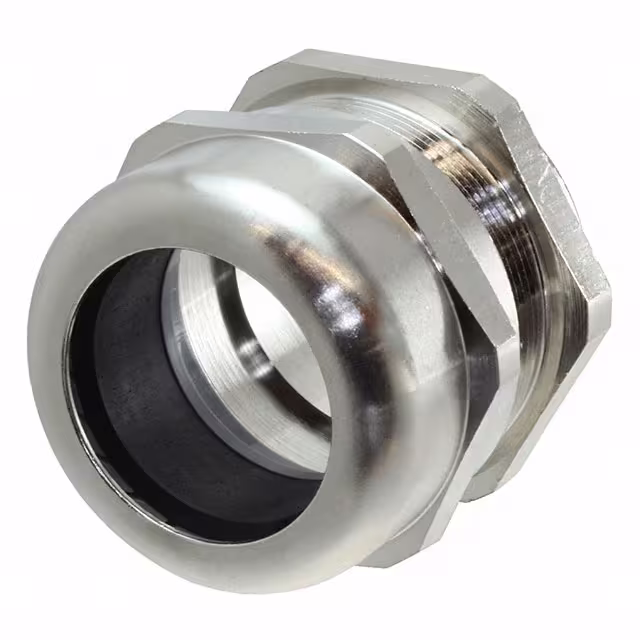

1411168CABLE GLAND 27-38MM M50 BRASS |
1 |
|
Технический лист |
Cable Gland | 1.063" (27.00mm) | 1.496" (38.00mm) | M50 | 0.354" (9.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 4X | -40°C ~ 100°C | |
|
2584150000CABLE GLAND M40 POLYAMIDE |
5 |
|
Технический лист |
Cable Gland - Splittable Body | - | - | M40 | 0.591" (15.00mm) | - | - | Polyamide (PA), Nylon, Glass Filled | Seal | Black | IP66 - Dust Tight, Water Resistant | -40°C ~ 120°C | |
|

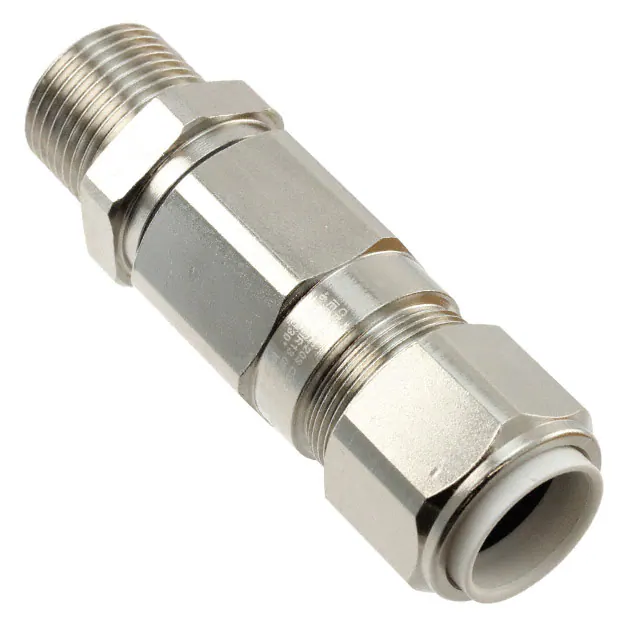

1411088CABLE GLAND 9.5-15.9MM M20 BRASS |
1 |
|
Технический лист |
Cable Gland | 0.374" (9.50mm) | 0.626" (15.90mm) | M20 | 0.591" (15.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 130°C | |
|

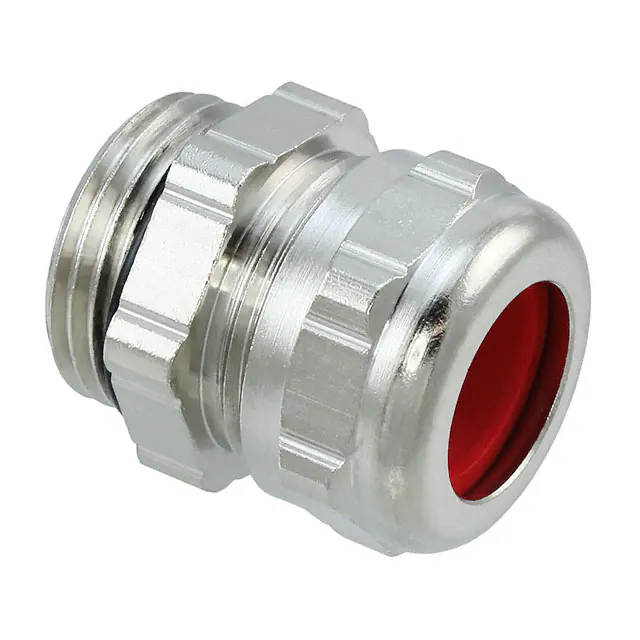

19620005084CABLE GLAND 9-13MM M20 |
5 |
|
Технический лист |
Cable Gland | 0.354" (9.00mm) | 0.512" (13.00mm) | M20 | - | - | - | - | - | - | IP68 - Dust Tight, Waterproof | -40°C ~ 130°C | |
|

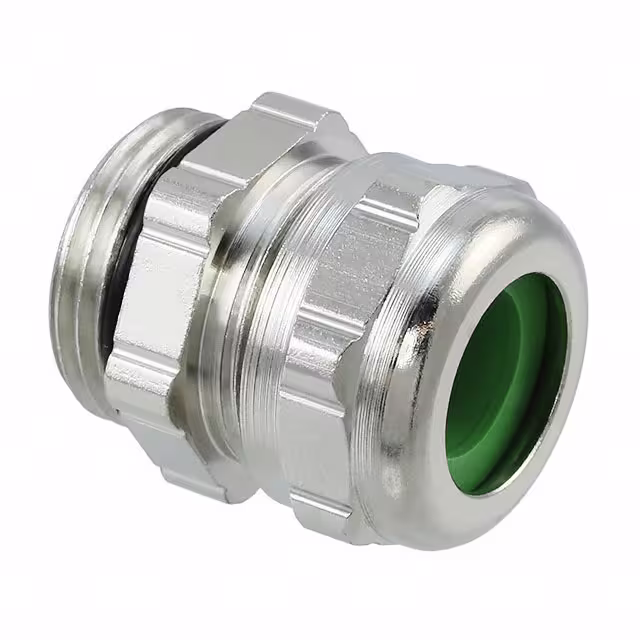

19620005082CABLE GLAND 7-10.5MM M20 |
4 |
|
Технический лист |
Cable Gland | 0.276" (7.00mm) | 0.413" (10.50mm) | M20 | - | - | - | - | - | - | IP68 - Dust Tight, Waterproof | -40°C ~ 130°C | |
|

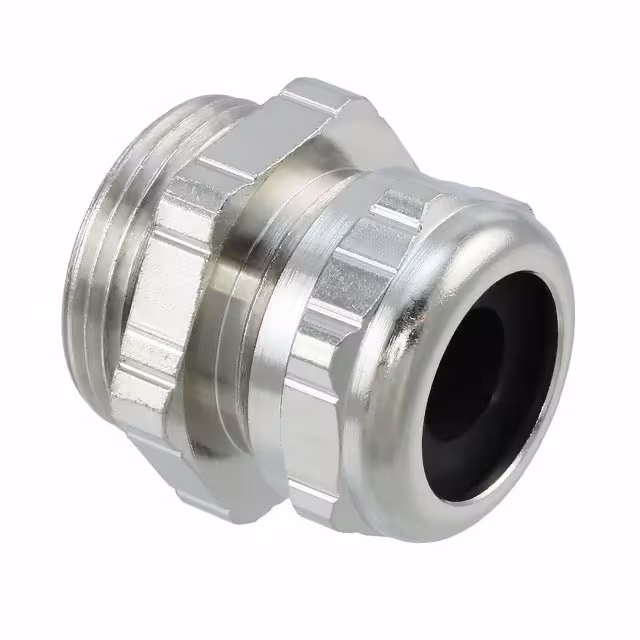

19620005090CABLE GLAND 6.5-9.5MM M25 |
3 |
|
Технический лист |
Cable Gland | 0.256" (6.50mm) | 0.374" (9.50mm) | M25 | - | - | - | - | - | - | IP68 - Dust Tight, Waterproof | -40°C ~ 130°C | |
|
S1536CABLE GLAND 27-34MM M50 POLYAMID |
0 |
|
Технический лист |
Cable Gland | 1.063" (27.00mm) | 1.339" (34.00mm) | M50x1.5 | 0.472" (12.00mm) | - | - | Polyamide (PA), Nylon | Locknut, O-Ring | Gray | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
S1236CABLE GLAND 17-26MM PG36 |
0 |
|
Технический лист |
Cable Gland | 0.669" (17.00mm) | 1.024" (26.00mm) | PG36 | 0.512" (13.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
|
S2636CABLE GLAND 24-29MM M50 POLYAMID |
3 |
|
Технический лист |
Cable Gland | 0.945" (24.00mm) | 1.142" (29.00mm) | M50x1.5 | 0.472" (12.00mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
|
S1142CABLE GLAND 35-38MM PG42 |
0 |
|
Технический лист |
Cable Gland | 1.378" (35.00mm) | 1.496" (38.00mm) | PG42 | 0.512" (13.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
S2242CABLE GLAND 22-31MM PG42 |
4 |
|
Технический лист |
Cable Gland | 0.866" (22.00mm) | 1.220" (31.00mm) | PG42 | 0.512" (13.00mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
|
S1242CABLE GLAND 22-31MM PG42 |
0 |
|
Технический лист |
Cable Gland | 0.866" (22.00mm) | 1.220" (31.00mm) | PG42 | 0.512" (13.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -40°C ~ 100°C |
