Кабельные и шнуровые зажимы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Тип | Внешний диаметр кабеля (мин.) | Внешний диаметр кабеля (макс.) | Размер резьбы | Длина резьбы | Размер втулки кабелепровода | Размер отверстия панели | Материал | Включает | Цвет | Защита от проникновения | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

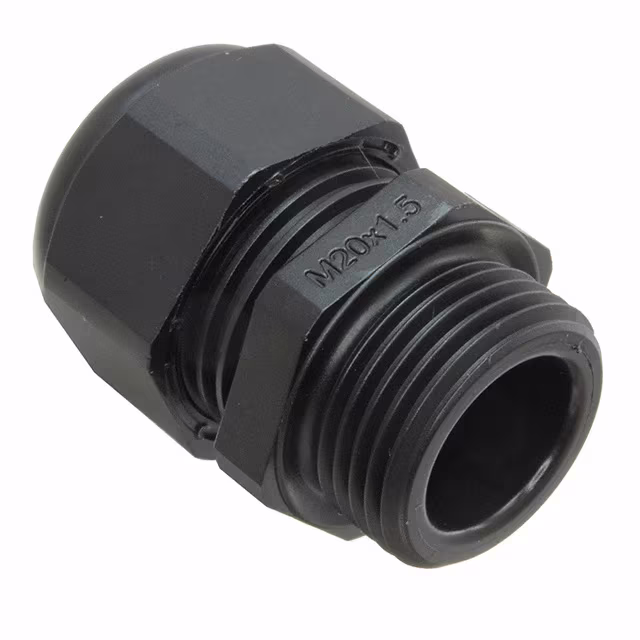

19000005132CABLE GLAND 6-12MM M20 PLASTIC |
22 |
|
Технический лист |
Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | M20 | - | - | - | Plastic | - | Black | - | -40°C ~ 100°C | |
|
CGM25N24X3CABLE GLAND 3-6MM M25 THERMOPL |
22 |
|
Технический лист |
Cable Gland | 0.118" (3.00mm) | 0.236" (6.00mm) | M25x1.5 | 0.310" (7.87mm) | - | - | Thermoplastic | O-Ring, Seal | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
PPC21 SL080CABLE GLAND 13-18.01MM PG21 |
15 |
|
Технический лист |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | PG21 | 0.433" (11.00mm) | - | 1.114" (28.3mm) | Polyamide (PA), Nylon | Locknut | Gray | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
|
PMC25 SL080CABLE GLAND 11-16.99MM M25 |
9 |
|
Технический лист |
Cable Gland | 0.433" (11.00mm) | 0.669" (16.99mm) | M25x1.5 | 0.315" (8.00mm) | - | 0.984" (25.0mm) | Polyamide (PA), Nylon | Locknut | Gray | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
PNS1/2 SL080CABLE GLAND 6-12MM 1/2" NPT |
20 |
|
Технический лист |
Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | 1/2" NPT | 0.591" (15.00mm) | - | 0.840" (21.3mm) | Polyamide (PA), Nylon | Gasket, Nut, Strain Relief | Gray | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
IPG-22236-GCABLE GLAND 22.1-32MM PG36 |
9 |
|
Технический лист |
Cable Gland | 0.870" (22.10mm) | 1.260" (32.00mm) | PG36 | 0.530" (13.46mm) | - | 1.850" (47.0mm) | Polyamide (PA), Nylon | Gasket | Gray | IP66 - Dust Tight, Water Resistant | -20°C ~ 65°C | |
|
|
PPS16 SL080CABLE GLAND 10-14MM PG16 |
22 |
|
Технический лист |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | PG16 | 0.394" (10.00mm) | - | 0.886" (22.5mm) | Polyamide (PA), Nylon | Gasket, Locknut | Gray | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
MPG-22311CABLE GLAND 5.08-9.91MM PG11 |
5 |
|
Технический лист |
Cable Gland | 0.200" (5.08mm) | 0.390" (9.91mm) | PG11 | 0.240" (6.10mm) | - | 0.730" (18.5mm) | Brass, Nickel Plated | Gasket | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
K160-1012-00CABLE GLAND 3-8MM M12 BRASS |
19 |
|
Технический лист |
Cable Gland | 0.118" (3.00mm) | 0.315" (8.00mm) | M12x1.5 | 0.256" (6.50mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP67/IP69 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 100°C | |
|
1772200000CABLE GLAND 3-6.5MM M12 BRASS |
18 |
|
Технический лист |
Cable Gland | 0.118" (3.00mm) | 0.256" (6.50mm) | M12 | 0.236" (6.00mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP54/IP66/IP67/IP68/IP69K - Dust Protected, Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
09000005153CABLE GLAND 13-18.01MM PG21 |
11 |
|
Технический лист |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | PG21 | 0.551" (14.00mm) | - | - | - | - | - | IP68 - Dust Tight, Waterproof | - | |
|

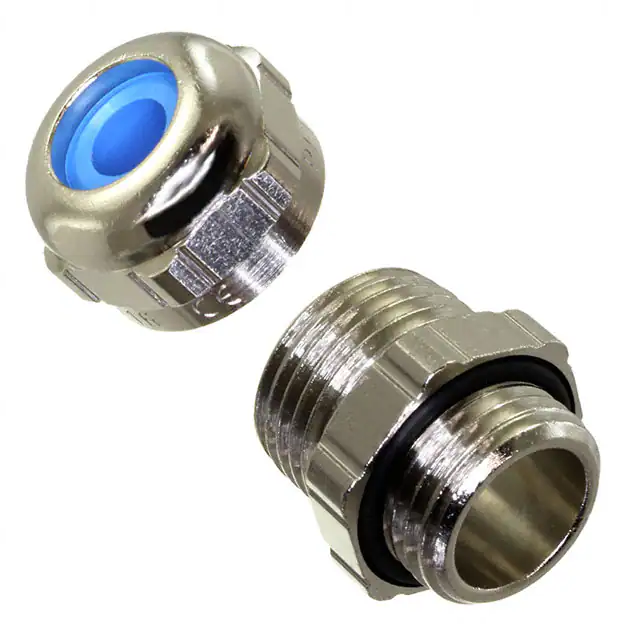

96571.6CABLE FEEDTHROUGH 7.11-10.92MM |
4 |
|
Технический лист |
Cable Feedthrough | 0.280" (7.11mm) | 0.430" (10.92mm) | M16x1.5 | 0.240" (6.10mm) | - | 0.630" (16.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
19000005185CABLE GLAND 10-14MM M20 POLYAMID |
7 |
|
Технический лист |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | M20 | - | - | - | Polyamide (PA), Nylon | - | Black | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
09000005165CABLE GLAND PG11 THERMOPL |
0 |
|
Технический лист |
Cable Gland | - | - | PG11 | 0.394" (10.00mm) | - | - | Thermoplastic | - | Gray | IP68 - Dust Tight, Waterproof | - | |
|
MPG-223135CABLE GLAND 6.1-11.94MM PG13.5 |
11 |
|
Технический лист |
Cable Gland | 0.240" (6.10mm) | 0.470" (11.94mm) | PG13.5 | 0.280" (7.11mm) | - | 0.800" (20.3mm) | Brass, Nickel Plated | Gasket | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
A1100.09.105CABLE GLAND 8-10.5MM PG9 BRASS |
23 |
|
Технический лист |
Cable Gland | 0.315" (8.00mm) | 0.413" (10.50mm) | PG9 | 0.394" (10.00mm) | - | 0.598" (15.2mm) | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|

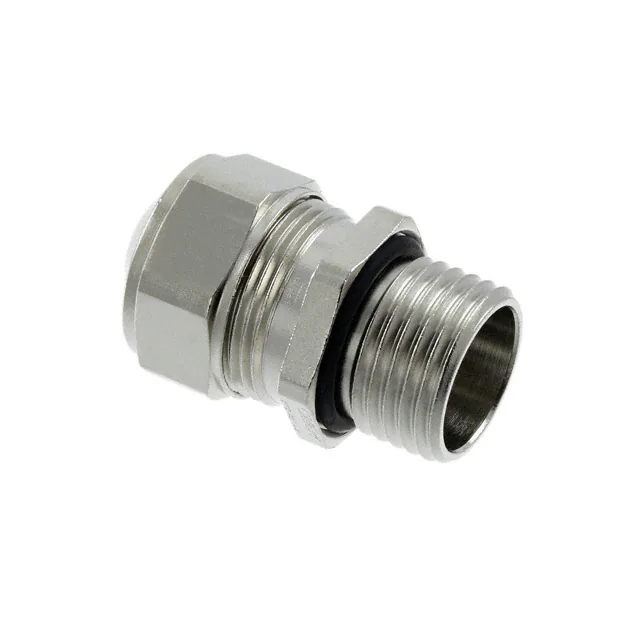

A1100.09.060CABLE GLAND 4.5-6MM PG9 BRASS |
10 |
|
Технический лист |
Cable Gland | 0.177" (4.50mm) | 0.236" (6.00mm) | PG9 | 0.394" (10.00mm) | - | 0.598" (15.2mm) | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
PNC3/4 BK080CABLE GLAND 13-18.01MM 3/4" NPT |
0 |
|
Технический лист |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | 3/4" NPT | 0.591" (15.00mm) | - | 1.050" (26.7mm) | Polyamide (PA), Nylon | Locknut | Black | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
CG-PG29-1-BKCABLE GLAND 12-20MM PG29 |
10 |
|
Технический лист |
Cable Gland | 0.472" (12.00mm) | 0.787" (20.00mm) | PG29 | 0.433" (11.00mm) | - | 1.472" (37.4mm) | Polyamide (PA), Nylon | O-Ring, Sealing Gland, Sealing Nut | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
.jpg)
|

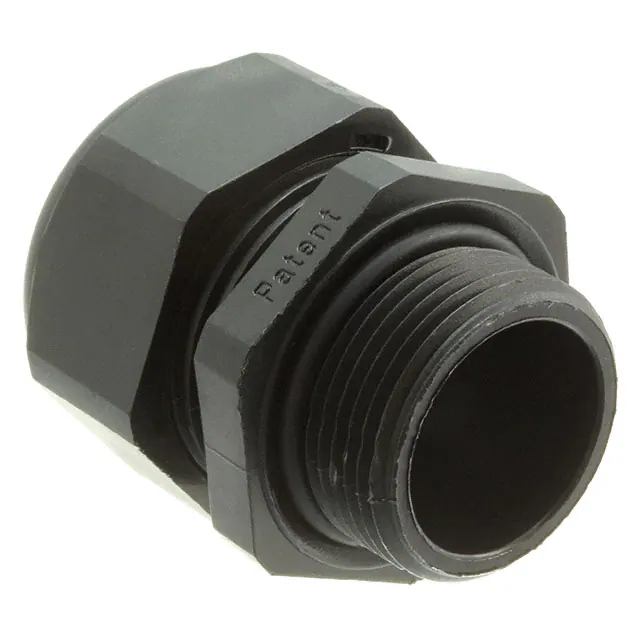

19000005193CABLE GLAND 13-18.01MM M25 |
9 |
|
Технический лист |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | M25 | - | - | - | Polyamide (PA), Nylon | - | Black | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C |
