Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1011407GRN-60-1007 OVP |
50 |
|
Технический лист |
GRN-60 (60W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 1.3 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.83" H (76.2mm x 50.8mm x 21.1mm) | CE, cURus, TUV, UKCA |
|
|
1011402GRN-60-1002 OVP |
50 |
|
Технический лист |
GRN-60 (60W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 9 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.83" H (76.2mm x 50.8mm x 21.1mm) | CE, cURus, TUV, UKCA |
|
|
1011401GRN-60-1001 OVP |
50 |
|
Технический лист |
GRN-60 (60W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 9 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | - | 80% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.83" H (76.2mm x 50.8mm x 21.1mm) | CE, cURus, TUV, UKCA |
|

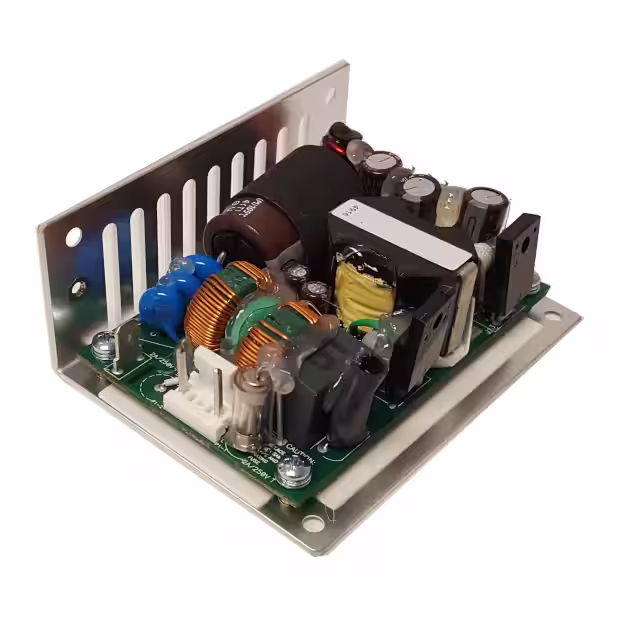

1011335CHGRN-60-1005 CH |
50 |
|
Технический лист |
GRN-60 (60W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 3.20" L x 2.43" W x 1.28" H (81.3mm x 61.7mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011336CHGRN-60-1006 CH |
50 |
|
Технический лист |
GRN-60 (60W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 2.2 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 3.20" L x 2.43" W x 1.28" H (81.3mm x 61.7mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011333CHGRN-60-1003 CH |
50 |
|
Технический лист |
GRN-60 (60W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 5 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 3.20" L x 2.43" W x 1.28" H (81.3mm x 61.7mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011332CHGRN-60-1002 CH |
50 |
|
Технический лист |
GRN-60 (60W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 9 A | - | - | - | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 3.20" L x 2.43" W x 1.28" H (81.3mm x 61.7mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011331CHGRN-60-1001 CH |
50 |
|
Технический лист |
GRN-60 (60W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 9 A | - | - | - | - | - | 30W | ITE (Commercial), Medical | - | 80% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 3.20" L x 2.43" W x 1.28" H (81.3mm x 61.7mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011360CHGRN-60-1008 CH |
50 |
|
Технический лист |
GRN-60 (60W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 19V | - | - | - | - | - | 3.1 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 3.20" L x 2.43" W x 1.28" H (81.3mm x 61.7mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011337CHGRN-60-1007 CH |
50 |
|
Технический лист |
GRN-60 (60W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 1.3 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 3.20" L x 2.43" W x 1.28" H (81.3mm x 61.7mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011334CHGRN-60-1004 CH |
50 |
|
Технический лист |
GRN-60 (60W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 4 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 3.20" L x 2.43" W x 1.28" H (81.3mm x 61.7mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
1010770SRP-25-3003 |
50 |
|
Технический лист |
SRP-25 (25W) | Box | Active | Open Frame | 3 | 100 ~ 240 VAC | 3.3V | 6V | 5V | - | - | - | 2.5 A | 2 A | 1 A | - | - | - | 25W | Industrial, ITE (Commercial), Medical | - | 69% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.25" W x 1.00" H (101.6mm x 57.2mm x 25.4mm) | CE, cURus, TUV, UKCA |
|
ASM65-120-BET-0F0AC/DC CONVERTER 12V 65W |
69 |
|
Технический лист |
ASM30 | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 12V | - | - | - | - | - | 5.42 A | - | - | - | - | - | 65W | ITE (Commercial), Medical | 4 kV | 88% | -40°C ~ 80°C | - | - | 3.41" L x 2.48" W x 1.38" H (86.5mm x 63.0mm x 35.0mm) | CB, CSA, cTUVus, TUV |
|
|
ASM65-240-BET-0F0AC/DC CONVERTER 24V 65W |
64 |
|
Технический лист |
ASM30 | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 24V | - | - | - | - | - | 2.71 A | - | - | - | - | - | 65W | ITE (Commercial), Medical | 4 kV | 88% | -40°C ~ 80°C | - | - | 3.41" L x 2.48" W x 1.38" H (86.5mm x 63.0mm x 35.0mm) | CB, CSA, cTUVus, TUV |
|

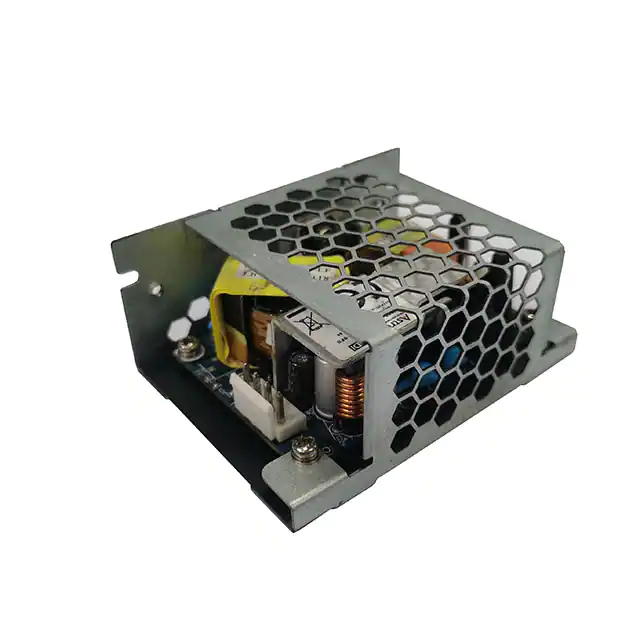

ASM65-075-BEH-0F0AC/DC CONVERTER 7.5V 65W |
31 |
|
Технический лист |
ASM30 | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 7.5V | - | - | - | - | - | 8.67 A | - | - | - | - | - | 65W | ITE (Commercial), Medical | 4 kV | 88% | -40°C ~ 80°C | - | - | 3.41" L x 2.48" W x 1.38" H (86.5mm x 63.0mm x 35.0mm) | CB, CSA, cTUVus, TUV |
|
|
ASM65-050-BEH-0F0AC/DC CONVERTER 5V 65W |
31 |
|
Технический лист |
ASM30 | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 5V | - | - | - | - | - | 13 A | - | - | - | - | - | 65W | ITE (Commercial), Medical | 4 kV | 88% | -40°C ~ 80°C | - | - | 3.41" L x 2.48" W x 1.38" H (86.5mm x 63.0mm x 35.0mm) | CB, CSA, cTUVus, TUV |
|
LOF350-20B24AC/DC CONVERTER 24V 200W |
1,004 |
|
Технический лист |
LOF350-20Bxx (350W) | Tray | Not For New Designs | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 8.33 A | - | - | - | - | - | 200W | Household Appliances, ITE (Commercial), Medical | 4 kV | 93% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | CE, cURus |
|

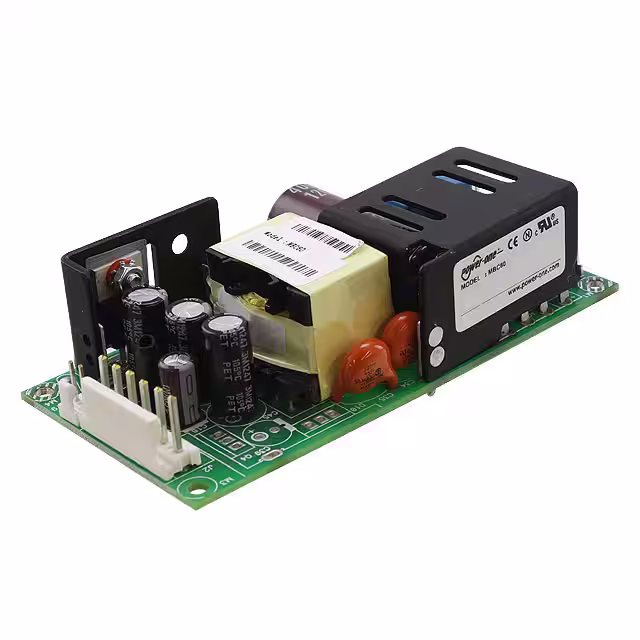

MBC60-3000GAC/DC CNVRTR 5.2V 12.5V -12.8V |
0 |
|
Технический лист |
MBC60 (60W) | Bulk | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 5.2V | 12.5V | -12.8V | - | - | - | 8 A | 3 A | 500 mA | - | - | - | 60W | Medical | 4.242 kV | 85% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | CE, CSA |
|

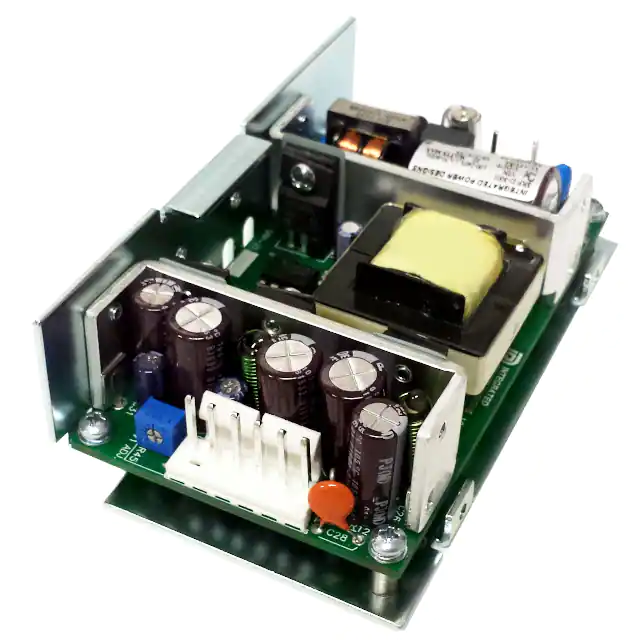

1010426CHSRP-25-1003 CH |
50 |
|
Технический лист |
SRP-25 (25W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 2.08 A | - | - | - | - | - | 25W | Industrial, ITE (Commercial), Medical | - | 69% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.21" L x 2.47" W x 1.40" H (106.9mm x 62.7mm x 35.6mm) | CE, cURus, TUV, UKCA |
|
|
1010424CHSRP-25-1001 CH |
50 |
|
Технический лист |
SRP-25 (25W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 3.3V | - | - | - | - | - | 6 A | - | - | - | - | - | 20W | Industrial, ITE (Commercial), Medical | - | 69% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.21" L x 2.47" W x 1.40" H (106.9mm x 62.7mm x 35.6mm) | CE, cURus, TUV, UKCA |
