Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1010411CHCOSRW-100-4006 CHCO |
50 |
|
Технический лист |
SRW-100 (100W) | Box | Active | Enclosed | 4 | 100 ~ 240 VAC | 5V | 3.4V | 9V | 24V | - | - | 10 A | 4 A | 1 A | 500 mA | - | - | 100W | Industrial, ITE (Commercial), Medical | - | 76% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.75" H (127.0mm x 83.8mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1010270CHCOSRW-100-4002 CHCO |
50 |
|
Технический лист |
SRW-100 (100W) | Box | Active | Enclosed | 4 | 100 ~ 240 VAC | 5V | 24V | 12V | -12V | - | - | 10 A | 2 A | 2 A | 1 A | - | - | 100W | Industrial, ITE (Commercial), Medical | - | 76% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.75" H (127.0mm x 83.8mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1010269CHCOSRW-100-4001 CHCO |
50 |
|
Технический лист |
SRW-100 (100W) | Box | Active | Enclosed | 4 | 100 ~ 240 VAC | 3.3V | 5V | 12V | -12V | - | - | 10 A | 4 A | 2 A | 1 A | - | - | 100W | Industrial, ITE (Commercial), Medical | - | 76% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.30" W x 1.75" H (127.0mm x 83.8mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
MCC600-1T24AC/DC CONVERTER 24V 600W |
16 |
|
- |
MCC600 (600W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 390 VDC | 24V | - | - | - | - | - | 25 A | - | - | - | - | - | 600W | Medical | 4.245 kV | 93% | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 8.50" L x 5.00" W x 1.61" H (216.0mm x 127.0mm x 41.0mm) | CE, NEMKO |
|

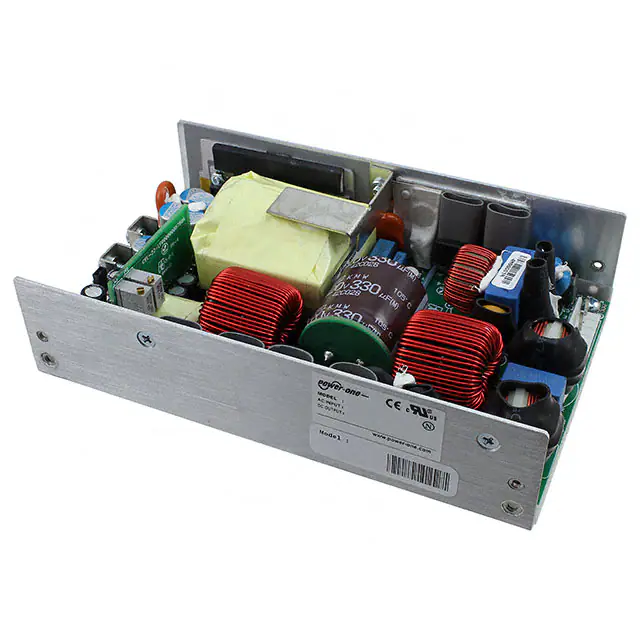

ABC450-1T12GAC/DC CONVERTER 12V 250W |
0 |
|
Технический лист |
ABC450 (450W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 20.8 A | - | - | - | - | - | 250W (450W Forced Air) | ITE (Commercial) | 4.242 kV | 86% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.50" L x 4.00" W x 1.61" H (165.1mm x 101.6mm x 41.0mm) | CE |
|
1010875NXT-225-1006,RE STBY |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 9.4 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.0mm) | CE, cURus, TUV, UKCA |
|
|
1010870NXT-225-1001,RE STBY |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 2.5V | - | - | - | - | - | 53 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.0mm) | CE, cURus, TUV, UKCA |
|
|
1010873NXT-225-1004,RE STBY |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 18.8 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.0mm) | CE, cURus, TUV, UKCA |
|
|
1010874NXT-225-1005,RE STBY |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 15V | - | - | - | - | - | 15 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.0mm) | CE, cURus, TUV, UKCA |
|
|
1010871NXT-225-1002,RE STBY |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 3.3V | - | - | - | - | - | 53 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.0mm) | CE, cURus, TUV, UKCA |
|
|
1010877NXT-225-1008,RE STBY |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 48V | - | - | - | - | - | 4.7 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.0mm) | CE, cURus, TUV, UKCA |
|
|
1010876NXT-225-1007,RE STBY |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 28V | - | - | - | - | - | 8 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.0mm) | CE, cURus, TUV, UKCA |
|
1010742CHREL-185-2006 CH |
50 |
|
Технический лист |
REL-185 (185W) | Box | Active | Chassis | 2 | 85 ~ 264 VAC | 15V | 24V | - | - | - | - | 6 A | 4 A | - | - | - | - | 185W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.23" L x 4.36" W x 1.74" H (183.6mm x 110.7mm x 44.2mm) | CE, cURus, TUV, UKCA |
|
|
1010572CHREL-185-2004 CH |
50 |
|
Технический лист |
REL-185 (185W) | Box | Active | Chassis | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 10 A | 6 A | - | - | - | - | 185W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.23" L x 4.36" W x 1.74" H (183.6mm x 110.7mm x 44.2mm) | CE, cURus, TUV, UKCA |
|
|
1010571CHREL-185-2003 CH |
50 |
|
Технический лист |
REL-185 (185W) | Box | Active | Chassis | 2 | 85 ~ 264 VAC | 5V | 24V | - | - | - | - | 20 A | 4 A | - | - | - | - | 185W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.23" L x 4.36" W x 1.74" H (183.6mm x 110.7mm x 44.2mm) | CE, cURus, TUV, UKCA |
|
|
1010569CHREL-185-2001 CH |
50 |
|
Технический лист |
REL-185 (185W) | Box | Active | Chassis | 2 | 85 ~ 264 VAC | 3.3V | 5V | - | - | - | - | 20 A | 10 A | - | - | - | - | 185W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.23" L x 4.36" W x 1.74" H (183.6mm x 110.7mm x 44.2mm) | CE, cURus, TUV, UKCA |
|
|
1010573CHREL-185-2005 CH |
50 |
|
Технический лист |
REL-185 (185W) | Box | Active | Chassis | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 8 A | 5 A | - | - | - | - | 185W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.23" L x 4.36" W x 1.74" H (183.6mm x 110.7mm x 44.2mm) | CE, cURus, TUV, UKCA |
|
|
1010570CHREL-185-2002 CH |
50 |
|
Технический лист |
REL-185 (185W) | Box | Active | Chassis | 2 | 85 ~ 264 VAC | 5V | 12V | - | - | - | - | 20 A | 8 A | - | - | - | - | 185W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.23" L x 4.36" W x 1.74" H (183.6mm x 110.7mm x 44.2mm) | CE, cURus, TUV, UKCA |
|

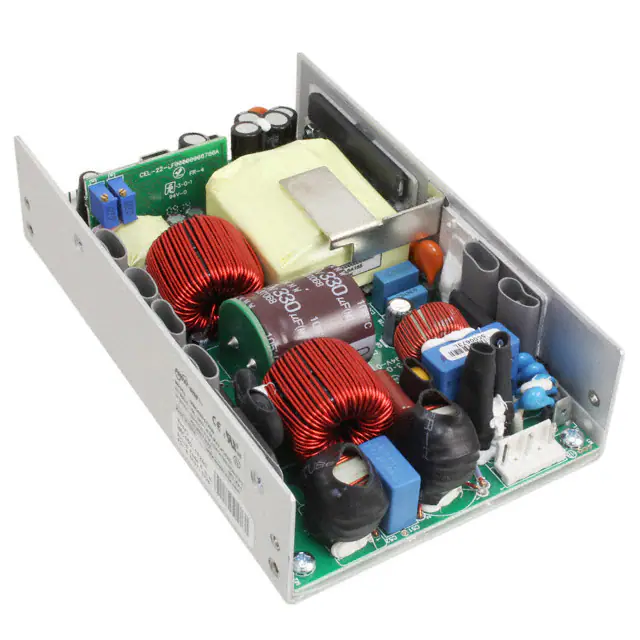

MBC450-1T24GAC/DC CONVERTER 24V 300W |
0 |
|
Технический лист |
MBC450 (450W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 18.75 A | - | - | - | - | - | 300W (450W Forced Air) | Medical | 4.242 kV | 83% | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.50" L x 4.00" W x 1.61" H (165.1mm x 101.6mm x 41.0mm) | CE |
|
1010845CHCONXT-225-1004 CHCO |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 18.8 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.75" H (133.1mm x 79.2mm x 44.5mm) | CE, cURus, TUV, UKCA |
