Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

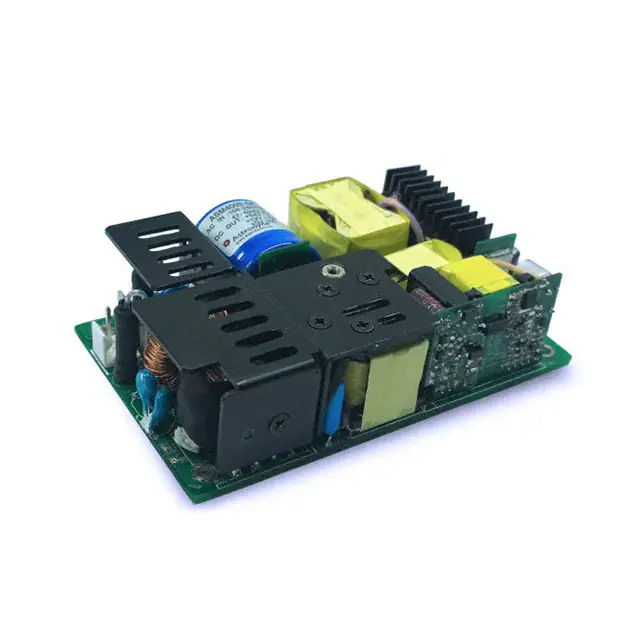

ASM400S-28AC/DC CONVERTER 28V 199W |
396 |
|
Технический лист |
ASM400S (400W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 28V | - | - | - | - | - | 7.1 A | - | - | - | - | - | 199W (400W Forced Air) | Medical | 4 kV | 91% | -20°C ~ 40°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.5mm) | CB, cURus, UL |
|
|
ASM400S-15AC/DC CONVERTER 15V 200W |
83 |
|
Технический лист |
ASM400S (400W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 13.3 A | - | - | - | - | - | 200W (401W Forced Air) | Medical | 4 kV | 90% | -20°C ~ 40°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.5mm) | CB, cURus, UL |
|
|
ASM400S-12AC/DC CONVERTER 12V 200W |
58 |
|
Технический лист |
ASM400S (400W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 200W (400W Forced Air) | Medical | 4 kV | 90% | -20°C ~ 40°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.5mm) | CB, cURus, UL |
|
BSM400S-15AC/DC CONVERTER 15V 200W |
40 |
|
Технический лист |
BSM400S (400W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 13.3 A | - | - | - | - | - | 200W (401W Forced Air) | Medical | 4 kV | 90% | -20°C ~ 40°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.5mm) | CB, cURus, UL |
|
|
ASM400S-19AC/DC CONVERTER 19V 200W |
29 |
|
Технический лист |
ASM400S (400W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 19V | - | - | - | - | - | 10.5 A | - | - | - | - | - | 200W (401W Forced Air) | Medical | 4 kV | 91% | -20°C ~ 40°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.5mm) | CB, cURus, UL |
|

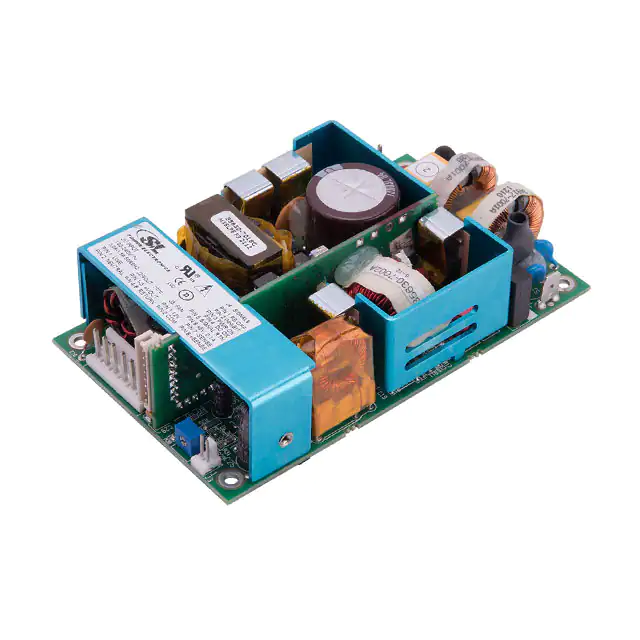

GNT248GAC/DC CONVERTER 48V 200W |
0 |
|
Технический лист |
GNT200 (200W) | Bulk | Obsolete | Open Frame | 1 | 100 ~ 240 VAC | 48V | - | - | - | - | - | 2.9 A | - | - | - | - | - | 200W | ITE (Commercial) | - | 90% | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm) | CE, cURus, TUV |
|
1010742REL-185-2006 |
50 |
|
Технический лист |
REL-185 (185W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC | 15V | 24V | - | - | - | - | 6 A | 4 A | - | - | - | - | 185W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.25" W x 1.31" H (177.8mm x 107.9mm x 33.3mm) | CE, cURus, TUV, UKCA |
|
|
1010573REL-185-2005 |
30 |
|
Технический лист |
REL-185 (185W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 8 A | 5 A | - | - | - | - | 185W | Industrial, ITE (Commercial), Laboratory, Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 4.25" W x 1.31" H (177.8mm x 107.9mm x 33.3mm) | CE, cURus, TUV, UKCA |
|
MD5-12-OV-AAC/DC CONVERTER 5V 60W |
0 |
|
Технический лист |
Linear D | Bulk | Obsolete | Linear | 1 | 100 ~ 240 VAC | 5V | - | - | - | - | - | 12 A | - | - | - | - | - | 60W | Medical | - | 45% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 9.00" L x 4.88" W x 2.75" H (228.6mm x 124.0mm x 69.9mm) | CE, cURus, TUV |
|

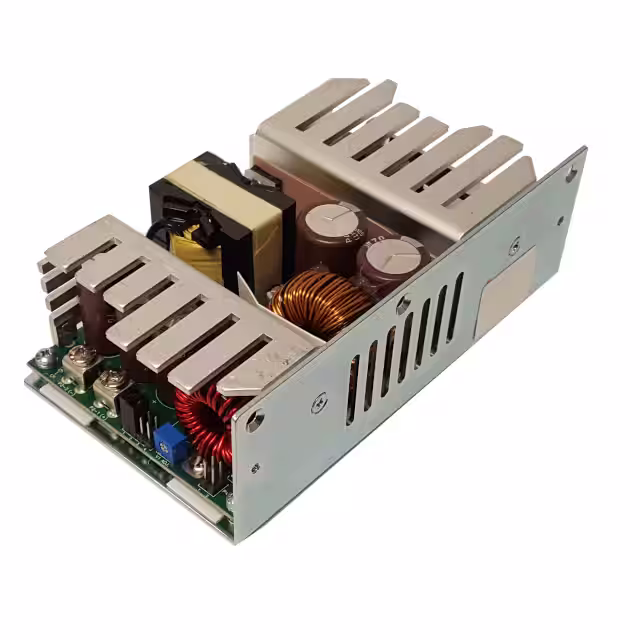

1010844CHNXT-225-1003 CH |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 5V | - | - | - | - | - | 45 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.75" H (133.1mm x 79.2mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1010846CHNXT-225-1005 CH |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 15V | - | - | - | - | - | 15 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.75" H (133.1mm x 79.2mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1010849CHNXT-225-1008 CH |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 48V | - | - | - | - | - | 4.7 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.75" H (133.1mm x 79.2mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1010847CHNXT-225-1006 CH |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 9.4 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.75" H (133.1mm x 79.2mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1010843CHNXT-225-1002 CH |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 3.3V | - | - | - | - | - | 53 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.75" H (133.1mm x 79.2mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1010845CHNXT-225-1004 CH |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 18.8 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.75" H (133.1mm x 79.2mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1010848CHNXT-225-1007 CH |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 28V | - | - | - | - | - | 8 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.75" H (133.1mm x 79.2mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
|
1010842CHNXT-225-1001 CH |
50 |
|
Технический лист |
NXT-225 (225W) | Box | Active | Chassis | 1 | 100 ~ 240 VAC | 2.5V | - | - | - | - | - | 53 A | - | - | - | - | - | 225W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.75" H (133.1mm x 79.2mm x 44.5mm) | CE, cURus, TUV, UKCA |
|
DB15-20-230AC/DC CONVERTER |
995 |
|
Технический лист |
- | Bulk | Active | Enclosed | 2 | 210 ~ 250 VAC | 15V | -15V | - | - | - | - | 200 mA | 200 mA | - | - | - | - | - | ITE (Commercial) | - | - | -20°C ~ 71°C | Adjustable Output | Chassis Mount | 3.53" L x 2.53" W x 1.41" H (89.7mm x 64.3mm x 35.8mm) | CE, cURus |
|
|
15EB40-230AC/DC CONVERTER |
498 |
|
Технический лист |
- | Bulk | Active | Enclosed | 1 | 210 ~ 250 VAC | 15V | - | - | - | - | - | 400 mA | - | - | - | - | - | - | ITE (Commercial) | - | - | -20°C ~ 71°C | Adjustable Output, Universal Input | Chassis Mount | 3.53" L x 2.53" W x 1.41" H (89.7mm x 64.3mm x 35.8mm) | CE, cURus |
|
1010897CHCONXT-175-1004,RE STBY CHCO |
50 |
|
Технический лист |
NXT-175 (175W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 14.6 A | - | - | - | - | - | 175W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.24" L x 3.12" W x 1.53" H (133.1mm x 79.2mm x 38.9mm) | CE, cURus, TUV, UKCA |
